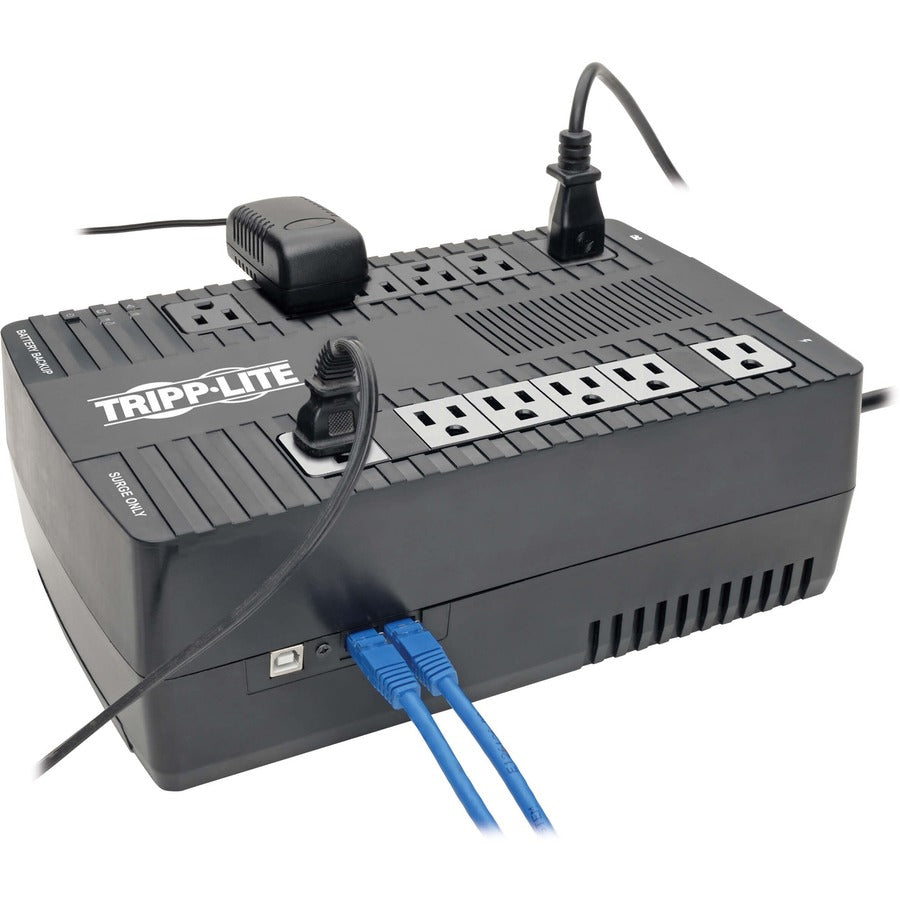

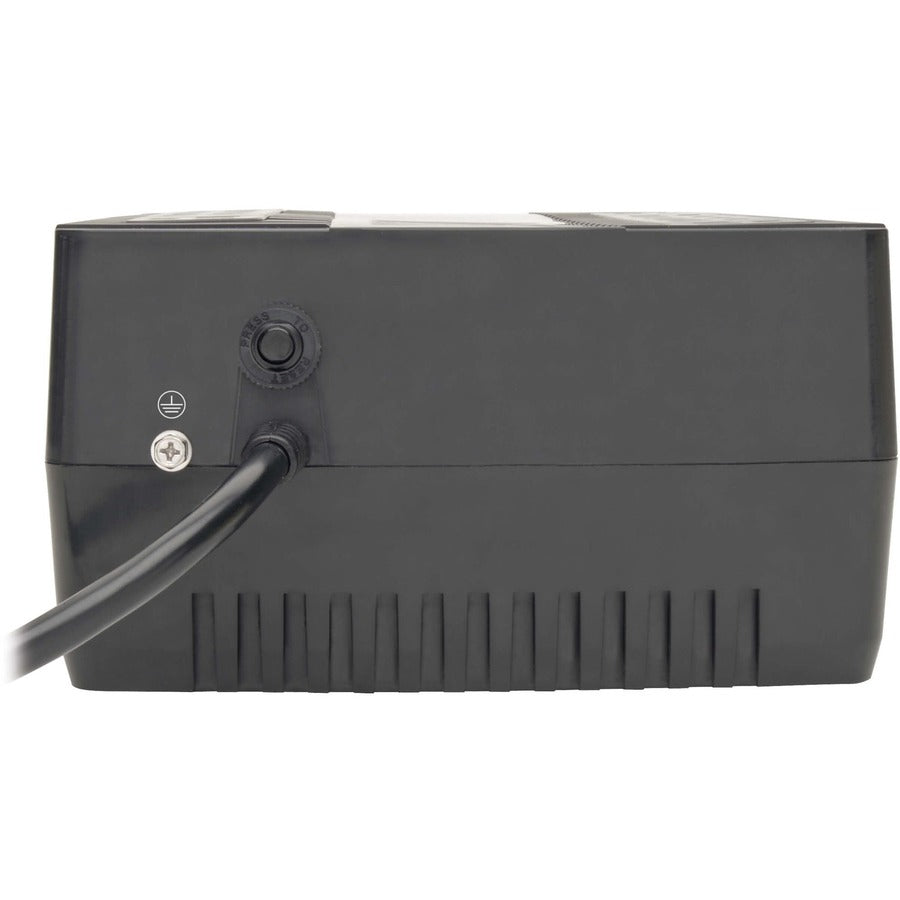

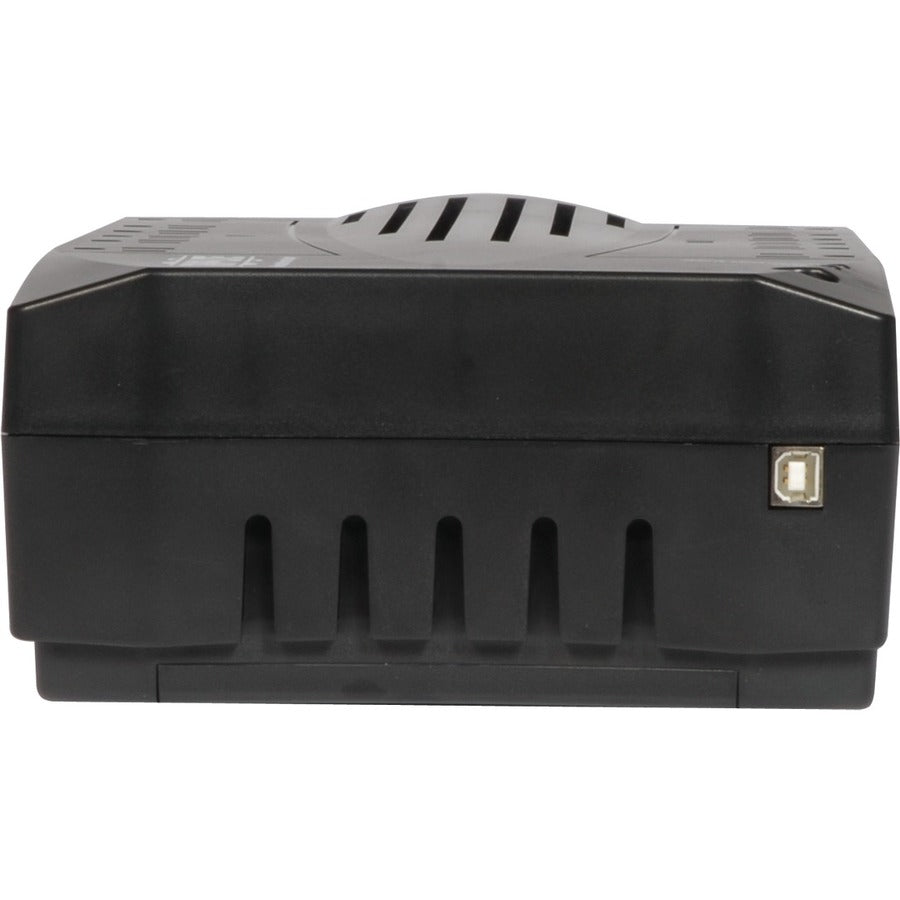

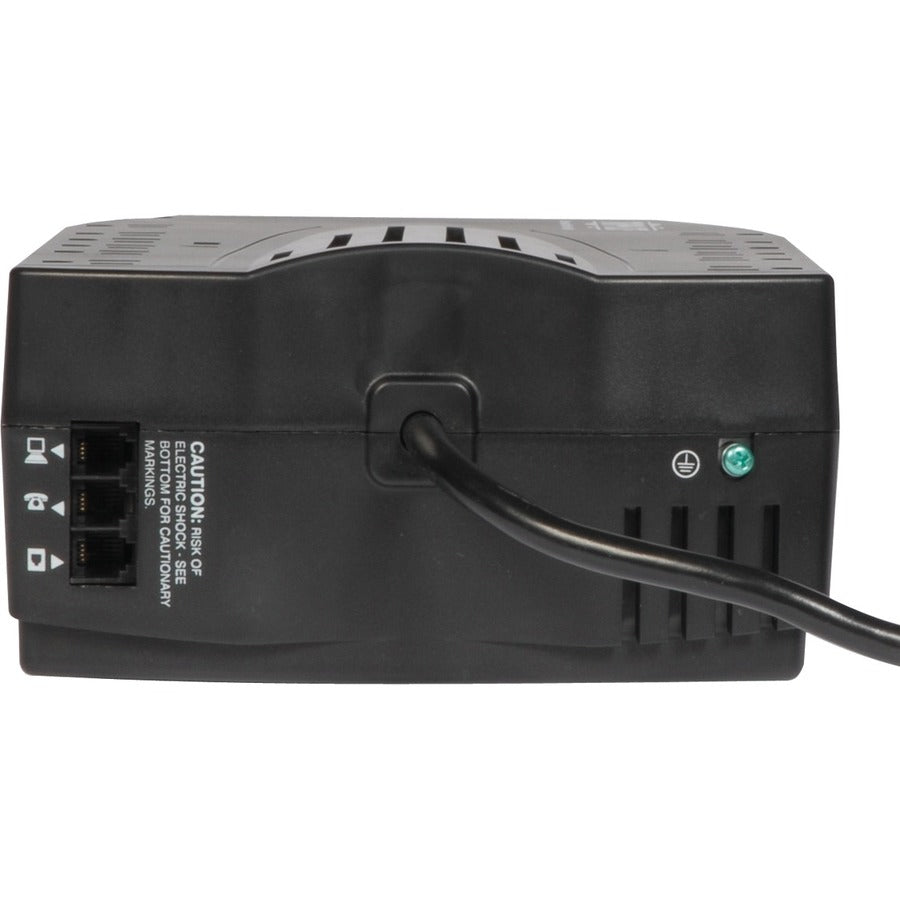

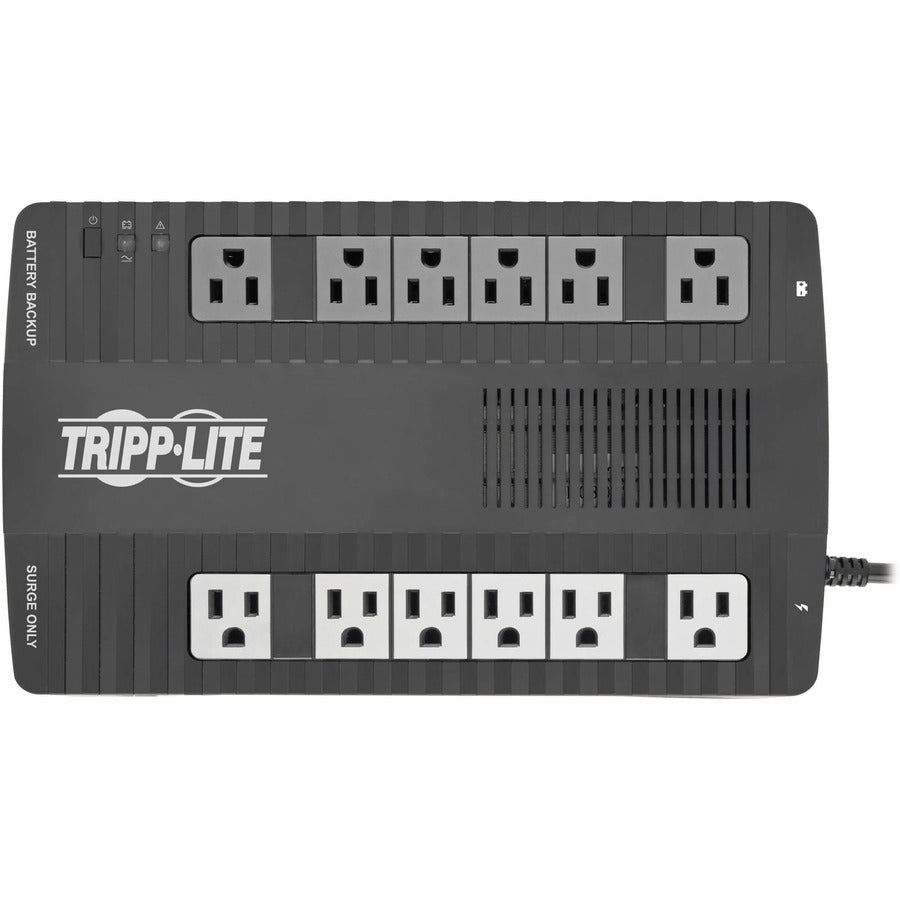

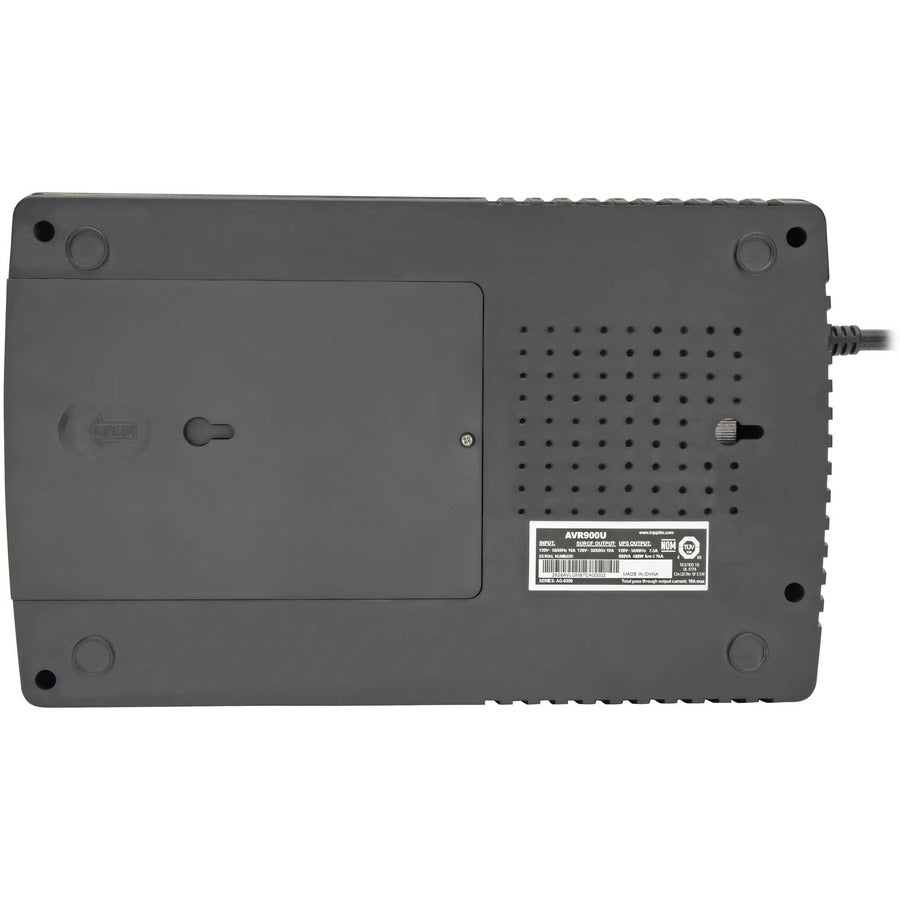

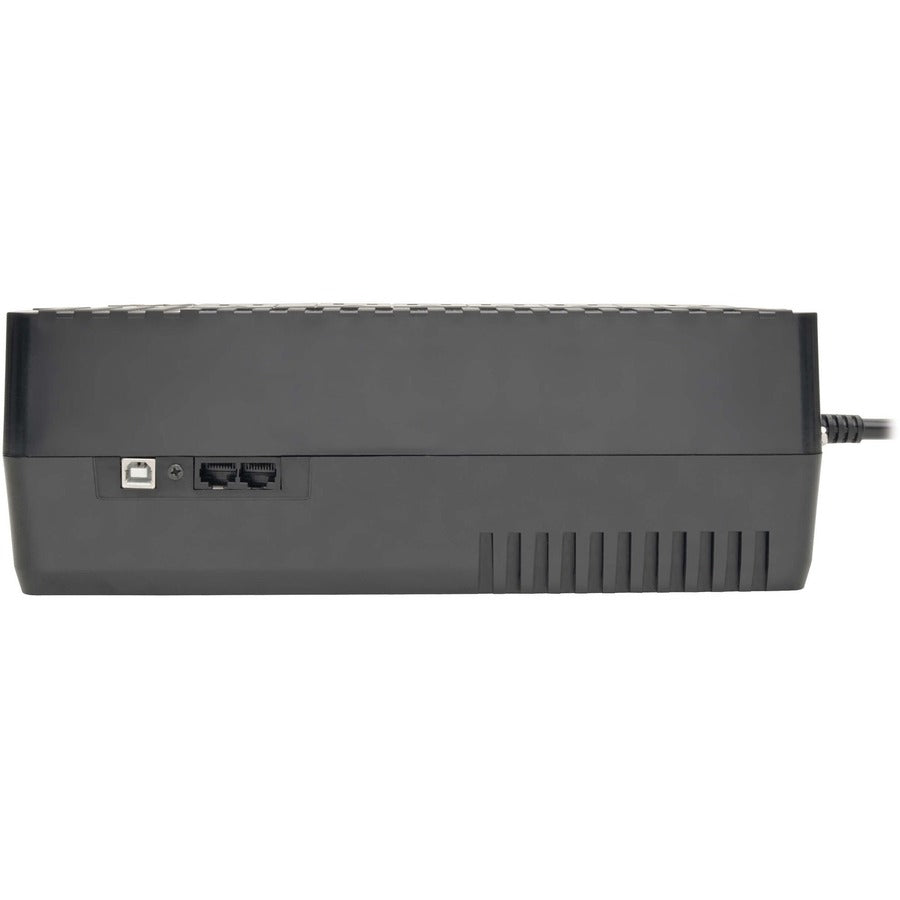

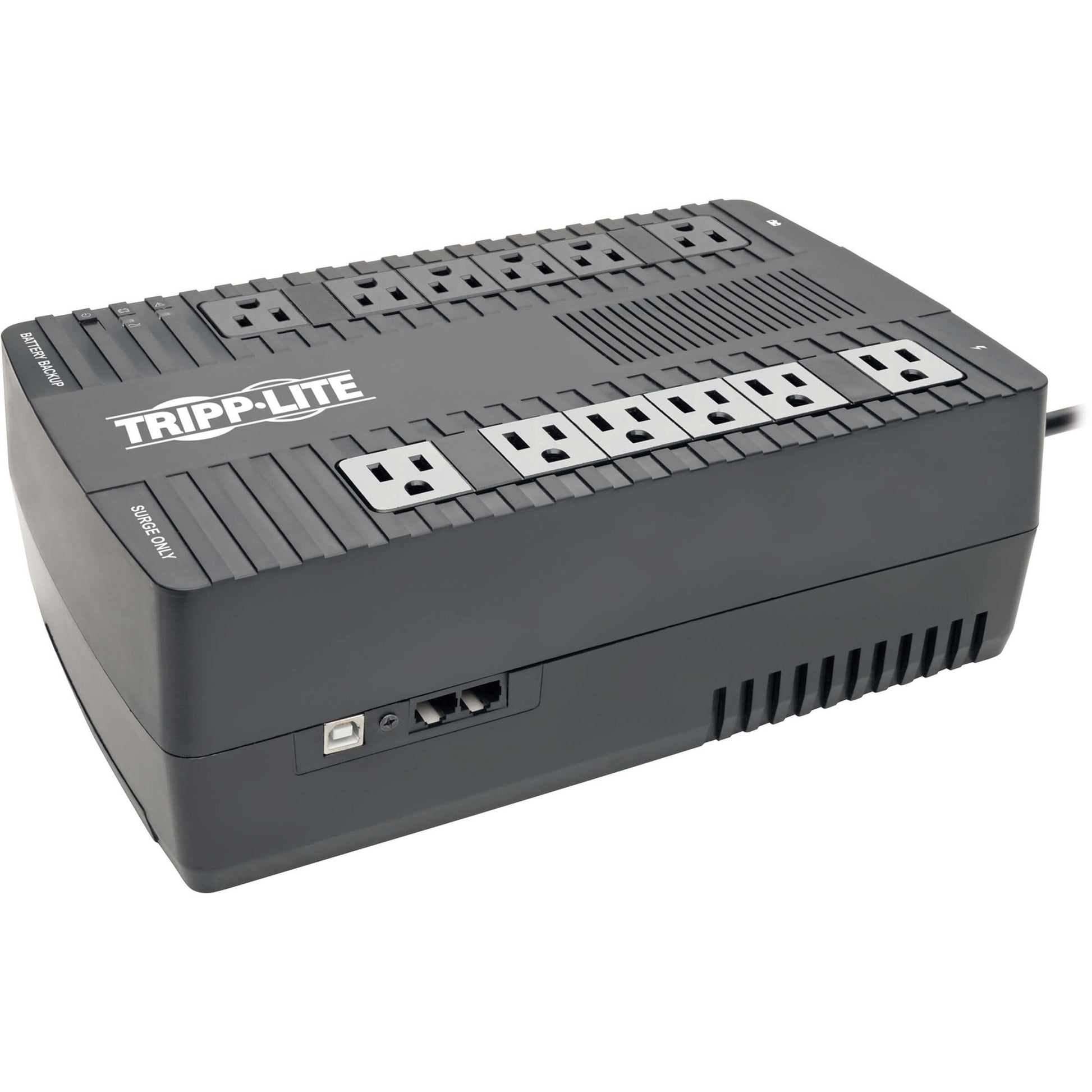

Eaton Tripp Lite Series 900VA 480W Line-Interactive UPS - 12 NEMA 5-15R Outlets, AVR, 120V, 50/60 Hz, USB, Desktop/Wall Mount - AVR900U
Key Features
- $100,000 Ultimate Lifetime Insurance
- 12 NEMA 5-15R outlets power and protect PC, home theater or digital signage equipment
- 3-year limited warranty
- High >96% efficiency with low BTU ratings saves electricity and lowers your energy costs
- Home-friendly alarm remains silent in backup mode, sounding only when imperative
- Keeps AC power running during blackouts to allow time for file saves and safe shutdown
- Protects equipment against blackouts, brownouts, overvoltages, surges and line noise
Product Overview
AVR Series Line-Interactive UPS System offers ultra-compact, line-interactive protection for PCs and workstations. System maintains 120 volt nominal output over an input range of 83 to 147 volts. Workstation-optimized features include USB port (HID-PDC compliant), single-line telephone/DSL surge suppression, space saving right-angle input plug, six battery/surge-protected outlets and six additional surge-only outlets (12 total). USB port (included cable) works with free unattended shutdown software. Housing is mountable.General Information
- Manufacturer: Eaton Corporation
- Manufacturer Part Number: AVR900U
- Brand Name: Tripp Lite series
- Product Series: AVR
- Product Name: AVR 900VA Desktop UPS
- Packaged Quantity: 1 Each
- Product Type: Line-interactive UPS
Technical Information
- AVR: Yes
- AVR Range: Boost +18% / Buck -15%
- Plug/Connector Type: NEMA 5-15P
- Receptacle Type: NEMA 5-15R
- Receptacle Detail: 12 x NEMA 5-15R
- Number of Battery & Surge Outlets: 6
- Number of Surge-only Outlets: 6
- Transfer Time: 6 ms
- EMI/RFI Noise Filter: Yes
- Phase: Single Phase
Power Description
- Load Capacity (VA): 900 VA
- Load Capacity (Watt): 480 W
- Input Voltage: 120 V AC
- Output Voltage:
- 110 V AC
- 115 V AC
- 120 V AC
- Input Frequency: 60 Hz
- Output Frequency: 60 Hz
- Waveform Type: Pulse-width Modulated Sine Wave
- Surge Energy Rating: 316 J
Management
- Alarm:
- Battery Backup
- Low Battery
- Fault
- Overload
- Replace Battery
Controls/Indicators
- Status Indicators:
2 Status LEDs; GREEN indicates power status and operating mode / RED indicates battery-low, overload, replace-battery and fault conditions
Interfaces/Ports
- USB: Yes
- USB (HID Compliant) Port: Yes
Battery Information
- DC System Voltage: 12 V DC
- Battery Chemistry: Lead Acid
- Backup/Run Time (Full Load): 2.70 Minute
- Backup/Run Time (Half Load): 10 Minute
- Typical Battery Recharge Time: 8 Hour
- Replaceable Battery: Yes
Environmental Conditions
- Storage Temperature: 5°F (-15°C) - 113°F (45°C)
- Maximum Operating Temperature: 104°F (40°C)
Physical Characteristics
- Height: 4.1"
- Width: 7.5"
- Depth: 12"
- Form Factor: Ultra-compact Desktop/Tower/Wall Mount
- Weight (Approximate): 16.50 lb
Miscellaneous
- Package Contents:
- AVR 900VA Desktop UPS
- Owner's manual
- Software Included: PowerAlert Software
- Country of Origin: China
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
- Additional Warranty Information:
2 year warranty
- 100,000 Connected equipment guarantee
