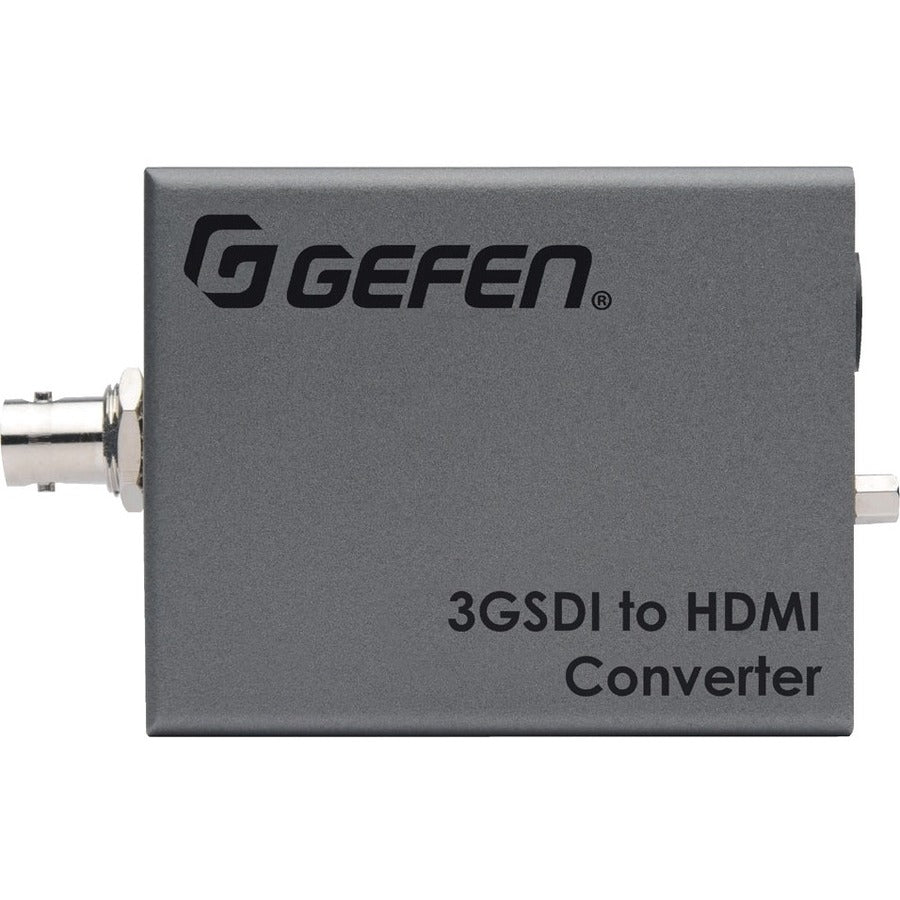

Gefen 3GSDI to HDMI Converter - EXT-3G-HD-C
Key Features
- Convert signal from one form to another with this signal converter
- Establishes a rapid connection with USB devices
- HDMI (High Definition Multimedia Interface) offers fantastic sound/video quality and single-cable comfort
- Supports up to 225 MHz frequency
Product Overview
Use an SDI source with an HDMI display or downstream equipment
The Gefen EXT-3G-HD-C converts audio and video from SDI to HDMI format, at resolutions up to 1080p Full HD, 3G-SDI, single link HD-SDI, and audio formats up to 8 channels of LPCM are supported. This product is fully compatible with the Gefen Syner-G™ software suite. The Gefen Syner-G™ is a powerful set of software tools specifically designed to help discover, configure/customize, manage, monitor, and upgrade Gefen products. The Gefen EXT-3G-HD-C's compact enclosure, while light enough to be held in place using double sided Velcro® tape, features an ISO standard 1/4-20 attachment provision as well as a detachable surface-mounting bracket. This, along with a flexible power input circuitry capable of accepting a wide range of DC voltages and a locking power supply connector, make the EXT-3G-HD-C ideal for cutting edge mobile A/V applications as well as high performance fixed installations.
General Information
- Manufacturer: Gefen, Inc
- Manufacturer Part Number: EXT-3G-HD-C
- Brand Name: Gefen
- Product Name: 3GSDI to HDMI Converter
- Packaged Quantity: 1
- Product Type: Signal Converter
Technical Information
- Minimum Frequency: 150 MHz
- Maximum Frequency: 225 MHz
Interfaces/Ports
- HDMI Out: Yes
- USB: Yes
- Number of HDMI Outputs: 1
Physical Characteristics
- Height: 1.2"
- Width: 2.9"
- Depth: 2.3"
- Weight (Approximate): 5.29 oz
Miscellaneous
- Package Contents:
- 1 x 3GSDI to HDMI Converter
- 1 x Surface Mounting Bracket
- 1 x 12V DC Power Supply (EXT-PS121.5AIP-3P)
- 1 x Quick-Start Guide (QSG-EXT-3G-HD-C)
