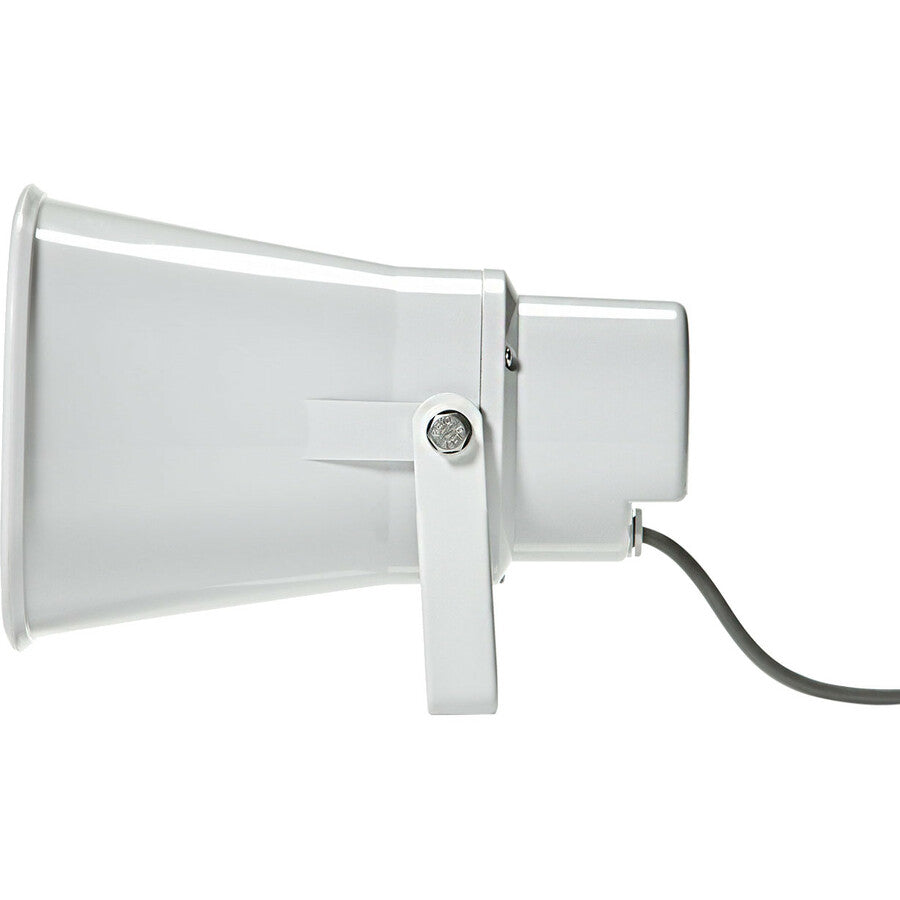

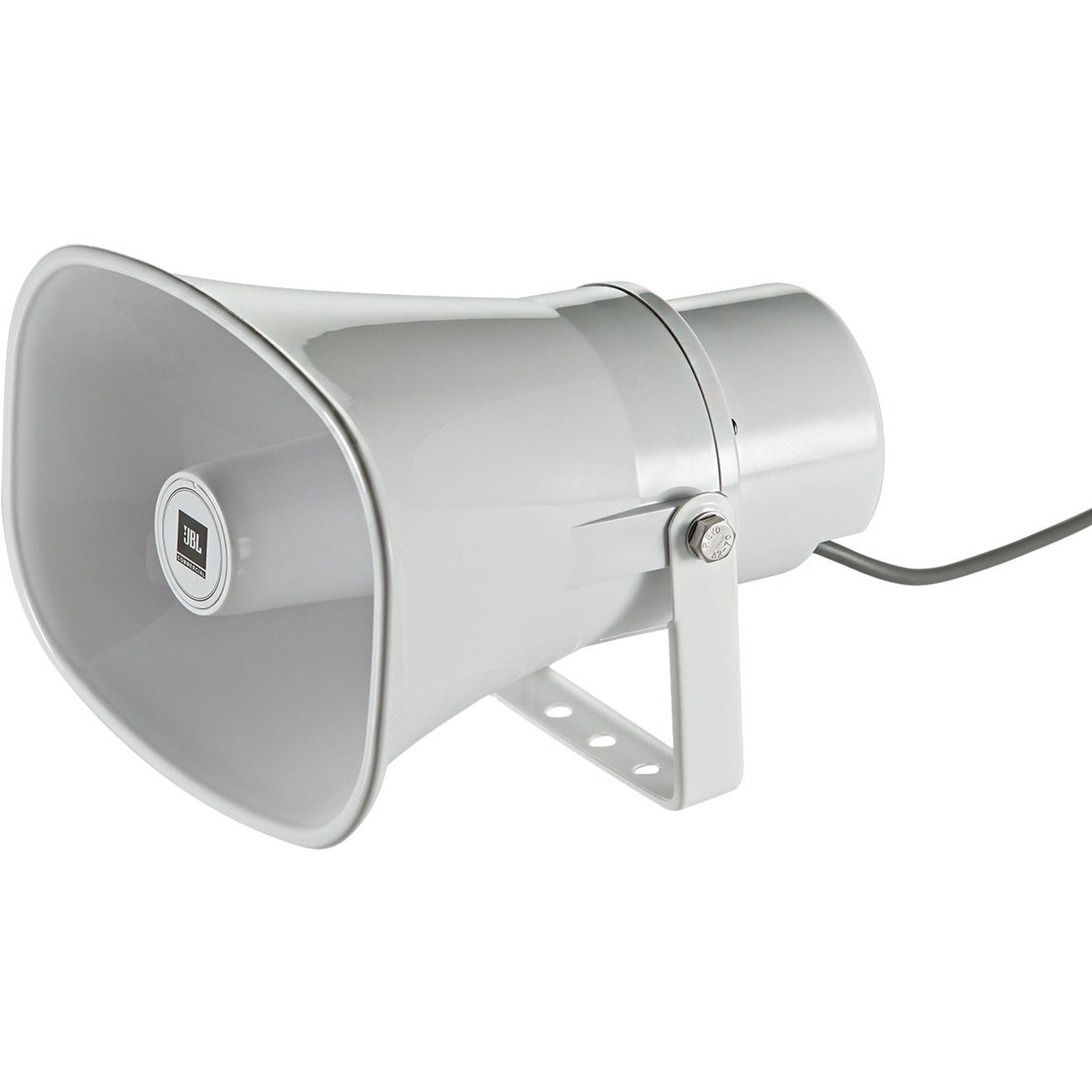

JBL Professional 15 Watt Paging Horn - CSS-H15
Key Features
- Built-in high-pass filter enhances reliability by protecting against low frequency damage.
- Excellent voice range clarity for announcement and paging.
- High sensitivity delivers high sound levels with minimal power amplification.
- Highly weather-resistant, with stainless steel bracket and hardware.

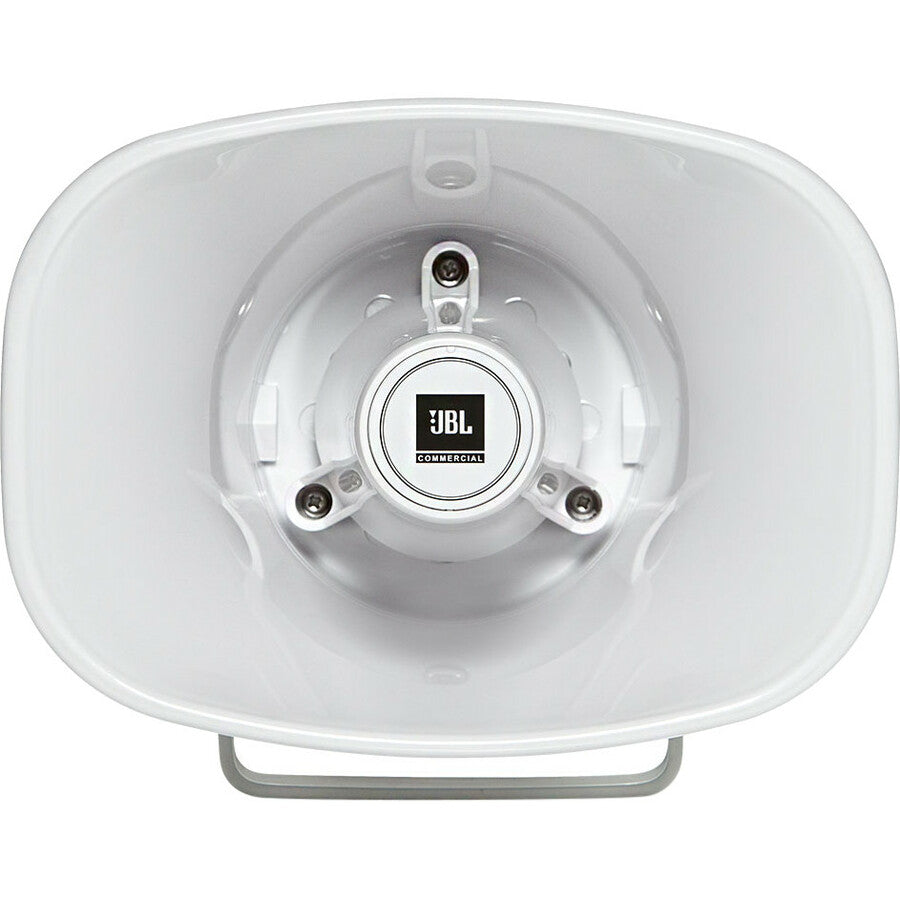

- Phenolic diaphragm driver for outdoor durability and high reliability.

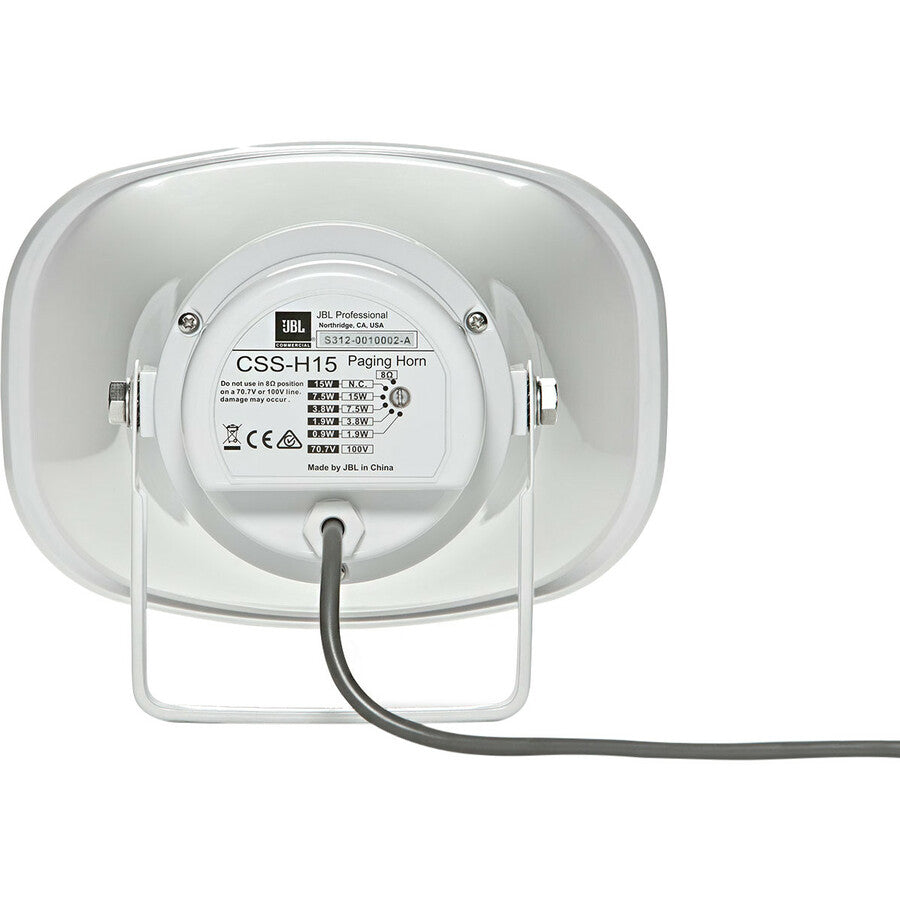

- UL-registered 15-watt multi-tap transformer, with 8 ohm direct bypass.
- Wide 70° horizontal by 90° vertical coverage for medium throw applications.
Product Overview
15 Watt Paging Horn
The Commercial Solutions Series CSS-H15 Paging Horn provides excellent voice range clarity for public address systems, announcement/paging, intercom, security, alarm and industrial applications. Designed for demanding environmental conditions, the CSS-H15 is highly weather resistant (IP-65 rated) so it can be used in either indoor or outdoor applications. The wide coverage pattern allows the horn to cover a larger audience area than is the case with many paging horns.
General Information
- Manufacturer: Harman International Industries, Inc
- Manufacturer Part Number: CSS-H15
- Brand Name: JBL Professional
- Product Model: CSS-H15
- Product Name: 15 Watt Paging Horn
- Product Type: PA Horn
Technical Information
- Alarm Type: Audible
- Product Functions: Alarm
- Sound Emission: 105 dB
- Durability: Corrosion Resistant
- Form Factor: Bracket Mount
Physical Characteristics
- Color Family: White
- Product Color: Traffic White
- Application/Usage:
- Commercial
- Civic Center
- Distribution Center
- School
- Factory
- Warehouse
- Building
- Indoor
- Outdoor
- Signaling System
- Public Access Area
- Recreational Facilities
- Height: 6.4"
- Width: 8.7"
- Depth: 9.1"
- Weight (Approximate): 3 lb
Miscellaneous
- Package Contents:
- 15 Watt Paging Horn
- Stainless Steel Mounting Bracket
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
