Lenovo USB-C Dual Display Travel Dock (w/ adapter) - 40B90100US
Key Features
- 3 USB ports allows powerful and efficient transfer of data with maximum productivity
- Charging capability provides a quicker, worry-free charging experience
- Compact feature for maximum usage productivity with added dependability
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- Monitor device supported according to your requirements with maximum productivity
- Power Adapter power source type for your docking station better reliance and maximum energy dependability
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
- USB Type C host interface Offers a more refined structure and safer to use connectivity
- Wired connectivity technology is highly feasible, offers maximum usability
Product Overview

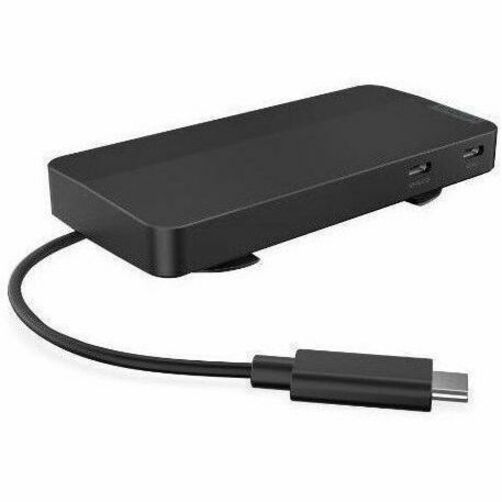

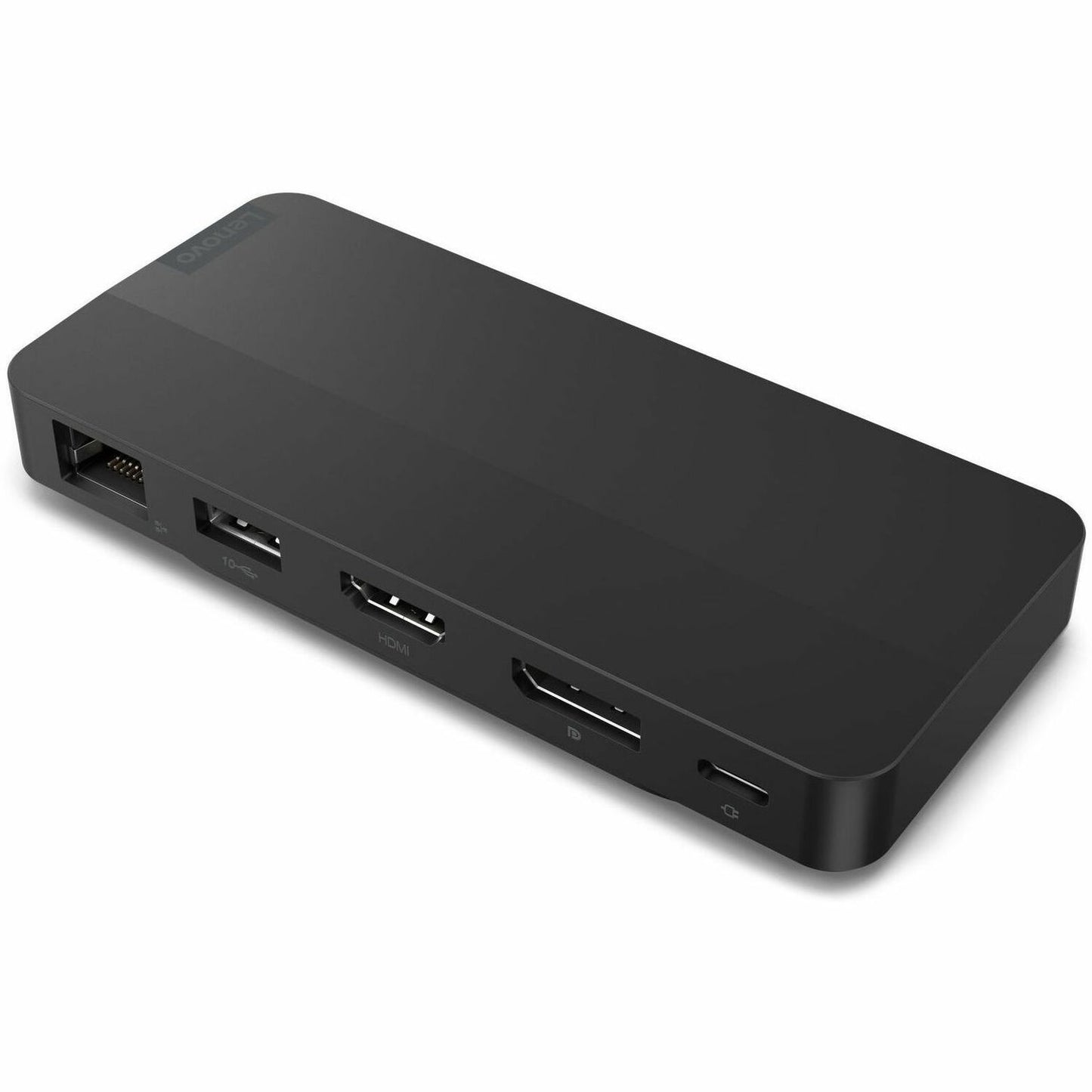

The Lenovo USB-C Dual Display Travel Dock is an essential companion for the modern remote professional. This compact dynamo supports dual 4K displays and powers your USB-C laptop with up to 100W PD (with an additional 135W USB-C adapter.) Crafted with 66% post-consumer recycled content in the chassis, it's designed to lighten your carbon footprint. And don't forget the adjustable cable management, balancing efficiency and convenience flawlessly. It's a true productivity booster at home, work, or anywhere in between. DISCLAIMER: Lenovo USB-C & Thunderbolt Docks are compatible with notebooks supporting industry-standard USB-C Alt-Mode or Thunderbolt protocols via their USB Type C port.General Information
- Manufacturer: Lenovo Group Limited
- Manufacturer Part Number: 40B90100US
- Brand Name: Lenovo
- Product Model: 40B9
- Product Name: USB-C Dual Display Travel Dock (w/ adapter)
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 2
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported: 4K @ 60Hz
- Device Supported:
- Monitor
- Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet

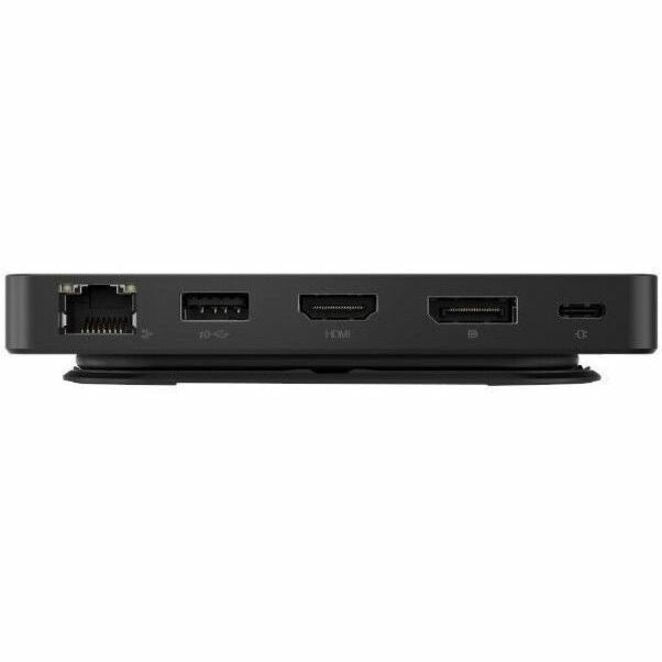

Interfaces/Ports
- Host Interface: USB Type C
- Total Number of USB Ports: 3
- Number of USB Type-C Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 2 x USB-C 10 Gbps (1 x AOU 12W Max)
- Number of USB Type-A Ports: 1
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 1
- DisplayPort: Yes
- DisplayPort Version: 1.4
- Number of HDMI Ports: 1
- HDMI: Yes
- USB Power Delivery: 100W
Software
- Operating System Supported:
- Windows 10
- Windows 11
Power Description
- Maximum Power Supply Wattage: 135 W
Physical Characteristics
- Product Color: Eclipse Black
- Height: 0.79"
- Depth: 2.17"
- Weight (Approximate): 4.83 oz
Miscellaneous

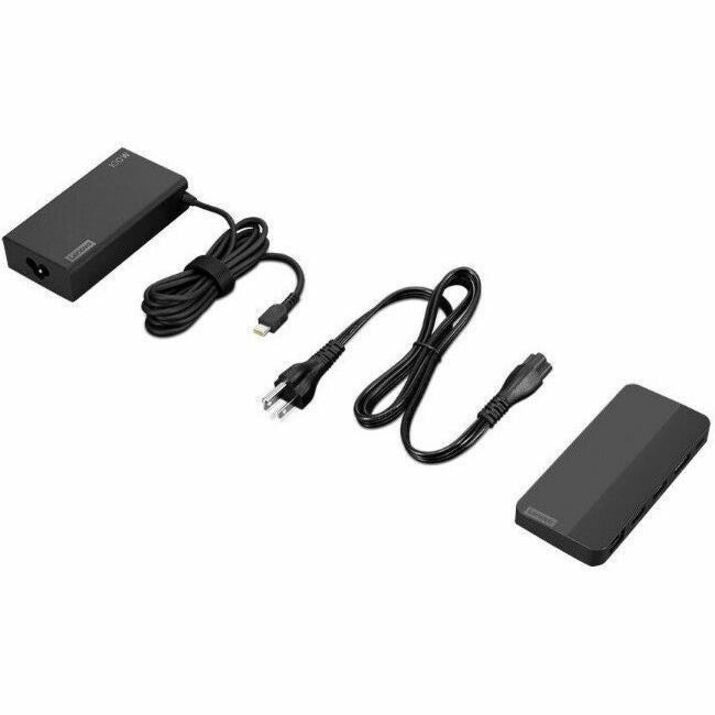

- Package Contents:
- USB-C Dual Display Travel Dock
- 100W AC Power Adapter
- Power Cord
- Setup Poster
- Warranty Poster
- Compatibility:
Compatibility across all USB-C laptops
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Warranty
- Limited Warranty: 3 Year
