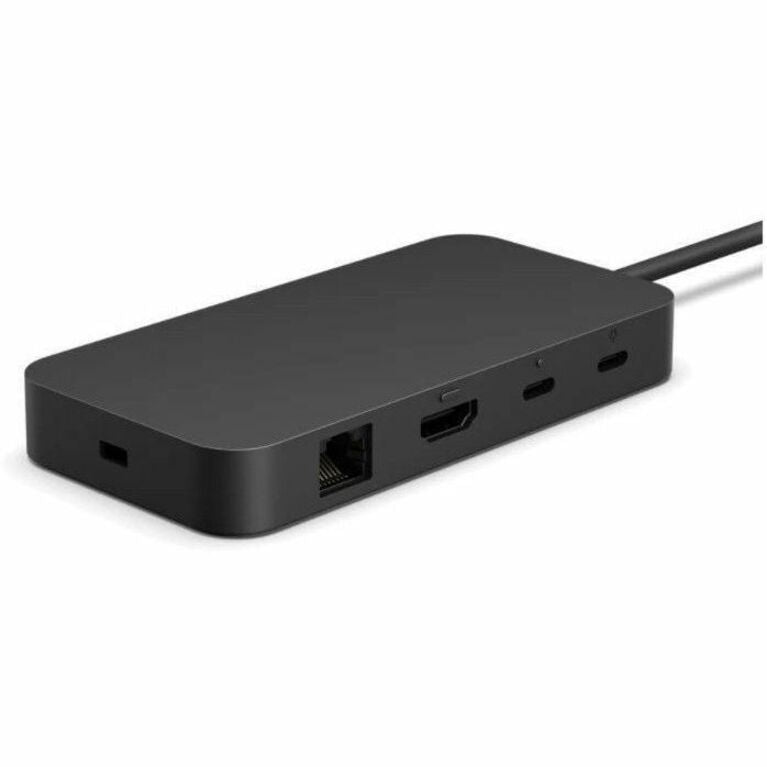

Microsoft Surface USB4 Dock for Business - EP2-19863
Key Features
- 5 GB/s maximum data transfer rate for dependable access and retrieval of data and information with added usability
- Charging capability provides a quicker, worry-free charging experience
- Desktop form factor for your docking station offers a simpler, easier exhibit design for better dependability
- Docking Station provides a convenient and easy charging solution for your notebook with maximum usability
- Gigabit Ethernet Ethernet technology for increasing efficiency with the quicker transfer and sharing of information
- Power Delivery Pass-through feature for maximum usage productivity with added dependability
- Power Supply power source type for your docking station provides maximum energy feasibility and added surveillance productivity
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
- USB4 host interface Offers a more refined structure and safer to use connectivity
- Wired connectivity technology is highly feasible, offers maximum usability
Product Overview
Boost your productivity | The charge you need
Charge your Surface device and accessories, keeping them powered all day, with up to 65 W of power passthrough.
Get work done faster
Enjoy high-speed data transfers - four times faster than USB-C 3.2 - thanks to Surface USB4 Dock for Business's USB4 speeds of up to 40 Gbps.
More ports for more accessories

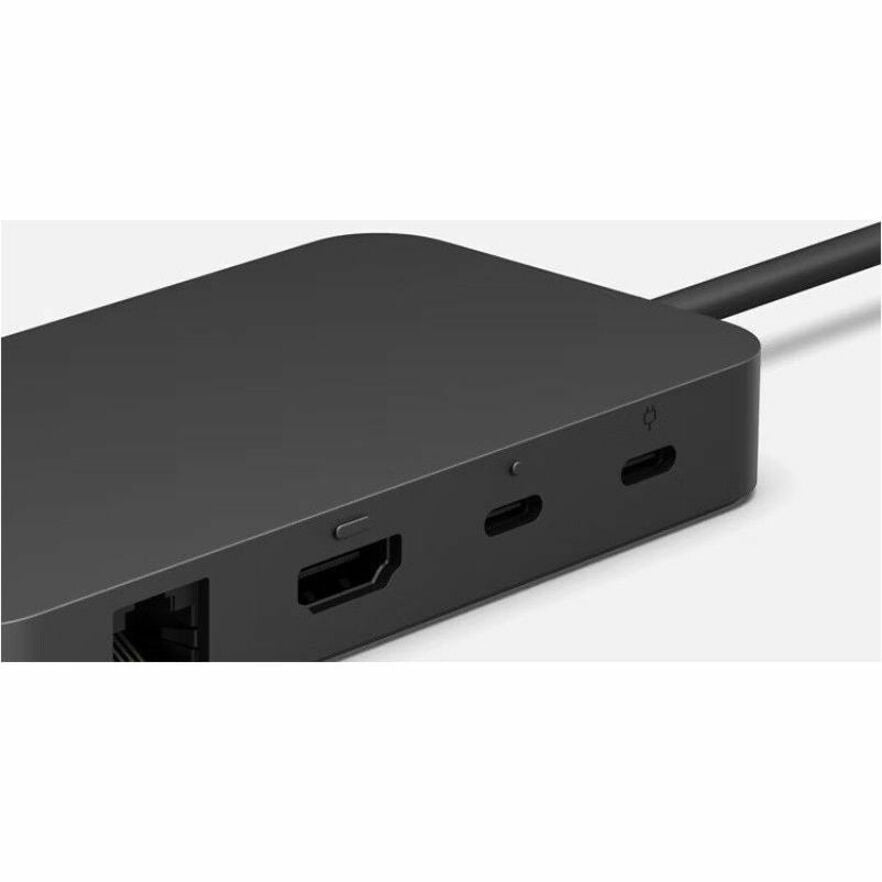

Connect to all your essential accessories via two USB-C, USB-A, HDMI and Ethernet ports.

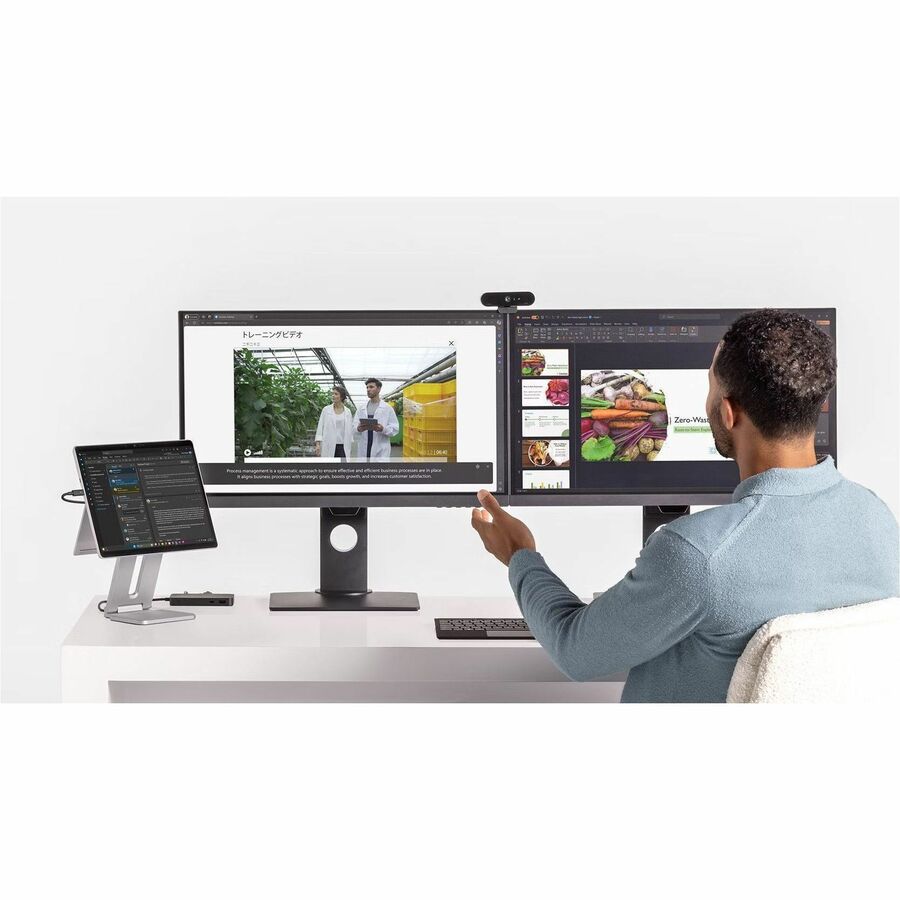

Expand your set-up with multiple monitors

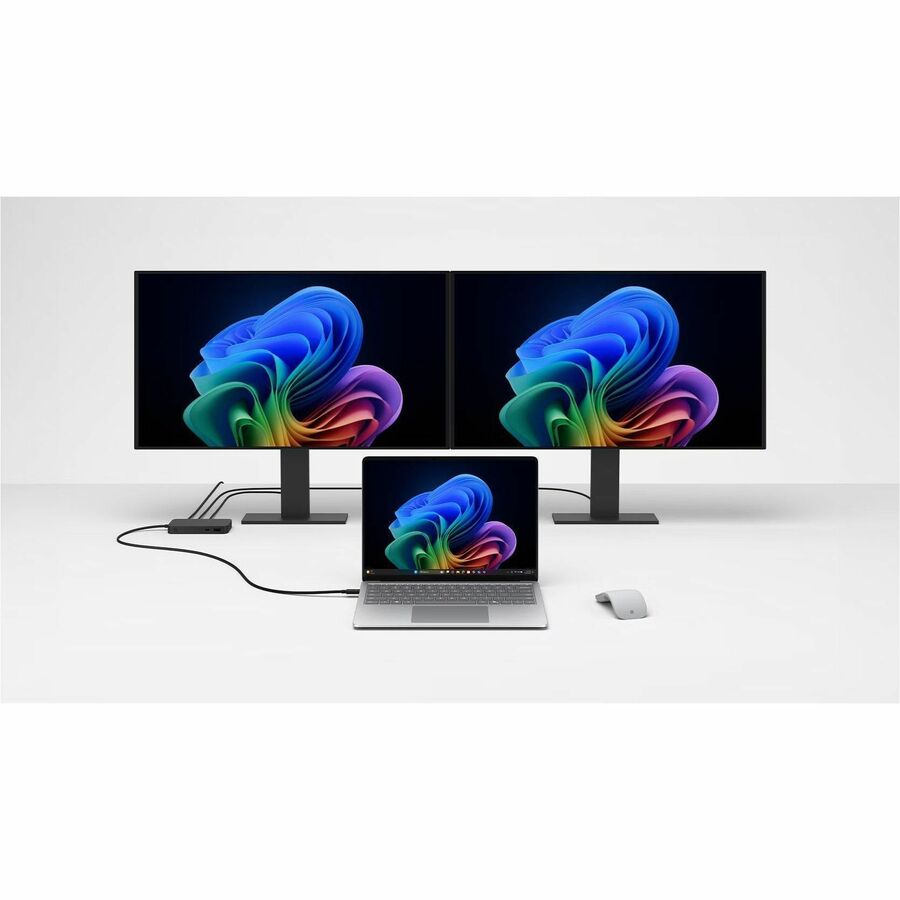

Extend or duplicate your screen by connecting your USB4/Thunderbolt 4 device to two 4k monitors at 60 Hertz via USB-C or HDMI 2.1 ports or a single 8k monitor at 30 Hz via USB-C port.
Effortless versatility | Sleek, compact design
Keep your desk neat and organised thanks to Surface USB4 Dock for Business's compact design.
Connect all your devices
Surface USB4 Dock for Business is compatible with USB-C and USB4/Thunderbolt 4 devices.
Easy manageability | Always up to date
Automatic firmware updates through Windows Update and the Surface app keep your dock operating at peak efficiency.
Lock into place and stay connected

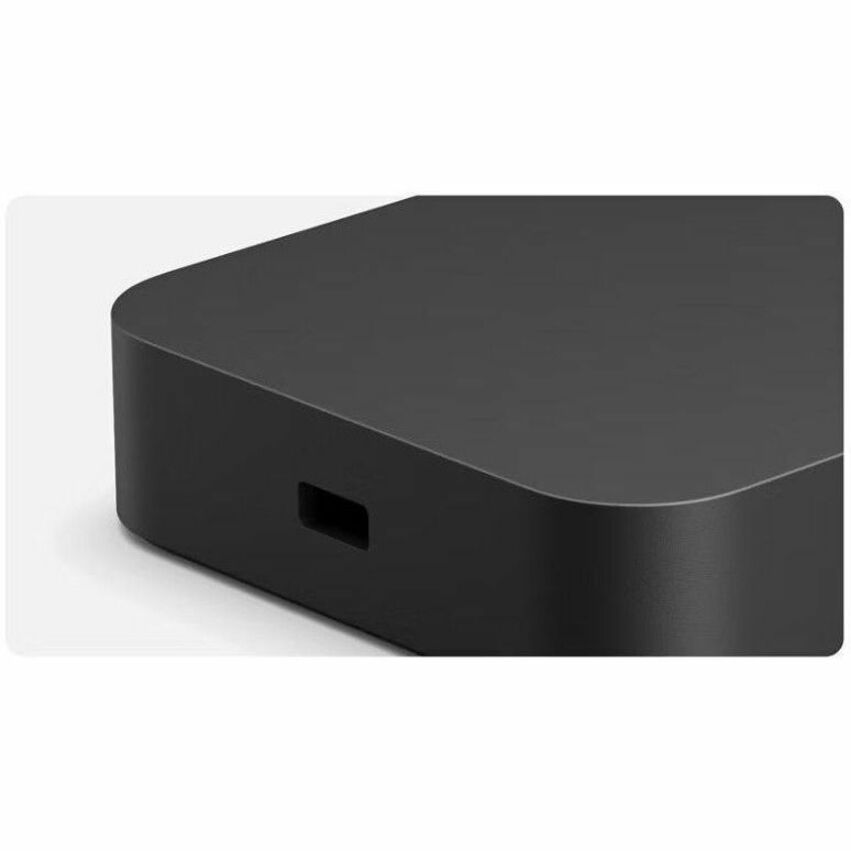

The security lock port allows you to physically secure the docking station in place and keep your device and accessories connected.
Tactile port indicators for inclusive design
Raised tactile indicators help you identify ports, with more frequently used ports positioned in the front for easy access.
General Information
- Manufacturer: Microsoft Corporation
- Manufacturer Part Number: EP2-19863
- Brand Name: Microsoft
- Product Name: Surface USB4 Dock for Business
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 2
- Supported Resolutions:
- 3840 x 2160
- 7680 x 4320
- Screen Mode Supported:
- 4K @ 60Hz
- 8K @ 30Hz
- 4K
- Management Features:
- MAC Address Pass-through
- Wake-on-LAN
- Device Supported:
- Notebook
- Monitor
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB4
- Total Number of USB Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 1
- Number of USB Type-C Ports: 3
- USB Type-C: Yes

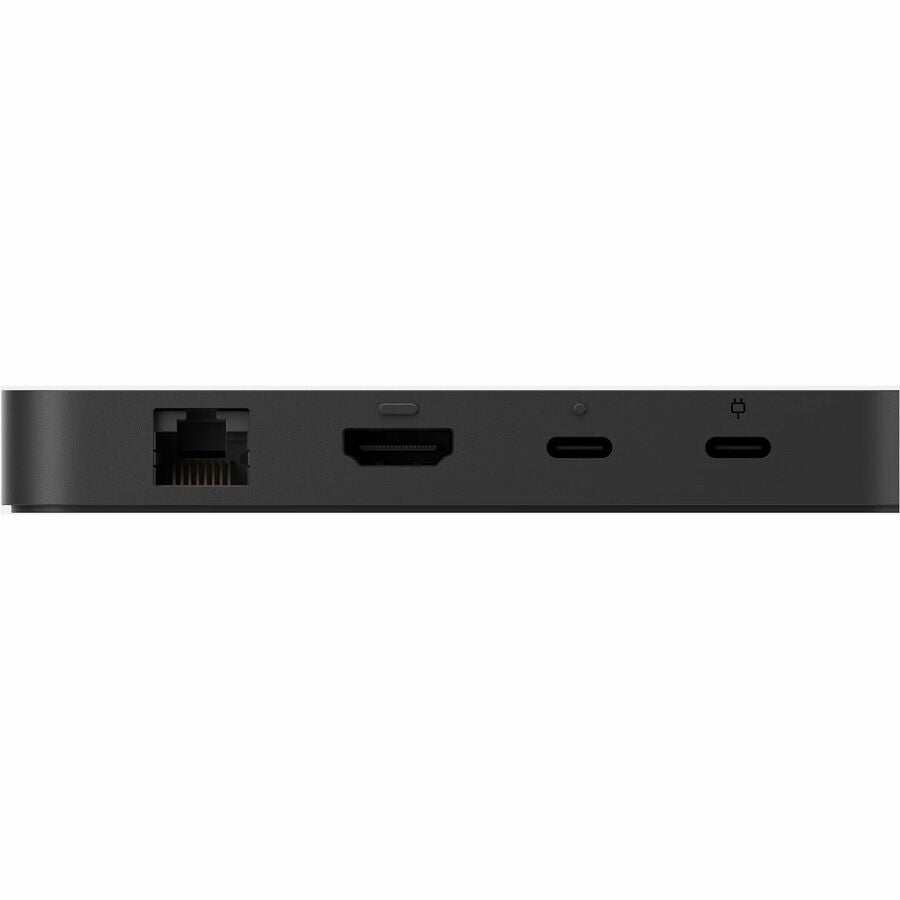

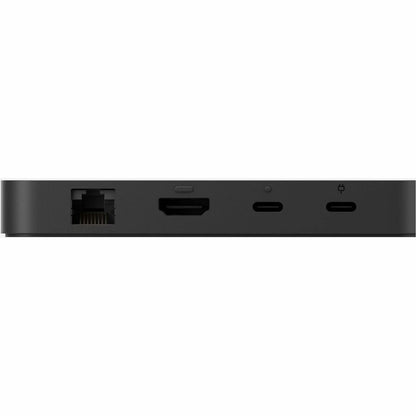

- USB Type-C Detail: 1 x rear-facing USB-C for PSU only, 1 x rear-facing USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5 W), 1 x front-facing USB-C(USB4 Gen 3, compatible with Thunderbolt 4,video display enabled, 7.5 W)
- Number of USB Type-A Ports: 1
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of HDMI Ports: 1
- HDMI: Yes
- USB Power Delivery: 65W
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color: Black
- Form Factor: Desktop
- Height: 4.72"
- Width: 2.36"
- Depth: 0.59"
- Weight (Approximate): 7.27 oz
Miscellaneous
- Package Contents:
- Surface USB4 Dock for Business
- 100W USB-C Power Supply
- Kensington Security Slot: Yes
- Compatibility:
Compatible Devices:
- Surface Pro for Business, Copilot+ PC | Intel
- Surface Laptop for Business, Copilot+ PC | Intel
- Surface Pro for Business, Copilot+ PC | Snapdragon
- Surface Laptop for Business, Copilot+ PC | Snapdragon
- Surface Pro 10 for Business
- Surface Laptop 6 for Business
- Surface Laptop 5 for Business
- Surface Pro 8 for Business
- Surface Pro 9 for Business (Intel/WiFi)
Warranty
- Limited Warranty: 1 Year
