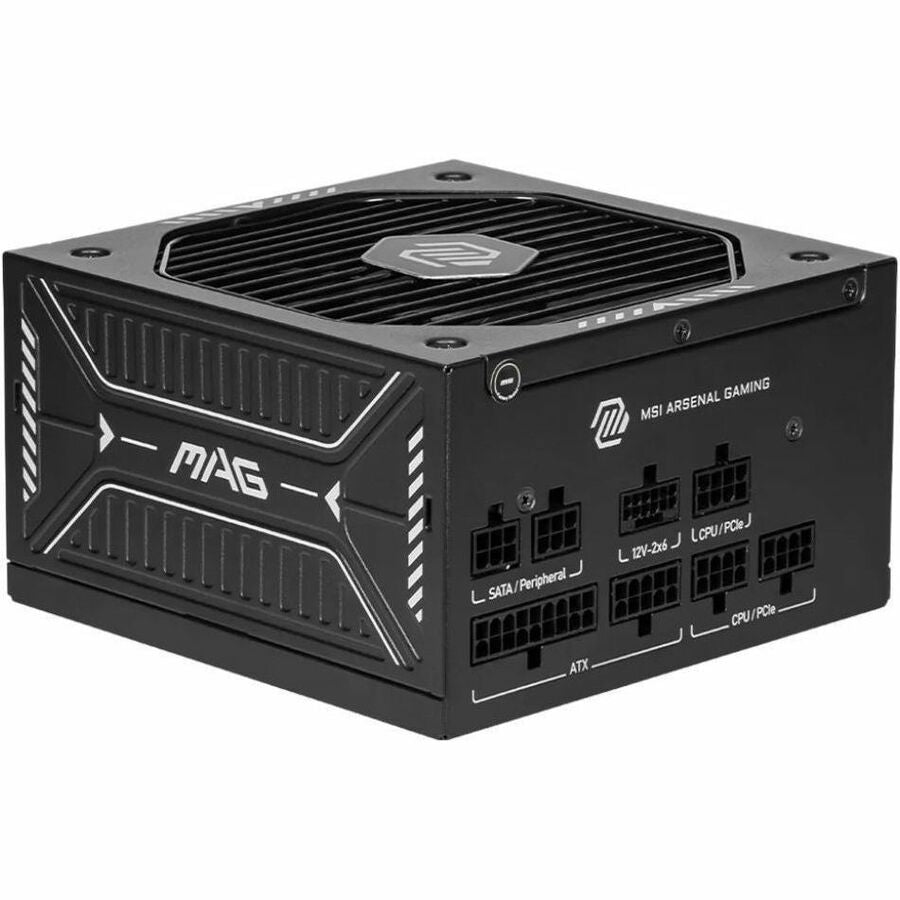

MSI MAG 750W Power Supply - MAGA750GLSPCIE5
Key Features
- 80 PLUS Gold certified
- Dual-color 12V-2x6 cable

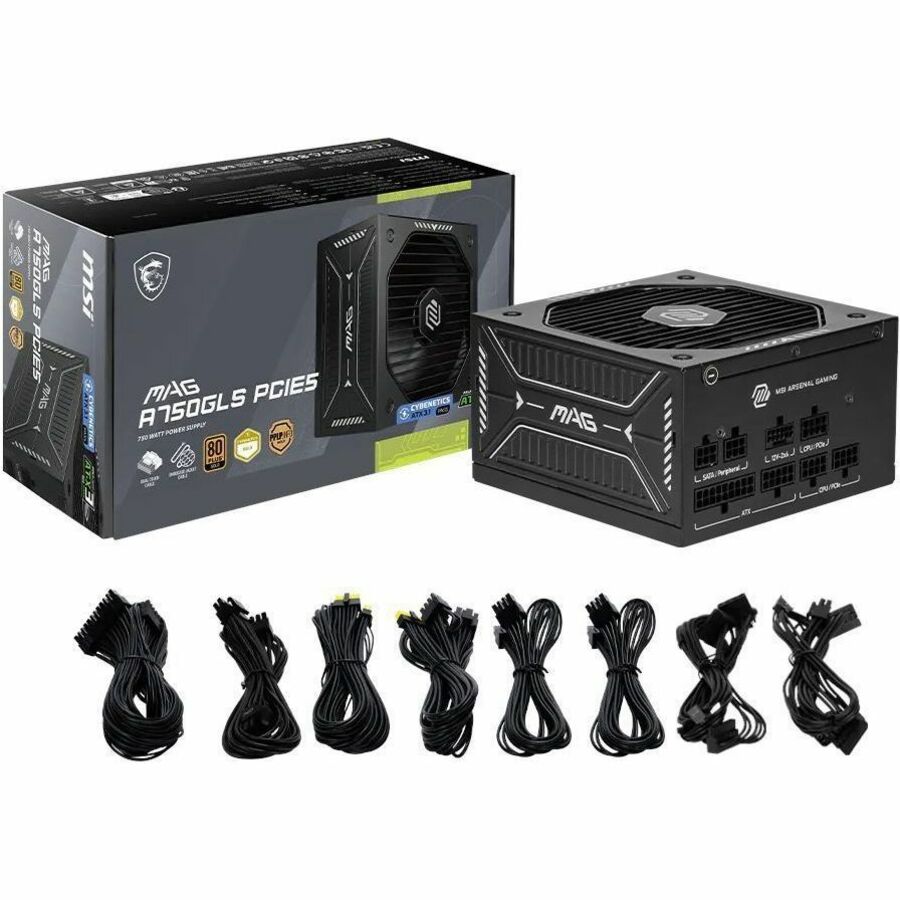

- Embossed Jacket Cables, the cables are more bending and routing
- Industrial level protection with OCP/ OTP/OPP/ SCP/ OVP/ UVP/ SIP/ NLO
- Main 105oC capacitor
- Native 12V-2x6 connector
- Optimized the sound level
- Supports Nvidia GeForce RTXTM 50 series graphics cards
Product Overview
Midnight Sound Level
This power supply is designed for quiet operation, delivering low noise levels like in the midnight, ensuring a serene computing experience free from disturbances.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MAGA750GLSPCIE5
- Brand Name: MSI
- Product Series: MAG
- Product Name: MAG 750W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 90%
- Power Factor Correction (PFC): Active

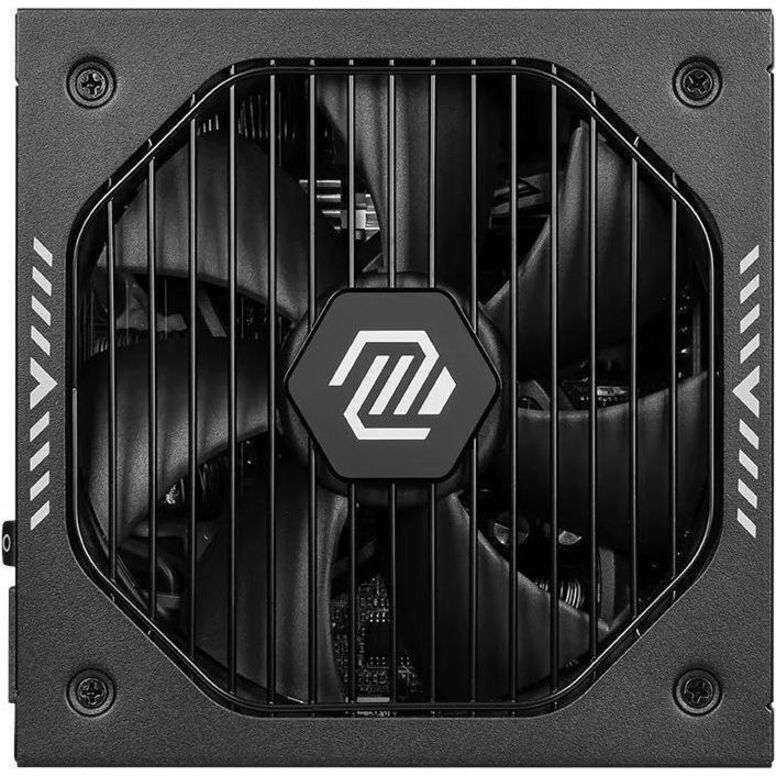

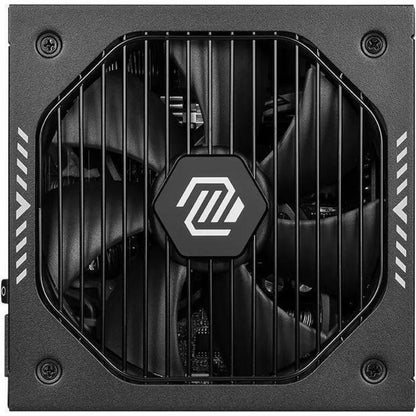

- Number of Fans: 1
- Fan Bearing Type: Fluid Dynamic Bearing
- Fan Diameter: 135 mm
- Protection Type:
- Over Current
- Over Temperature
- Over Power
- Short Circuit
- Over Voltage
- Under Voltage
- Surge & Inrush Protection
- No Load
- Modular: Yes
- Modular Type: Fully Modular
- Features:

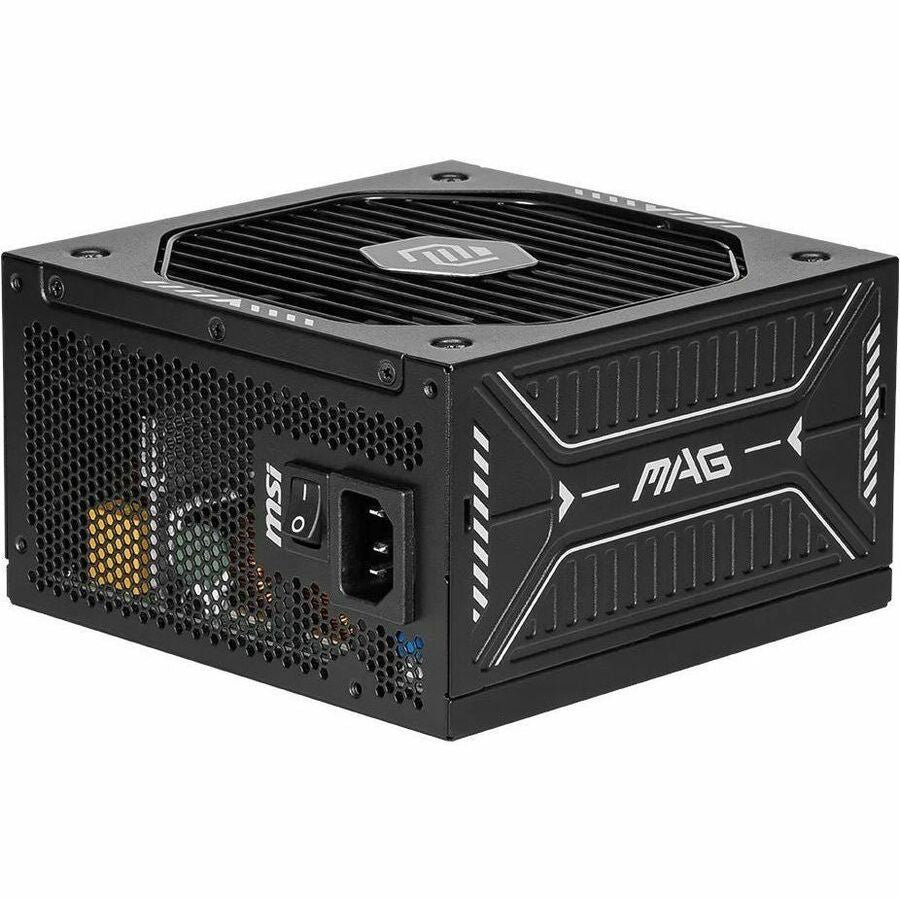

- On/Off Switch
- Low Noise
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 20 A
- 3.3 V DC @ 20 A
- 12 V DC @ 62.5 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
- Output Current:
- 20 A
- 62.50 A
- 300 mA
- 3 A
- Output Power: 750 W

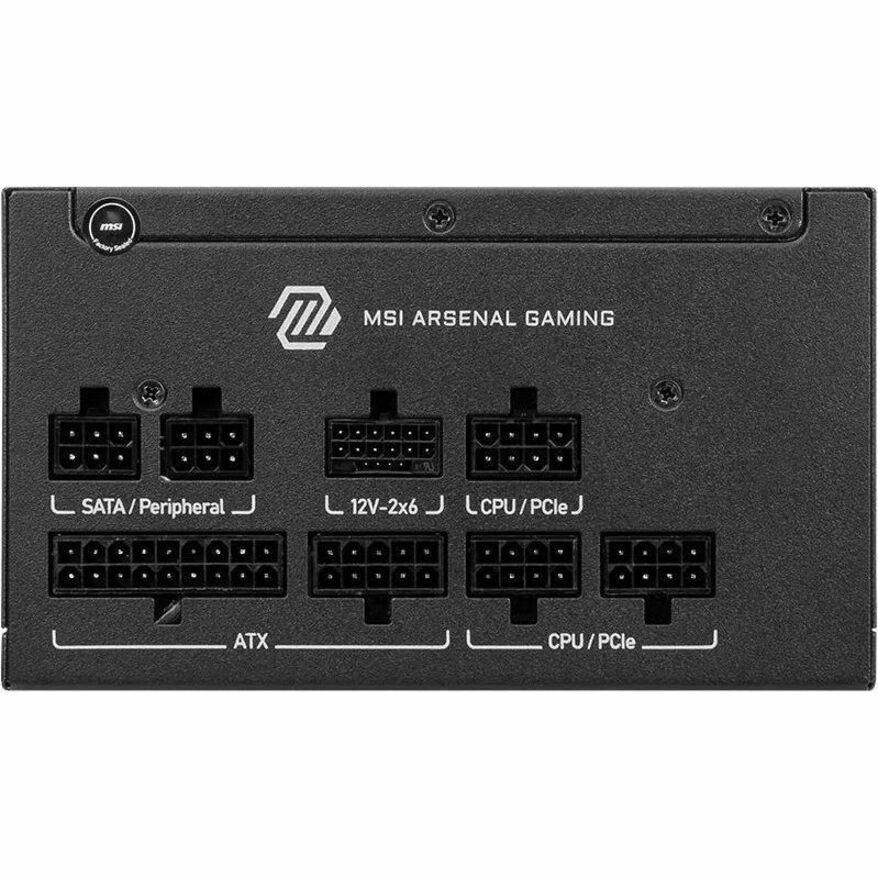

Interfaces/Ports
- Number of SATA Power Connectors: 5
- PCI Express Connector: Yes
- PCI Express Version: 5.1
- Number of (6+2 pin) PCI Express Power Connectors: 4
- Number of (4+4 pin) CPU Power Connectors: 2
- Number of 4-pin Molex Power Connectors: 2
Physical Characteristics
- Form Factor: Internal
- Height: 3.4"
- Width: 5.9"
- Depth: 5.9"
Miscellaneous
- Energy Efficiency Certification: 80 Plus Gold
Warranty
- Limited Warranty: 7 Year
