MSI MEG 1600W Power Supply - MEGAI1600TPCIE5
Key Features
- 100% all Japanese 105oC capacitor
- Dual-color 12V-2x6 cables
- Dual-native 12V-2x6 Connectors
- Full digital design with control MCU
- Industrial level protection with OCP/ OTP/ OPP/ SCP/ OVP/ UVP/ SIP/ NLO
- PCIe 5.1 and ATX 3.1 Ready
- Server-grade materials, SiC interleaved PFC MOSFET
- Supports Nvidia® GeForce RTXTM 50 Series graphics cards
- Tri-certified Titanium certification (80 PLUS / Cybenetics / PPLP)
Product Overview
MSI's flagship MEG series exemplifies relentless innovation, continuously setting new benchmarks in the gaming hardware space. This trailblazing series employs pioneering technology to push the boundaries of gaming, consistently leading with innovations that redefine what gamers expect.
PERFORMANCE | THERMAL DESIGN | DURABILITY | EZ DIY | GAMING INTELLIGENCE | Quality Test Challenges
Each product undergoes hundreds of strict quality checks before leaving the factory to ensure it reaches consumers with assured quality. The MEG Ai1600T PCIE5 reveals the most important items result, users can witness each test, showcasing its quality.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: MEGAI1600TPCIE5
- Brand Name: MSI
- Product Series: MEG
- Product Name: MEG 1600W Power Supply
- Product Type: Power Supply
Technical Information
- Specification Compliance: ATX 3.1
- Efficiency: 94%
- Power Factor Correction (PFC): Active

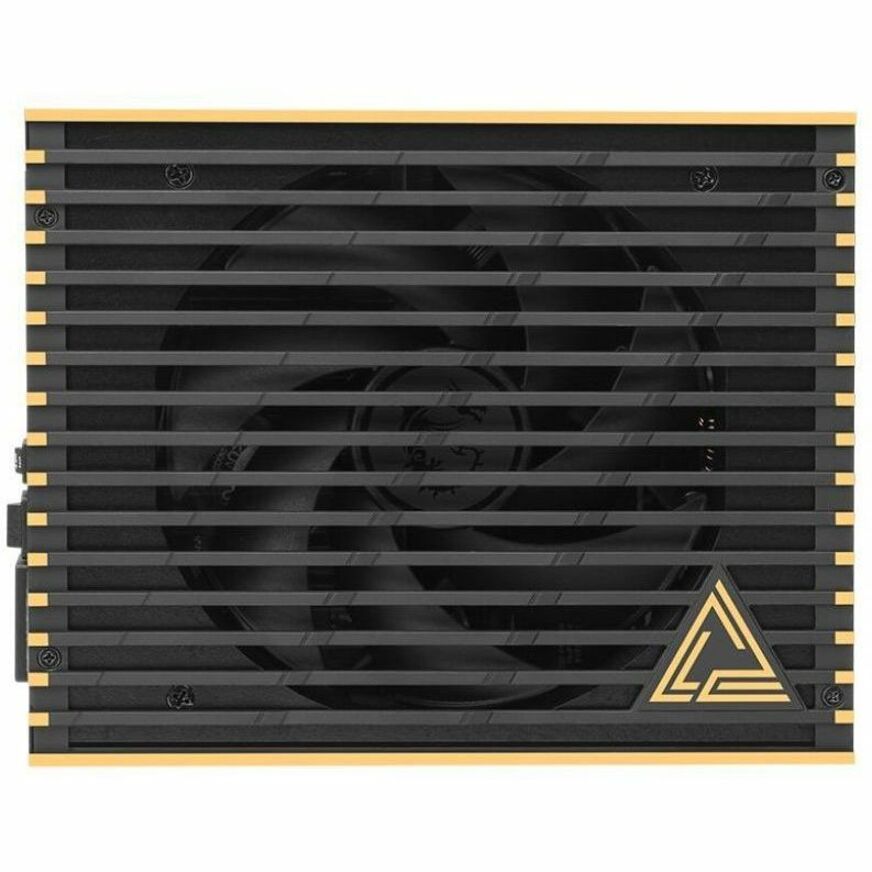

- Number of Fans: 1
- Fan Bearing Type: Dual Ball Fan Bearing
- Fan Diameter: 135 mm
- Protection Type:
- Over Current
- Over Temperature
- Over Power
- Short Circuit
- Over Voltage
- Under Voltage
- Surge & Inrush Protection
- No Load
- Modular: Yes
- NVIDIA SLI Supported: Yes
- Features:
- Low Noise
- Compact
- RGB Lighting
Power Description
- Input Voltage:
- 120 V AC
- 230 V AC
- Number of +12V Rails: 1
- Output Voltage:
- 5 V DC
- 3.3 V DC
- 12 V DC
- -12 V DC
- 5 V SB
- Output Voltage Detail:
- 5 V DC @ 22 A
- 3.3 V DC @ 22 A
- 12 V DC @ 133.3 A
- -12 V DC @ 0.3 A
- 5 V SB @ 3 A
- Output Power: 1600 W

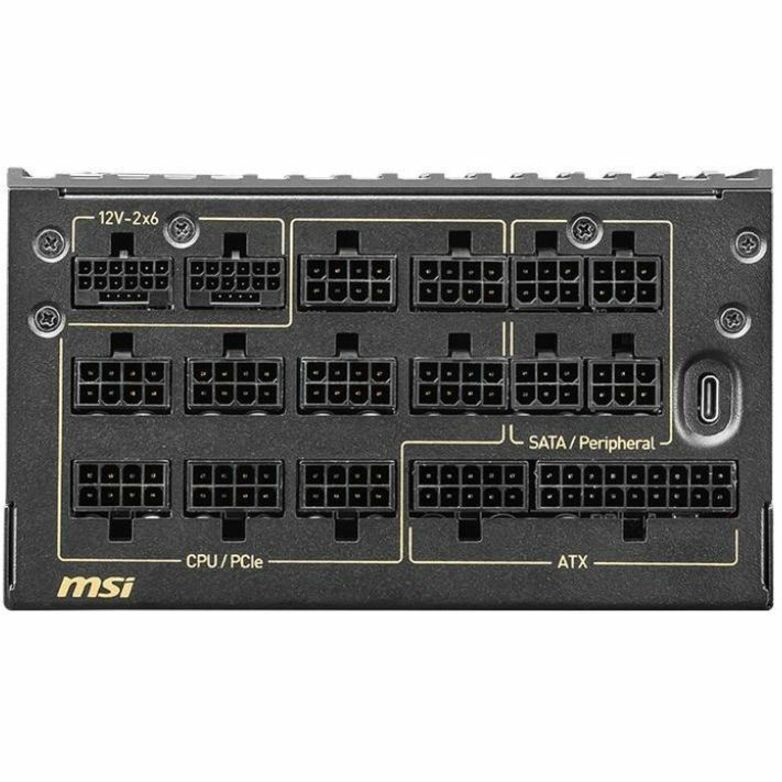

Interfaces/Ports
- Number of SATA Power Connectors: 8
- PCI Express Connector: Yes
- Number of (6+2 pin) PCI Express Power Connectors: 9
- Number of (4+4 pin) CPU Power Connectors: 2
- Number of 4-pin Molex Power Connectors: 8
Physical Characteristics
- Form Factor: Internal
- Height: 7.5"
- Width: 5.9"
- Depth: 3.4"
Miscellaneous
- Energy Efficiency Certification: 80 Plus Titanium
