MSI Pro B850-P WIFI Gaming Desktop Motherboard - AMD B850 Chipset - Socket AM5 - ATX - PROB850PWIFI
Key Features
- 5G Network Solution Featuring premium 5G LAN to deliver better network experience.
- Extended Heatsink Design MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
- EZ M.2 Shield Frozr II The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
- EZ PCIe Clip II Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
- Frozr AI Cooling Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
- Latest DDR5 Memory A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
- Lightning Gen 5 The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed
- Pre-installed I/O Shielding Better EMI protection and more convenience for installation
- Wi-Fi 7 The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Product Overview

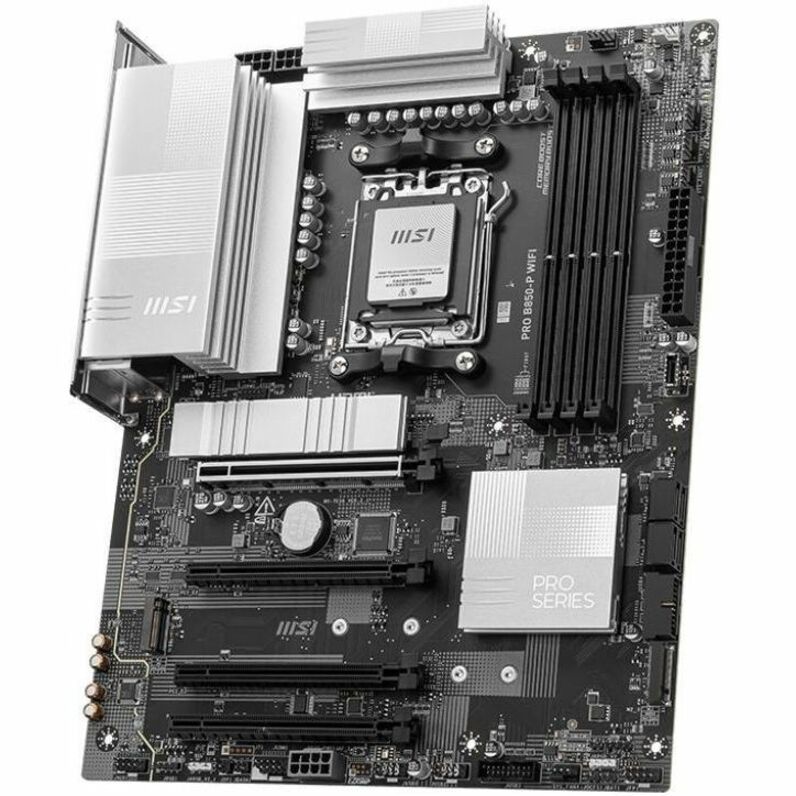

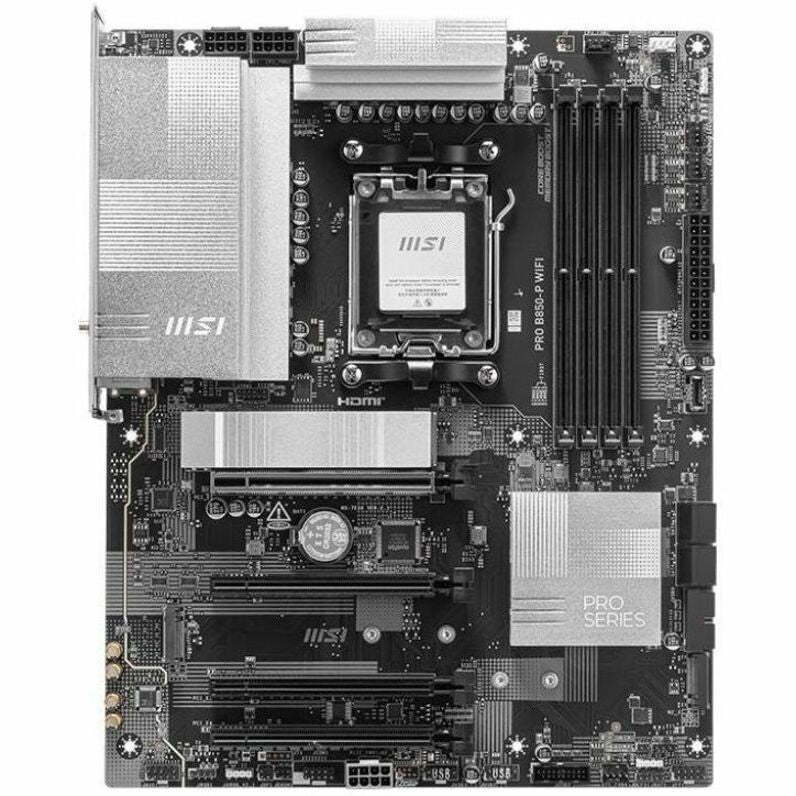

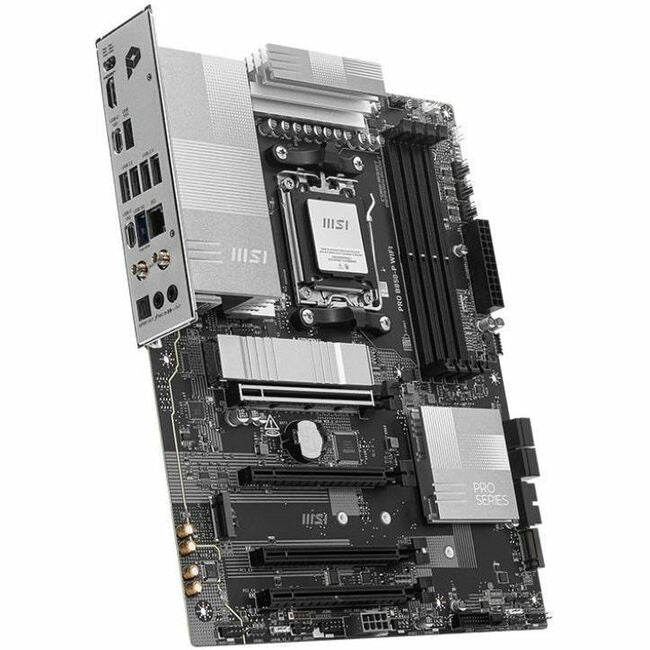

PRO B850-P WIFI
PRO B850-P WIFI offers a simple design with a harmonious silver color scheme that perfectly matches both white and black PC builds. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 5G LAN, PCIe 5.0 M.2 with EZ M.2 Shield Frozr II, and Supplemental PCIe Power, ready for the AMD Ryzen™ 9000 series processors.
PRO SERIES BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
READY FOR Ai PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
Al Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr Al Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
Al Boost
is an MSI exclusive feature. It overclocks NPU to improve higher Al performance.
General Information
- Manufacturer: MSI
- Manufacturer Part Number: PROB850PWIFI
- Brand Name: MSI
- Product Line: Pro
- Product Model: B850-P WIFI
- Product Name: PRO B850-P WIFI Gaming Desktop Motherboard
- Product Type: Gaming Desktop Motherboard
Technical Information
- AI-powered: Yes
Processor & Chipset
- Chipset Manufacturer: AMD
- Chipset Model: B850
- Total Processor Supported: 1
- Processor Socket: Socket AM5
- Processor Supported:
- Ryzen 9
- Ryzen 7
Memory
- Number of Memory Slots: 4
- Memory Form Factor:
- DIMM
- UDIMM
- Maximum Memory Supported: 256 GB
- Memory Speed Supported:
- 8200 MHz
- 6400 MHz
- 5600 MHz
- 4800 MHz
- Memory Technology: DDR5 SDRAM
I/O Controller
- Controller Type: Serial ATA/600
- RAID Supported: Yes
- RAID Levels:
- 0
- 1
Video
- Onboard Video: CPU Dependent Video
Audio
- Audio Channels: 7.1
Network & Communication
- Bluetooth: Yes
- Bluetooth Standard: Bluetooth 5.4
- Gigabit Ethernet: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11 a/b/g/n/ac/ax/be
I/O Expansions
- Total Number of Expansion Slots: 4
- Total Number of PCI Express Slots: 4
- Number of PCI Express x1 Slots: 2
- Number of PCI Express x16 Slots: 2
- PCI Express Standard:
- PCI Express 5.0
- PCI Express 4.0
- PCI Express 3.0

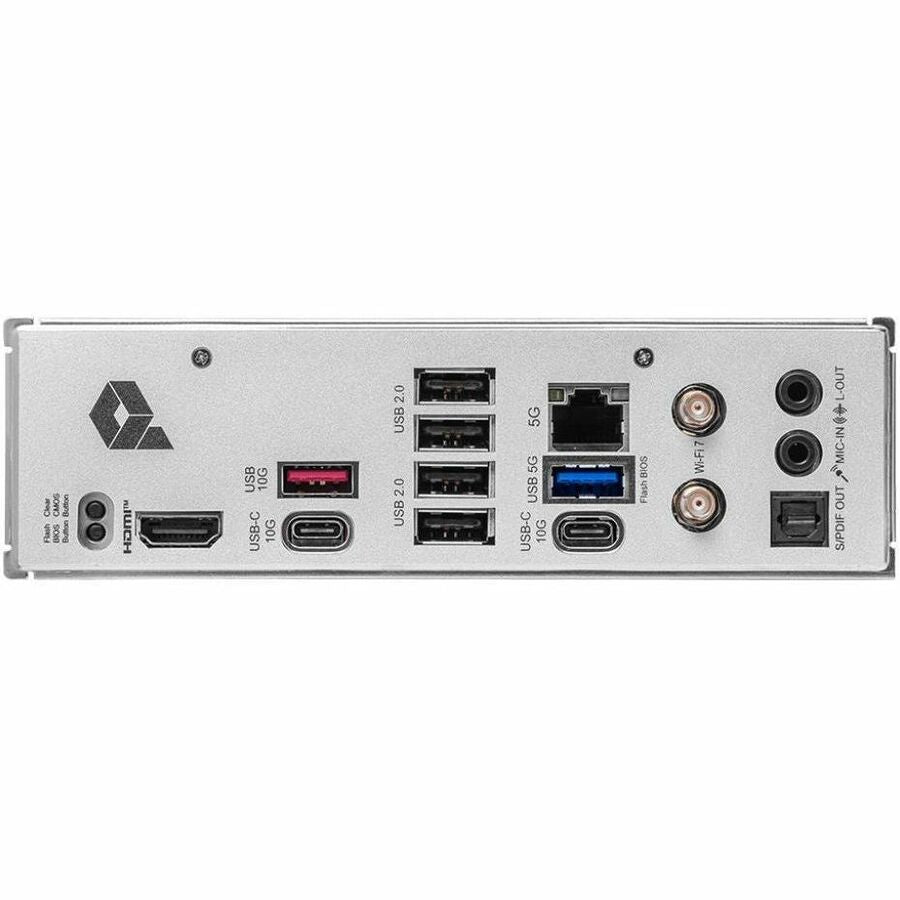

Interfaces/Ports
- Total Number of USB Ports: 8
- Number of USB 2.0 Ports: 4
- S/PDIF: Yes
- HDMI: Yes
- Number of Network (RJ-45) Ports: 1
Onboard Interfaces
- Number of SATA Interfaces: 4
- Number of M.2 Interfaces: 3
- Total Number of Onboard USB Ports: 9
- Number of Onboard USB 2.0 Ports: 4
Physical Characteristics
- Form Factor: ATX
- Width: 12"
- Depth: 9.6"
Miscellaneous

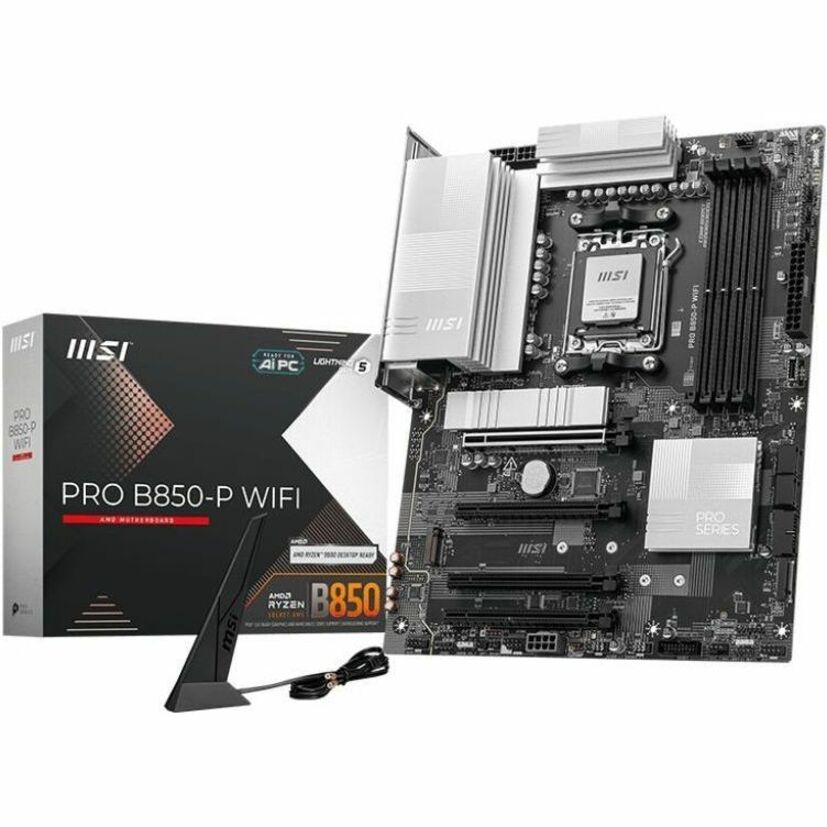

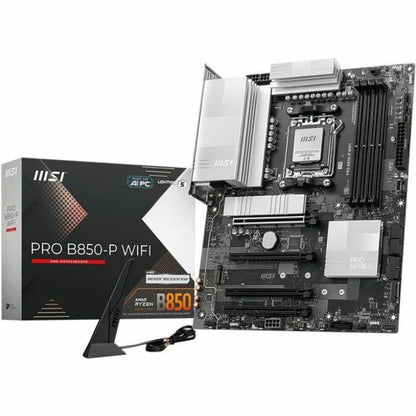

- Package Contents:
- PRO B850-P WIFI Gaming Desktop Motherboard
- Quick Installation Guide
- European Union Regulatory Notice
- SATA Cable
- 3 x EZ M.2 Clips II
- EZ M.2 Clip II Remover
- EZ Wi-Fi Antenna
