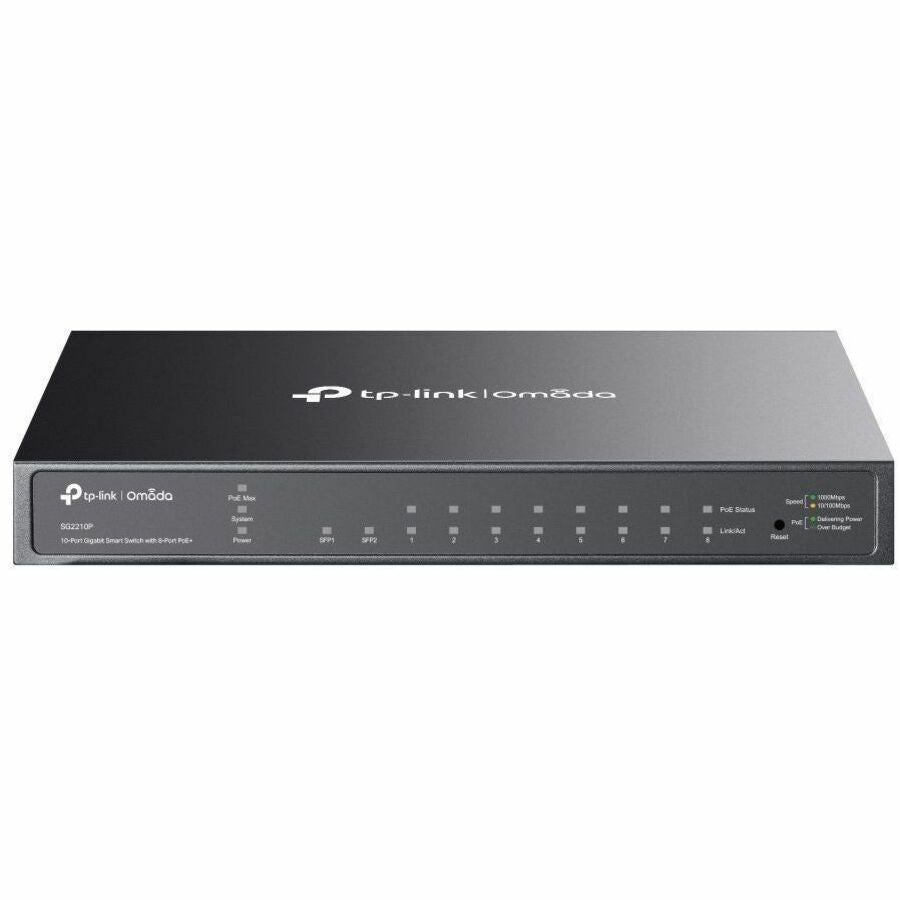

Omada 10-Port Gigabit Smart Switch with 8-Port PoE+ - SG2210P
Key Features
- Effectively reduces downtime with improved network performance
- Features 8 networking ports to easily establish a local network or expand your existing one
- Gigabit Ethernet port for ultra-fast network speeds
- Management capability provides control over setup and configuration of your network
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- The desktop installation makes it ideal for deployments outside the wiring closet
- With leading Layer 2 support, experience enhanced convenience, secure business operations, and a borderless network experience
Product Overview
Omada 10-Port Gigabit Smart Switch with 8-Port PoE+
SG2210P
8× Gigabit PoE+ Ports, 2× Gigabit SFP Slots
61 W Total PoE Budget
Fanless Design for Silent Operation
Zero-Touch Provisioning
Centralized Management
Omada App
Static Routing
Traffic Separation
Software Defined Networking (SDN) with Cloud Access
Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.
Multiple Application Scenarios | Surveillance
Works with IP Cameras
Conference Call
Works with IP Phones
Wi-Fi Coverage
Works with Access Points
Wired Connections
Works with Non-PoE Devices such as PCs and Printers
General Information
- Manufacturer: TP-LINK Technologies Co., Ltd
- Manufacturer Part Number: SG2210P
- Brand Name: Omada
- Product Model: SG2210P
- Product Name: 10-Port Gigabit Smart Switch with 8-Port PoE+
- Product Type: Ethernet Switch
Technical Information
- Data Link Protocols:
- HTTP
- HTTPs
- Features:
- Virtual LAN (VLAN)
- Access Control List
- Quality of Service (QoS)
- IGMP Snooping
- Zero-Touch Provisioning (ZTP)
- Fanless
- Reset Button
- Auto-negotiation
- Broadcast Storm Control
- Multicast Storm Control
- Unicast Storm Control
- DHCP Relay
- Link Aggregation
- Loopback Detection
- Flow Control
- Remote Monitoring (RMON)
Interfaces/Ports
- Total Number of Network Ports: 8
- Network (RJ-45): Yes
- Port/Expansion Slot Details:
- 8 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet Expansion Slot
Media & Performance
- Media Type Supported:
- Twisted Pair
- Optical Fiber
- Ethernet Technology: Gigabit Ethernet
- Network Technology:
- 10/100/1000Base-T
- 100/1000Base-X
- Maximum Data Transfer Rate: 128 MB/s
I/O Expansions
- Total Number of Expansion Slots: 2
- Expansion Slot Type: SFP
- Number of SFP Slots: 2
Network & Communication
- Layer Supported: 2
- Networking Standards:
- IEEE 802.3af
- IEEE 802.3at
- IEEE 802.1p
- IEEE 802.3x
- IEEE 802.1ab
- IEEE 802.1Q
- IEEE 802.1x
Management & Protocols
- Manageable: Yes
Power Description
- PoE (RJ-45) Port: Yes
- PoE Budget: 61 W
- Input Voltage: 110 V
- Power Source:
- Power Adapter
- DC
- Power Consumption: 77.80 W
Physical Characteristics
- Product Material: Metal
- Form Factor:
- Desktop
- Wall Mountable
- Height: 1"
- Width: 8.2"
- Depth: 4.9"
Miscellaneous
- Package Contents:
- 10-Port Gigabit Smart Switch with 8-Port PoE+
- Power Adapter
- Installation Guide
- Rubber Feet
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
