OWC 11-Port Thunderbolt 5 Dock with 140W Power Delivery - 2.5GbE - Up to 3 Displays - OWCTB5DOCK11P
Key Features
- : Create three separate daisy chains of devices - even bus powered - and remove devices from one chain without affecting the other chains.
- : Enhance efficiency with sharper details by connecting up to three 8K displays.
- : Expand the functionality of port limited computers simply by connecting it to this dock with the included Thunderbolt cable.
- : Fanless aluminum enclosure for quiet and cool operation.
- : Plug headphones or a microphone into this 3.5mm audio in/out jack to easily handle conferencing, recording, or listening needs.
- : Quickly offload photos and videos from cameras, drones, and audio recording devices with microSD and SD 4.0 UHS-II reader slots instead of using separate external readers.
- : Unleash the full potential of devices by maximizing the highest bandwidth available from three Thunderbolt 5 ports.
- : Use existing and the latest gear and machines whether they are Thunderbolt 5/4/3, USB4, or USB-C.
- : Vastly improve remote collaborations, cloud services, NAS file transfers, and online gaming wi
Product Overview
Advanced Capabilities for Everyday to Expert Connectivity

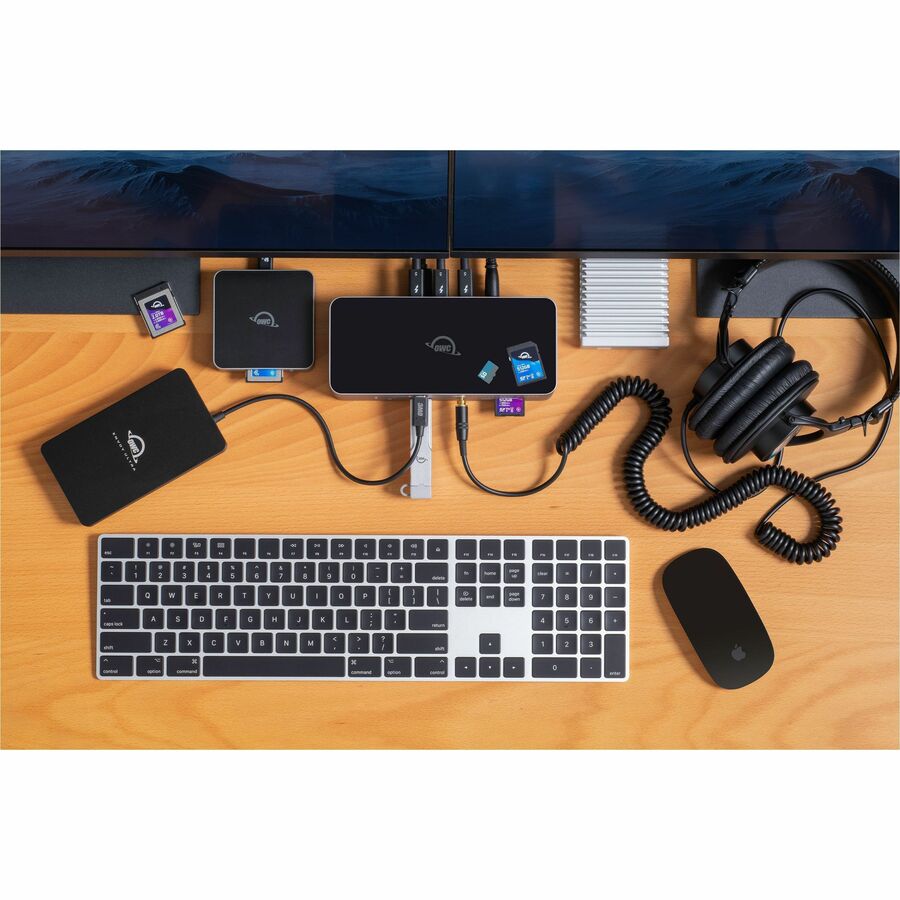

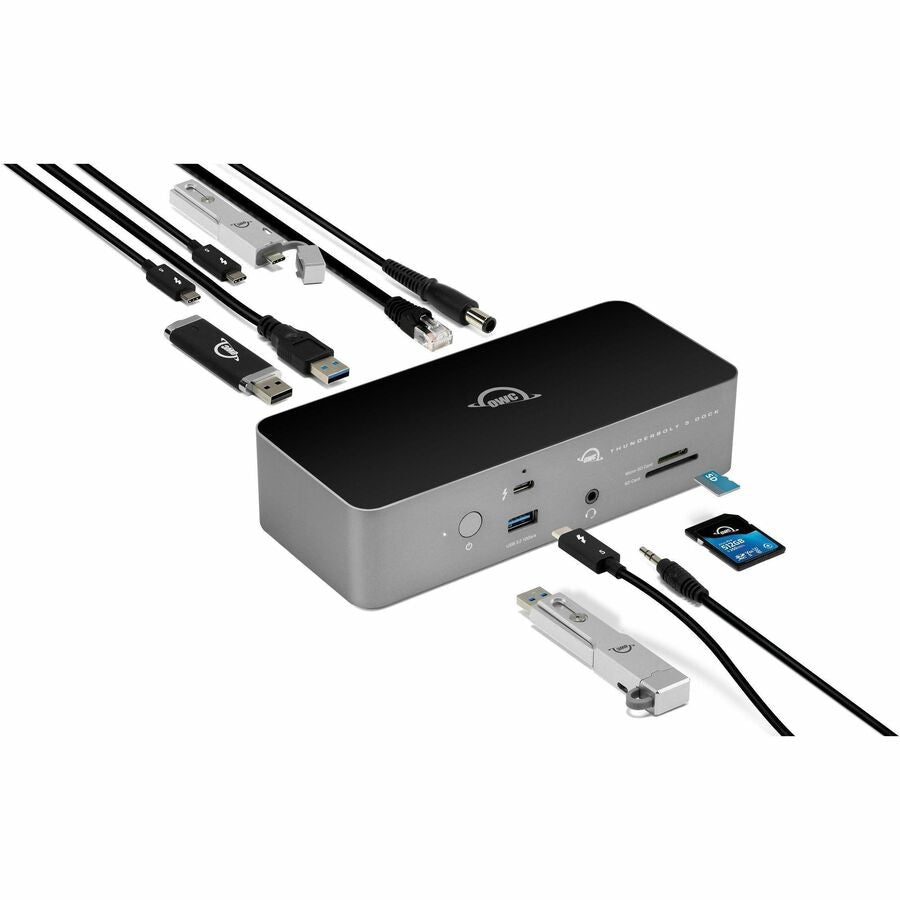

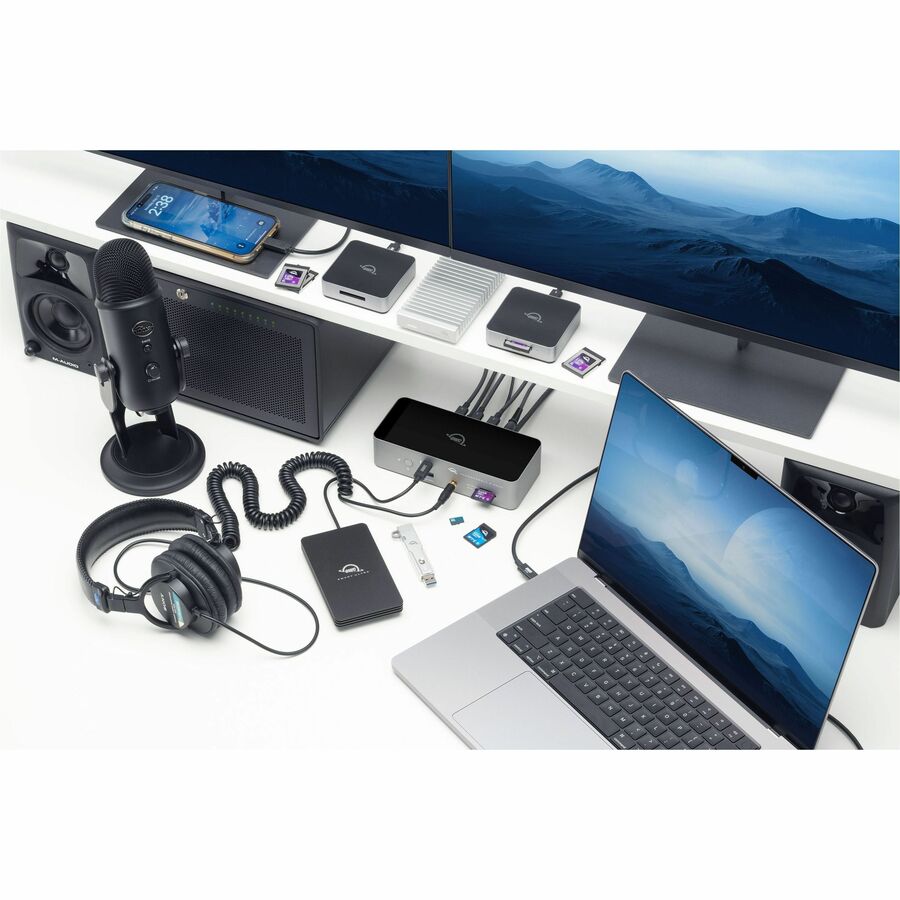

Whether you're a tech enthusiast or creator working on your latest masterpiece, the Thunderbolt 5 Dock is the perfect all-in-one solution to streamline your setup and maximize your productivity. With the unrivaled speed of Thunderbolt 5, you'll transfer data faster and gain more time for creating, editing, and producing. You'll also unleash the full potential of everything you connect - from legacy devices to the latest Thunderbolt 5 SSDs - all while using just one Thunderbolt port on your Mac, iPad, PC, Chromebook, or tablet. Seamlessly connect a myriad of devices - memory cards, NAS storage, Thunderbolt and DisplayPort displays, desktop peripherals and more - with universal USB/USB-C compatibility. Experience sharper, smoother visuals on up to three 8K displays. With 11 versatile ports to boost your multitasking efficiency, you'll do everything faster and easier, keep your workspace tidy, and keep your notebook charged with up to 140W of power.
Unlock Your Potential with Maximum Bandwidth
The terrific trio of Thunderbolt 5 ports aren't just there to be an impressive spec. They're the key to unlocking your full potential by maximizing available bandwidth in both upstream and downstream directions to your devices. You'll say wow - or something stronger - when you transfer massive media files by connecting two USB4 CFexpress Type B card readers (each delivering up to 3330MB/s read speeds) alongside an OWC Thunderblade X12 or an OWC Envoy Ultra with over 6000MB/s write speeds. A setup like this lets you take advantage of the incredible bandwidth of Thunderbolt 5 and use read and write speeds over 6000MB/s to dramatically reduce backup times from your media cards. Connect up to three Thunderbolt 8K HDR monitors at 60Hz with DSC (or 30Hz without DSC) on Windows, and up to two Thunderbolt 6K displays on Macs. Now you'll have the expansive ultra-high-resolution screen real estate you need for detailed work.
Maximum Speed Yesterday, Today and Tomorrow
You can use the OWC Thunderbolt 5 Dock with more than incredibly fast Thunderbolt 5 machines and devices. With 100% USB-C compatibility, you can use it with millions of Macs, iPads, PCs, Chromebooks, Android tablets, and Surface devices and enjoy their maximum possible performance. Whether you have a new Thunderbolt 5 computer or device or want your connectivity to be future-proofed, the OWC Thunderbolt 5 Dock is the universally compatible high-performance connection solution For All Computerkind™.
- Thunderbolt 5: 80Gb/s bi-directional data with up to 120Gb/s video stream performance
- Thunderbolt 4: 40Gb/s
- Thunderbolt 3: 20Gb/s up to 40Gb/s
- USB4: 40Gb/s up to 80Gb/s
- USB-C: up to 20Gb/s
General Information
- Manufacturer: Other World Computing
- Manufacturer Part Number: OWCTB5DOCK11P
- Brand Name: OWC
- Product Name: Thunderbolt 5 Dock
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 3
- Supported Resolutions:
- 7680 x 4320
- 3840 x 2160
- 6016 x 3384
- Screen Mode Supported:
- 8K @ 60Hz
- 4K @ 144Hz
- 8K
- 8K @ 120Hz
- 6K
- 8K @ 30Hz
- Memory Card Reader: Yes
- Memory Card Supported:
- microSDXC
- SDXC
- microSD
- SD
- Device Supported:
- Monitor
- Notebook
- Tablet PC
- Desktop PC
- Headphone
- Microphone
- Workstation
- Keyboard
- Mouse
- Hard Drive
Network & Communication
- Ethernet Technology: 2.5 Gigabit Ethernet

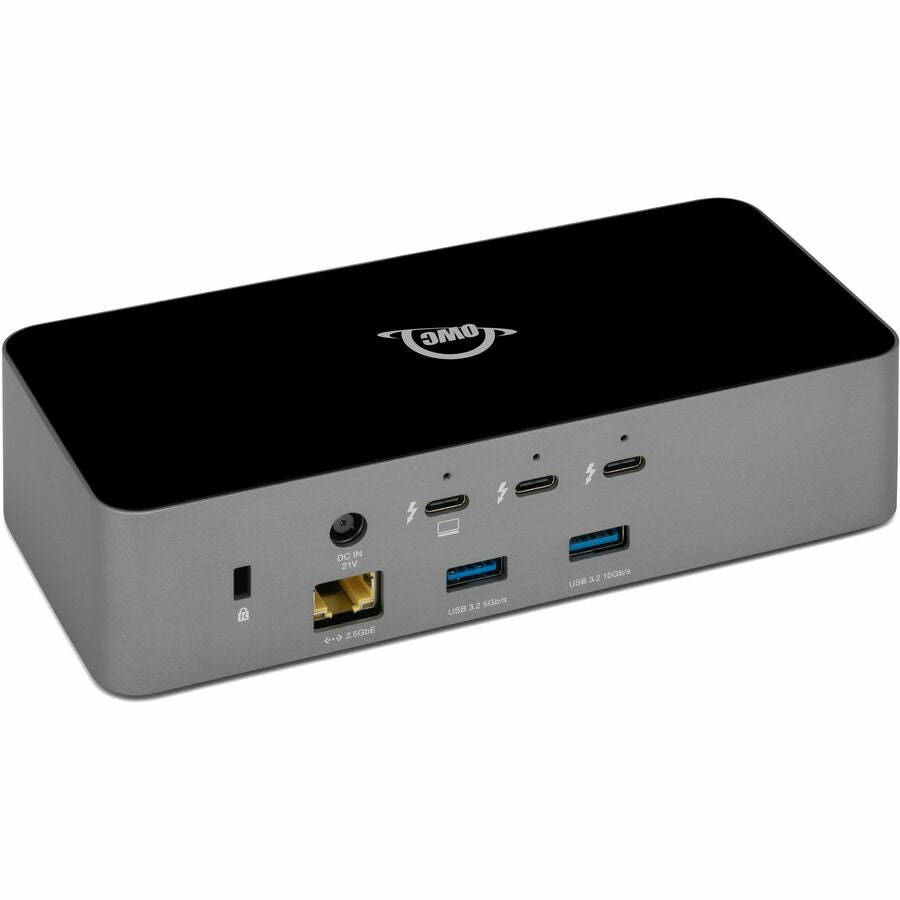

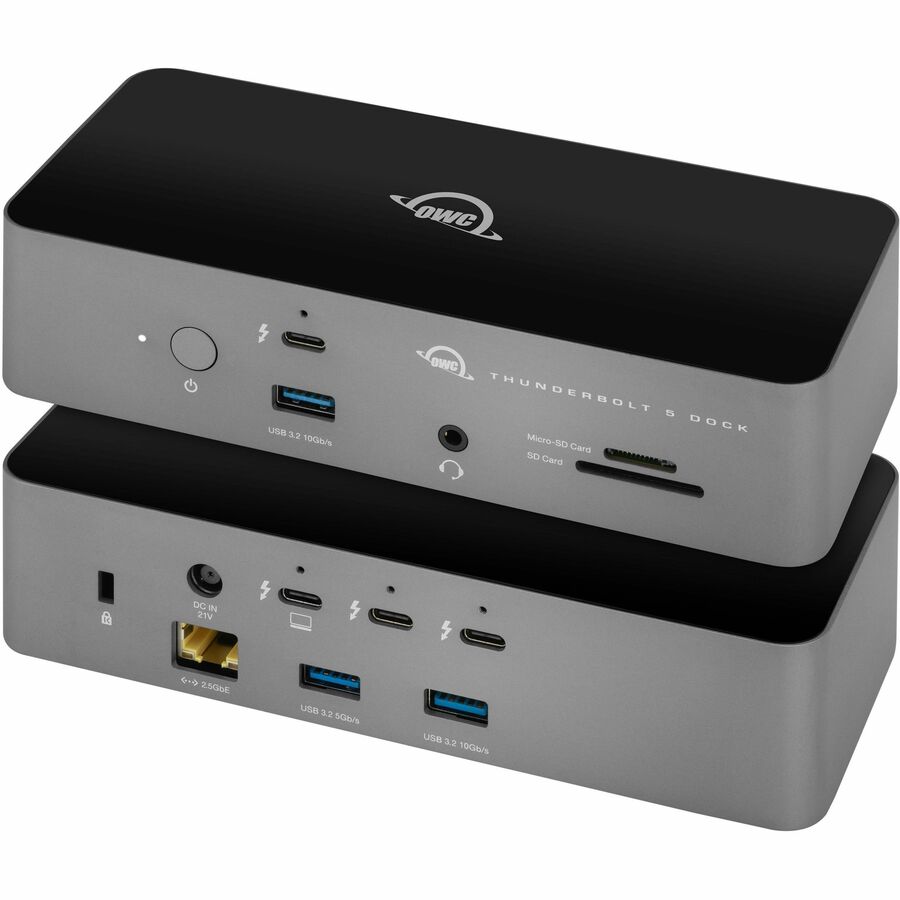

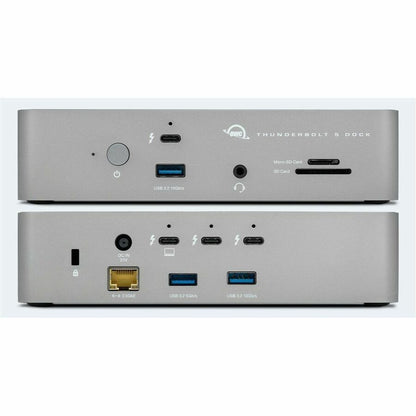

Interfaces/Ports
- Host Interface: Thunderbolt 5
- Total Number of USB Ports: 3
- Number of USB 3.2 Gen 2 Type-A Ports: 3
- Number of USB Type-A Ports: 3
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Headphone/Microphone Combo Port: Yes
- Thunderbolt: Yes
- Thunderbolt Ports Quantity: 4
- USB Power Delivery: 140W
Software
- Operating System Supported:
- ChromeOS
- Linux
- iPadOS 17
- Android 12
- Windows 10 (64-bit)
- Windows 11
- Mac OS X 14.x Sonoma
- Windows Server 2022
- macOS Sequoia 15.3.x
Physical Characteristics
- Product Color: Space Gray
- Form Factor: Desktop
- Height: 1.70"
- Width: 7"
- Depth: 3.10"
- Weight (Approximate): 1.20 lb
Miscellaneous
- Package Contents:
- Thunderbolt 5 Dock
- 1.0M (39") Thunderbolt Cable
- External Power Supply and Power Cable
- Quick Start Guide for OWC Thunderbolt 5 Dock
- User Guide for OWC Thunderbolt 5 Dock
- OWC Dock Ejector for Mac and Windows (software download)
- User Guide for OWC Dock Ejector
- Compatibility:
Compatible Devices:
- Apple Macs
- Apple iPads
- Chromebooks
- Microsoft Surface Devices
- TAA Compliant: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 2 Year
