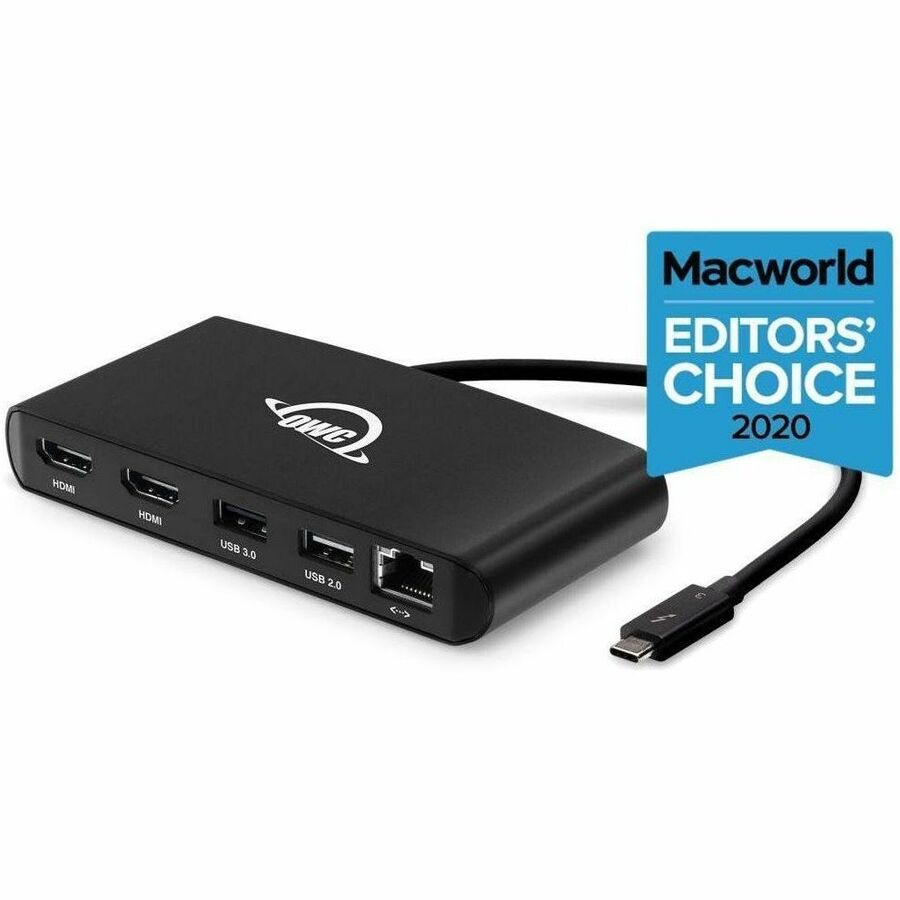

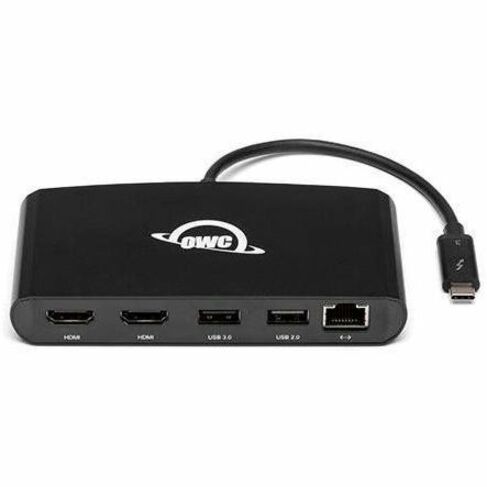

OWC 5-Port Thunderbolt mini Dock With Dual 4K HDMI, Dual USB + Gigabit Ethernet - OWCTB3MDK5P
Key Features
- Add input options: connect a keyboard or mouse via USB 2 port
- Easy travel: integrated 72-inch Thunderbolt 3 cable
- Effortless streaming: HDCP 22 compatible for 4K UHD content
- Expand your possibilities: connect a portable drive, flash drive, or card reader via one USB 3 (5Gb/s) port
- Fast networking: Gigabit Ethernet with PXE Boot and Wake-on-LAN support
- No power adapter needed: bus-powered and portable
- Power your devices: charge small mobile devices and most smartphones via USB 3 (5Gb/s) port
- See more: connect up to two 4K displays via two HDMI 20 ports
- Superior audio: supports HDMI precision multi-channel audio (LCPM, DTS, and Dolby Digital)
- Thunderbolt certified: for Mac and Windows
Product Overview
The Ultimate Bus-Powered Portable Multi-Adapter
Experience the Best of Thunderbolt
The OWC Thunderbolt 3 mini Dock harnesses the full potential of your laptop's Thunderbolt 3 port-fast data transfers, dual 4K display support, and small device charging power-creating a hub of powerful connections. Built by the world's largest producer of Thunderbolt devices, OWC follows the highest standards in engineering and manufacturing, so you can use the Thunderbolt 3 mini Dock with full confidence in its compatibility and precision performance.

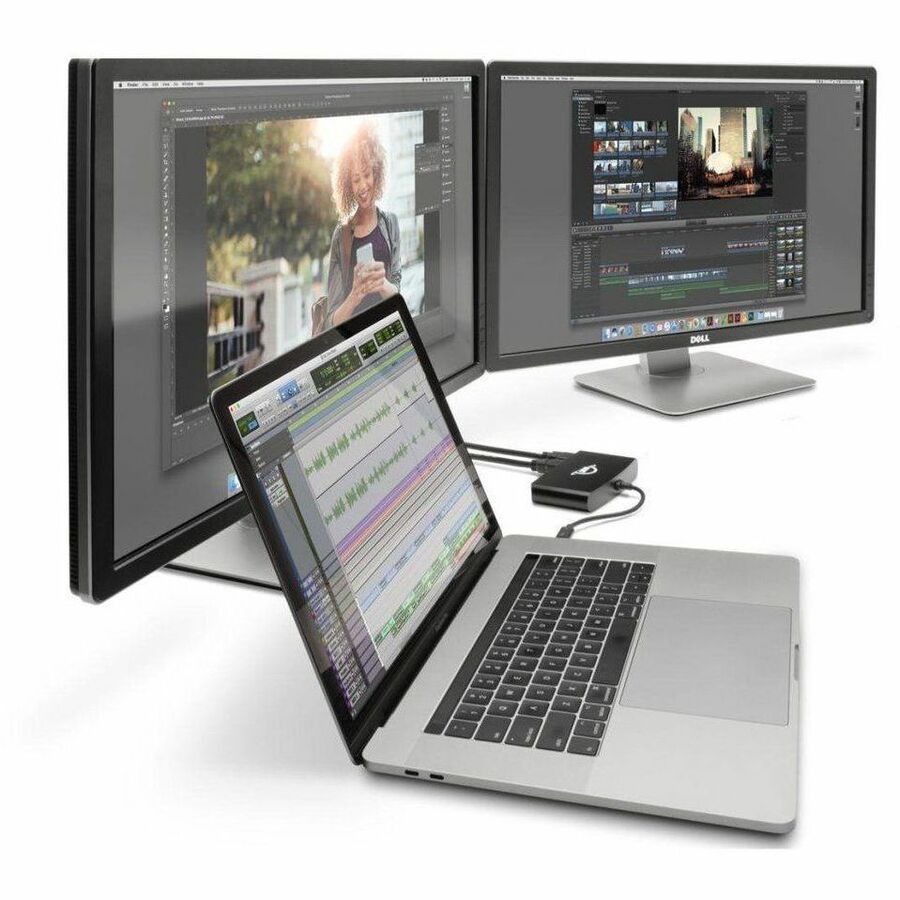

See What You've Been Missing
The OWC Thunderbolt 3 mini Dock effectively utilizes your computer's Thunderbolt 3 bandwidth potential (up to 40Gb/s) to support two 4K @ 60Hz displays without any performance impact. Transform your notebook's single display into a three-screen multiplex and increase your productivity with extended or mirrored modes. Experience, crystal-clear vibrant 4K video and high-fidelity audio in gaming and uncompressed video streaming in high action sports and movies. From perfect pixels to smooth streaming, the OWC Thunderbolt mini dock helps you see what you've been missing.
Connections Are the Key to Success
Through its USB 3 and USB 2 ports, the OWC Thunderbolt 3 mini Dock opens up a world of convenience and functionality wherever you work. Control your workspace with the ease of a full-sized keyboard or mouse. Back up work to an external drive. Import files from a flash drive, card reader, or optical drive. Send files to a printer. Charge up small mobile devices. With extra connections, it's easy to keep up with your potential.
Stream, Share and Surf Faster, More Reliably
Truly a must have for mobile professionals, the OWC Thunderbolt 3 mini Dock offers a Gigabit Ethernet port for a faster, more reliable internet connection. Enjoy a speedy server connection, uninterrupted downloads, and reliable file transfers while saying goodbye to aggravatingly low-quality hotel and public Wi-Fi connections.
Be at Your Best Anywhere
Even with its huge workflow benefits, the OWC Thunderbolt 3 mini Dock is small enough to fit discreetly on your desktop or inside a gear bag for mobile use. The lightweight, bus-powered aluminum housing and its 7.2-inch tethered Thunderbolt 3 cable eliminate the typical dock's separate connection cable and power adapter. Nothing to lose or forget, no agonizing over which device to disconnect from your port-limited machine, no extra bulk...the OWC Thunderbolt 3 mini Dock truly lets you work at your best anywhere.
Disconnect in One Click
OWC Dock Ejector software safely disconnects drives connected to the OWC Thunderbolt 3 mini Dock in a single click. Designed by OWC hardware and software engineers, Dock Ejector ensures all data is written before disconnection, saving time and protecting against data loss. Use it to move quickly between workstations and get the most out of your OWC Thunderbolt 3 mini dock.
Trusted by Pros & Enthusiasts the World Over
We build our hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, we rigorously quality test and back our hardware with a 2 Year OWC Limited Warranty and award-winning customer support.
General Information
- Manufacturer: Other World Computing
- Manufacturer Part Number: OWCTB3MDK5P
- Brand Name: OWC
- Product Name: Thunderbolt mini Dock
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported: 4K
- Device Supported:
- Notebook
- Desktop PC
Interfaces/Ports
- Host Interface: Thunderbolt 3
- Total Number of USB Ports: 2
- Number of USB 2.0 Ports: 1
- Number of USB 3.0 Ports: 1
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of HDMI Outputs: 2
- HDMI: Yes
- Thunderbolt: Yes
Software
- Operating System Supported:
- Mac OS X 10.12 Sierra
- Mac OS X 10.13 High Sierra
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 14.x Sonoma
- Mac OS X 13.x Ventura
- Mac OS X 12.x Monterey
- Mac OS X 11.x Big Sur
- Windows 10 (64-bit)
- Windows 11
- Windows Server 2016
Physical Characteristics
- Product Color: Black
- Height: 0.75"
- Width: 4.88"
- Weight (Approximate): 5.29 oz
Miscellaneous
- Package Contents:
- Thunderbolt mini Dock
- 1 x Quick Start Guide for OWC Thunderbolt mini Dock
- 1 x User Guide for OWC Thunderbolt mini Dock
- 1 x OWC Dock Ejector for Mac and Windows (software download)
- 1 x User Guide for OWC Dock Ejector
- Compatibility: Apple Products:
- Mac Pro Rack (Early 2020)
- Mac Pro (Late 2019)
- Mac mini (Late 2018)
- iMac w/Retina 5K display (27-inch Early 2019)
- iMac w/Retina 4K display (21.5-inch Early 2019)
- iMac w/Retina 5K display (27-inch Mid 2017)
- iMac w/Retina 4K display (21.5-inch Mid 2017)
- iMac (21.5-inch Mid 2017)
- MacBook Pro (13-inch Touch Mid 2020)
- MacBook Pro (16-inch Touch Mid 2019)
- MacBook Pro (15-inch Touch Mid 2019)
- MacBook Pro (13-inch Touch Mid 2019)
- MacBook Pro (15-inch Touch Mid 2018)
- MacBook Pro (13-inch Touch Mid 2018)
- MacBook Pro (15-inch Touch Mid 2017)
- MacBook Pro (13-inch Touch Mid 2017)
- MacBook Pro (13-inch Retina display Mid 2017)
- MacBook Pro (15-inch Touch Late 2016)
- MacBook Pro (13-inch Touch Late 2016)
- MacBook Pro (13-inch Retina display Late 2016)
- MacBook Air (13-inch Early 2020)
- MacBook Air (13-inch Mid 2019)
- MacBook Air (13-inch Late 2018)
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 2 Year
