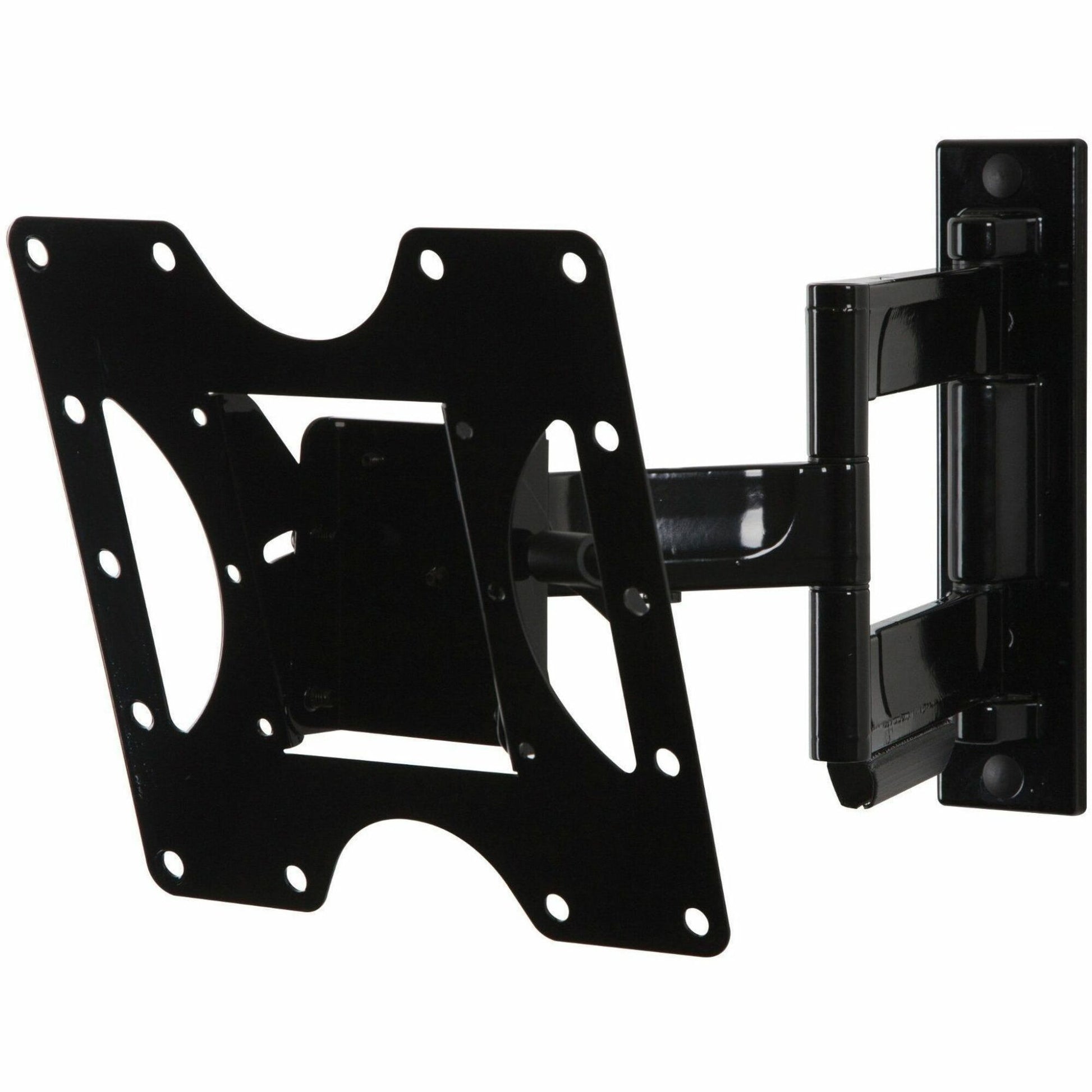

Peerless-AV® PA740 Paramount Articulating Wall Mount - PA740
Key Features
- ±5° of roll for post installation display leveling
- +15/-5° of tilt for optimal viewing angles
- Accommodates 100 x 100, 200 x 100, or 200 x 200mm VESA® mounting patterns
- Design is UL listed and tested to four times stated load capacity
- Extends 14.91" (379mm) from the wall
- Hook-and-Hang™, one-person display installation

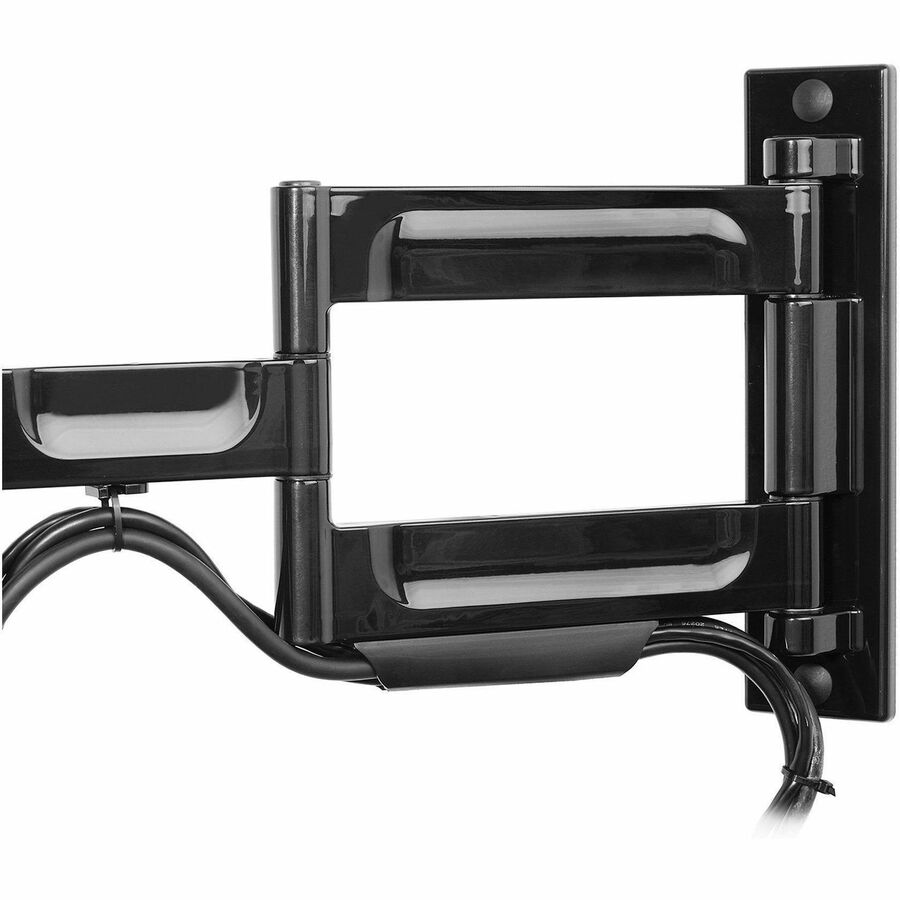

- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Lock the display at any angle with the ratcheting handle
- Mounts to wood stud, concrete, cinder or breeze block
- Retracts 2.80" (71mm) to save space
- Up to ±90° of pivot
Product Overview
The Paramount™ series wall mounts provide versatile and multi-functional features. With PA740, extend the display up to 14.91" (379mm) or fully-retract it to just 2.8" (71mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: PA740
- Brand Name: Paramount™
- Product Series: PA740
- Product Model: PA740
- Product Name: Articulating Wall Mount for 22" to 43" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 80 lb
- Minimum Screen Size Supported: 22"
- Maximum Screen Size Supported: 43"
- Features:
- Retractable
- +/- 5° Roll
- +/- 90° Pivot
- Hook-and-Hang Design
- Ratcheting Handle
- Extendable
- Flexible
- Minimum Adjustable Depth: 2.80"
- Maximum Adjustable Depth: 14.90"
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 15°
- Minimum Swivel Angle: -90°
- Maximum Swivel Angle: 90°
- Mount Function:
- Pivot
- Tilt
- Cable Management
- Articulating
- Wall Mount
- Mount Surface: Wall
- Durability: Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 100 x 100
- 200 x 200
- 200 x 100
- Form Factor: Wall Mountable
- Height: 8.74"
- Width: 9.40"
- Depth: 14.90"
- Weight (Approximate): 4.50 lb
Miscellaneous
- Package Contents:
- Articulating Wall Mount for 22" to 43" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage:
- Wall
- Concrete
- Wood Stud
- Cinder Block
- Breeze Block
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Articulating
- TAA Compliant: Yes
- UL Listed: Yes
- Environmentally Friendly: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
