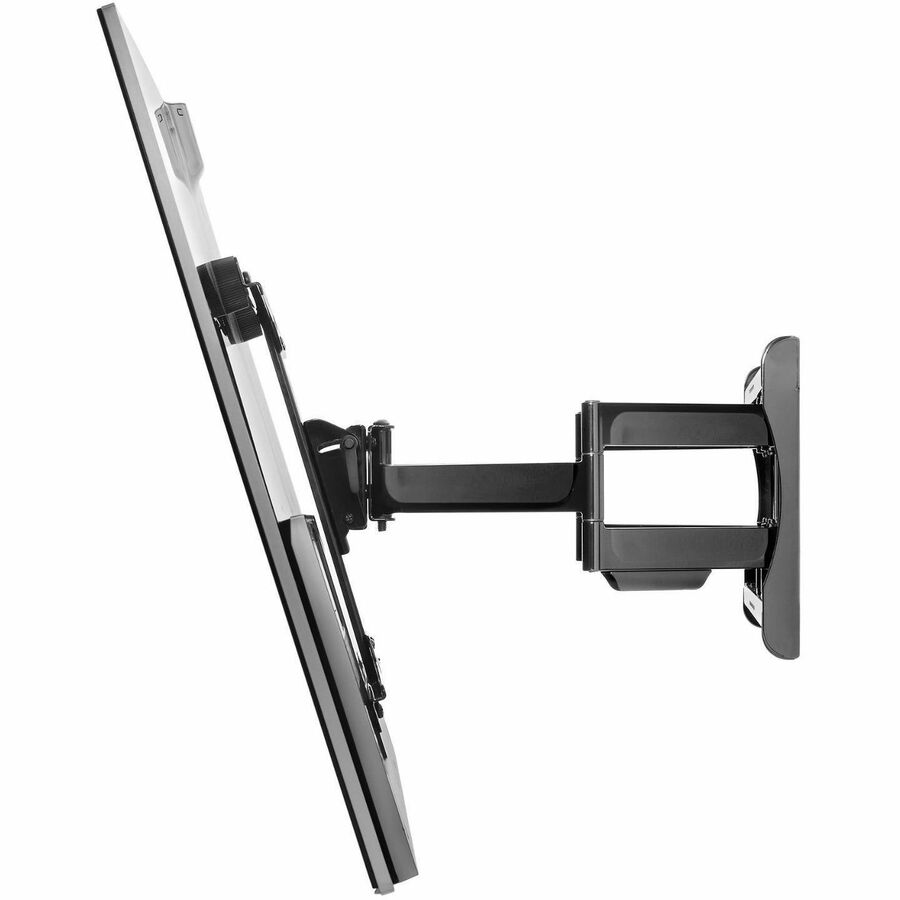

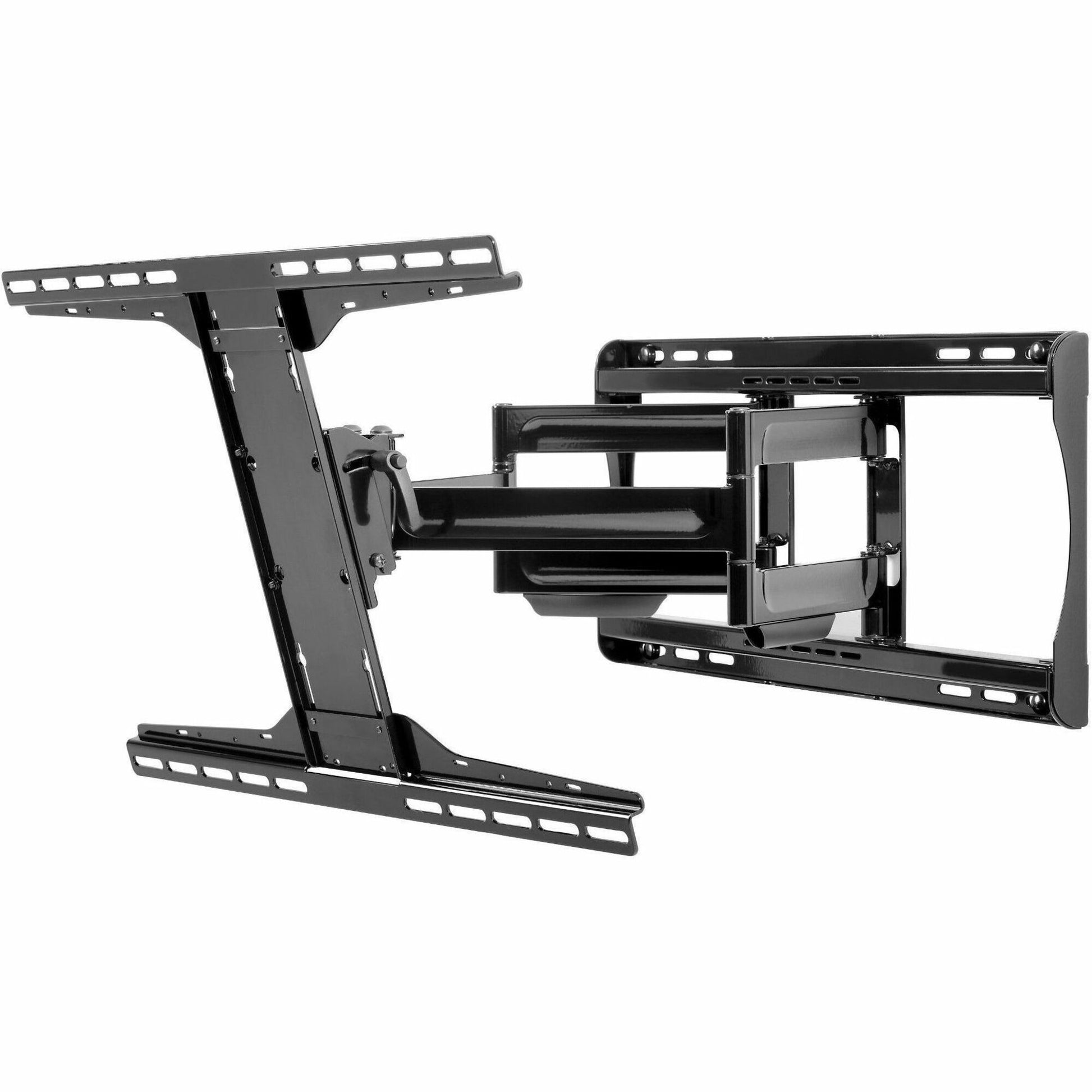

Peerless-AV® Paramount™ Articulating Wall Mount for 39˘ to 90˘ Displays - PA762
Key Features
- +15/-5° of tilt for optimal viewing angles
- Design is UL listed and tested to four times stated load capacity
- Extends 21.35" (542mm) from the wall
- Includes all necessary wall and display attachment hardware
- Retracts 3.00" (76mm) to save space
- Universal mount accommodates 200 x 100 to 600 x 400mm VESA mounting patterns
- Up to 90° of pivot allows for perfect display positioning
Product Overview

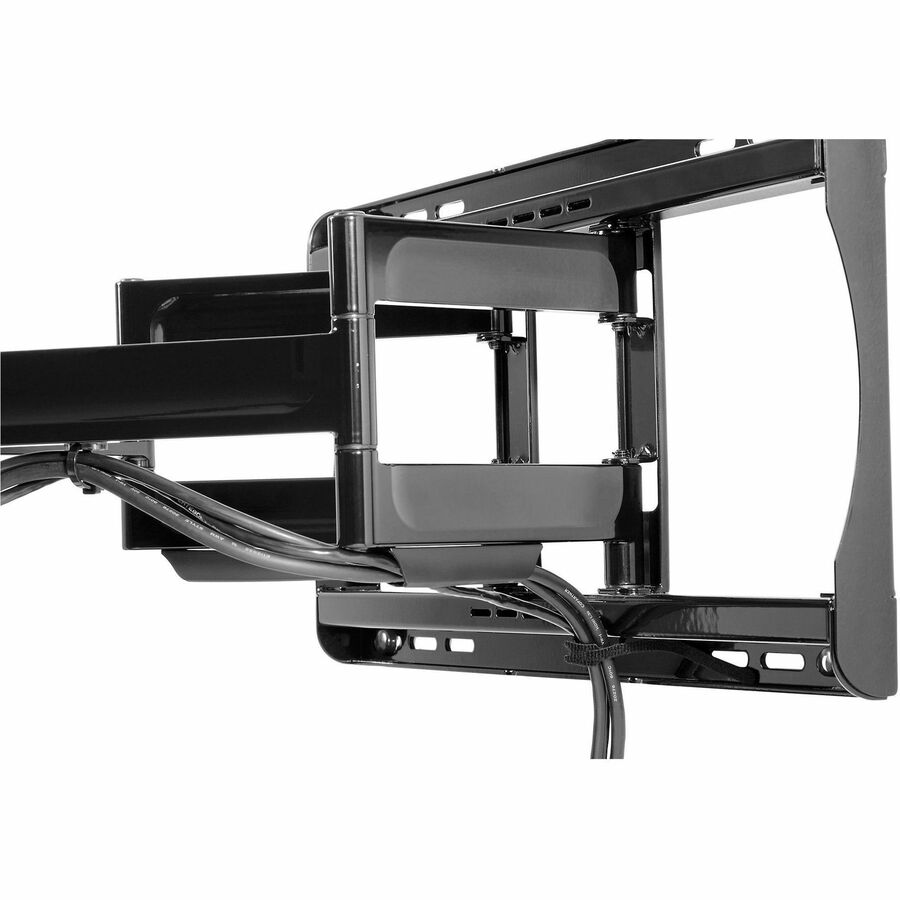

The Paramount™ series wall mounts provide versatile and multi-functional features. With PA762, extend the display up to 21.32" (542mm) or fully-retract it to just 3.00" (76mm) from the wall for the perfect viewing angle. The Hook-and-Hang™ system offers easy, one-person installation of the display. A ratcheting handle provides locking tilt capability for quick adjustments to the amount of tilt, reducing glare and optimizing the viewing angle. Integrated cable management protects, contains and conceals cables for a clean installation.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: PA762
- Brand Name: Paramount™
- Product Series: PA762
- Product Model: PA762
- Product Name: Articulating Wall Mount for 39" to 90" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 150 lb
- Minimum Screen Size Supported: 39"
- Maximum Screen Size Supported: 90"
- Features:
- Retractable
- Handle
- +/- 5° Roll
- Ratcheting Handle
- Reduced Glare
- Hook-and-Hang Design
- +/- 90° Pivot
- Lockable Tilt
- Flexible
- Minimum Adjustable Depth: 3"
- Maximum Adjustable Depth: 21.30"
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 15°
- Mount Function:
- Articulating
- Tilt
- Adjustable
- Cable Management
- Swivel
- Pivot
- Wall Mount
- Mount Surface: Wall
- Durability: Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Gloss Black
- VESA Mount Compatible: Yes
- Mounting Pattern: 600 x 400
- Form Factor: Wall Mountable
- Height: 16.75"
- Width: 24.38"
- Depth: 21.32"
- Weight (Approximate): 21.08 lb
Miscellaneous
- Package Contents:
- Articulating Wall Mount for 39" to 90" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage:
- Wall
- Concrete
- Wood Stud
- Breeze Block
- Cinder Block
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Articulating
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
