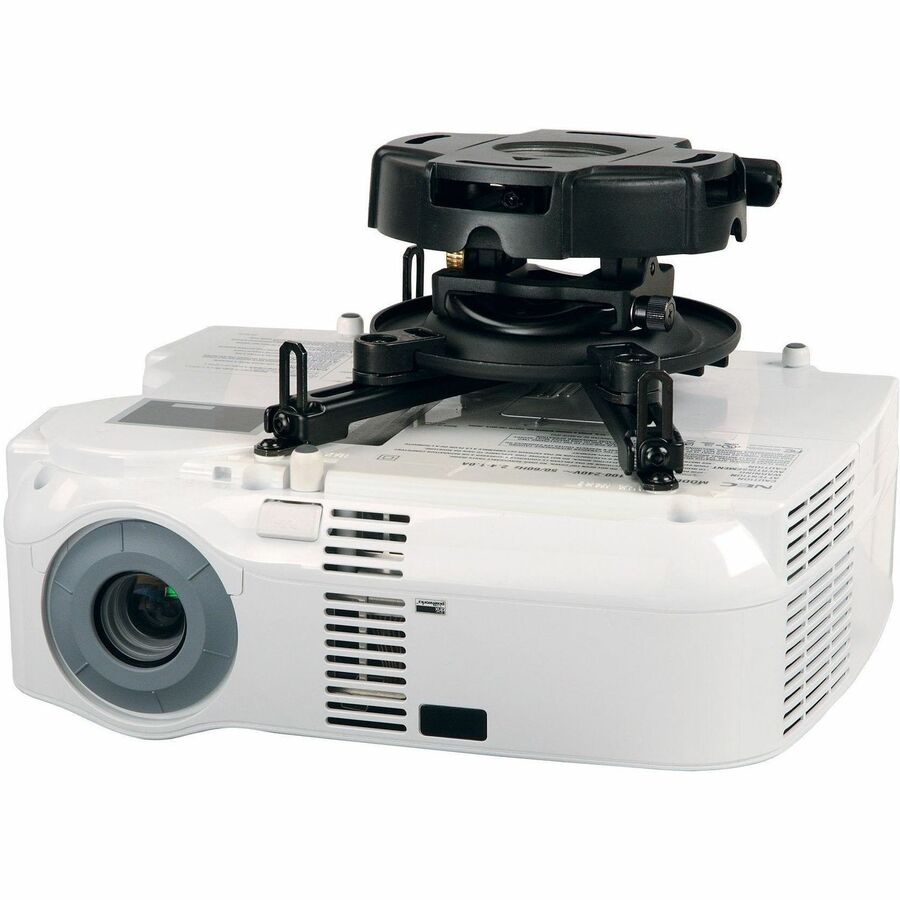

Peerless-AV® PRG Precision Gear Projector Mount for Multimedia Projectors up to 50lb (22kg) - PRG-UNV
Key Features
- "U" shaped pitch bracket allows for hassle free cable routing
- Cable management allows cables to be routed through projector mount out of sight
- Horizontal wrench access slots make flush mounting installations fast and easy
- Patent-pending precision gears provides exact projector image alignment
- Pre-assembled design reduces installation time
- Pre-installed security screws provide optional tilt and roll lock to prevent tampering with adjustment knobs
- Quick-release mechanism to easily service projector
- Specifications: Tilt: ±20°, Roll: ±10°, Swivel: 360° when mounted on extension column ±15° when flush mounted on ceilings
- Spider® Universal Adapter Plate extends up to 17.63" (448 mm) to fit most projector models
- Two adjustment knobs control projector image alignment
Product Overview
Peerless-AV's PRG Precision Gear Projector Mount simplifies image alignment. The patent-pending precision gear design allows exact tilt and roll image positioning by either simply turning two adjustment knobs with a Phillips screw driver, or use the tool-less option by extending the knobs to adjust by hand. Just set the precision gear to the desired position to secure it in place - it will hold its position even during projector maintenance. With Peerless-AV's PRG Precision Gear Projector Mount, just set it and forget it. No more adjustment screws. No more micro adjustments. No more hassles.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: PRG-UNV
- Brand Name: Peerless-AV®
- Product Line: Precision Gear
- Product Series: PRG-UNV
- Product Model: PRG-UNV
- Product Name: PRG Precision Gear Projector Mount for Multimedia Projectors up to 50lb (22kg)
- Packaged Quantity: 1 Unit
- Product Type: Ceiling Mount
Product Information
- Device Supported: Projector
- Maximum Load Capacity: 50 lb
- Height Adjustable: Yes
- Features:
- Tilt
- 360° Swivel
- Lockable
- Cable Management
- Quick Release Mechanism
- Extendable
- Minimum Adjustable Depth: 8.50"
- Maximum Adjustable Depth: 17.63"
- Minimum Tilt Angle: -20°
- Maximum Tilt Angle: 20°
- Maximum Swivel Angle: 360°
- Mount Function:
- Swivel
- Tilt
- Lockable
- Cable Management
- Extendable
- Mount Surface: Ceiling
- Durability:
- Tamper Resistant
- Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Ceiling Mountable
- Height: 4.81"
- Width: 17.63"
- Depth: 17.63"
- Weight (Approximate): 3.08 lb
Miscellaneous
- Package Contents:
- PRG Precision Gear Projector Mount for Multimedia Projectors up to 50lb (22kg)
- Spider Universal Adaptor Plate
- Mounting and Projector Attachment Hardware
- Assembly Instructions
- Application/Usage:
- Ceiling
- Flush
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Projector Mount Universal
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
