Peerless-AV® SmartMount Universal Tilt Wall Mount - ST640
Key Features
- *Requires display to be removed and reset on mount

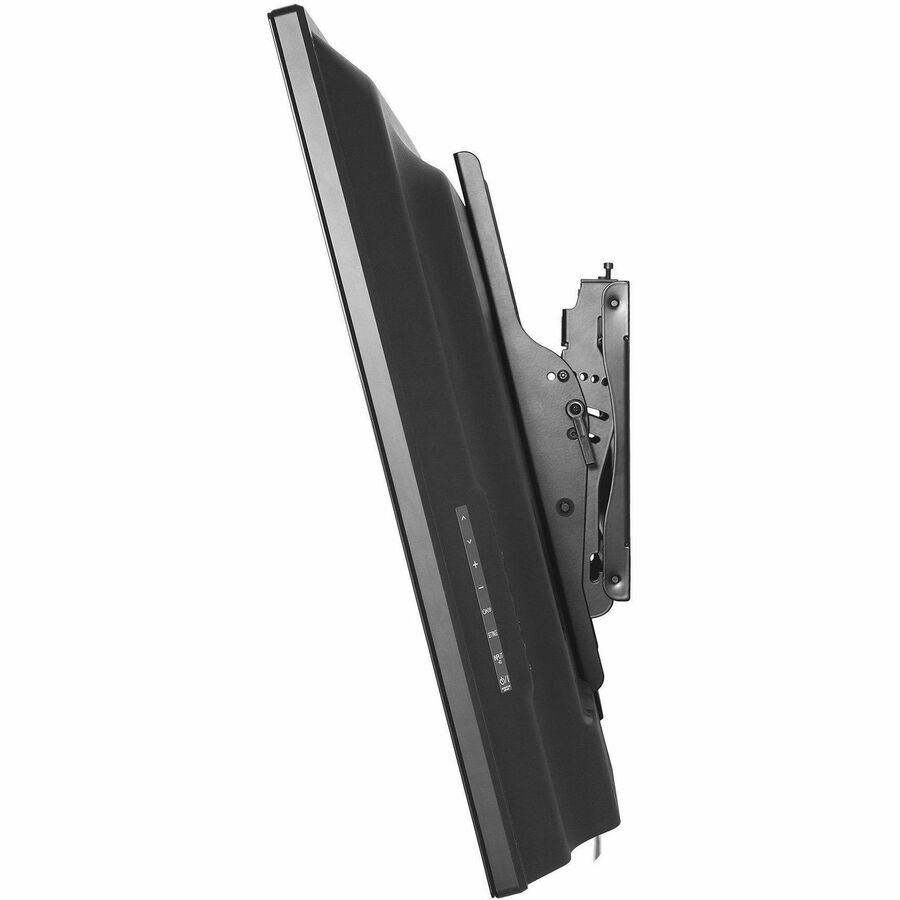

- Adjustable 15° forward tilt and 5° Backward tilt for finding the optimal viewing angle
- Design is UL listed and tested to four times stated load capacity
- Easy-GripTMratcheting handle locks tilt angle into place
- For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase ST640P
- For mounts requiring theft resistant hardware, installed with security tool(included), please purchase ST640
- Horizontal display adjustment up to 6.00" (152mm) for centering display on wall
- Includes all necessary wall and display attachment hardware
- Integrated security options available
- Landscape to Portrait mounting options increases installation versatility. Please check display dimensions against the wall plate when used in Portrait mode*
- Universal mount fits displays with mounting patterns up to 458 x 405mm (18.02" W x15.95" H) and accommodates up to 400 x 400mm VESA patterns
- Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
Product Overview
The SmartMount® Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology. Security screws provided in the ST640 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: ST640
- Brand Name: SmartMount®
- Product Series: ST640
- Product Model: ST640
- Product Name: Universal Tilt Wall Mount for 32" to 50" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported:
- Display
- TV
- Maximum Load Capacity: 150 lb
- Minimum Screen Size Supported: 32"
- Maximum Screen Size Supported: 50"
- Height Adjustable: Yes
- Features:
- Anti-theft
- Horizontal Adjustment
- Vertical Adjustment
- Adjustable Angle
- Increlock
- Hook-and-Hang Design
- 15° Forward Tilt
- -5° Back Tilt
- Minimum Adjustable Depth: 2.62"
- Maximum Adjustable Depth: 5.40"
- Orientation: Landscape/Portrait
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 15°
- Mount Function:
- Tilt
- Wall Mount
- Mount Surface: Wall
- Durability:
- Scratch Resistant
- Theft Resistant
- Tamper Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Semi-gloss Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 100
- 200 x 200
- 300 x 200
- 300 x 300
- 400 x 200
- 400 x 300
- 400 x 400
- Form Factor: Wall Mountable
- Height: 16.89"
- Width: 22.14"
- Depth: 5.40"
- Weight (Approximate): 6.07 lb
Miscellaneous
- Package Contents:
- Universal Tilt Wall Mount for 32" to 50" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage: Wall
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Tilt
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
