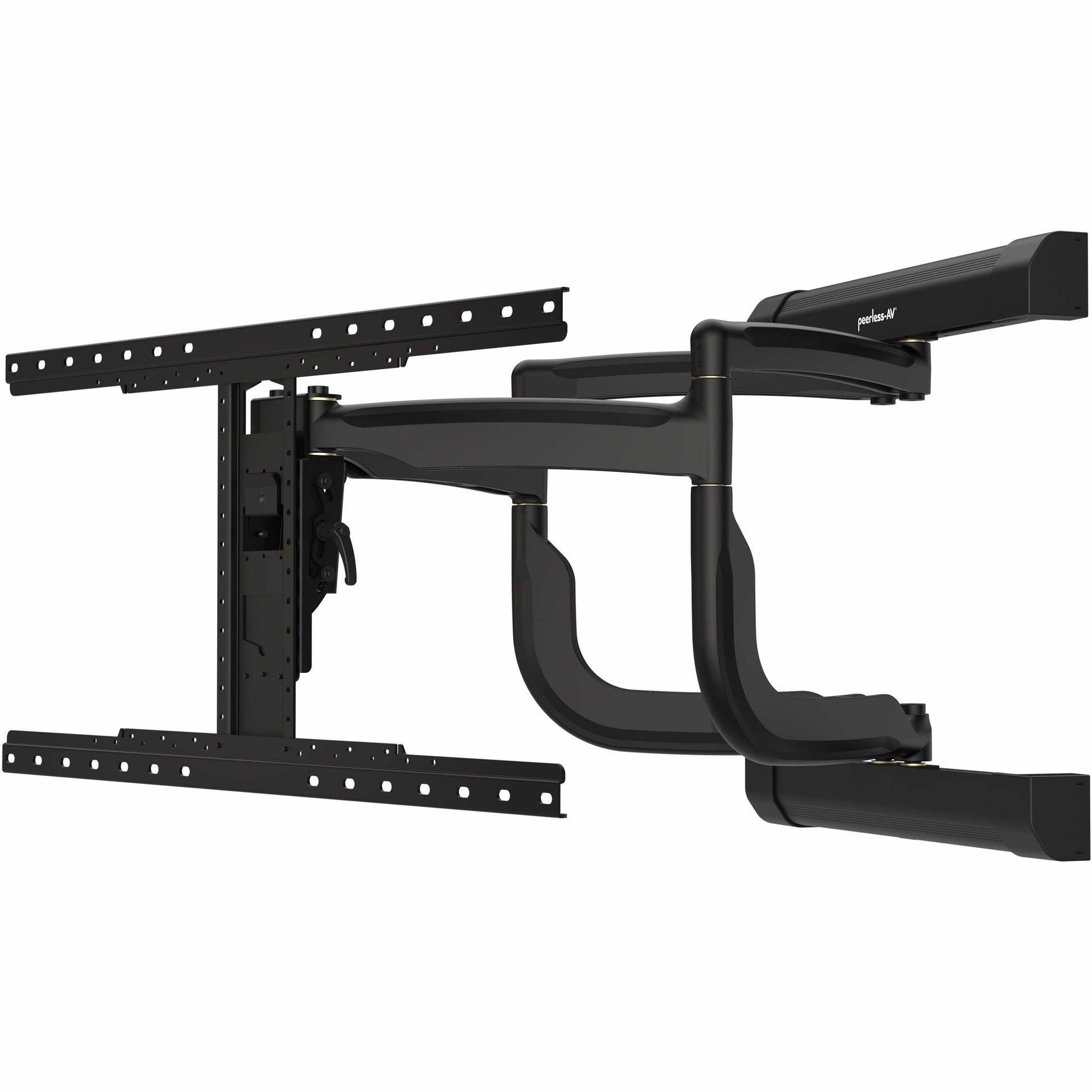

Peerless-AV® SmartMount® Articulating Wall Mount for 50" to 90"+ Displays - SA771PU
Key Features
- ±90° of pivot allows for perfect display positioning
- Adaptor plate can be raised or lowered to accommodate different VESA® patterns at the top, center, or bottom of the display for a perfect fit
- Adjustable 15° forward tilt and 5° backward tilt for finding the optimal viewing angle
- Easily shift the mount arm right or left up to ±8" (203mm) to center the display in a room, regardless of stud locations
- Easy leveling ±5° after display installation

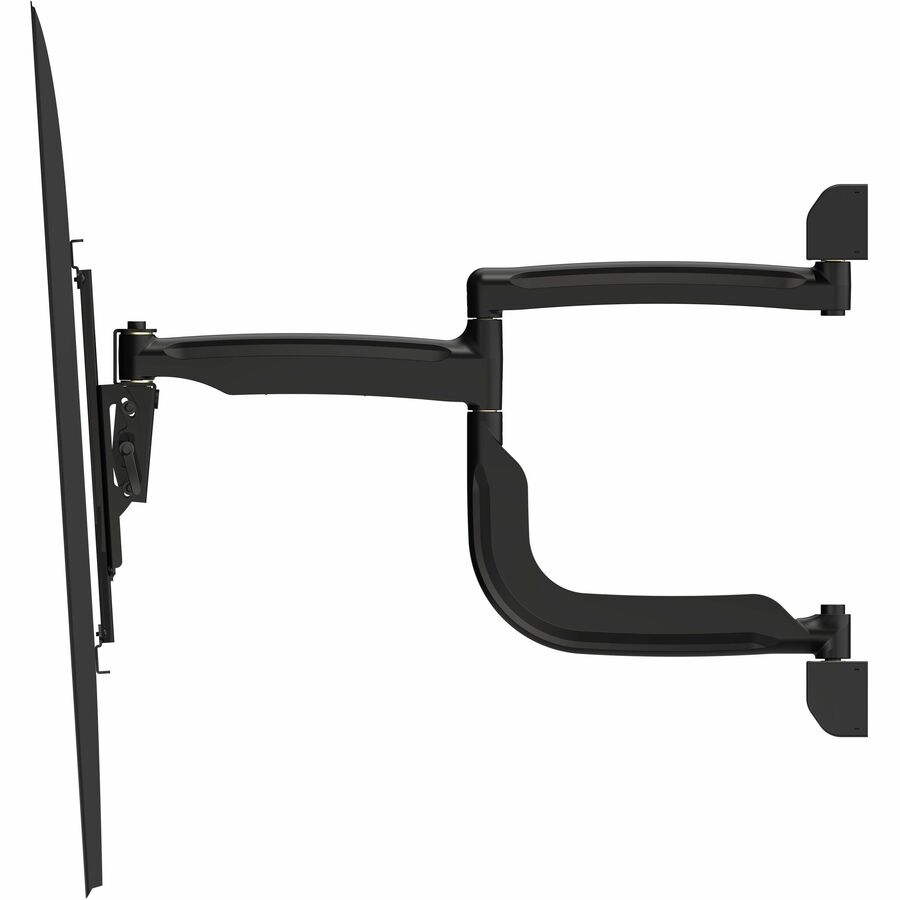

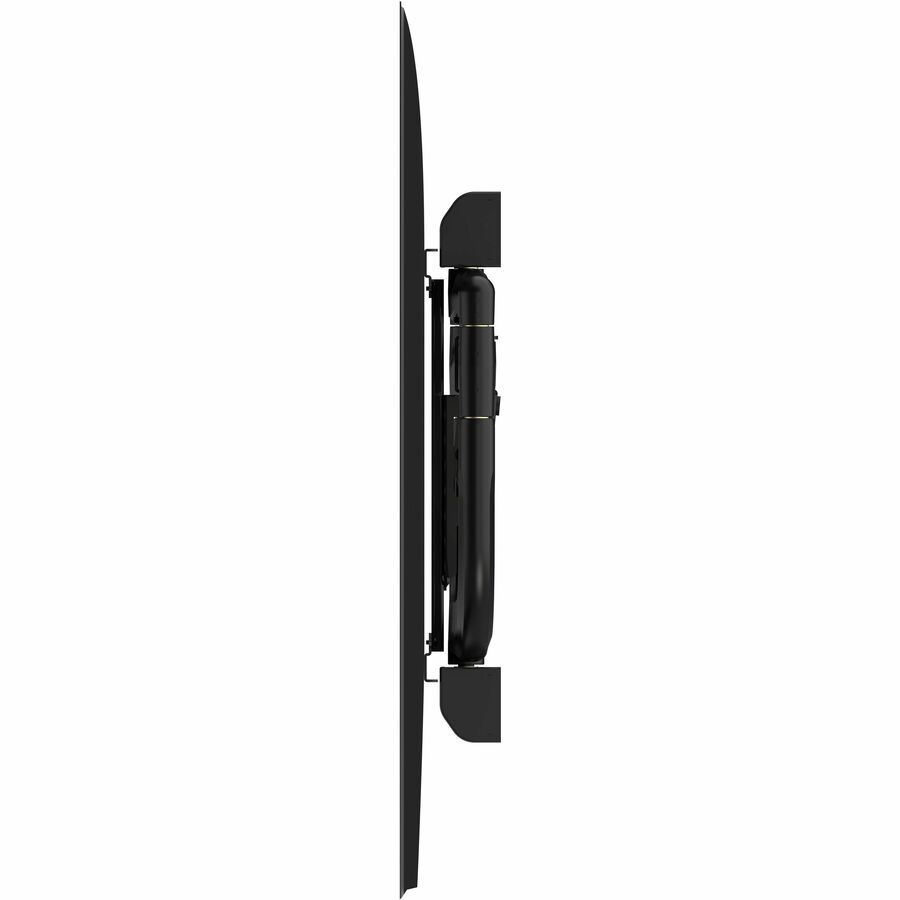

- Extends up to 30.5" (774mm) and retracts 3.0" (76mm) from the wall for the perfect viewing angle
- Hook-and-Hang™ feature simplifies the installation of the display on the tilt head of the wall mount

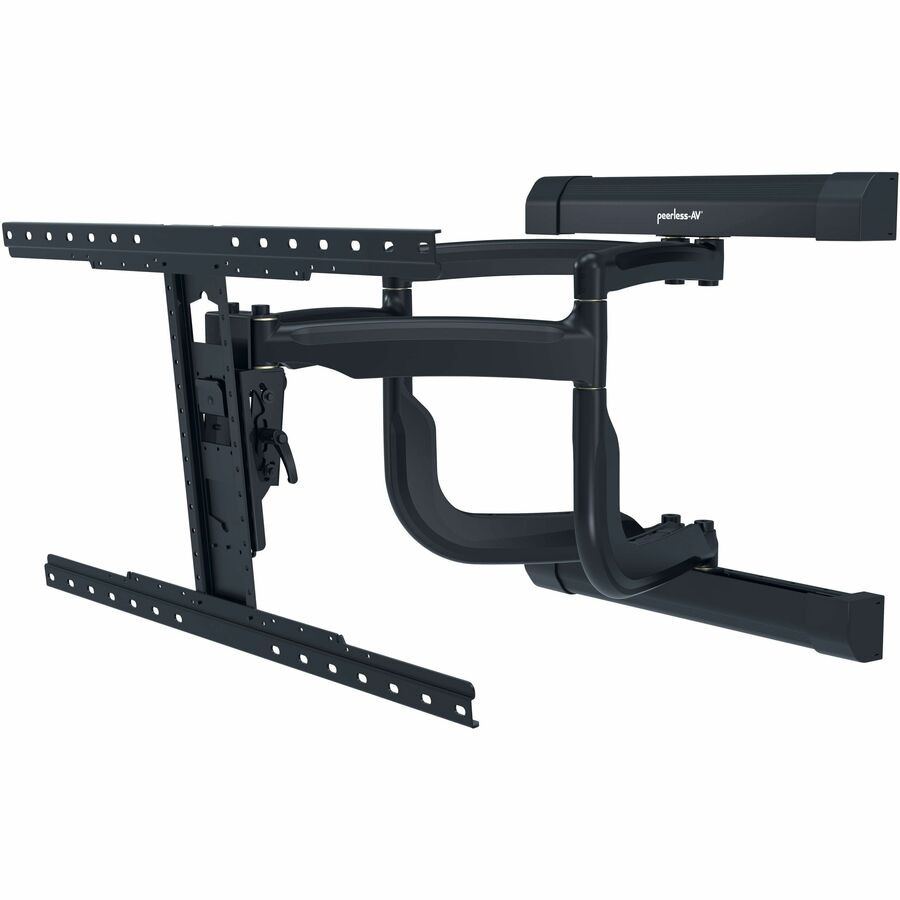

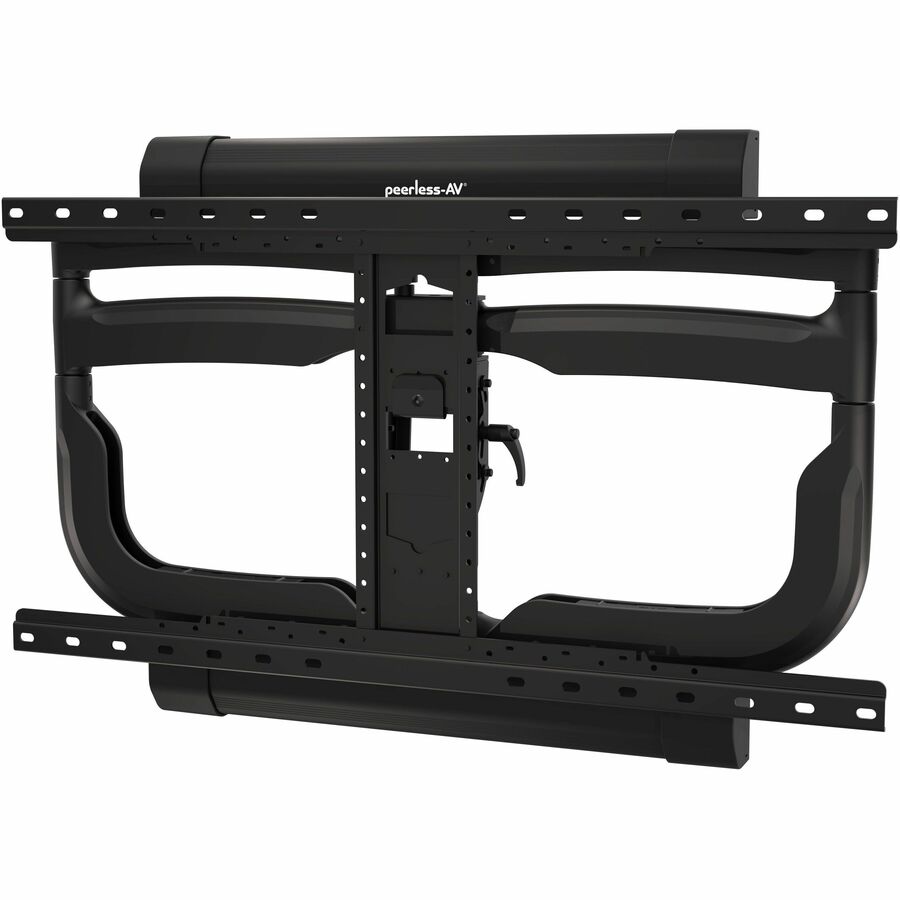

- I-shaped adaptor plate helps avoid blocking connections on back of display
- Includes all necessary wall and display attachment hardware

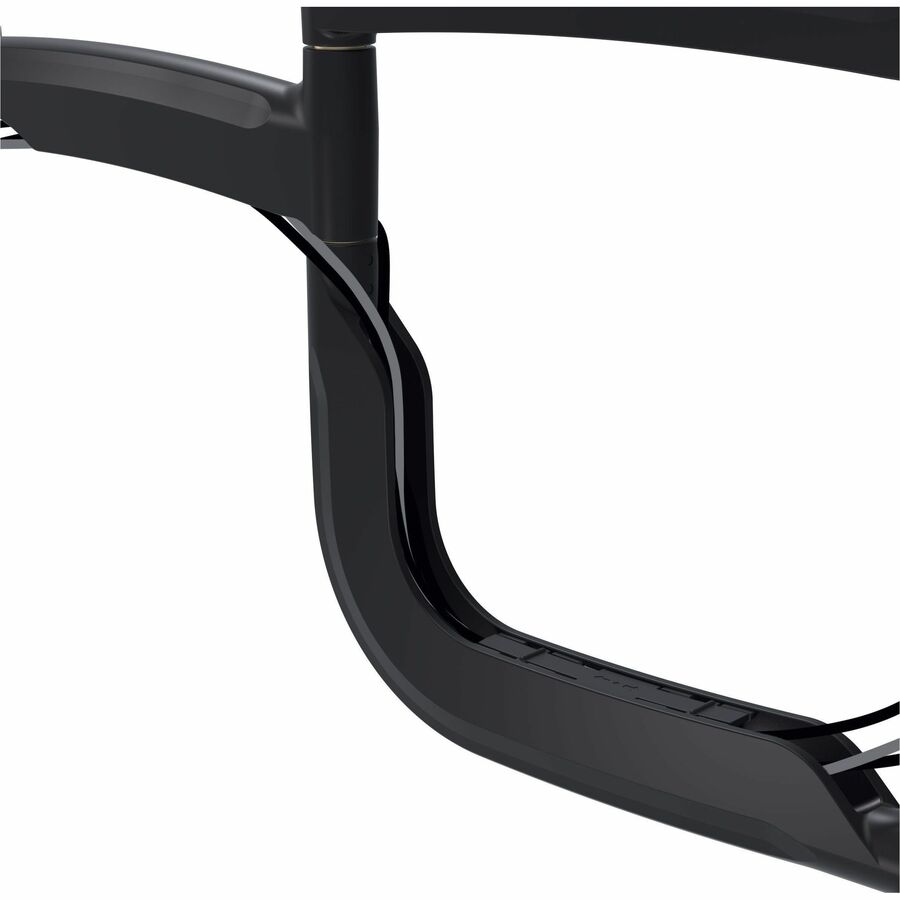

- Integrated cable management protects, contains and conceals cables for a clean, professional installation
- Lock the display at any angle with the ratcheting handle
- Mounts to wood stud, concrete, cinder or breeze block
- Open access design provides the maximum open area on the wall to allow flexible placement for outlets and/or in-wall boxes
- Stylish wall plate covers create a finished look and are easy to install and remove
- Universal mount accommodates 200 x 100 to 800 x 400mm VESA® mounting patterns
Product Overview

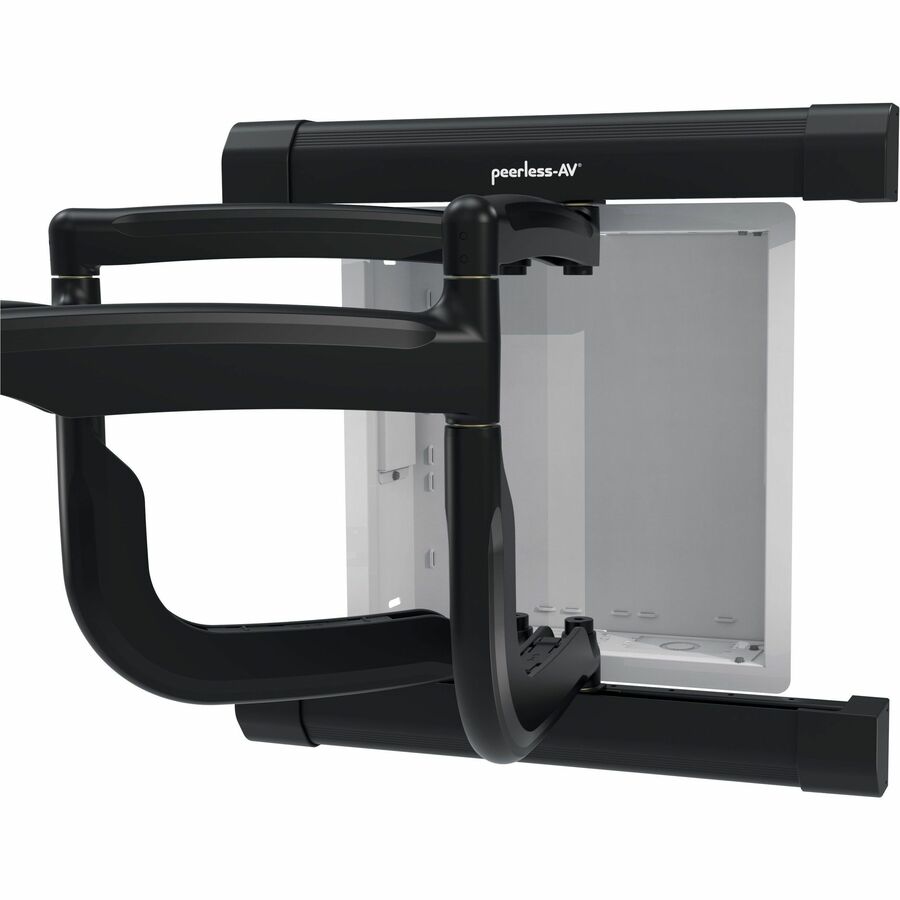

Peerless-AV's SmartMount® Articulating Wall Mount series has been redesigned to accommodate larger displays, offering enhanced versatility and mounting options. The I-shaped adaptor centers displays, regardless of the VESA® pattern on the back, which eliminates hassle and extra costs when upgrading displays. The SA771PU extends displays up to 30.5" (774mm) or retracts to 3.0" (76mm) from the wall, granting increased swivel for large displays. Compatibility with In-Wall Box accessories (IB14X9-W, IB14X14-W) offers easier access to power or AV devices. Horizontal adjustment range is ±8" to center a display on a 16" stud-spaced wall. Meanwhile, the Hook-and-Hang™ feature produces simplified installation and One-Touch™ tilt technology provides an optimal viewing angle. Integrated cable management ensures a clean and professional installation.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: SA771PU
- Brand Name: SmartMount®
- Product Series: SA771PU
- Product Model: SA771PU
- Product Name: Articulating Wall Mount for 50" to 90"+ Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 200 lb
- Minimum Screen Size Supported: 50"
- Maximum Screen Size Supported: 90"
- Features:
- Retractable
- Articulating
- Hook-and-Hang Design
- Tilt
- Cable Management
- Ratcheting Handle
- +/- 5° Level Adjustment
- +/- 90° Pivot
- Easy to Install
- Lockable
- Minimum Adjustable Depth: 3"
- Maximum Adjustable Depth: 30.50"
- Minimum Tilt Angle: 5°
- Maximum Tilt Angle: 15°
- Maximum Swivel Angle: 90°
- Mount Function:
- Articulating
- Tilt
- Cable Management
- Lockable
- Wall Mount
- Mount Surface:
- Concrete
- Cinder Block
- Wood
- Durability: Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Semi-gloss Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 800 x 400
- 200 x 100
- Form Factor: Wall Mountable
- Height: 21.06"
- Width: 32.36"
- Depth: 30.50"
- Weight (Approximate): 36.40 lb
Miscellaneous
- Package Contents:
- Articulating Wall Mount for 50" to 90"+ Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage:
- Wood Stud
- Concrete
- Cinder Block
- Breeze Block
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Articulating
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
