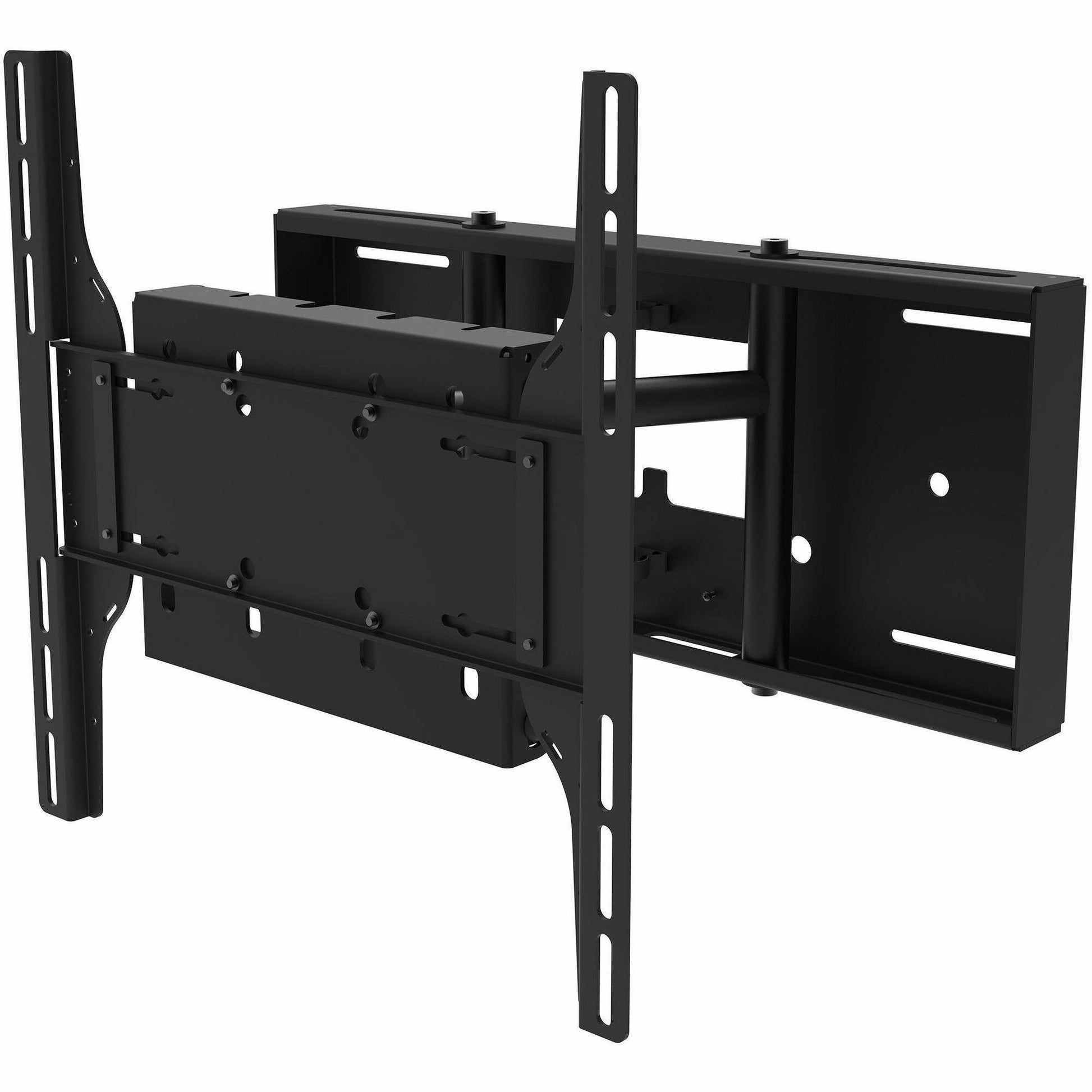

Peerless-AV® SmartMount® Pull-Out Pivot Wall Mount for 49" to 65" Displays - SP850-UNM
Key Features
- Built in pivot up to 90° (45° in each direction) allows for adjustable viewing angles
- Clean profile design hides cables within enclosed wall plate for a clutter-free installation
- IncreLok™ tilt provides tilt at 0°, 5° and 10° - ±1° of roll for horizontal display leveling during installation
- Landscape or portrait mounting options increases display versatility
- Mounts to 16" wood studs, concrete and cinder block
- Prevent tampering or theft with unique LockKey™ installation brace and security screws on the adaptor plate
- Pull-out service access provides easy access to the back of the display for maintenance
- Universal models adapt to displays with mounting holes up to 400 x 400mm (15.75" W x 15.75" H)
Product Overview
The SmartMount® Pull-Out Pivot Mount combines the best features of a wall mount and pivot arm into one design. When closed, the SP850-UNM acts as a flat or tilting wall mount. At only 2.73" (69mm) from the wall, its unique wall plate and built-in cable management neatly hide all components and cords. Extended, the SP850-UNM's sturdy arm construction smoothly glides the display out 11.18" (284mm) from the wall and allows the display to pivot up to 45°. The SP850-UNM is ideal in applications where the display needs to be recessed into the wall, custom framed, or aligned into a multi-display wall.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: SP850-UNM
- Brand Name: SmartMount®
- Product Series: SP850-UNM
- Product Model: SP850-UNM
- Product Name: Pull-Out Pivot Wall Mount for 49" to 65" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 150 lb
- Minimum Screen Size Supported: 49"
- Maximum Screen Size Supported: 65"
- Features:
- Pivot
- Tilt
- Cable Management
- Sturdy
- Adjustable Viewing Angle
- Key Lock
- Minimum Adjustable Depth: 2.73"
- Maximum Adjustable Depth: 11.14"
- Orientation: Landscape/Portrait
- Minimum Tilt Angle: 0°
- Maximum Tilt Angle: 10°
- Mount Function:
- Pivot
- Tilt
- Cable Management
- Wall Mount
- Mount Surface:
- Wall
- Wood Stud
- Concrete
- Cinder Block
- Durability:
- Tamper Resistant
- Theft Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern: 400 x 400
- Form Factor: Wall Mountable
- Height: 16.75"
- Width: 21"
- Depth: 11.14"
- Weight (Approximate): 4.30 lb
Miscellaneous
- Package Contents:
- Wall Mount Assembly
- LockKey Installation Tool
- Locking Tab
- Cable Management Sleeve
- Fastener Pack
- Universal Adaptor Plate
- Application/Usage:
- Wood Stud
- Concrete
- Cinder Block
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Manufacturer Product Class: Pivot
- TAA Compliant: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
