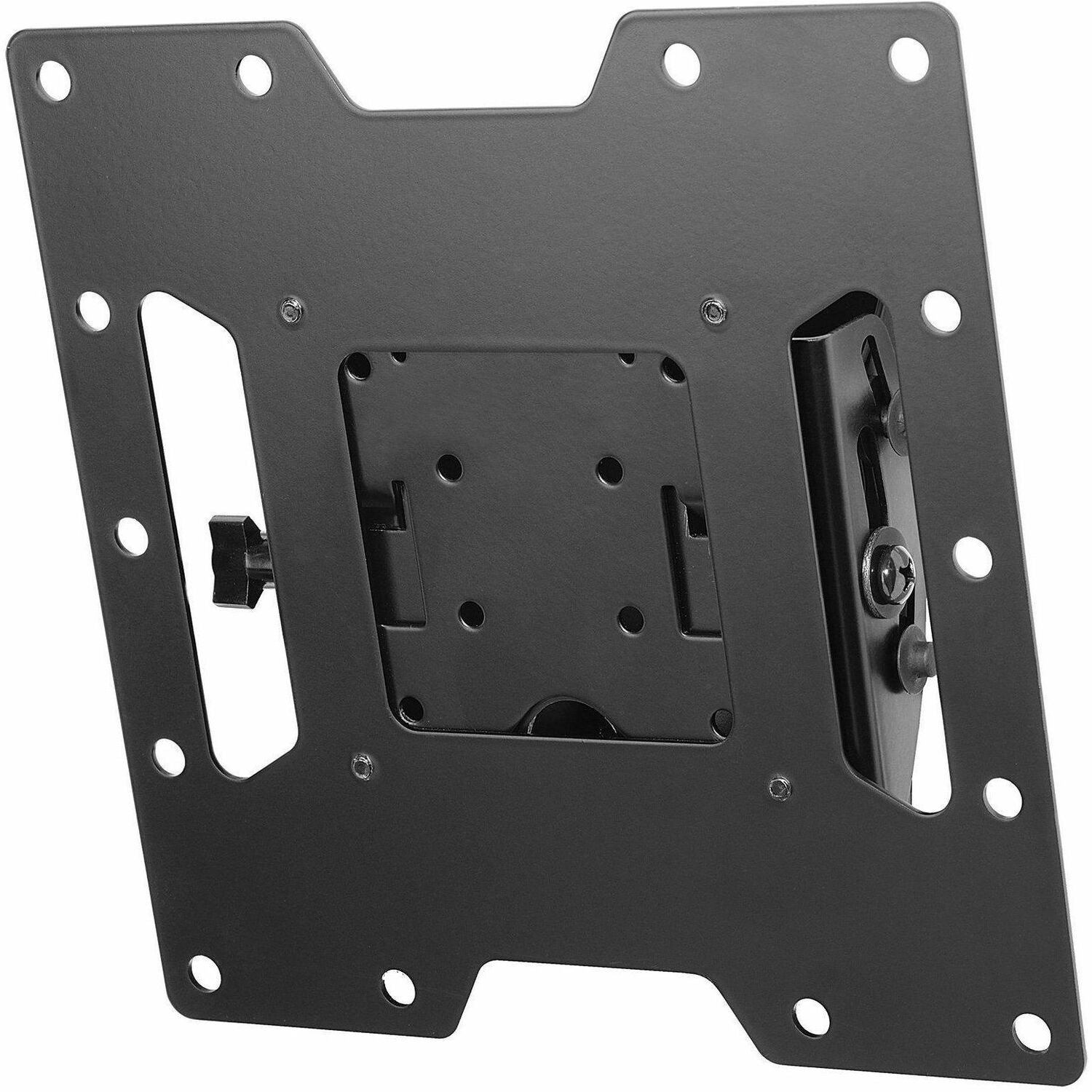

Peerless-AV® SmartMount® Tilt Wall Mount for 22" to 43" Displays - ST632
Key Features
- Accommodates 75, 100, 200 x 100,or 200 x 200mm VESA mounting patterns

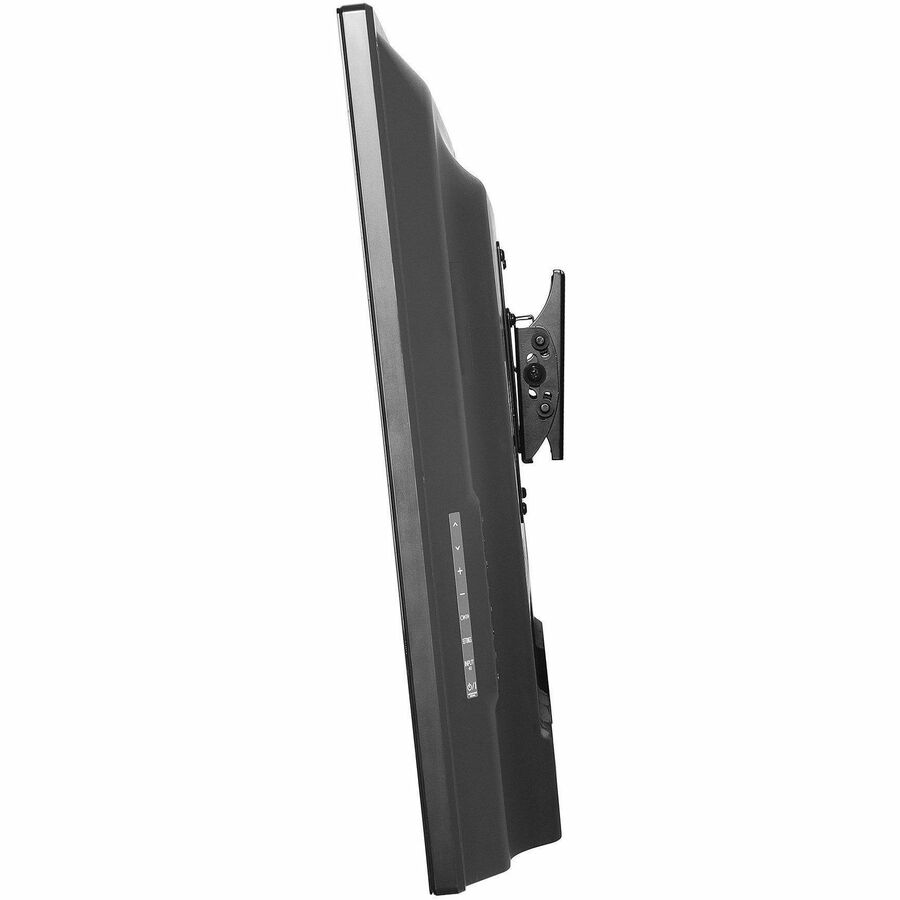

- Adjustable 15° forward tilt and -5° backward tilt for finding the optimal viewing angle
- Design is UL listed and tested to four times stated load capacity
- Display adaptor simply slides into the wall plate for quick and easy installation
- Display is positioned only 1.65" (42mm) from wall for a low-profile application
- For mounts requiring standard hardware, installed with a Philips screw driver, please purchase ST632P
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST632
- Includes all necessary wall and display attachment hardware
- Integrated security options available
- Tilt angle locks into place with simple tightening of thumbscrew
Product Overview
The SmartMount®Tilt Wall Mount series offers the most versatile installation features and mounting options. Quickly and easily adjust the viewing angle without the use of tools. Security screws provided in the ST632 model deter tampering and theft. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: ST632
- Brand Name: SmartMount®
- Product Series: ST632
- Product Model: ST632
- Product Name: Tilt Wall Mount for 22" to 43" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 115 lb
- Minimum Screen Size Supported: 22"
- Maximum Screen Size Supported: 43"
- Features:
- Adjustable
- Hook-and-Hang Design
- Adjustable Tilt
- 15° Forward Tilt
- -5° Back Tilt
- Easy to Install
- Minimum Adjustable Depth: 1.65"
- Maximum Adjustable Depth: 2.82"
- Mount Profile: Low Profile
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 15°
- Mount Function:
- Tilt
- Wall Mount
- Mount Surface: Wall
- Durability:
- Scratch Resistant
- Theft Resistant
- Tamper Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Semi-gloss Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 75 x 75
- 100 x 100
- 200 x 100
- 200 x 200
- Form Factor: Wall Mountable
- Height: 8.75"
- Width: 8.75"
- Depth: 2.82"
- Weight (Approximate): 3.40 lb
Miscellaneous
- Package Contents:
- Tilt Wall Mount for 22" to 43" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage: Wall
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Tilt
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
