Peerless-AV® SmartMount® Universal Flat Wall Mount for 60" to 98" Displays - SF680
Key Features
- 1" of post-installation vertical adjustment provides flexibility in the installation
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
- For mounts requiring standard hardware, installed with a Philips screwdriver, please purchase SF680P
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase SF680
- Includes fastener pack with all necessary mounting and display attachment hardware
- Lateral display adjustment up to19.25" (489mm)

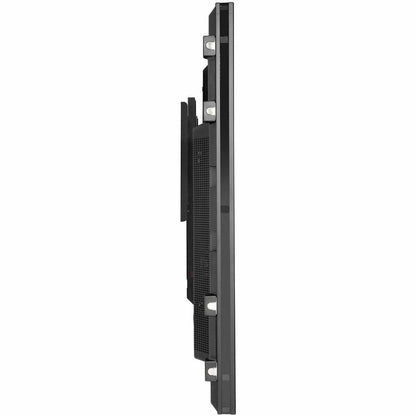

- Low-profile design holds display only1.73" (44mm) from the wall
- Universal mount fits displays with mounting patterns up to 1100 x650mm (43.29" W x 25.59" H)
Product Overview

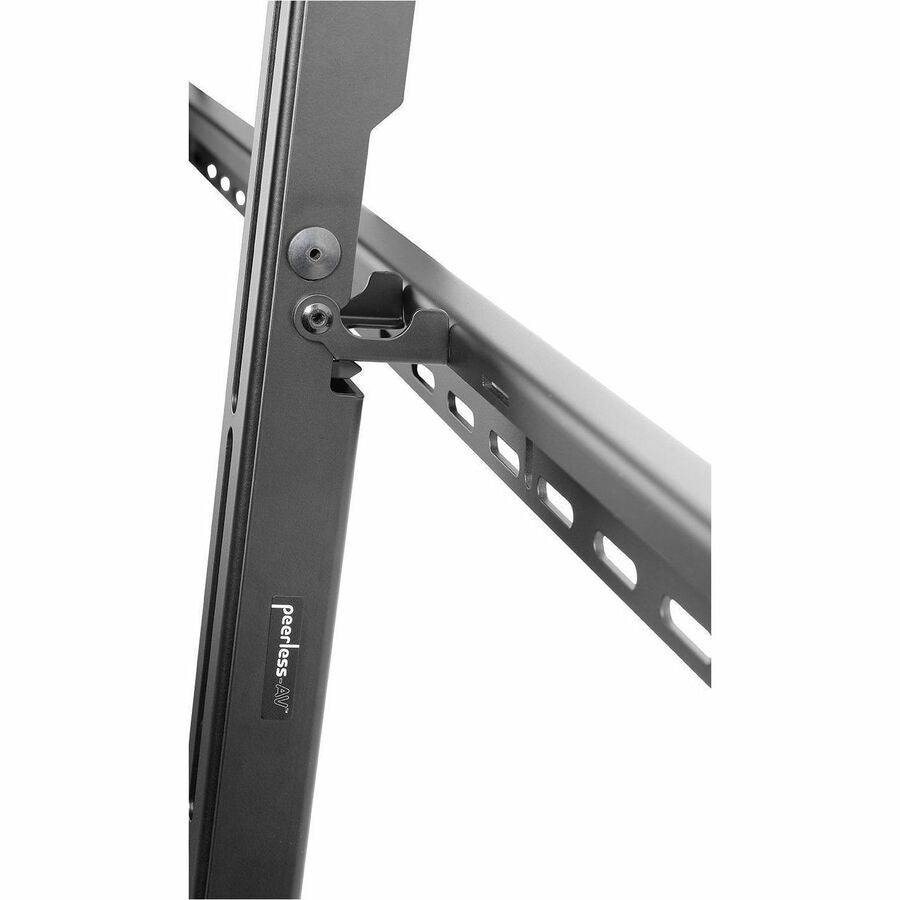

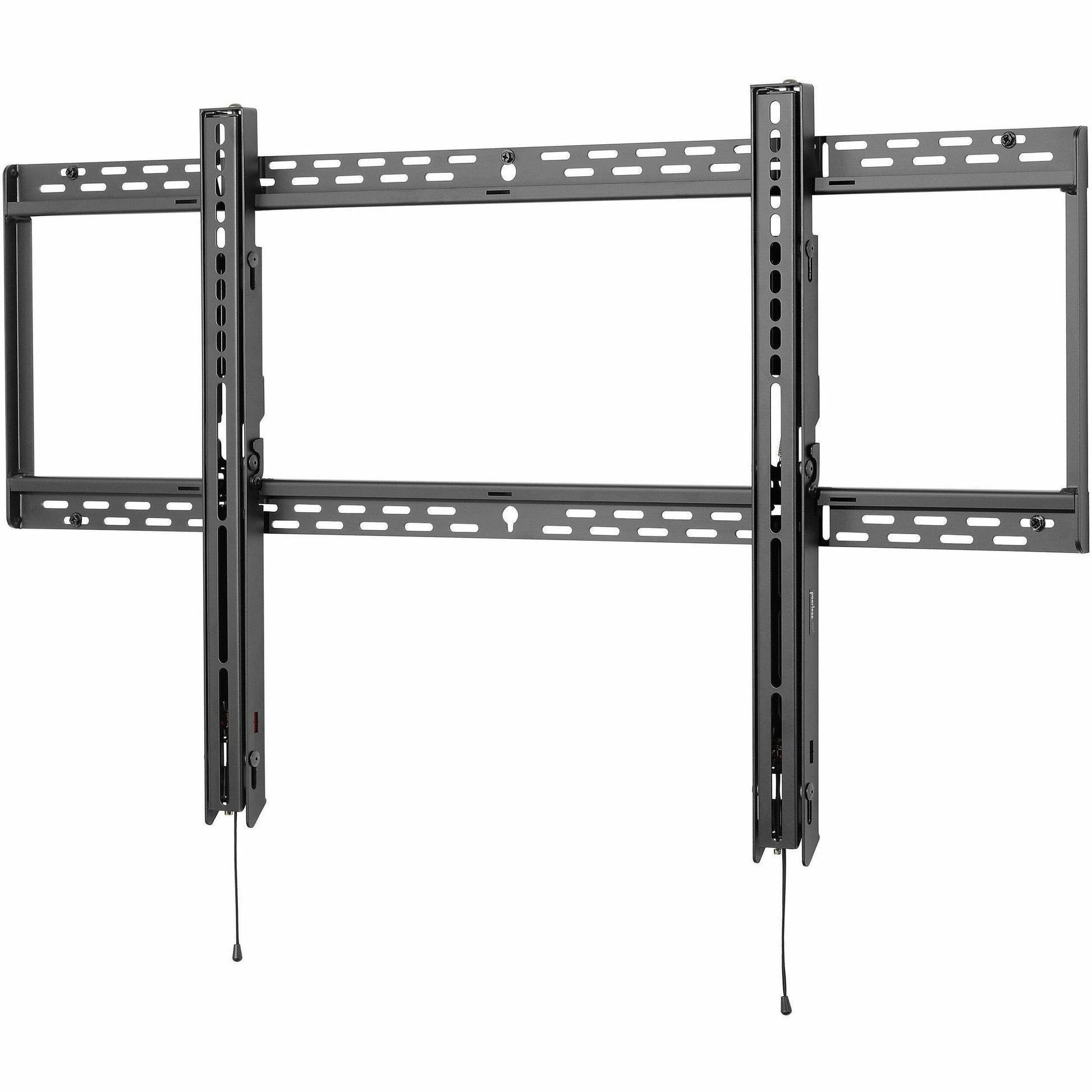

Peerless-AV's SmartMount® Universal Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SF680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: SF680
- Brand Name: SmartMount®
- Product Series: SF680
- Product Model: SF680
- Product Name: Universal Flat Wall Mount for 60" to 98" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 350 lb
- Minimum Screen Size Supported: 60"
- Maximum Screen Size Supported: 98"
- Features:
- Robust
- Kickstand
- Cable Management
- Horizontal Adjustment
- Vertical Adjustment
- Lateral Adjustment
- Latch Lock
- Mount Profile: Low Profile
- Mount Function:
- Cable Management
- Wall Mount
- Mount Surface: Wall
- Durability:
- Theft Resistant
- Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 200
- 300 x 200
- 300 x 300
- 400 x 200
- 400 x 300
- 400 x 400
- 600 x 400
- 600 x 600
- 800 x 400
- 800 x 600
- 1000 x 400
- 1000 x 600
- Height: 30.25"
- Width: 45.75"
- Depth: 1.83"
- Weight (Approximate): 17.30 lb
Miscellaneous
- Package Contents:
- Universal Flat Wall Mount for 60" to 98" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage: Wall
- Indoor/Outdoor: Indoor
- Country of Origin: Taiwan
- Manufacturer Product Class: Flat
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
