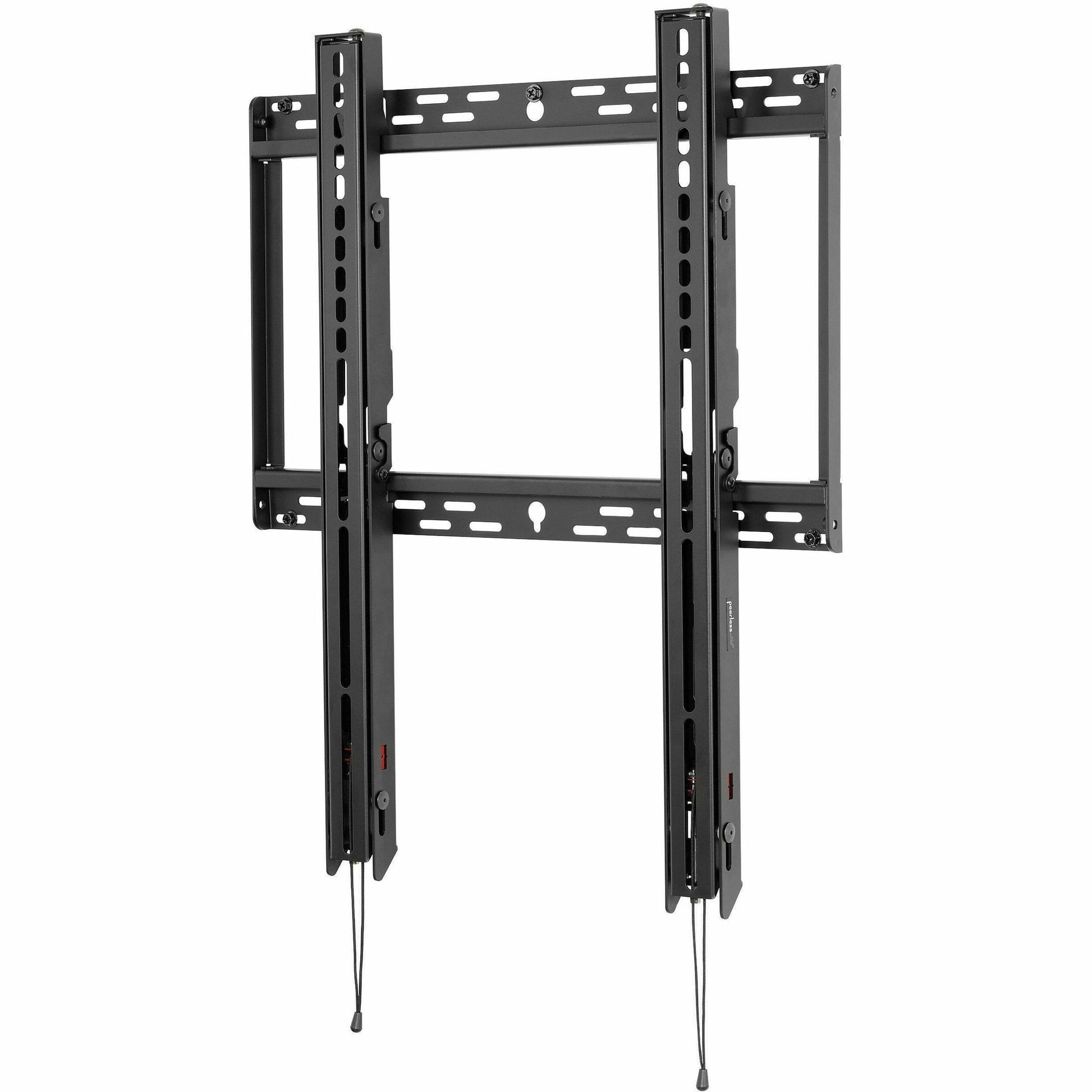

Peerless-AV® SmartMount® Universal Portrait Flat Wall Mount - SFP680
Key Features
- 1" of post-installation vertical adjustment provides flexibility in the installation
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation
- Includes fastener pack with all necessary mounting and display attachment hardware (including M10)
- Lateral display adjustment up to 3.38" (85.9mm)

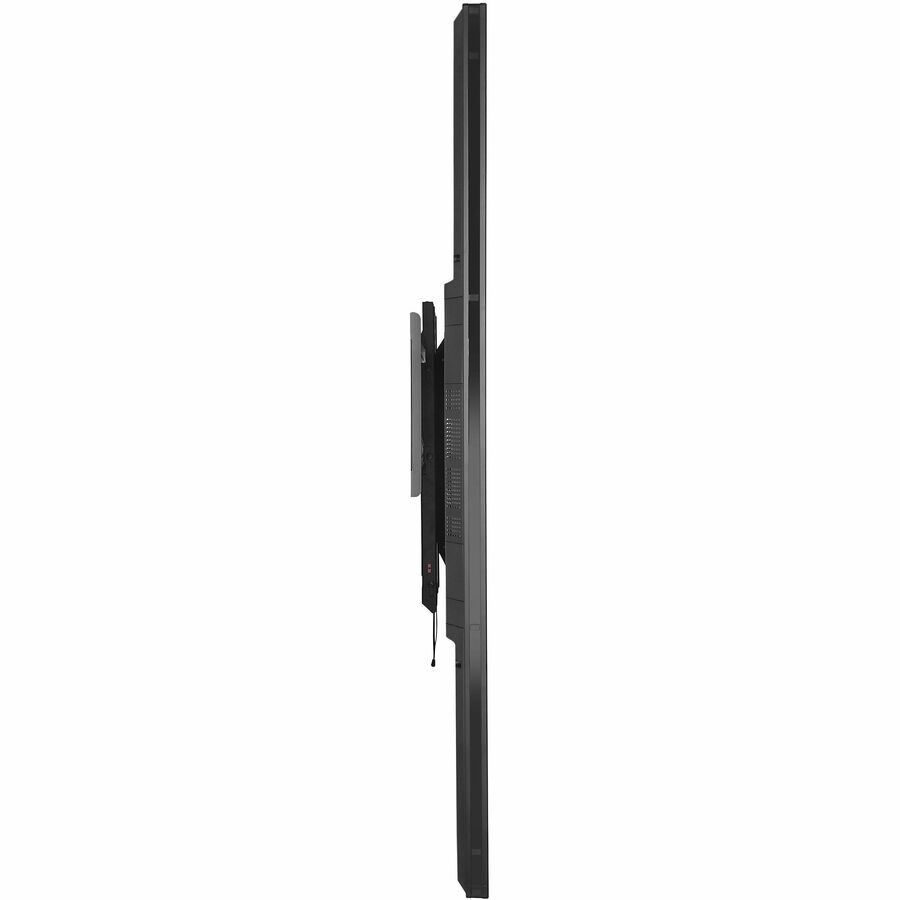

- Low-profile design holds display only 1.70" (43mm) from the wall
- Universal mount fits displays with mounting patterns up to 494 x 650mm (19.45" W x 25.59" H)
Product Overview

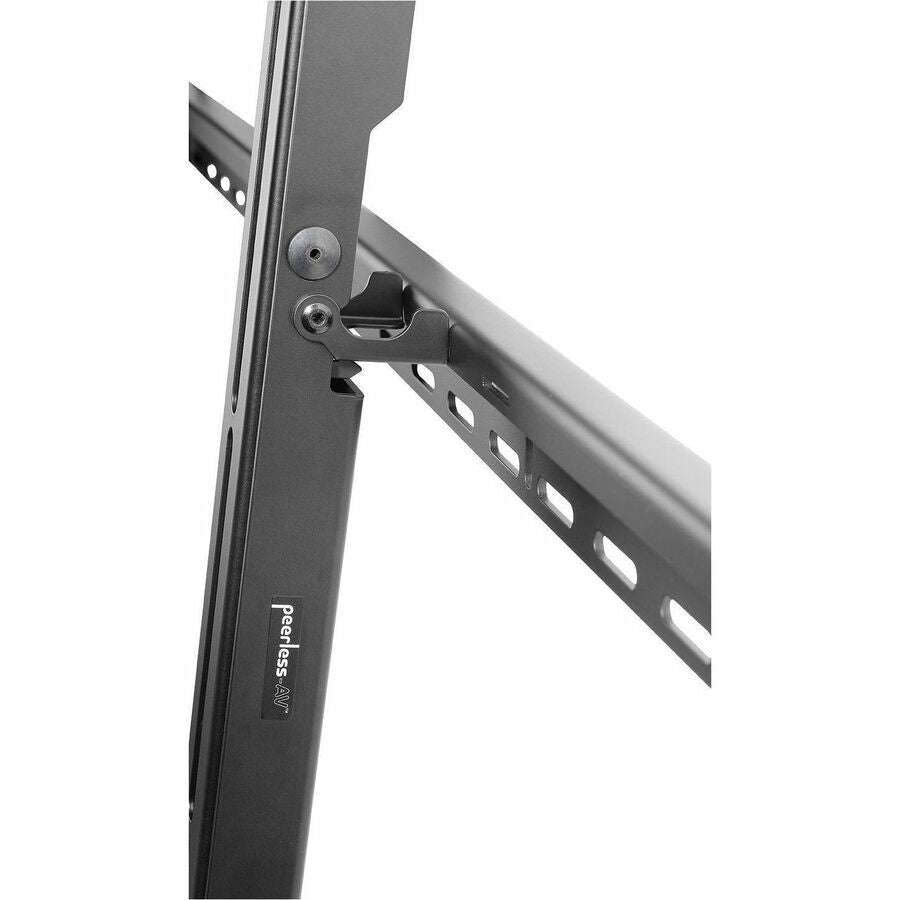

Peerless-AV's SmartMount® Universal Portrait Flat Wall Mount delivers an ultra-slim profile designed to hold large displays up to 350lb. Installation and maintenance are made easy with the SFP680's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: SFP680
- Brand Name: SmartMount®
- Product Series: SFP680
- Product Model: SFP680
- Product Name: Universal Portrait Flat Wall Mount
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Display
- Maximum Load Capacity: 350 lb
- Minimum Screen Size Supported: 46"
- Maximum Screen Size Supported: 90"
- Features:
- Horizontal Adjustment
- Vertical Adjustment
- Lateral Adjustment
- Robust
- Auto Latch
- Kickstand
- Cable Management
- Mount Profile: Low Profile
- Orientation: Portrait
- Mount Function:
- Cable Management
- Wall Mount
- Mount Surface: Wall
- Durability: Scratch Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Semi-gloss Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 200
- 200 x 300
- 300 x 300
- 300 x 400
- 400 x 400
- 400 x 600
- Form Factor: Wall Mountable
- Height: 27.48"
- Width: 22"
- Depth: 1.70"
- Weight (Approximate): 11.95 lb
Miscellaneous
- Package Contents:
- Universal Portrait Flat Wall Mount
- Wall and Display Installation Hardware
- Installation Instructions
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Manufacturer Product Class: Flat
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: Lifetime
