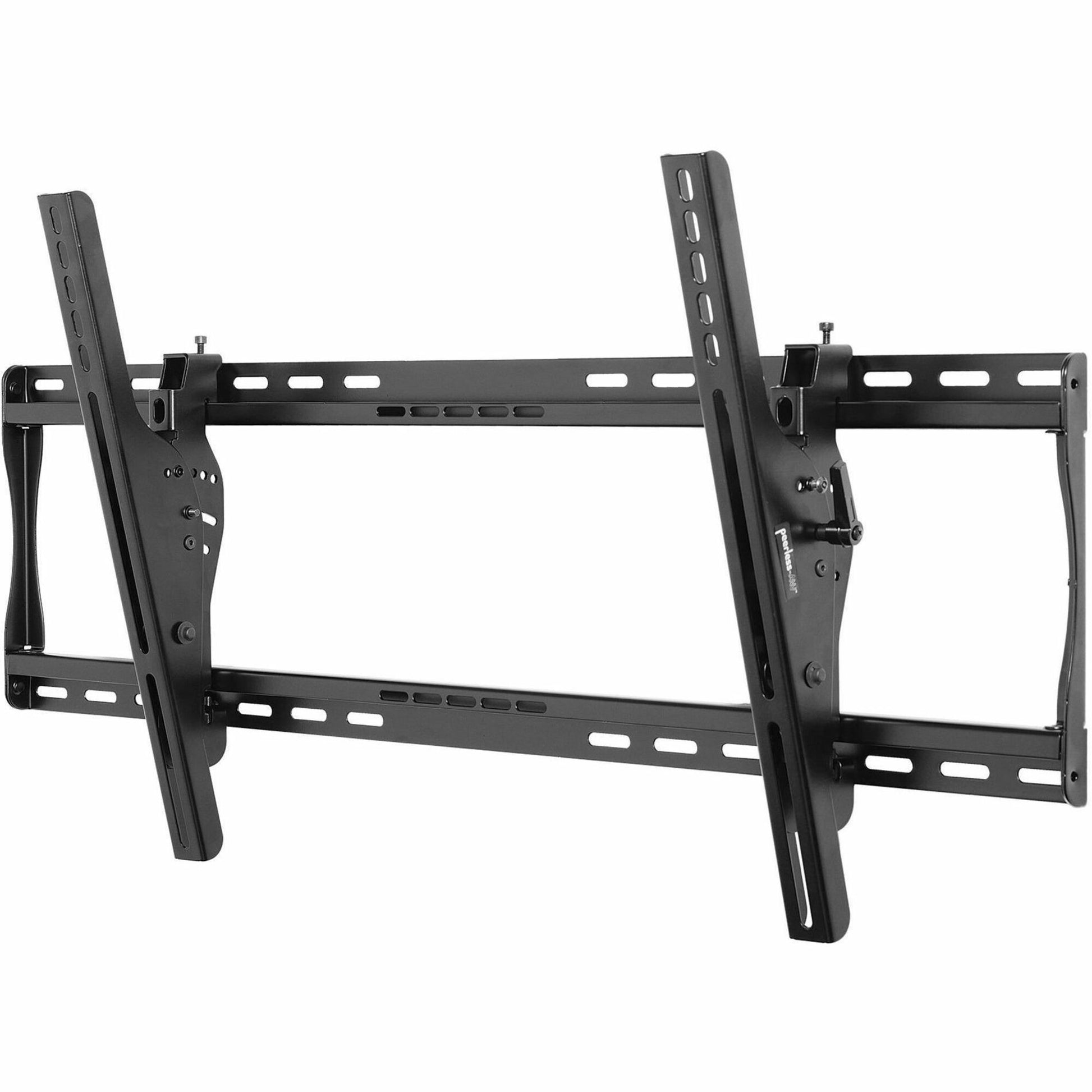

Peerless-AV® SmartMount® Universal Tilt Wall Mount for 39" to 80" Flat Panel Displays - ST660
Key Features

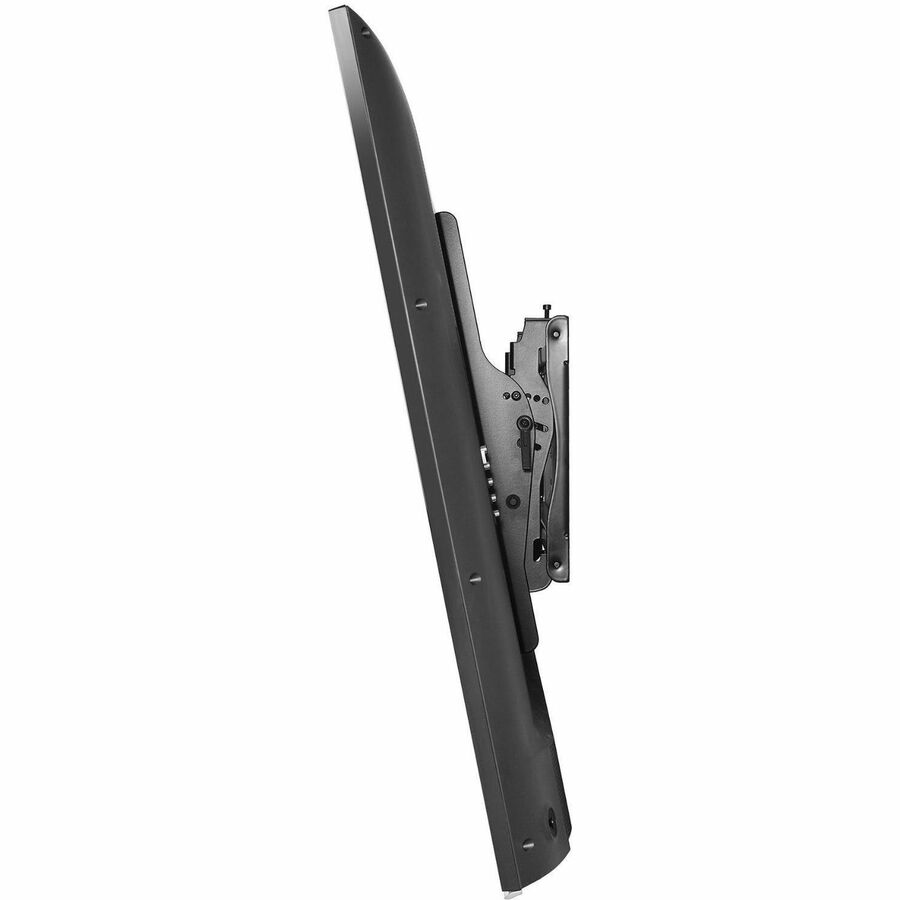

- Adjustable 15° degrees forward tilt and 5° degrees backward tilt for finding the optimal viewing angle
- Design is UL listed and tested to four times stated load capacity
- Easy-GripTMratcheting handle locks tilt angle into place
- For mounts requiring standard hardware, installed with a Philips screw driver, please purchase ST660P
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST660
- Horizontal display adjustment up to 8.00"(203mm) for centering display on wall
- Includes all necessary wall and display attachment hardware
- Integrated security options available
- Universal mount fits displays with mounting patterns up to 824 x 405mm (32.44" W x 15.95" H) and accommodates up to 800 x 400mm VESA patterns
- Up to 0.25" (6mm) of vertical adjustment on each universal display adaptor bracket for post-installation leveling and height adjustment fine-tuning
Product Overview
The SmartMount®Universal Tilt Wall Mount series offers the most versatile installation features and mounting options. Horizontal and vertical adjustment abilities allow for post installation leveling and side-to-side positioning, making it easier than ever to find the perfect TV position. Lock the tilt angle at installation to prevent tampering or moving with the IncreLok™ tilt technology. Security screws provided in the ST660 models deter tampering and theft. The open wall plate design offers total wall access, increasing the electrical and cable management options. The display can now simply be installed by a single person with the Hook-and-Hang™ system. The Easy-Glide™ adaptors hook onto the wall plate for an overall quick, simple, and secure installation.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: ST660
- Brand Name: SmartMount®
- Product Series: ST660
- Product Model: ST660
- Product Name: Universal Tilt Wall Mount for 39" to 80" Flat Panel Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported:
- Flat Panel Display
- TV
- Maximum Load Capacity: 200 lb
- Minimum Screen Size Supported: 39"
- Maximum Screen Size Supported: 80"
- Height Adjustable: Yes
- Features:
- Locking Mechanism
- Anti-theft
- Vertical Adjustment
- Horizontal Adjustment
- Leveling System
- Increlock
- Hook-and-Hang Design
- 15° Forward Tilt
- -5° Back Tilt
- Adjustable Depth
- Minimum Adjustable Depth: 2.62"
- Maximum Adjustable Depth: 5.40"
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 15°
- Mount Function:
- Tilt
- Adjustable
- Wall Mount
- Mount Surface: Wall
- Durability:
- Scratch Resistant
- Tamper Resistant
- Theft Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 100
- 200 x 200
- 300 x 200
- 300 x 300
- 400 x 200
- 400 x 300
- 400 x 400
- 600 x 400
- 800 x 400
- Form Factor: Wall Mountable
- Height: 16.89"
- Width: 36.54"
- Depth: 5.40"
- Weight (Approximate): 8.70 lb
Miscellaneous
- Package Contents:
- Wall Mount
- Wall and Display Installation Hardware
- Installation Instructions
- Application/Usage: Wall
- Assembly Required: Yes
- Manufacturer Product Class: Tilt
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
