Peerless-AV® SmartMount® Universal Tilt Wall Mount for 46" to 90" Displays - ST670
Key Features
- 1" of post-installation vertical adjustment provides flexibility in the installation
- Adjustable up to 15° of forward tilt and -5° of backward tilt for the optimal viewing angle
- Easy hang wall plate allows a bolt to be pre-installed to ease wall plate installation

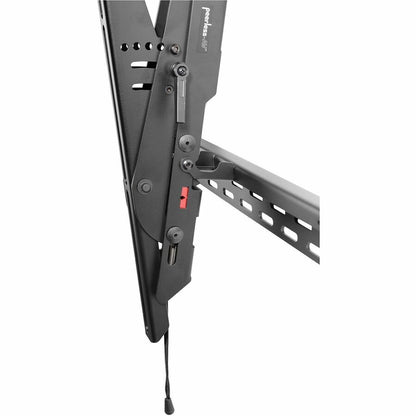

- Easy-GripTM ratcheting handle locks the display into place
- For mounts requiring standard hardware, installed with a Philips screw driver, please purchase ST670P
- For mounts requiring theft resistant hardware, installed with security tool (included), please purchase ST670
- Includes fastener pack with all necessary mounting and display attachment hardware
- Lateral display adjustment up to 11.25" (286mm)
- Optional IncreLokTM feature offers fixed tilt angles of -5°, 0°, 5°, 10°, 15°
- Universal mount fits displays with mounting patterns up to 895 x450mm (35.25" W x 17.72" H)
Product Overview
Peerless-AV's SmartMount® Universal Tilt Wall Mount delivers an ultra-slim profile designed to hold large displays up to 250lb. Installation and maintenance are made easy with the ST670's robust feature set. Auto-latching adaptor rails automatically secure the display without the use of a tool. The mount's built-in kickstand holds the display safely from the wall during cable routing, while the open wall plate allows for increased electrical and cable management options. Horizontal and vertical display adjustment allow for quick fine-tuning of the mounted display.
General Information
- Manufacturer: Peerless Industries, Inc
- Manufacturer Part Number: ST670
- Brand Name: SmartMount®
- Product Series: ST670
- Product Model: ST670
- Product Name: Universal Tilt Wall Mount for 46" to 90" Displays
- Packaged Quantity: 1 Unit
- Product Type: Wall Mount
Product Information
- Device Supported: Flat Panel Display
- Maximum Load Capacity: 250 lb
- Minimum Screen Size Supported: 46"
- Maximum Screen Size Supported: 90"
- Features:
- 15° Forward Tilt
- -5° Back Tilt
- Lateral Adjustment
- Vertical Adjustment
- Robust
- Auto Latch
- Kickstand
- Cable Management
- Horizontal Adjustment
- Minimum Adjustable Depth: 3.04"
- Maximum Adjustable Depth: 6.41"
- Mount Profile: Slim Profile
- Minimum Tilt Angle: -5°
- Maximum Tilt Angle: 15°
- Mount Function:
- Tilt
- Cable Management
- Wall Mount
- Mount Surface: Wall
- Durability:
- Theft Resistant
- Scratch Resistant
- Tamper Resistant
Physical Characteristics
- Color Family: Black
- Product Color: Black
- VESA Mount Compatible: Yes
- Mounting Pattern:
- 200 x 200
- 300 x 200
- 300 x 300
- 400 x 200
- 400 x 300
- 400 x 400
- 600 x 400
- 800 x 400
- Form Factor: Wall Mountable
- Height: 20.63"
- Width: 40.16"
- Depth: 6.41"
- Weight (Approximate): 16.13 lb
Miscellaneous
- Package Contents:
- Universal Tilt Wall Mount for 46" to 90" Displays
- Wall and Display Installation Hardware
- Installation Instructions
- Indoor/Outdoor: Indoor
- Assembly Required: Yes
- Country of Origin: Taiwan
- Manufacturer Product Class: Tilt
- TAA Compliant: Yes
- UL Listed: Yes
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 5 Year
