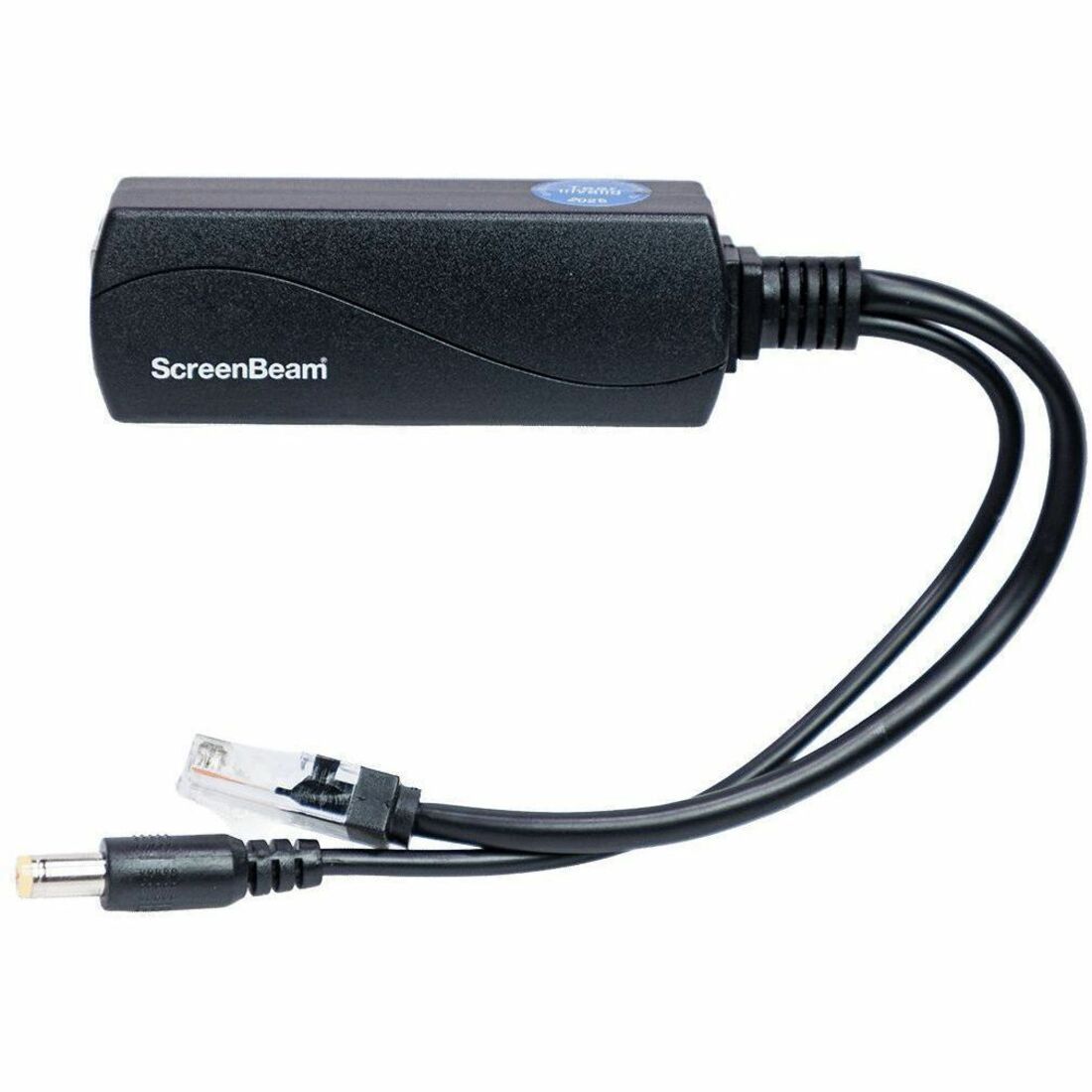

ScreenBeam PoE Adapter - SBPOEADPT
Key Features
- Compact and Durable Design - Built for enterprise environments with long-lasting performance
- Cost-Effective Deployment - Reduces installation time and expense by leveraging existing network infrastructure.
- Eliminates Extra Power Outlets - Perfect for locations without nearby electrical access.
- Flexible Device Placement - Enables optimal positioning for wireless display performance in classrooms and meeting rooms.
- PoE+ Support (IEEE 802.3at) - Ensures reliable and safe power for all ScreenBeam 1xxx series hardware.
- Power and Data Over One Cable - Combines Ethernet connectivity and power delivery for simplified installations.
Product Overview
The ScreenBeam PoE (Power over Ethernet) Adapter is a high-performance PoE+ splitter / adapter designed specifically for all ScreenBeam 1xxx series hardware platforms. This adapter delivers both power and data over a single Ethernet cable, eliminating the need for a separate power outlet simplifying installation in conference rooms, classrooms, enterprise environments, and digital signage endpoints.
General Information
- Manufacturer: ScreenBeam Inc.
- Manufacturer Part Number: SBPOEADPT
- Brand Name: ScreenBeam
- Product Model: PS5712BG
- Product Name: PoE Adapter
- Product Type: PoE+ Splitter
Power Description
- Input Voltage:
- 42.5 V DC
- 57 V DC
- Maximum Output Voltage: 12 V DC
- Maximum Output Current: 3 A
Interfaces/Ports
- Input Ports: 1 x RJ-45
- Output Ports: 1 x RJ-45
Physical Characteristics
- Height: 10.8"
- Width: 1.1"
- Depth: 0.9"
- Weight (Approximate): 5.29 oz
Miscellaneous
- Compatibility:
ScreenBeam 1000 Series Wireless Display Receivers.
- Certifications & Standards:
- IEEE 802.3at
- IEEE 802.3af
- IEEE 802.3bt
Warranty
- Limited Warranty: 3 Year
