Sharp NEC Display MultiSync DD-EA272U 27" Class 4K UHD LED Monitor - 16:9 - DD-EA272U
Key Features
- 16:9 widescreen layout enhances multitasking and visual depth, making it suitable for both creative workflows and media consumption
- 27" 4K UHD resolution offers over 8 million pixels for ultra-detailed visuals and a wide workspace ideal for multitasking
- 27" viewable screen size enhances clarity and depth for immersive playback of movies, games, and high-resolution media
- 3840 x 2160 maximum resolution delivers razor-sharp detail and stable image performance
- 60 Hz standard refresh rate minimizes image blur for crisp, fluid visuals in dynamic scenes and high-speed video playback
- Enjoy vibrant colors and crisp visuals with 350 Nit brightness, ideal for both bright environments and detailed content
- LED backlight technology enhances brightness and contrast while using less power for vivid visuals and energy-efficient performance
- LED Monitor is reliable and delivers consistent performance for extended use
- Minimize blurring and smearing during motion and gaming sequences with a 6 ms response time for sharp, fluid vis
Product Overview
The 4K UHD 27" NEC MultiSync EA272U is a large workspace for the most demanding applications. With 3 bezels measuring only 1.0mm each, this widescreen model features IPS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand and full connectivity with DisplayPort and two HDMI inputs. In addition, the USB Type-C input can serve as a single connection to a laptop, providing power, video and USB connectivity through one cable. The EA272U includes touch-sensitive On Screen Display controls and Picture by Picture (PBP) mode for two inputs onscreen at the same time.
- Full connectivity, including DisplayPort and two HDMI inputs as well as USB Type-C
- 4K UHD (3840x2160) Resolution

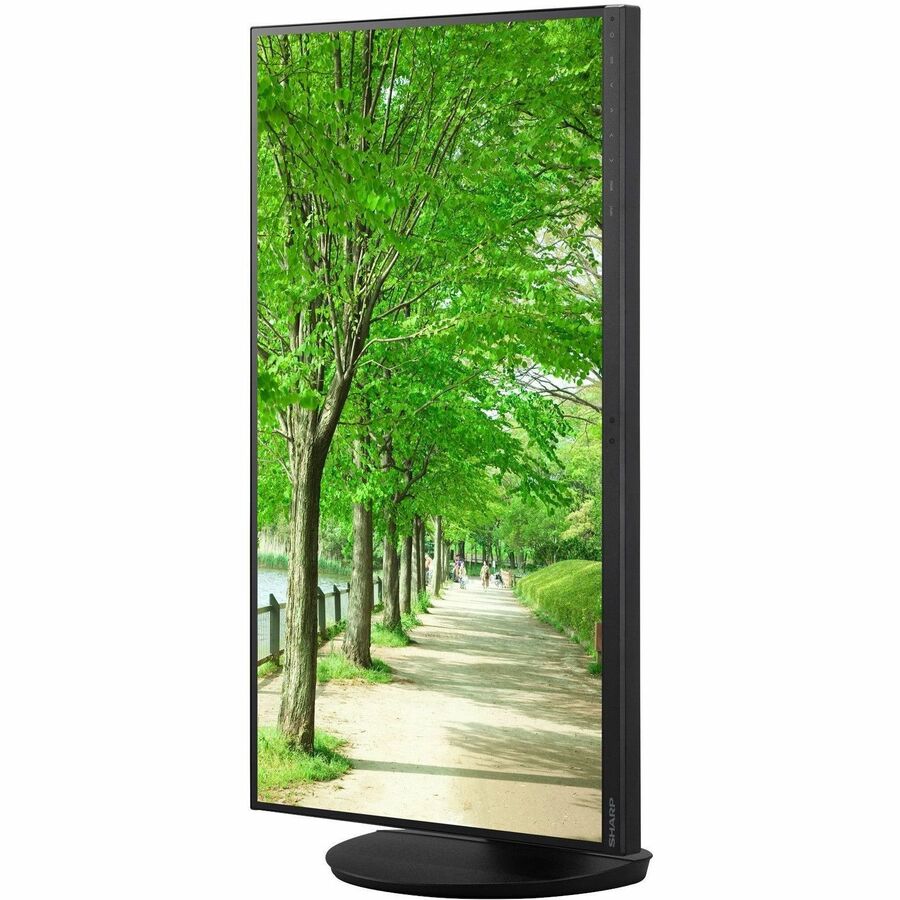

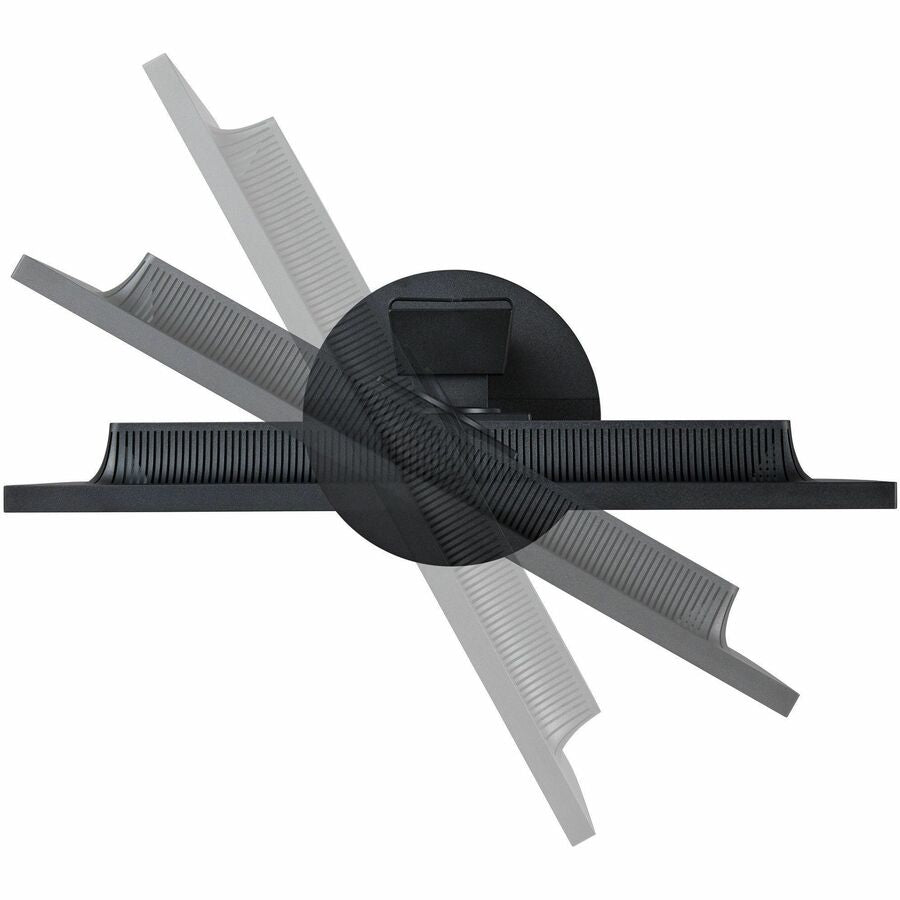

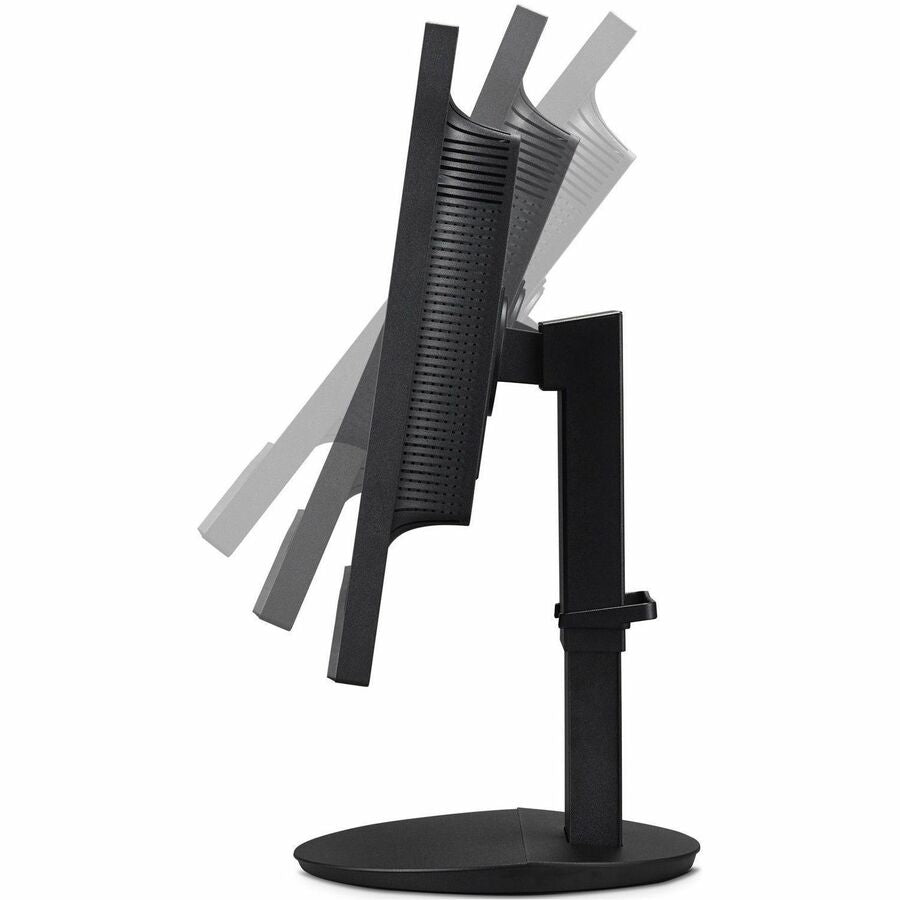

- Height-adjust, dual direction pivot, tilt and swivel capabilities are designed to fit every work environment
- IPS Technology for 178-degree wide viewing angles
- Brightness 250 cd/m2
- Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power

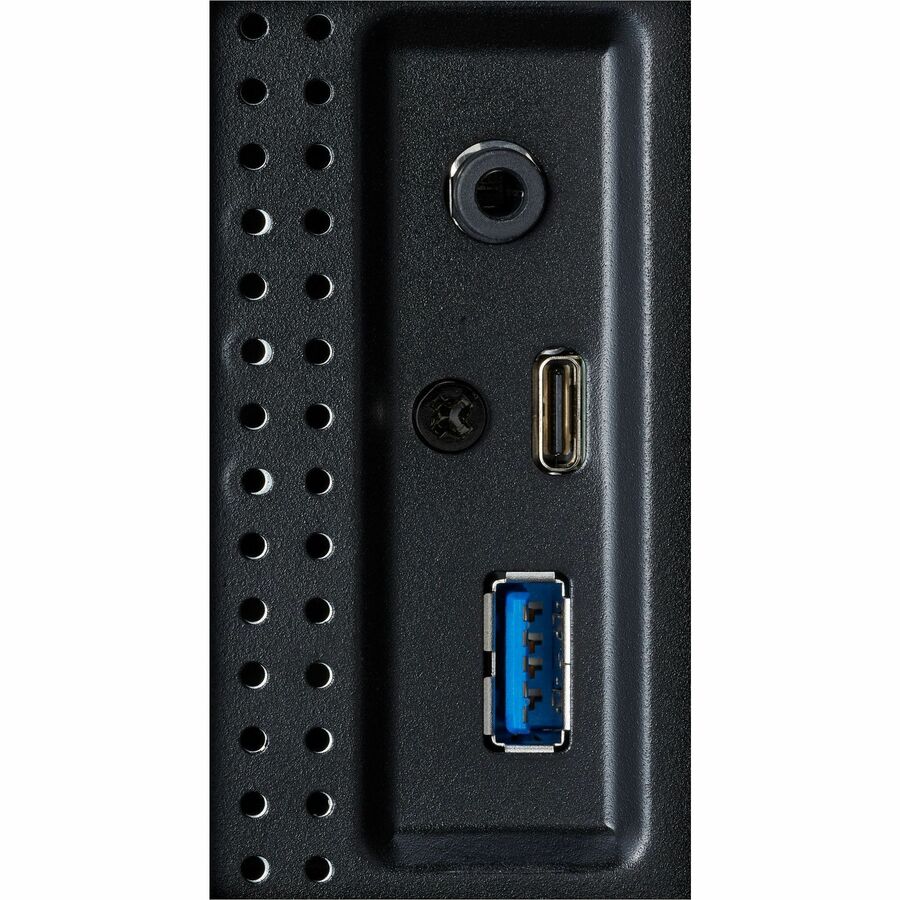

- USB Type-C input delivers 90W of power as well as video and USB over one cable
- ECO Mode™ allows you to manually adjust the display's brightness to your liking, saving power and reducing your energy costs
- LAN port enables ethernet use for those devices connected to the display with no LAN port
- Certified Low Blue Light and Flicker Free
- USB Hub (1 Up/2 Down)
- Touch-sensitive OSD® controls are integrated into the bezel
- 3 year warranty
- ENERGY STAR 8.0 and TCO 9.0
- NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations
General Information
- Manufacturer: Sharp
- Manufacturer Part Number: DD-EA272U
- Brand Name: Sharp NEC Display
- Product Line: MultiSync
- Product Model: DD-EA272U
- Product Name: 27" 4K UHD (3480x2160) Business-Class Widescreen Desktop Monitor w/ Ultra-Narrow Bezel and USB-C (90W) Charging
- Product Type: LED Monitor
Technical Information
- Number of Screens: 1
- Screen Size Class: 27"
- Viewable Screen Size: 27"
- Screen Mode: 4K UHD
- Panel Technology: In-plane Switching (IPS) Technology
- Response Time: 6 ms
- Response Time Details: 6 ms Typical
- Aspect Ratio: 16:9
- Pixel Pitch: 0.15500 mm x 0.15500 mm
- Horizontal Viewing Angle: 178°
- Vertical Viewing Angle: 178°
- Backlight Technology: LED
- Mount Type: Desk Mountable
- HDCP Supported: Yes
- Features:
- sRGB
- Separate Sync
- Sync on Green
- Auto Brightness Control (ABC)
- Ambient Light Sensor
- Eco Mode
- Carbon Footprint Meter
- XtraView
- Cable Management
- Game Mode
- Movie Mode
- Plug & Play
- Power Management
- AccuColor
- Cable Lock Slot
- Narrow Bezel
- Wide Viewing Angle
- Picture by Picture
- Low Blue Light
- Flicker-free
- Vertical Frequency: 30 Hz to 75 Hz
- Adjustable Stand: Yes
- Stand Adjustments:
- Tilt
- Swivel
- Pivot
- Height
Video
- Maximum Resolution: 3840 x 2160
- Standard Refresh Rate: 60 Hz
- Color Supported: 16.7 Million Colors
- Native Contrast Ratio: 1,200:1
- Brightness: 350 Nit
- Color Gamut:
- 80.8% Adobe RGB
- 75.10% NTSC
- 100% sRGB
- Pixel Per Inch (PPI): 163
Interfaces/Ports
- Network (RJ-45): Yes
- HDMI: Yes
- USB: Yes
- DisplayPort: Yes
- USB Type-C: Yes
- Number of HDMI Inputs: 2
- Total Number of HDMI Ports: 2
- Number of USB Ports: 2
- Number of USB 3.1 Ports: 2
Built-in Devices
- Built-in Devices: USB Hub
Environmental Conditions
- Operating Temperature Range: 41°F (5°C) to 95°F (35°C)
- Operating Humidity Range: 20% to 80% (Non-condensing)
- Maximum Operating Altitude: 16404.20 ft
Power Description
- Standby Power Consumption: 300 mW
- Maximum Power Consumption: 38 W
- Voltage Current: 1.80 A
Physical Characteristics
- VESA Mount Compatible: Yes
- Height: 14.2"
- Width: 24.1"
- Depth: 2.6"
- Height with Stand: 20.80"
- Width with Stand: 24.10"
- Depth with Stand: 9.80"
- Weight (Approximate): 12.80 lb
- Weight with Stand (Approximate): 20.30 lb
- Compressed Height with Stand: 14.90"
- Extended Height with Stand: 20.80"
Miscellaneous
- Package Contents:
- 27" 4K UHD (3480x2160) Business-Class Widescreen Desktop Monitor w/ Ultra-Narrow Bezel and USB-C (90W) Charging
- Setup sheet
- Power Cord 1.8m
- USB-C Cable 1.0m
- EEI Sheet
- Application/Usage: Business
- Energy Star: Yes
- TCO Certified: Yes
- Environmentally Friendly: Yes
- Environmental Certification: TCO Certified 9.0
- Energy Efficiency Certification: ENERGY STAR 8.0
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
Warranty
- Limited Warranty: 3 Year
