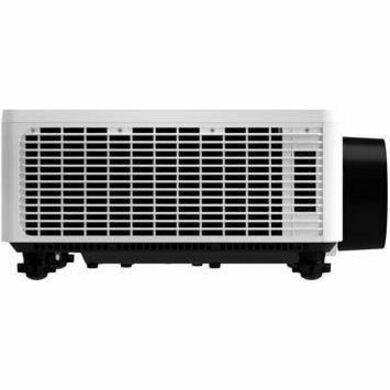

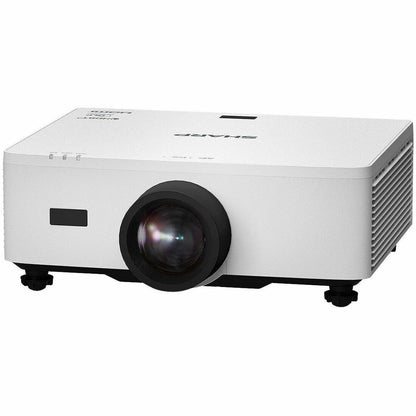

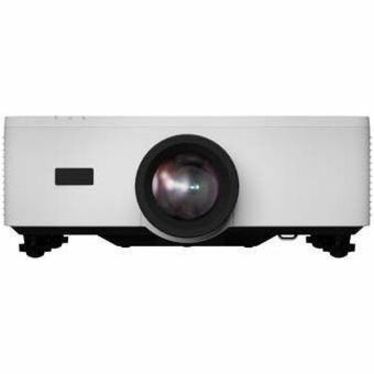

Sharp XP-P601Q-W DLP Projector - 16:9 - Floor Mountable, Ceiling Mountable - XP-P601Q-W
Key Features
- allows for low-voltage 3rd party devices to be powered directly from the projector eliminating the need for additional electrical outlets in the ceiling
- Broad motorized lens shift
- Built-in speaker
- can potentially save users from needing a separate audio system in smaller rooms
- Filter free DLP technology
- Included 1.5A USB power
- make lens adjustment fast and easy using the included remote control
- Motorized zoom and focus
- provides installers with greater flexibility horizontally and vertically when choosing a mounting location and obstructions in the ceiling are a concern
- reduces recurring maintenance requirements and lowers TCO
Product Overview
Taking 4K laser projection into new frontiers with a unique combination of brightness and function.
Powerful Performance
- Native 4K UHD (3840 x 2160) resolution produces stunning images with incredible detail
- After startup images appear immediately with breakthrough laser technology
- Advanced laser technology delivers a reliable, maintenance free light source for 20,000 hours
- Integrated software support for Crestron, AMX, PJ Link control systems
4K UHD Resolution
- Utilizing the latest DMD chip from Texas Instruments with pixel shift capabilities resulting in an unsurpassed viewable resolution of 8.3million pixels
- Viewable resolution matches standard 4K UHD LCD displays providing consistency when developing content for your presentations
More Flexible Installations
- Motorized zoom, focus and lens shift simplifies installation and operation by easily adjusting the lens through the remote control
- Lens shift capabilities make alignment easy: (H = +/- 25% / V = +/-55)
- Tilt-free installation capabilities make these projectors ideal for almost any install environment, including portrait orientation
Built-In HDBaseT Support
Streamline your installations with HDBaseT. Optimized for video applications and supporting uncompressed digital video, audio, ethernet and various control signals. With only a single cable (up to 100m) to run, infrastructure and labor costs are reduced, installations are significantly easier, and there is no cable clutter to manage.
Advanced Installation Features
? Motorized Lens Shift, Zoom and Focus
Lens shift provides greater flexibility when determining install location
Tilt-free
The projector can be rotated freely (360°) to orient the image depending on the installation requirements
Portrait mode
Allows the projector to be rotated (and screen if necessary) to a vertical alignment so that portrait content can be viewed without black bars on the side when landscape mode is used.
General Information
- Manufacturer: Sharp Electronics
- Manufacturer Part Number: XP-P601Q-W
- Brand Name: Sharp
- Product Series: P
- Product Model: XP-P601Q-W
- Product Name: XP-P601Q-W DLP Projector
- Product Type: DLP Projector
Technical Information
- Projection Method:
- Front
- Rear
- Rear Ceiling
- Front Ceiling
- Ceiling
Display & Graphics
- Native Resolution: 3840 x 2160
- Graphic Mode: 4K UHD
- Native Aspect Ratio: 16:9
Projection Lens
- Minimum Focal Length: 18.70 mm
- Maximum Focal Length: 29.60 mm
- Minimum Diagonal Image Size: 60"
- Maximum Diagonal Image Size: 25 ft
- Optical Zoom: 1.6x
- Minimum Projection Distance: 62.40"
- Maximum Projection Distance: 42.30 ft
Lamp
- Number of Lamps: 1
- Lamp Type: Laser
- Normal Mode Lamp Life: 20000 Hour
- Economy Mode Lamp Life: 30000 Hour
- Standard Mode Brightness: 6000 lm
- Throw Ratio: 1.25 to 2.01
- Contrast Ratio: 3,000,000:1
Video
- Video Signal Standard: HDTV
- Output Scan Format: 2160p

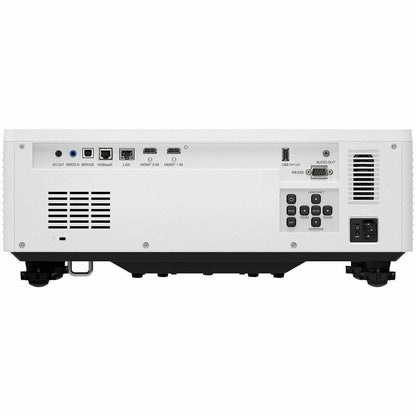

Interfaces/Ports
- HDMI: Yes
- USB: Yes
- Network (RJ-45): Yes
Power Description
- Operating Power Consumption: 530 W
Physical Characteristics
- Form Factor:

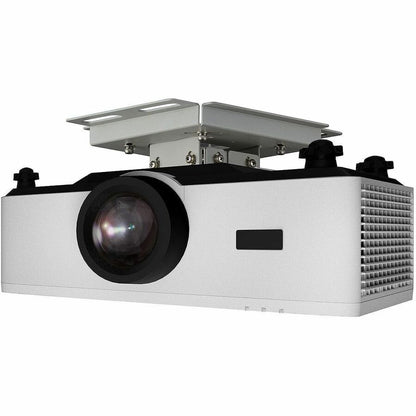

- Floor Mountable
- Ceiling Mountable
- Height: 7.3"
- Width: 19.1"
- Depth: 17"
- Weight (Approximate): 32 lb
Miscellaneous
- Application/Usage:
- Presentation
- Room
- Package Contents:
- XP-P601Q-W DLP Projector
- Remote Control
- Batteries
- Power Cord
- Quick Start Guide
- Product Registration Card
Warranty
- Limited Warranty: 5 Year
