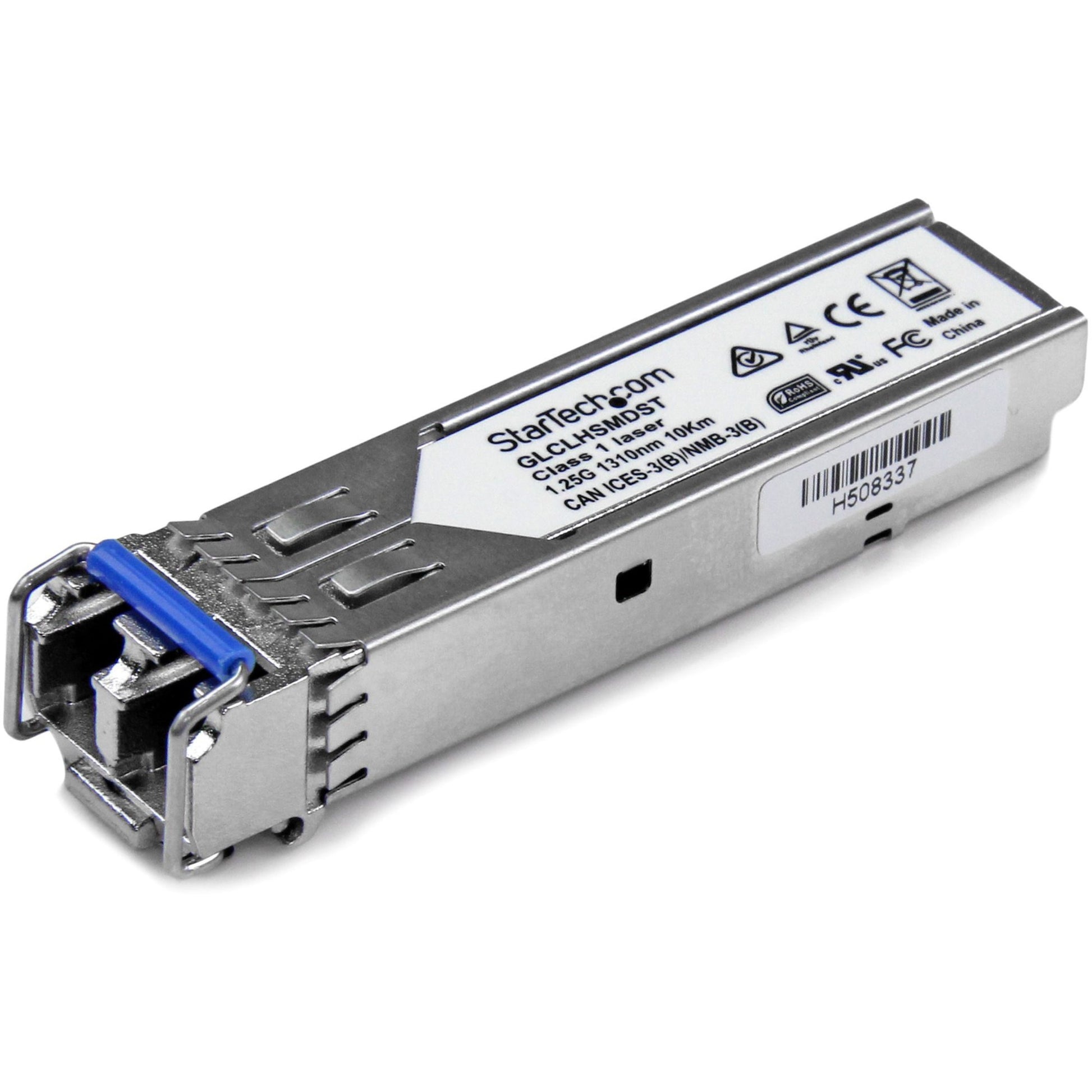

StarTech Cisco GLC-LH-SMD Compatible SFP Module - 1000BASE-LX/LH - 1GE Gigabit Ethernet 1GbE Single Mode Fiber SMF Optic Transceiver - GLCLHSMDST
Key Features
- 100% CISCO GLC-LH-SMD COMPATIBLE: Works with Cisco switches like Firepower, ASR920, IE2000, IE4000, ASR1000 and others
- OUTSTANDING SUPPORT: Backed by StarTech.com for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
- TECHNICAL SPECS: 1000BASE-LX/LH
- 1 Gbps
- Single Mode (SMF)/Multi Mode (MMF)
- LC Connector
- 1310nm
- Digital Diagnostic Monitoring (DDM)
- Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Product Overview
The GLCLHSMDST is a Cisco GLC-LH-SMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-LX/LH compliant networks, with a maximum distance of up to 10 km (6.2 mi). Technical Specifications: Wavelength: 1310 nm Maximum Data Transfer Rate: 1.25 Gbps Type: Single Mode / Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 10 km (6.2 mi) MTBF: 200,000 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): Yes This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the ManufacturerGeneral Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: GLCLHSMDST
- Brand Name: StarTech.com
- Product Name: Cisco GLC-LH-SMD Compatible SFP Transceiver Module - 1000BASE-LX/LH
- Product Type: SFP (mini-GBIC)
- Packaged Quantity: 1 Each
Technical Information
- Application/Usage:
- Optical Network
- Data Networking
Interfaces/Ports
- Total Number of Ports: 1
- Connector Type: LC
- Interfaces/Ports Details: 1 x LC Duplex 1000Base-LX/LH Network
Media & Performance
- Media Type Supported: Optical Fiber
- Fiber Mode Supported:
- Multi-mode
- Single-mode
- Ethernet Technology: 1.25 Gigabit Ethernet
- Network Technology: 1000Base-LX/LH
Physical Characteristics
- Form Factor:
- Hot-pluggable
- Hot-swappable
- Height: 0.3"
- Width: 0.5"
- Depth: 2.3"
- Weight (Approximate): 0.04 lb
Miscellaneous
- Compatibility:
- MSA Compliant
Cisco Firepower Switches:
- ASR920
- IE2000
- IE4000
- ASR1000
- Country of Origin: Taiwan
- Environmentally Friendly: Yes
Warranty
- Limited Warranty: Lifetime
