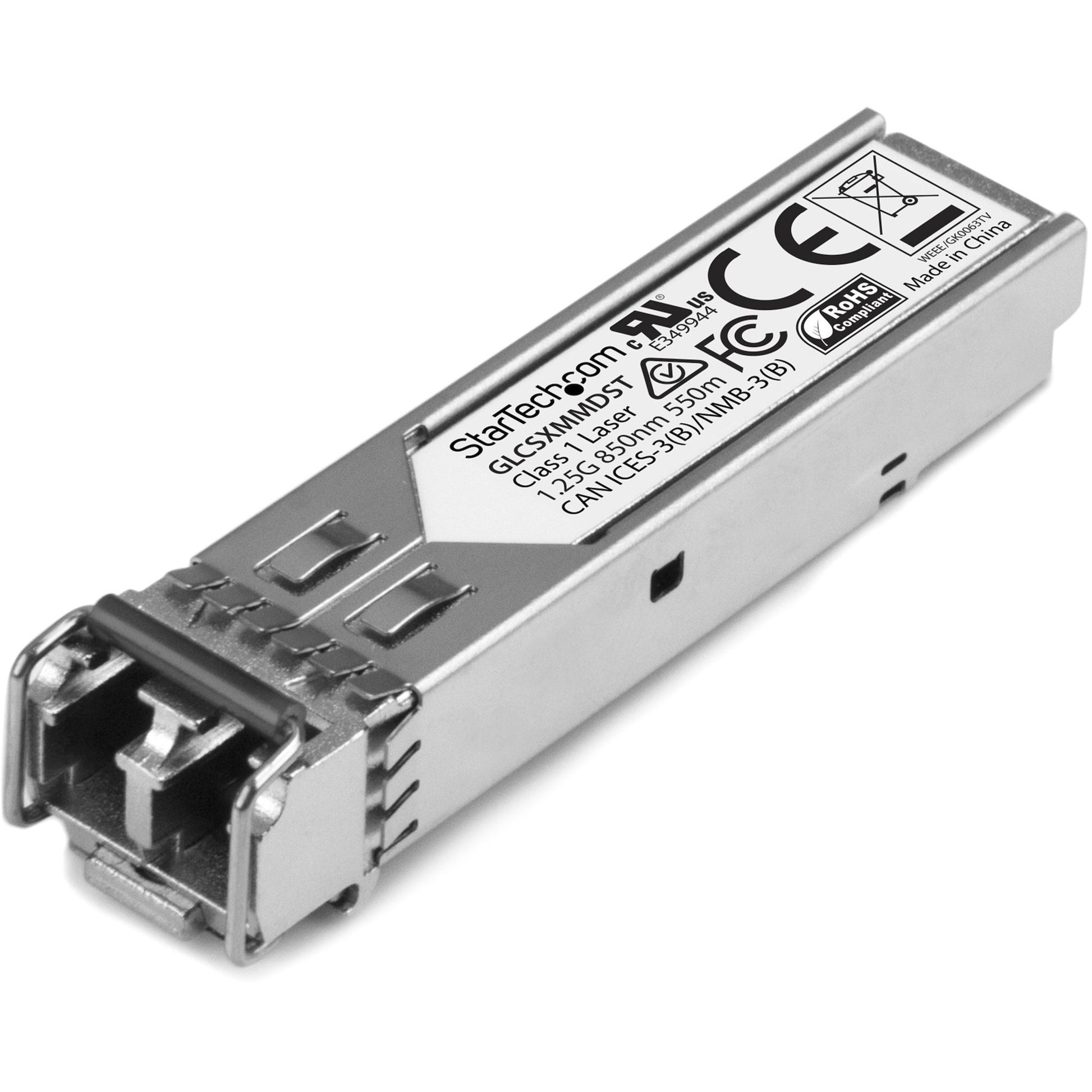

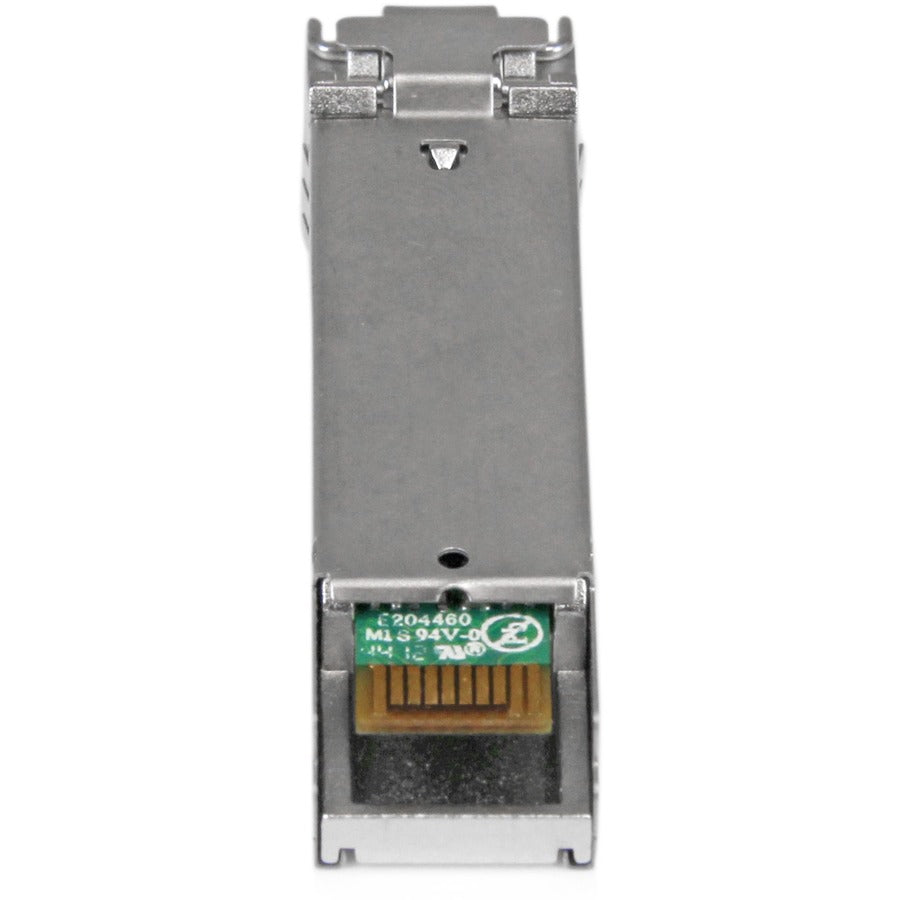

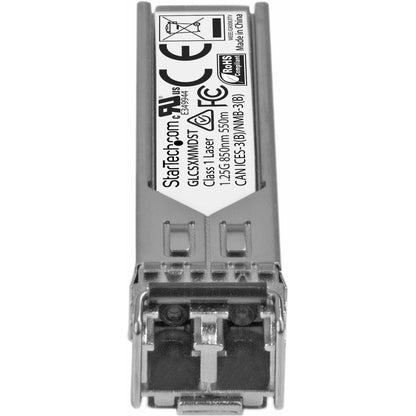

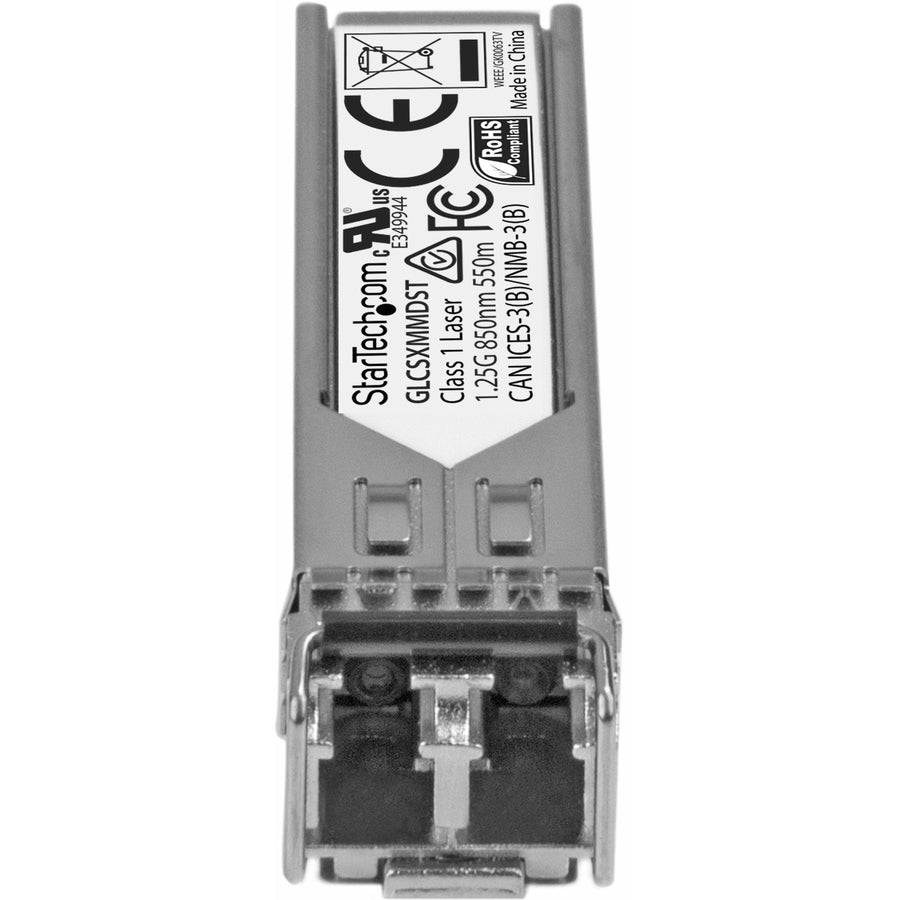

StarTech Cisco GLC-SX-MMD Compatible SFP Module - 1000BASE-SX - 1GE Gigabit Ethernet SFP 1GbE Multimode Fiber MMF Optic Transceiver - GLCSXMMDST
Key Features
- Hot-pluggable form factor for your convenience and simplicity of usage
- Lets you conveniently connect to the 1.25 gigabit ethernet Ethernet technology to offer maximum productivity
- SFP (mini-GBIC) offers enhanced dependability with maximum productivity
- SFP (mini-GBIC) with data networking application/usage for maximum dependability and convenience
- Supports optical fiber cable for durable performance, minimal signal loss, and fast data transfers to greater distances
- With 1000Base-SX technology, enjoy up to 1000Mbps data transfer rate over optical fiber cable
- With its thicker diameter to carry the light of multiple wavelengths, multi-mode fiber optic cable supports the high bandwidth to carry more information with greater fidelity
Product Overview
The GLCSXMMDST is a Cisco GLC-SX-MMD compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco® brand switches and routers. It delivers dependable 1 GbE connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550 m (1804 ft). Technical Specifications: Wavelength: 850 nm Maximum Data Transfer Rate: 1.25 Gbps Type: Multi Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 550 m (1804 ft) MTBF: 3,381,761 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): No This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. StarTech.com SFPs All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the ManufacturerGeneral Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: GLCSXMMDST
- Brand Name: StarTech.com
- Product Model: GLC-SX-MMD
- Product Name: Cisco GLC-SX-MMD Compatible SFP Transceiver Module - 1000BASE-SX
- Product Type: SFP (mini-GBIC)
- Packaged Quantity: 1 Each
Technical Information
- Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
- Total Number of Ports: 1
- Connector Type: LC
- Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network
Media & Performance
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Multi-mode
- Ethernet Technology: 1.25 Gigabit Ethernet
- Network Technology: 1000Base-SX
Physical Characteristics
- Form Factor:
- Hot-pluggable
- Hot-swappable
- Height: 0.5"
- Width: 0.5"
- Depth: 2.2"
- Weight (Approximate): 0.04 lb
Miscellaneous
- Compatibility:
- MSA or Cisco compliant SFP port
Cisco Firepower Switches:
- ASR920
- IE2000
- IE4000
- ASR1000
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: Lifetime
