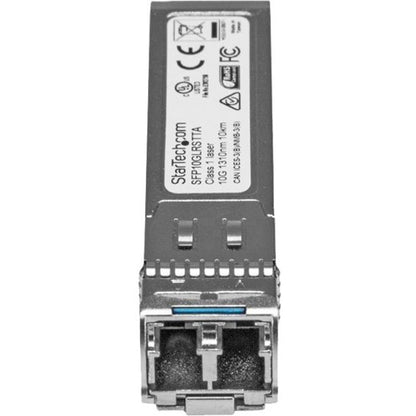

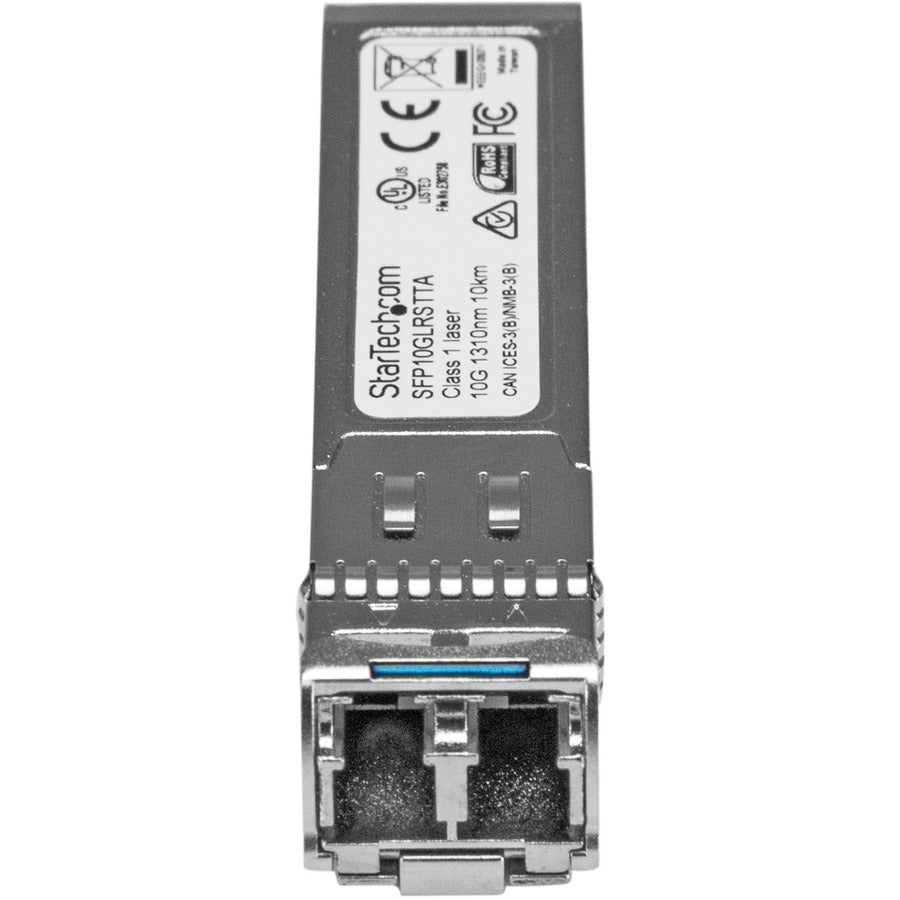

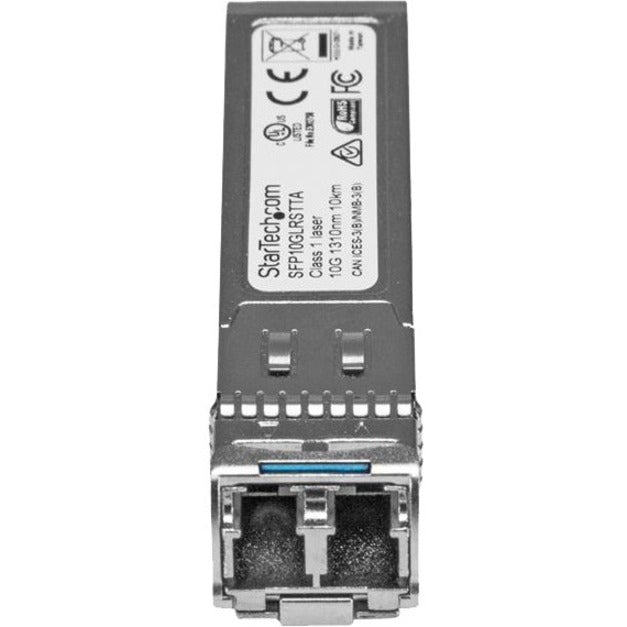

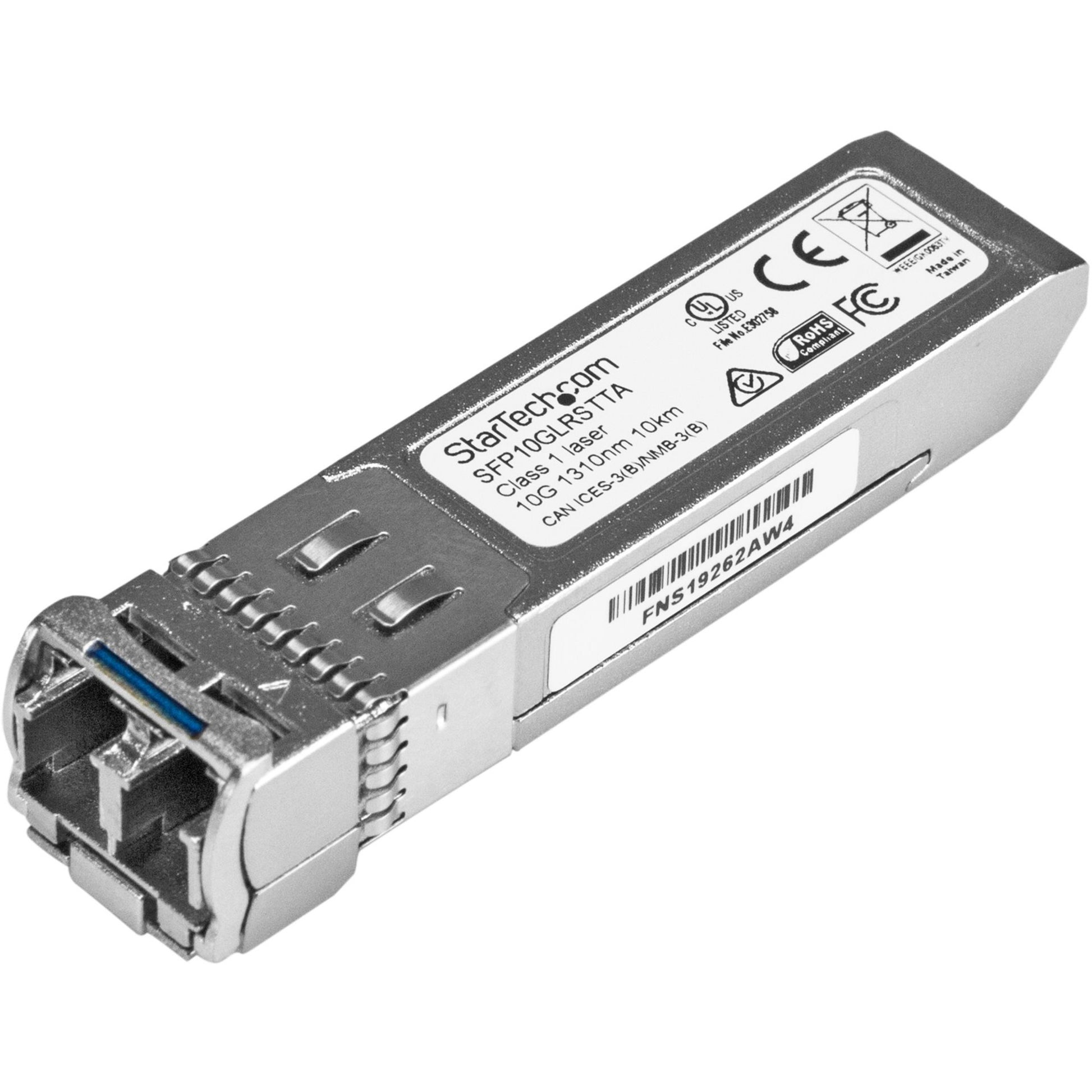

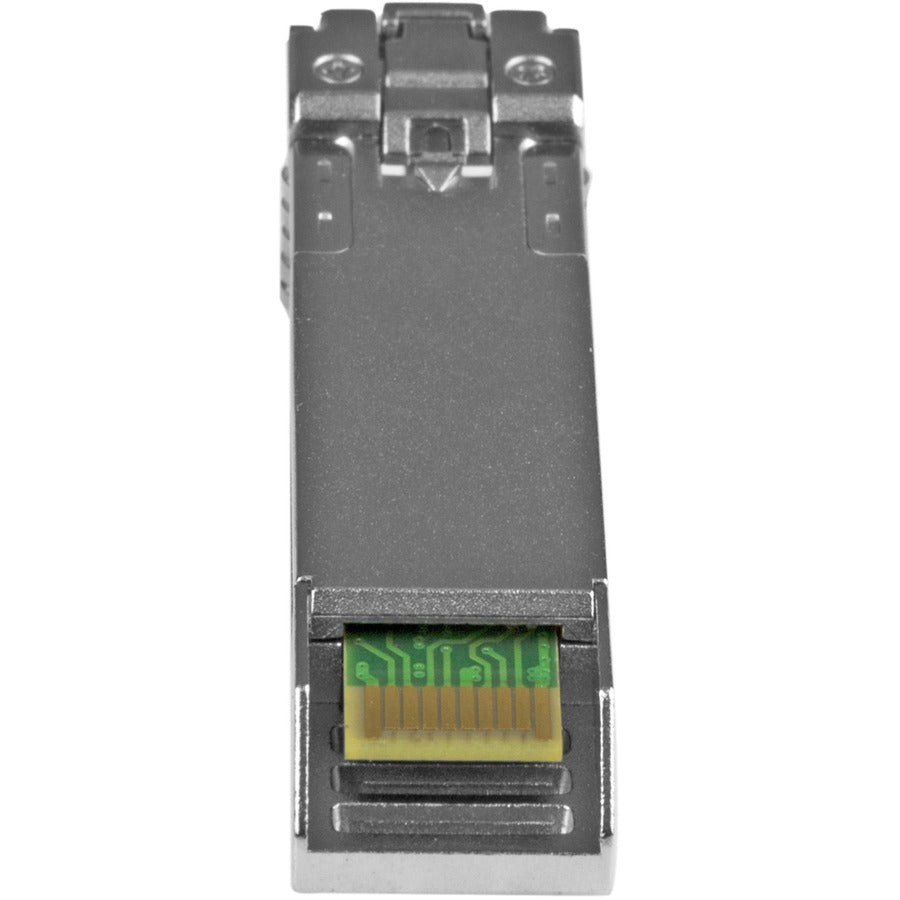

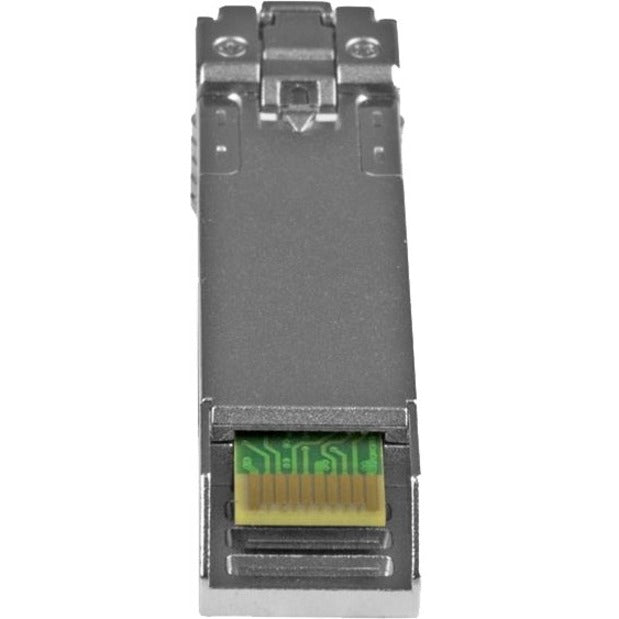

StarTech Cisco SFP-10G-LR-S Comp. SFP+ Module, 10GBASE-LR, 10GE Gigabit Ethernet SFP+ 10GbE Single Mode Fiber Optic Transceiver, TAA - SFP10GLRSTTA
Key Features
- 100% CISCO SFP-10G-LR-S COMPATIBLE: Works with Cisco switches like Firepower, ASR9000, C9300, C3850, C9500 and others
- TECHNICAL SPECS: 10GBASE-LR - 10 Gbps - Single Mode (SMF) - LC Connector - 1310nm - Digital Diagnostic Monitoring (DDM) - Distances up to 10km (6.2mi)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SFP module is backed for life (lifetime of module, not network switch), including free lifetime 24/5 multi-lingual technical assistance.
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Product Overview
The SFP10GLRST is a TAA compliant Cisco SFP-10G-LR compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco™ brand switches and routers. It delivers dependable 10 GbE connectivity over fiber cable, for 10GBASE-LR compliant networks, with a maximum distance of up to 10 km (6.2 mi). Technical Specifications: Wavelength: 1310nm Maximum Data Transfer Rate: 10 Gbps Type: Single Mode Fiber Connection Type: LC Connector Maximum Transfer Distance: 10 km (6.2 mi) MTBF: 1,203,430 hours Power Consumption: Less than 1 Watt Digital Diagnostics Monitoring (DDM): Yes This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions. SFP modules We offer a wide variety of SFP transceiver modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance. More from the ManufacturerGeneral Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: SFP10GLRSTTA
- Brand Name: StarTech.com
- Product Name: Cisco SFP-10G-LR Compatible SFP+ Transceiver Module - 10GBASE-LR
- Product Type: SFP+
- Packaged Quantity: 1 Each
Technical Information
- Application/Usage:
- Optical Network
- Data Networking
Interfaces/Ports
- Total Number of Ports: 1
- Connector Type: LC
- Interfaces/Ports Details: 1 x LC Duplex 10GBase-LR Network
Media & Performance
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Single-mode
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10GBase-LR
Physical Characteristics
- Form Factor:
- Hot-pluggable
- Hot-swappable
- Height: 0.4"
- Width: 0.5"
- Depth: 2.2"
- Weight (Approximate): 0.04 lb
Miscellaneous
- Compatibility: MSA Compliant
Cisco Firepower Switches:
- ASR9000
- C9300
- C3850
- C9500
- Country of Origin: Taiwan
- TAA Compliant: Yes
- Environmentally Friendly: Yes
- Environmental Compliance:
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: Lifetime
