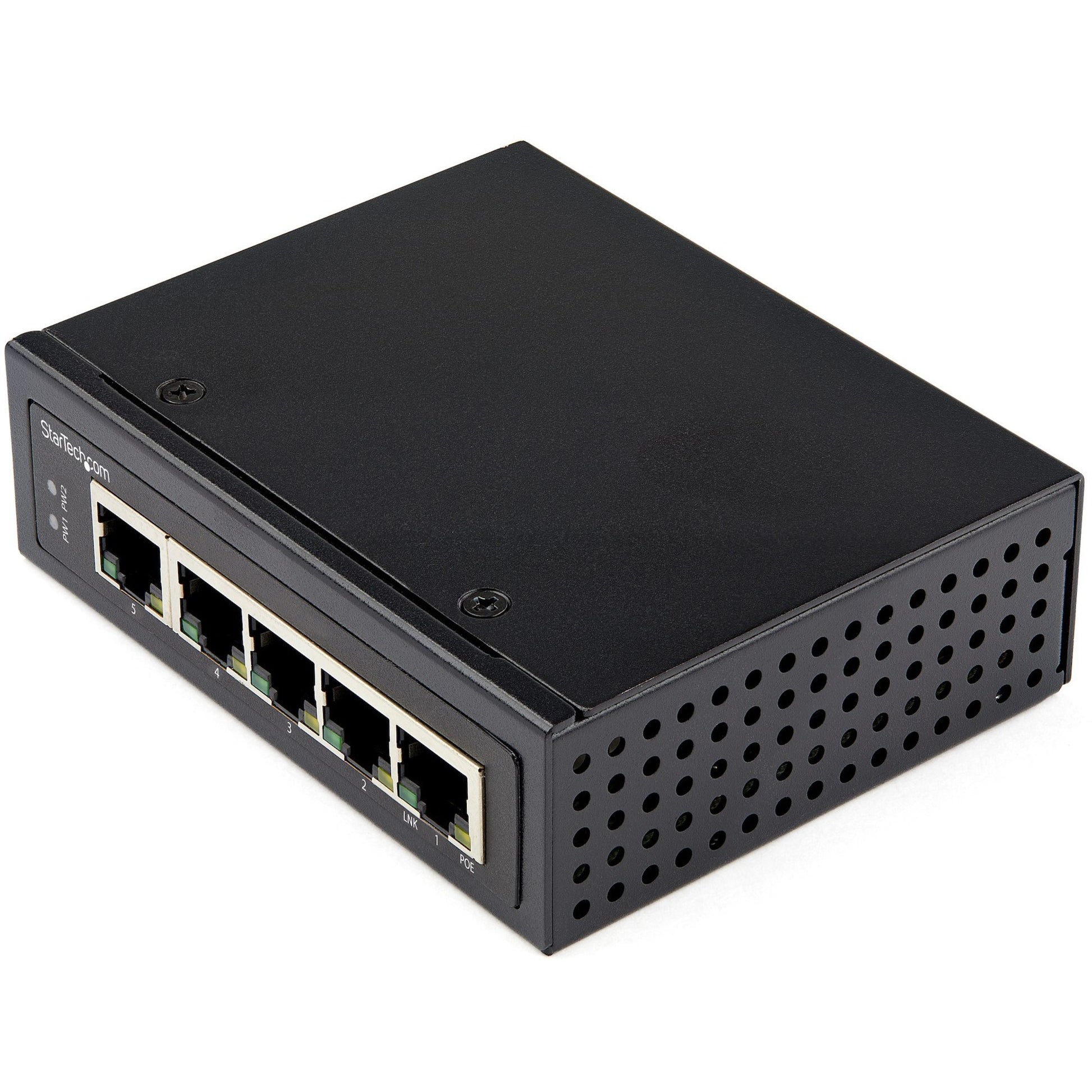

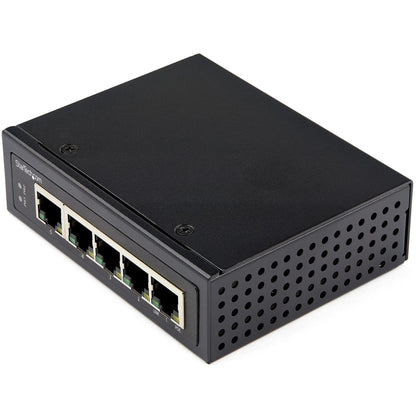

StarTech Industrial 5 Port Gigabit PoE Switch 30W, Power Over Ethernet Switch, GbE POE+ Network Switch, Unmanaged, IP-30, TAA - IESC1G50UP
Key Features

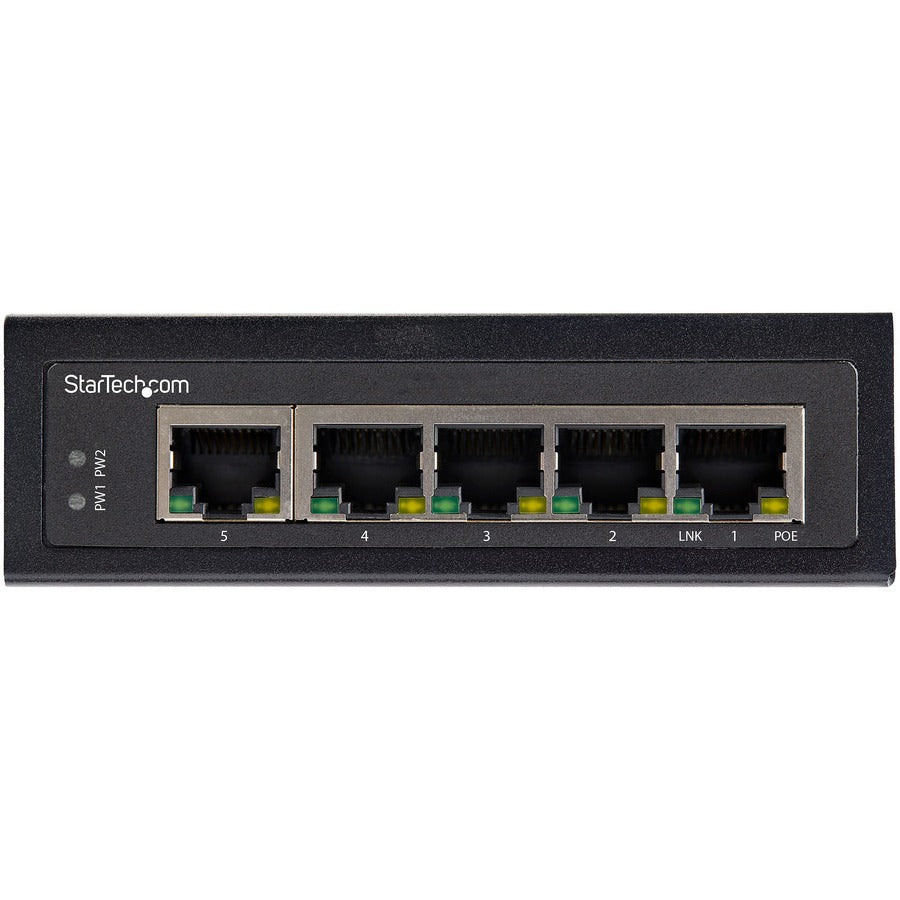

- Create your own LAN and connect your PC, laptop, printer and other peripherals with the help of 5 ports
- Effectively reduces downtime with improved network performance
- Layer 2 switch provides a complete lineup of features including IGMP snooping, port mirroring, and spanning tree
- PoE+ port to receive data and up to 25.5 W of power on a single cable in places where a power outlet is not available
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters

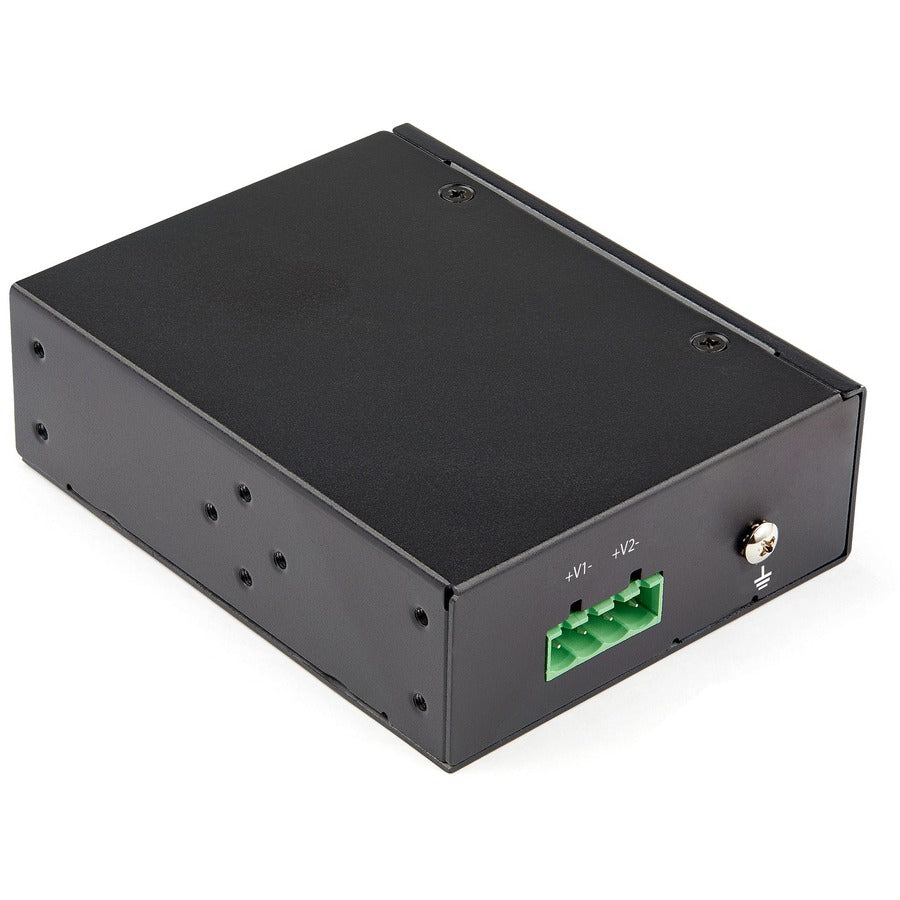

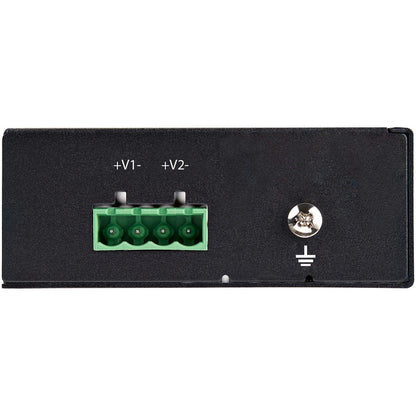

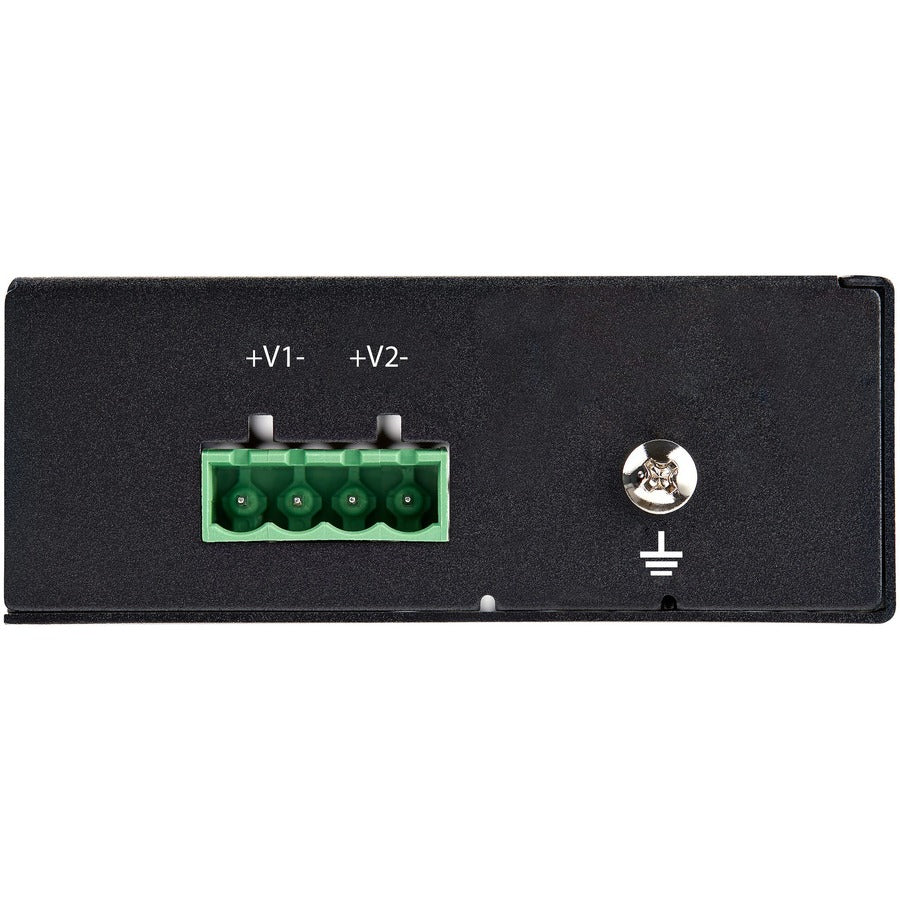

- Terminal Block plug/connector type for convenient Ethernet Switch usage with added power supply dependability
- The unmanaged switch provides a quick, easy and cost-saving way to add wired networking to your home, office or small business; no intervention needed
- Up to 10x faster than standard Ethernet server connectivity while providing high-performance uplinks
- With Wall mounting feature, you can conveniently install the switch while keeping the wires and cables organized
Product Overview
This industrial 5 port gigabit PoE switch ( 4-port PoE) features 30W of power and is designed to be installed in harsh environments and supports up to a total of 120W power outputs. For Demanding Environments Where No Fiber Connections Are Required Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like: Cameras Sensors Wi-Fi Access Points High total power budget with high PoE port count at a maximum of 30 watts per port, up to 120 watts max. Power provided in order of device connection; max four 802.3at (30W) devices (120W total) at any time. Truly Industrial for Devices That Must Function Under Harsh Conditions Industrial features include: Operating Temperature Range: -40 C to 75 C IP-30 rated housing Vibration, shock, and free-fall standard testing This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 600,000+ hrs (Telcordia/Bellcore ) at 50°C, for long-term reliability. A Flexible & Easy-to-Deploy Solution Includes hardware for DIN rail or wall mounting, right out of the box. The unique barrel power adapter allows for standard wall adapters to be used instead of being hardwired and the alarm relay can be integrated into any solution. More from the Manufacturer
