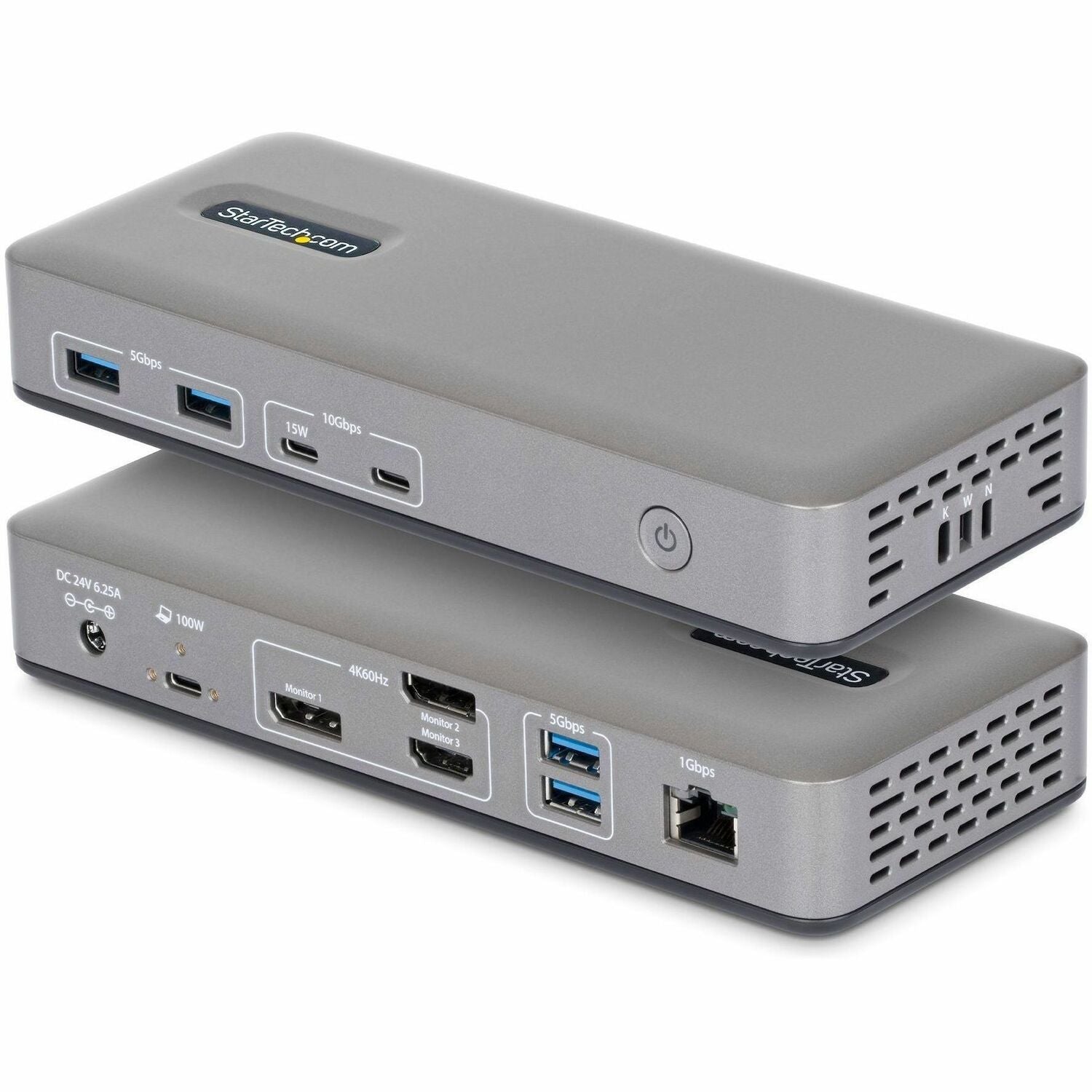

StarTech Triple-Monitor USB-C Docking Station, DP / HDMI, 4K 60Hz, 100W Laptop Charging, 1GbE, Driverless, Multi-Monitor Dock - 199N-USBC-DOCK
Key Features
- DRIVERLESS DEPLOYMENT: Plug-and-play on Windows with no drivers or software to install (not compatible with macOS / ChromeOS); Engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments
- FLEXIBLE, HIGH-SPEED I/O: Equipped with 4× USB-A 5Gbps and 2× USB-C 10Gbps ports (one with 15W PD) to support legacy peripherals and modern high-throughput devices without compromising performance; Gigabit Ethernet port for a reliable wired connection
- MOUNT AND LOCK FOR A CLEAN, SECURE SETUP: Keep your dock protected and out of sight with built-in lock slots for physical security and support for Surface or VESA mounting (mounting accessories sold separately: SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA)
- THE IT PRO'S CHOICE: Our docking stations are rigorously tested in our Innovation Lab to ensure enterprise-grade reliability and cross-platform compatibility; Built to support large-scale deployments, Windows 11 upgrades, and the shift to AI-enabled PCs
- TRIPLE 4K60 OVER USB-
Product Overview
Connect up to three 4K 60Hz displays (2x DisplayPort and 1x HDMI) through a single USB-C port, while also providing USB-C, USB-A, and Gigabit Ethernet connectivity.

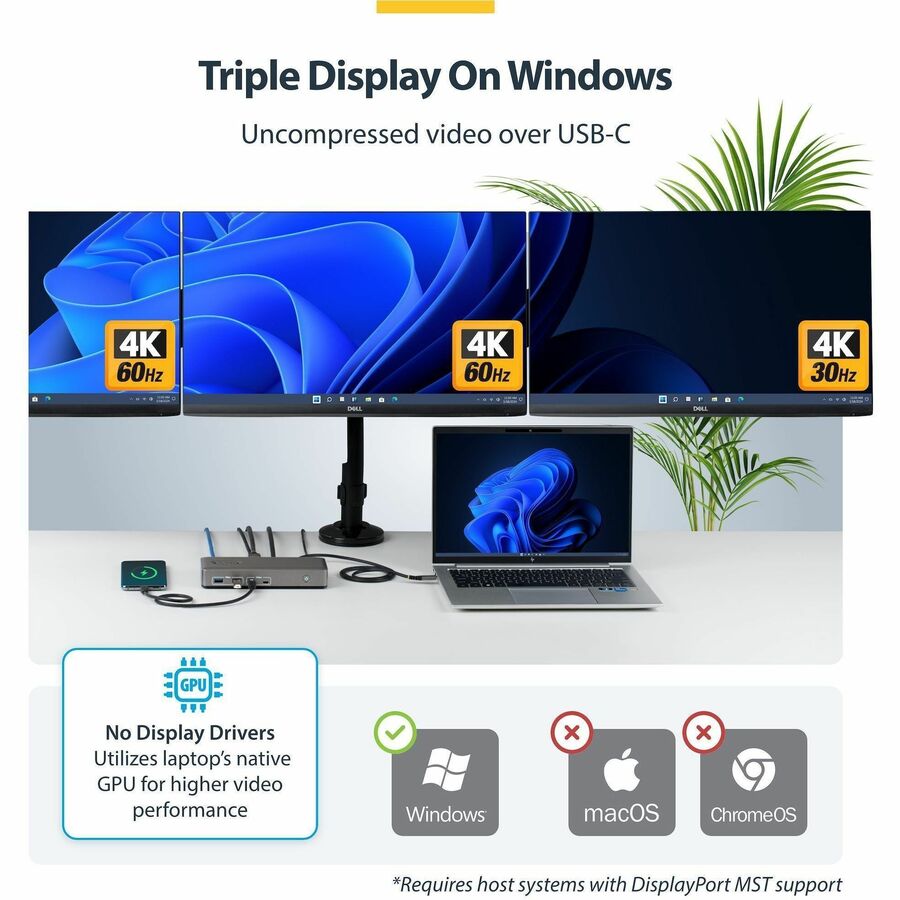

Uncompressed Video Over USB-C
Connect up to three 4K 60Hz displays through a single USB Type-C port with uncompressed video powered by your laptop's native GPU. Drive demanding workflows with high-performance visuals and no software compression

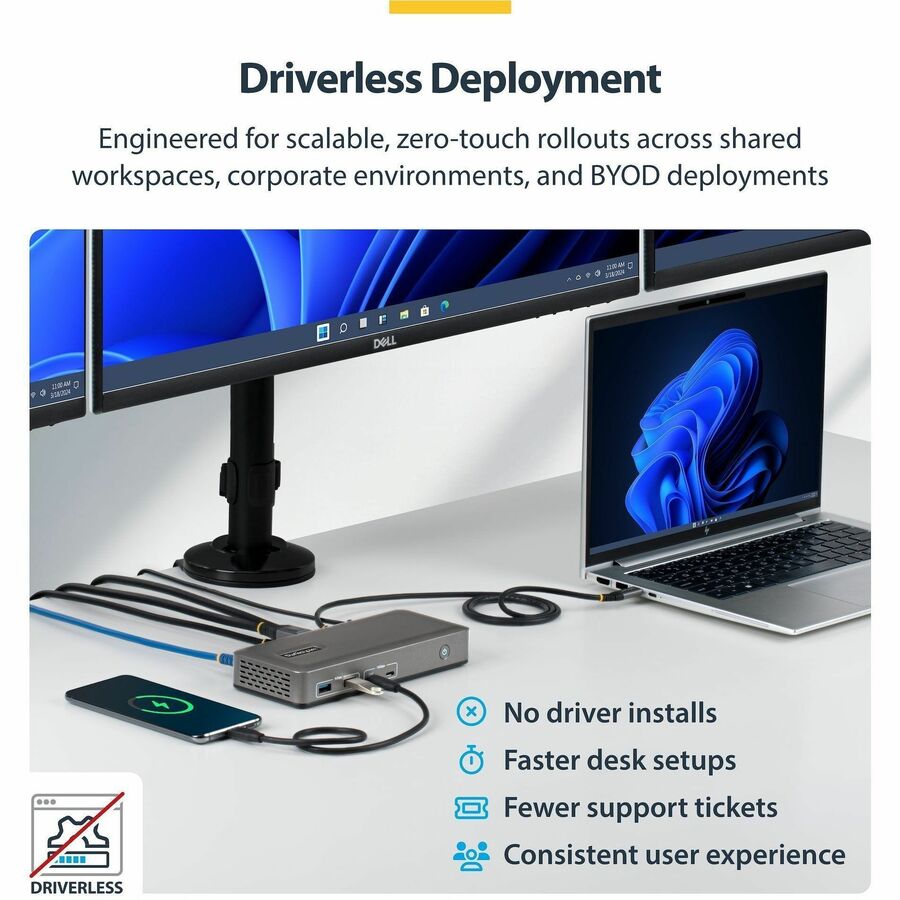

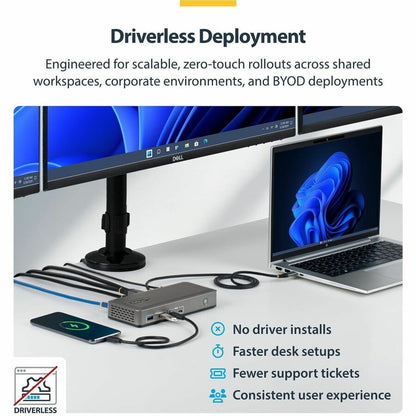

Driverless Deployment
Features plug-and-play functionality on Windows with no drivers or software required. It is engineered for scalable, zero-touch rollouts across shared workspaces, corporate environments, and BYOD deployments.

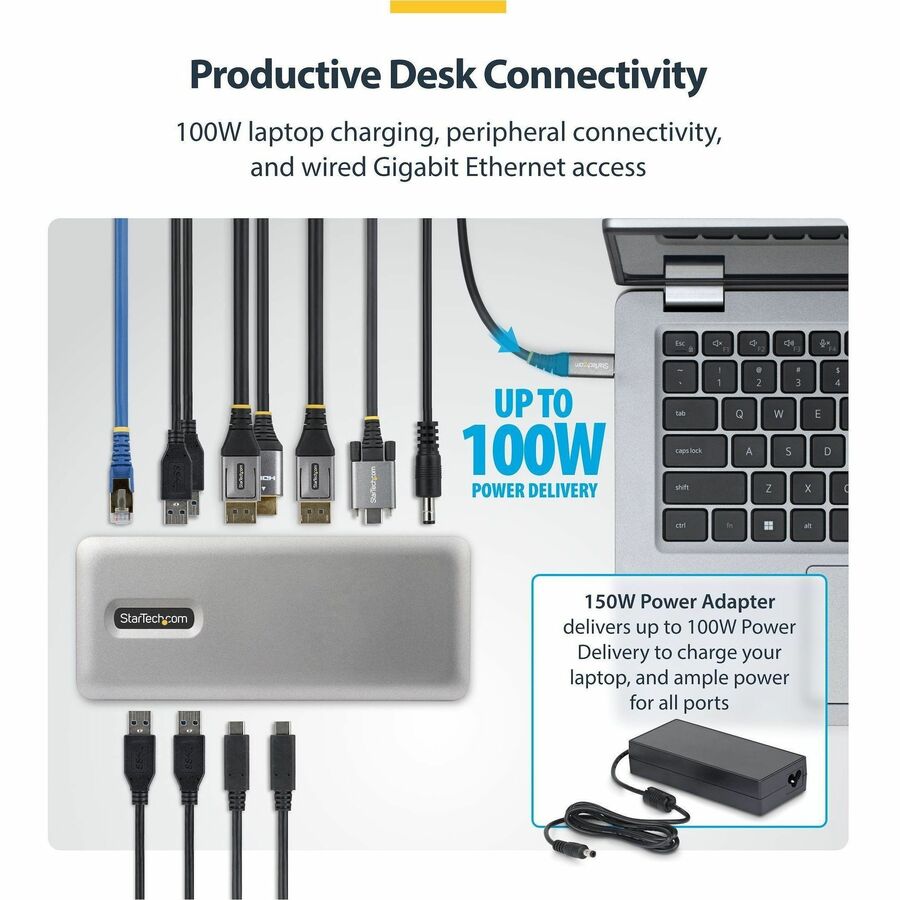

Flexible, High-Speed I/O
This dock is equipped with 4× USB-A 5 Gbps ports and 2× USB-C 10 Gbps ports (including one with 15 W PD), providing support for both legacy peripherals and modern high-throughput devices without compromising performance. A Gigabit Ethernet port ensures a reliable wired network connection.

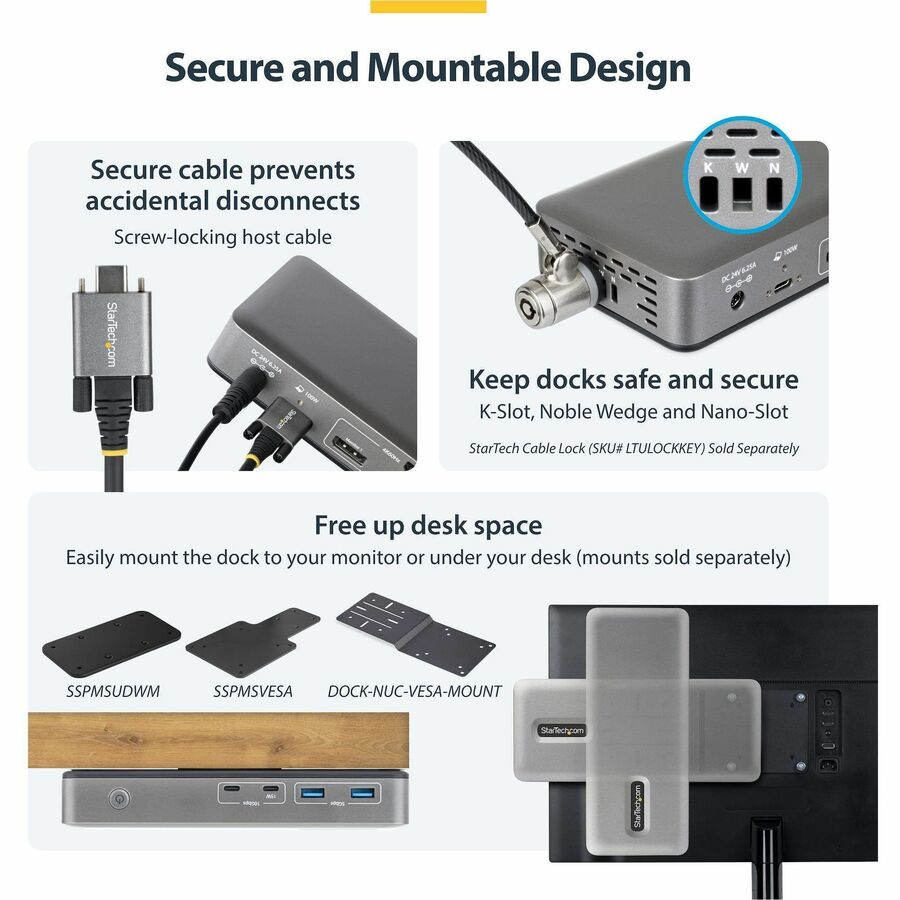

Mounting and Security
This multi-monitor dock includes built-in lock slots for enhanced physical security and supports Surface or VESA mounting to keep the dock secure and out of the way. Mounting accessories are sold separately (SSPMSUDWM, DOCK-NUC-VESA-MOUNT, SSPMSVESA).
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: 199N-USBC-DOCK
- Brand Name: StarTech.com
- Product Name: Docking Station
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 3
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported:
- 4K
- 4K @ 60Hz
- Management Features:
- PXE Boot
- Wake-on-LAN
- Device Supported:
- Monitor
- Desktop PC
- Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet

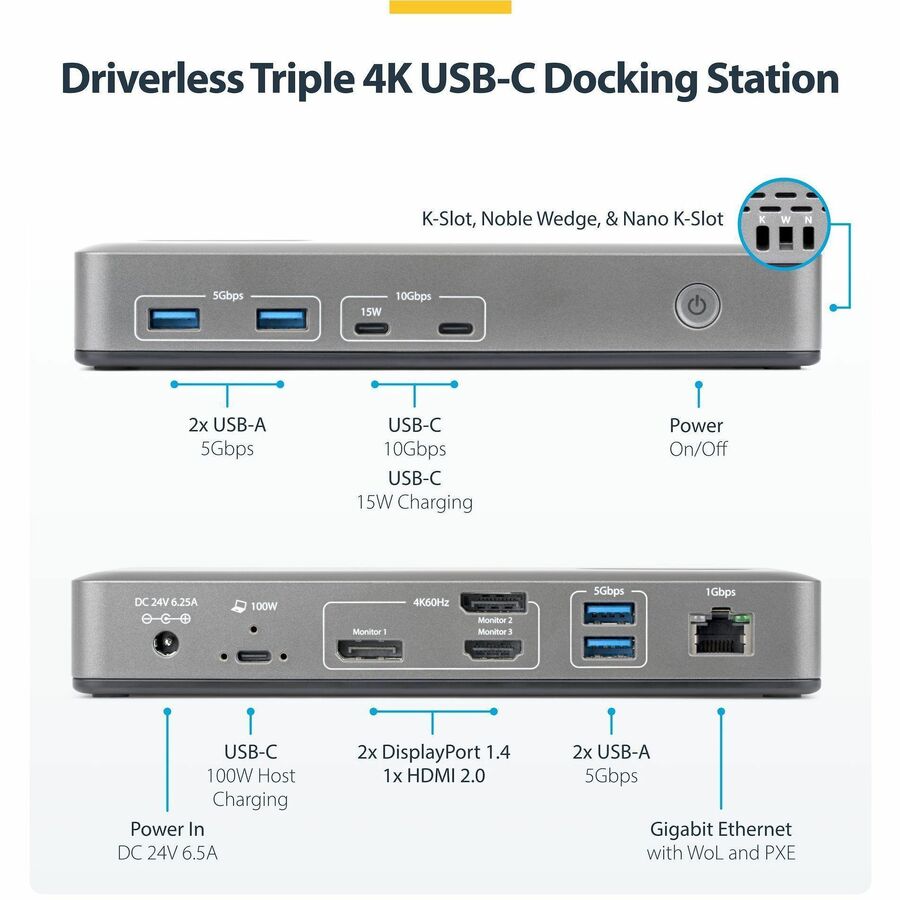

Interfaces/Ports
- Host Interface: USB 3.2 (Gen 2) Type C
- Total Number of USB Ports: 7
- Number of USB 3.2 Gen 1 Type-A Ports: 4
- Number of USB 3.2 Gen 2 Type-C Ports: 2
- Number of USB Type-C Ports: 3
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB 3.2 Gen 2 USB Type-C (Power Delivery + Data, 24 Pin, 10 Gbps), 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), 1 x USB 3.2 Type-C (24 Pin, Gen 2, 10Gbps, 15W Power)
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 2
- DisplayPort: Yes
- Number of HDMI Ports: 1
- HDMI: Yes
- USB Power Delivery: 100W
Software
- Operating System Supported:
- Windows 10
- Windows 11
- Ubuntu 24.04
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color: Space Gray
- Height: 1.10"
- Width: 3.10"
- Weight (Approximate): 9.60 oz
Miscellaneous

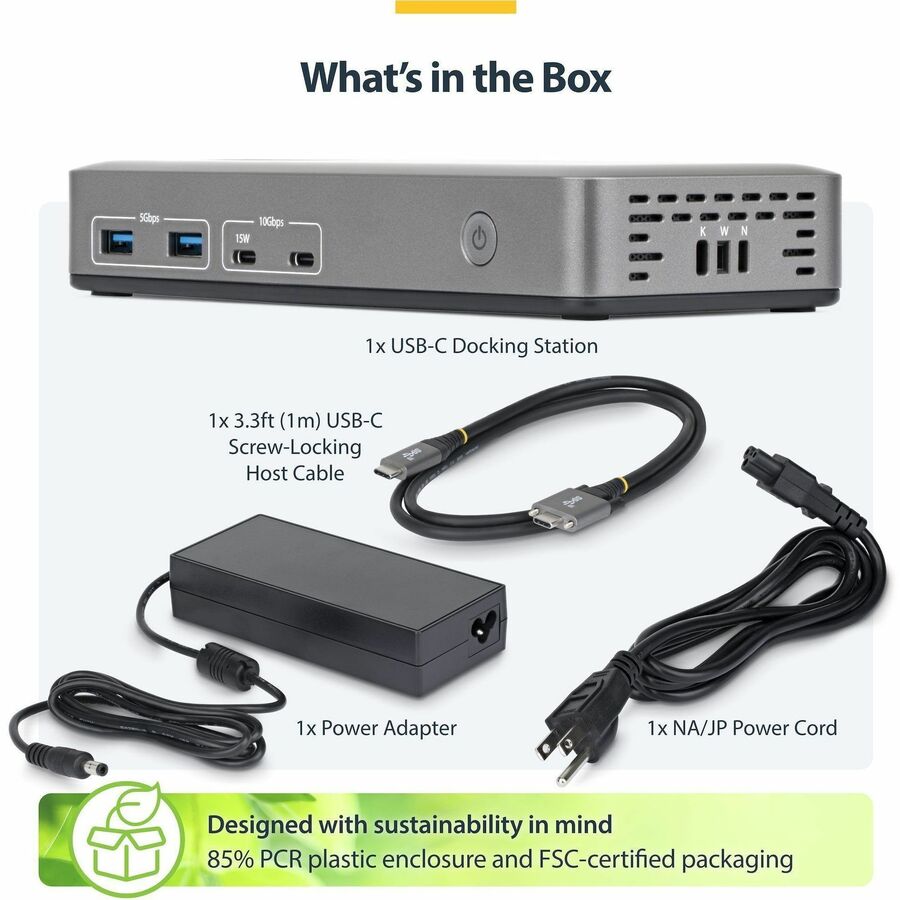

- Package Contents:
- Docking Station
- 1 x 3.3ft (1m) Host Cable
- 1 x Universal Power Adapter (North America)
- 1 x Product Documentation
- Kensington Security Slot: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
