- Description
- Specifications

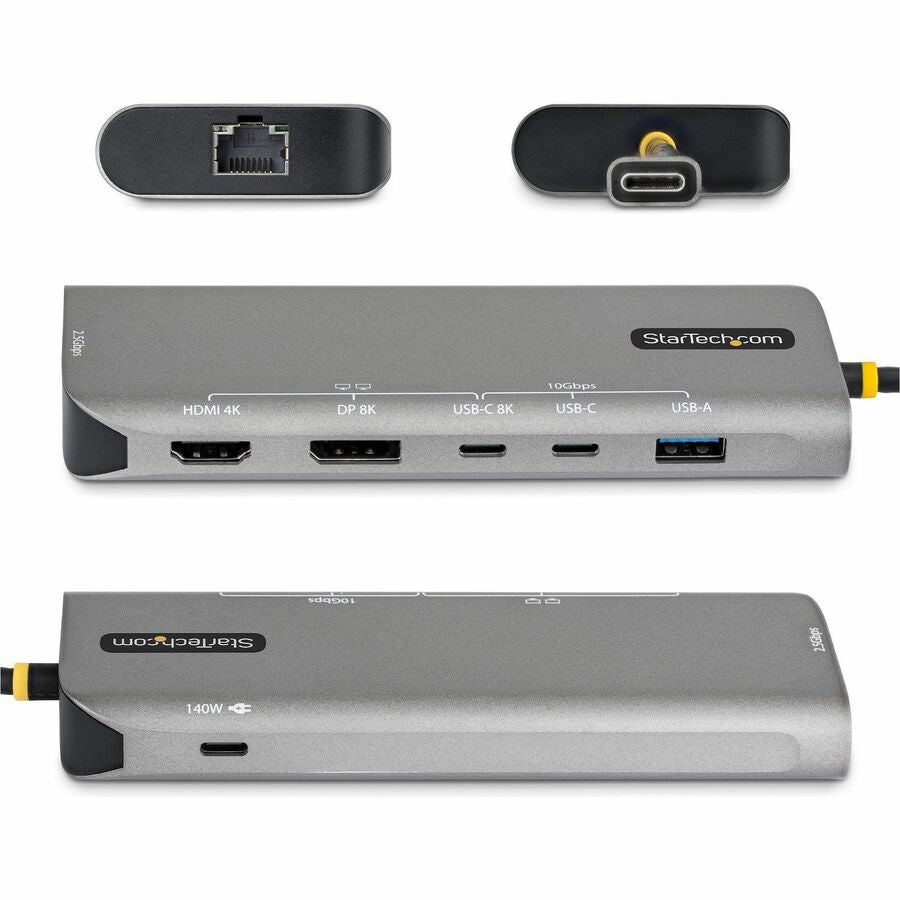

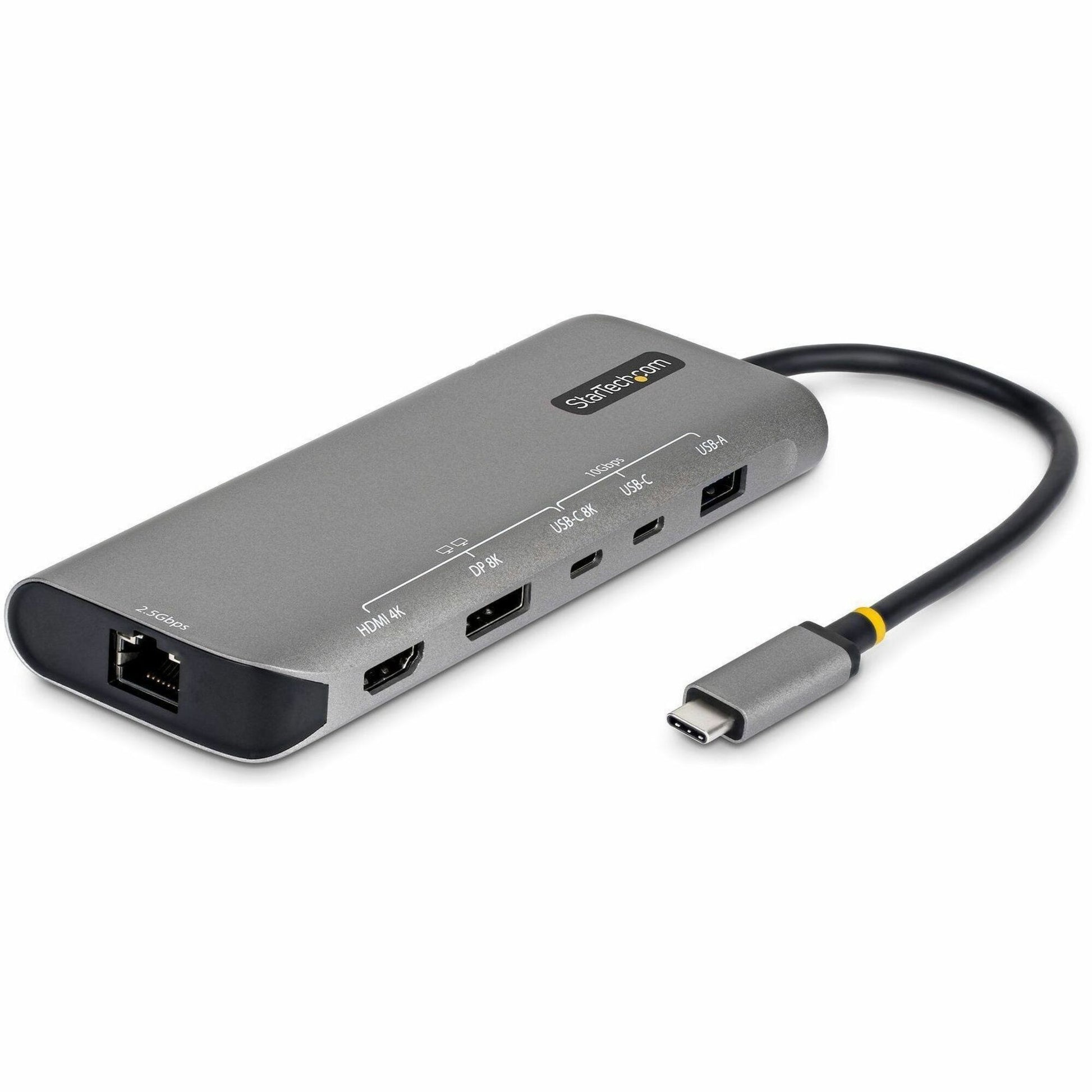

StarTech USB4 Multiport Adapter, Driverless Dual-4K for macOS and Windows, 140W Power Delivery Charging, 10Gbps Hub, 2.5GbE - 174B-USB4-MULTIPORT
Key Features
- 140W PASSTHROUGH SUPPORTS HIGH-POWERED & AI-READY DEVICES: Enable up to 140W USB-C Power Delivery passthrough for AI workloads and power-hungry laptops, keeping host ports available and users productive through intensive tasks
- 2.5G ETHERNET FOR HIGH-SPEED NETWORKING: Move large files faster across shared drives or cloud environments using a stable 2.5GbE connection, reducing transfer times and keeping users productive on bandwidth-heavy tasks
- DUAL DISPLAYS ON MACOS WITHOUT DRIVERS OR SOFTWARE: Connect up to two external 4K displays using the M-Series native graphics capabilities, helping IT teams standardize on Mac workspaces; M1, M2, and M3 require Pro or Max for dual displays
- STREAMLINE USB DEVICE EXPANSION: Add 1x USB-C and 1x USB-A 10Gbps ports to support modern peripherals and legacy devices; The USB-C video port also supports 10Gbps data transfer offering flexibility depending on the task
- USB4 DRIVES DUAL DISPLAYS: Use USB4 bandwidth and native video output to run up to two 4K 144Hz displays, with f
Product Overview
Run dual 4K displays and high-speed peripherals from a single USB4 connection, simplifying mixed-device deployments for IT teams.
Drive Dual 4K Workspaces Without Complexity
Use USB4 bandwidth and native video output to support up to two 4K 144Hz displays via HDMI, DisplayPort, or USB-C. Standardize dual-monitor desk setups across Windows and macOS without extra drivers or software. Ideal for hot desks or workstations needing consistent multi-monitor performance.
Power Demanding Devices and AI Workloads
Deliver up to 140W USB-C Power Delivery passthrough to keep high-performance laptops and AI-ready systems fully powered. Maintain host port availability while users run intensive tasks reducing downtime and increasing productivity.
Expand Devices and Accelerate Network Throughput
Add USB-C and USB-A 10Gbps ports for modern and legacy peripherals, with a flexible data or video USB-C port. Connect to 2.5GbE for faster file transfers across shared storage or cloud environments helping teams move large assets quickly and stay productive.
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: 174B-USB4-MULTIPORT
- Brand Name: StarTech.com
- Product Name: Docking Station
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 2
- Supported Resolutions:
- 7680 x 4320
- 3840 x 2160
- Screen Mode Supported:
- 8K @ 60Hz
- 4K @ 240Hz
- 4K
- 4K @ 144Hz
- Management Features:
- PXE Boot
- Wake-on-LAN
- Device Supported:
- Monitor
- Workstation
- Notebook
- Display
- Keyboard
- Mouse
Network & Communication
- Ethernet Technology: 2.5 Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB4
- Total Number of USB Ports: 4
- Number of USB 3.2 Gen 2 Type-A Ports: 1
- Number of USB 3.2 Gen 2 Type-C Ports: 1
- Number of USB Type-C Ports: 3
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB 3.2 Type-C (24 pin, 10Gbps, DP Alt-Mode Video), 1 x USB 3.2 Type-C (24 pin, Gen 2, 10Gbps), 1 x USB Type-C (24 pin) USB Power Delivery Only
- Number of USB Type-A Ports: 1
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPort Outputs: 1
- DisplayPort: Yes
- DisplayPort Version: 1.4
- Number of HDMI Outputs: 1
- HDMI: Yes
- USB Power Delivery: 140W
- Total Number of Ports: 7
Software
- Operating System Supported:
- Windows 10
- Windows 11
- macOS Big Sur
- macOS Monterey
- macOS Ventura
- macOS Sonoma
- macOS Sequoia 15
- macOS Tahoe 26.0
- Ubuntu 24.04
- ChromeOS
Physical Characteristics
- Product Color: Space Gray
- Form Factor: Desktop
- Height: 0.70"
- Width: 2.20"
- Weight (Approximate): 6.40 oz
Miscellaneous
- Package Contents:
- Docking Station
- 1 x Product Documentation
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 3 Year
