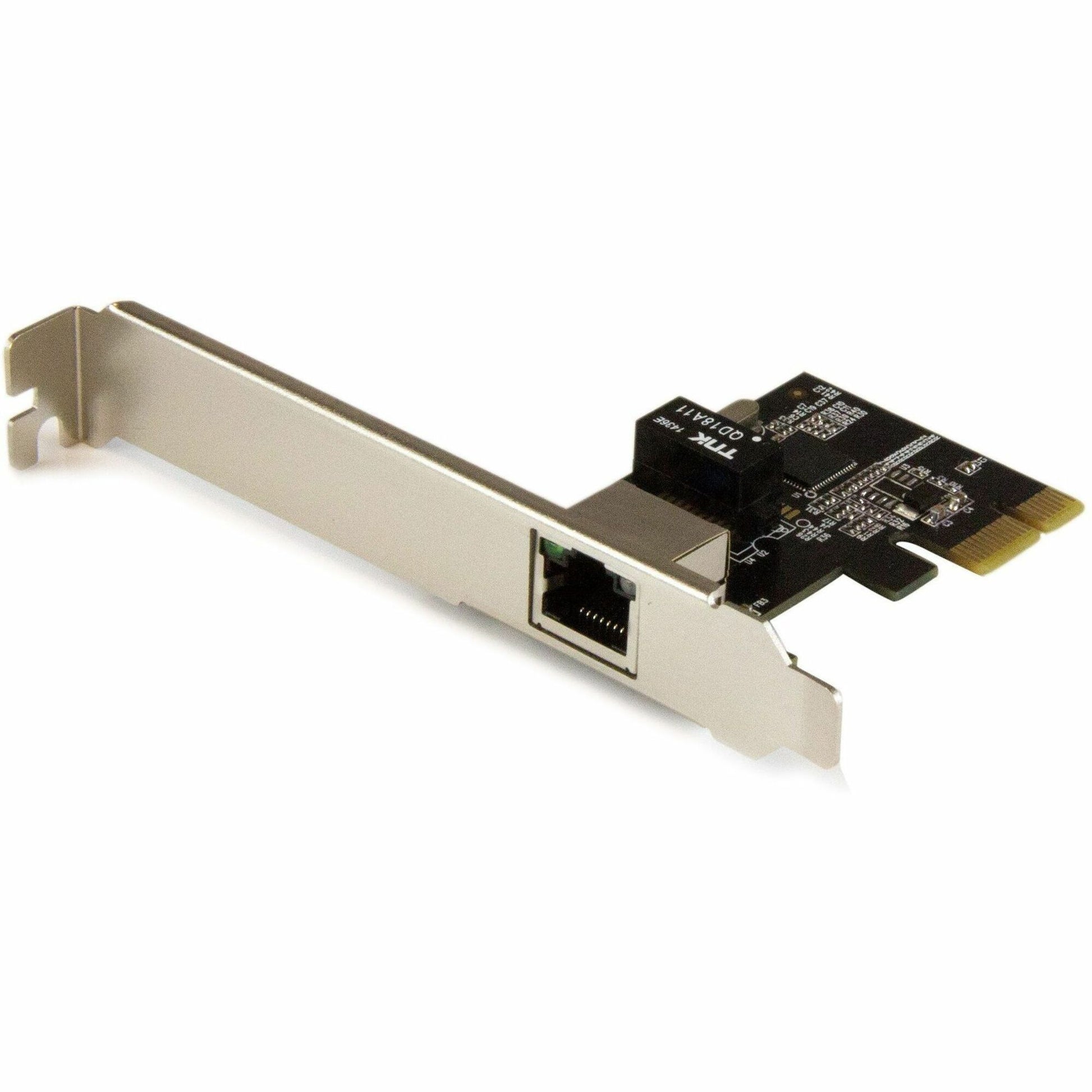

StarTech 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC - Single Port PCIe Network Adapter Card w/ Intel Chip - ST1000SPEXI
Key Features
- Add a 10/100/1000 RJ-45 Ethernet port to a client, server or desktop through one PCIe slot
- Auto MDIX support
- Autonegotiation support
- Fully compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- IEEE802.3az Energy Efficient Ethernet (EEE)
- Intel I210-AT chipset
- PXE network boot
- Supports IEEE 802.1Q VLAN tagging
- Up to 9K jumbo frame support
- Wake-on-LAN support
Product Overview
Boost the performance and capabilities of your server or desktop computer by adding a Gigabit Ethernet port through a PCI Express slot. This GbE (Gigabit Ethernet) network card makes it easy to create a highperformance, cost-effective networking solution.The performance and reliability you demand in network connectivity
This Gigabit Ethernet network card utilizes the Intel® I210-AT chipset, designed to deliver the power, performance and enhanced capabilities you need for dependable network connections to your server or computer. Compliant with IEEE 802.3/u/ab standards, the network card provides an effective upgrade or replacement network port with maximum throughput up to 1000Mbps in each direction (2000 Mbps total) - up to ten times faster than 10/100 Ethernet.
The I210 chipset provides many advanced features to support load-balancing the flow of network traffic, to enhance throughput and provide greater data reliability. It also supports Audio-Video Bridging (AVB) to enable tightly controlled media stream synchronization, buffering and resource reservation.
A versatile and cost-effective solution
Compatible with a broad range of operating systems, this versatile PCIe Gigabit NIC is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking. It's a cost-effective way to upgrade your server or computer from a 10/100 Ethernet port to a Gigabit Ethernet port, or add an Ethernet port to take advantage of advanced features such as VLAN tagging, Jumbo Frames, Wake-On LAN and Auto MDIX.
Easy installation
With a dual-profile design, the PCI Express network card installs easily into a wide range of computer/server chassis, regardless of form factor. The card comes equipped with a full-sized bracket, and includes a low profile/half-height installation bracket that you can use as needed.
The ST1000SPEXI is backed by a StarTech 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ST1000SPEXI
- Brand Name: StarTech
- Product Name: 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
- Packaged Quantity: 1 Each
- Product Type: Gigabit Ethernet Card
Technical Information
- Chipset Manufacturer: Intel
- Chipset Model: I210-AT
Interfaces/Ports
- Host Interface: PCI Express x4
- Total Number of Ports: 1
- Number of Network (RJ-45) Ports: 1
Media & Performance
- Media Type Supported: Twisted Pair
- Maximum Data Transfer Rate: 1.95 Gbit/s
Network & Communication
- Network Technology: 10/100/1000Base-T
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Plug-in Card
- Height: 0.7"
- Width: 2.6"
- Depth: 2.7"
- Weight (Approximate): 1.30 oz
Miscellaneous
- Package Contents:
- 1-Port Gigabit Ethernet Network Card - PCI Express, Intel I210 NIC
- 1 x Low Profile Bracket
- 1 x Instruction Manual
- Device Supported: Computer
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
