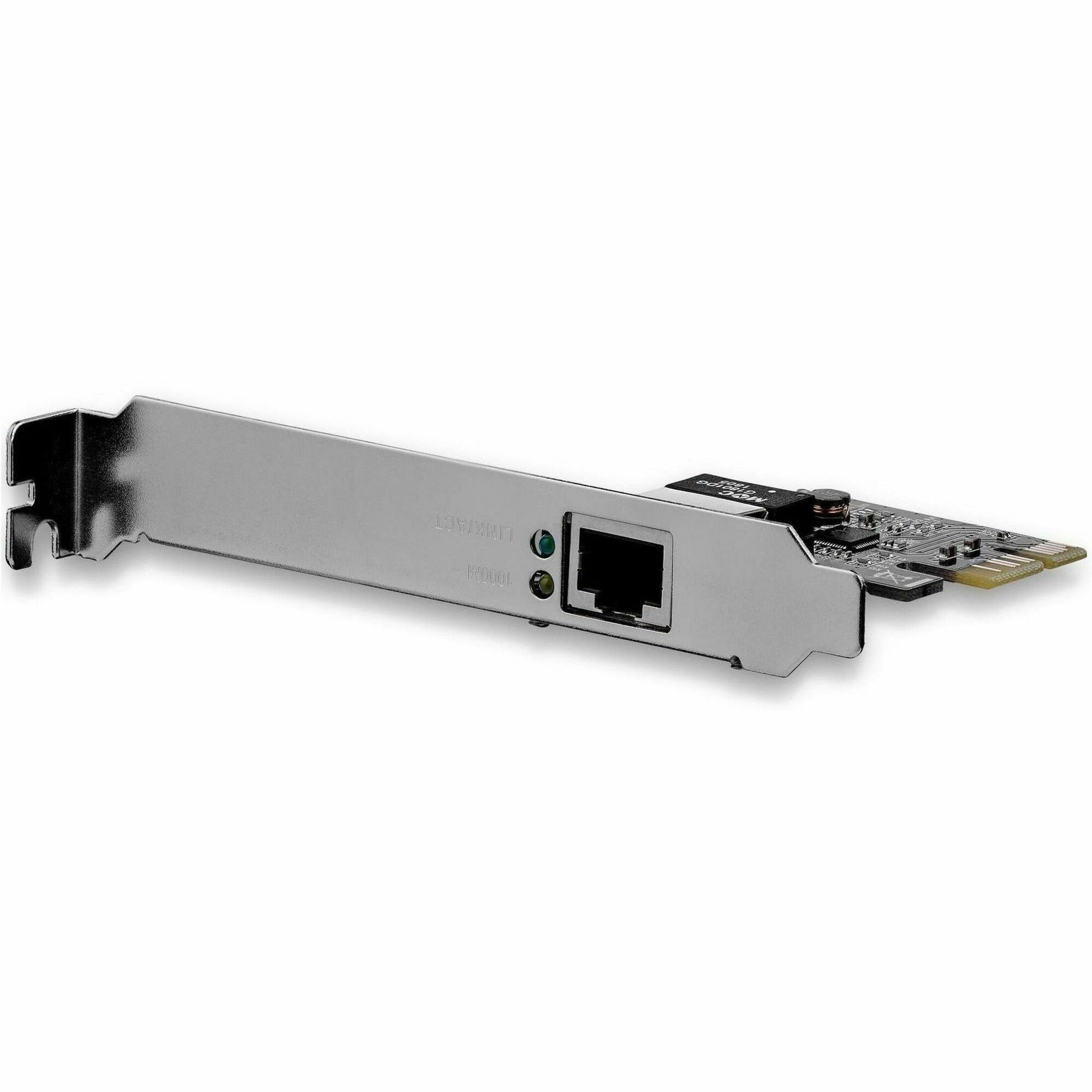

StarTech 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile - ST1000SPEX2
Key Features
- A single 10/100/1000Mbps compatible RJ45 Ethernet port
- Crossover Detection & Auto-Correction (Auto MDI/MDI-X)
- Full and half duplex support
- Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE 802.3ab standards

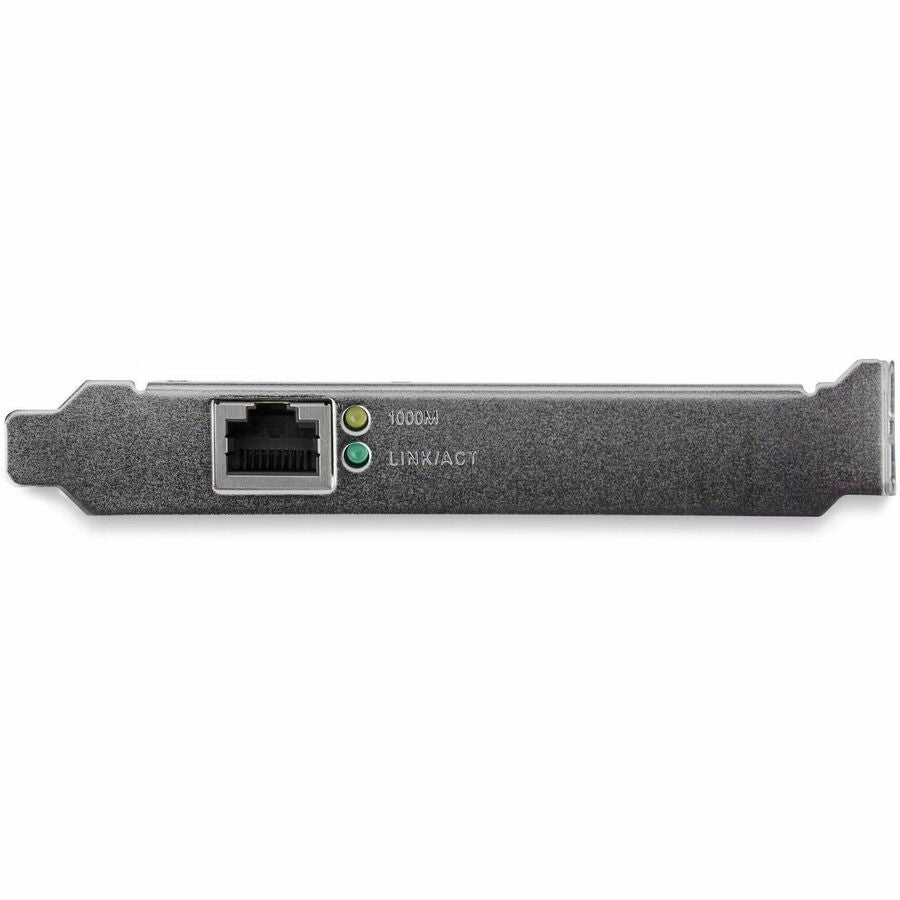

- Gigabit detection and Link/Activity LED indicators
- Includes a low profile/half-height installation bracket
- Jumbo frame support
- Supports IEEE 802.1Q VLAN tagging, IEEE 802.1P Layer 2 Priority Encoding and IEEE 802.3x Full Duplex Flow Control
- Supports Wake-on-LAN function
Product Overview
Add a 10/100/1000Mbps Ethernet port to any PC through a PCI Express slot. The ST1000SPEX2 PCIe Gigabit Ethernet Network Card adds a 10/100/1000 Mbps compatible RJ45 Ethernet port to a PCI Express-enabled client, server or workstation, providing a convenient addition or replacement networking interface.Compliant with IEEE 802.3/u/ab standards, and with support for 9K Jumbo Frames, VLAN tagging and Wake on LAN (WOL), this versatile Gigabit NIC/Server Adapter delivers rock-solid performance.
Plus, the card includes both full profile and low profile/half-height installation brackets for installation in a wide range of computer/server chassis, regardless of form factor.
The ST1000SPEX2 network card is backed by a 2-year StarTech warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ST1000SPEX2
- Brand Name: StarTech
- Product Name: 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
- Packaged Quantity: 1 Each
- Product Type: Gigabit Ethernet Card
Technical Information
- Chipset Manufacturer: Realtek
- Chipset Model: RTL8111
Interfaces/Ports
- Host Interface: PCI Express x1
- Total Number of Ports: 1
- Number of Network (RJ-45) Ports: 1
Media & Performance
- Media Type Supported: Twisted Pair
- Maximum Data Transfer Rate: 1 Gbit/s
Network & Communication
- Network Technology: 10/100/1000Base-T
Physical Characteristics
- Form Factor: Plug-in Card
- Height: 0.7"
- Width: 4.7"
- Weight (Approximate): 1.30 oz
Miscellaneous
- Package Contents:
- 1 Port PCI Express PCIe Gigabit Network Server Adapter NIC Card - Dual Profile
- 1 x Low Profile Bracket
- 1 x Instruction Manual
- Device Supported: PC
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
