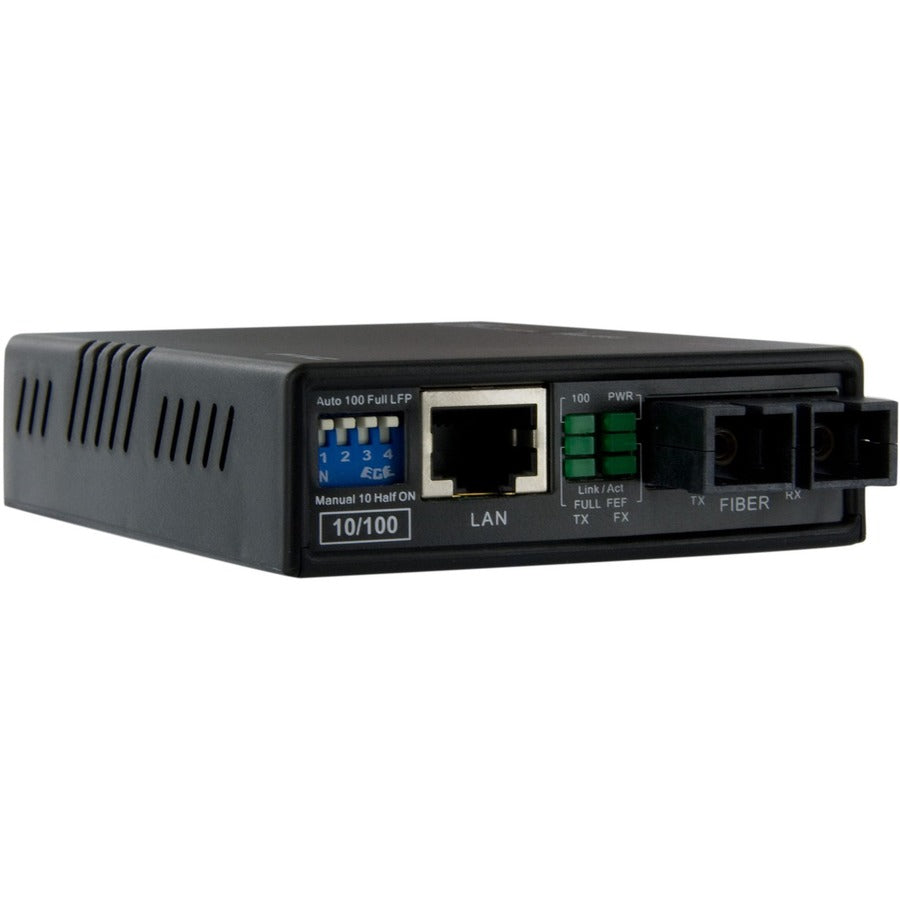

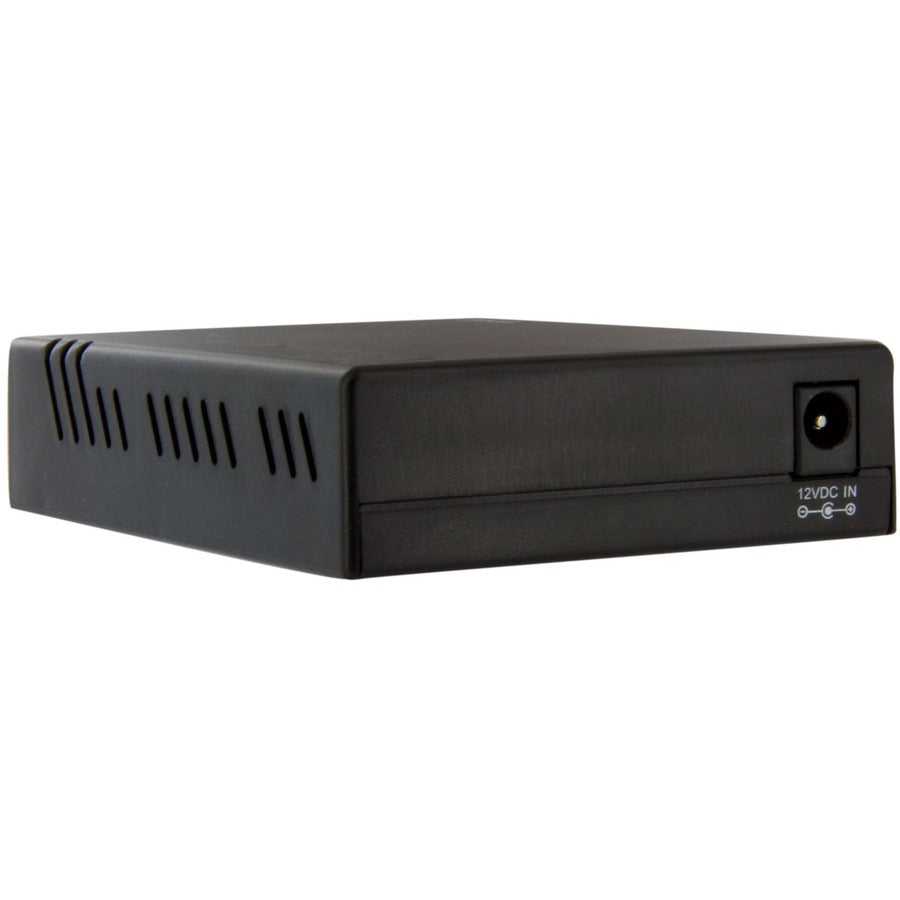

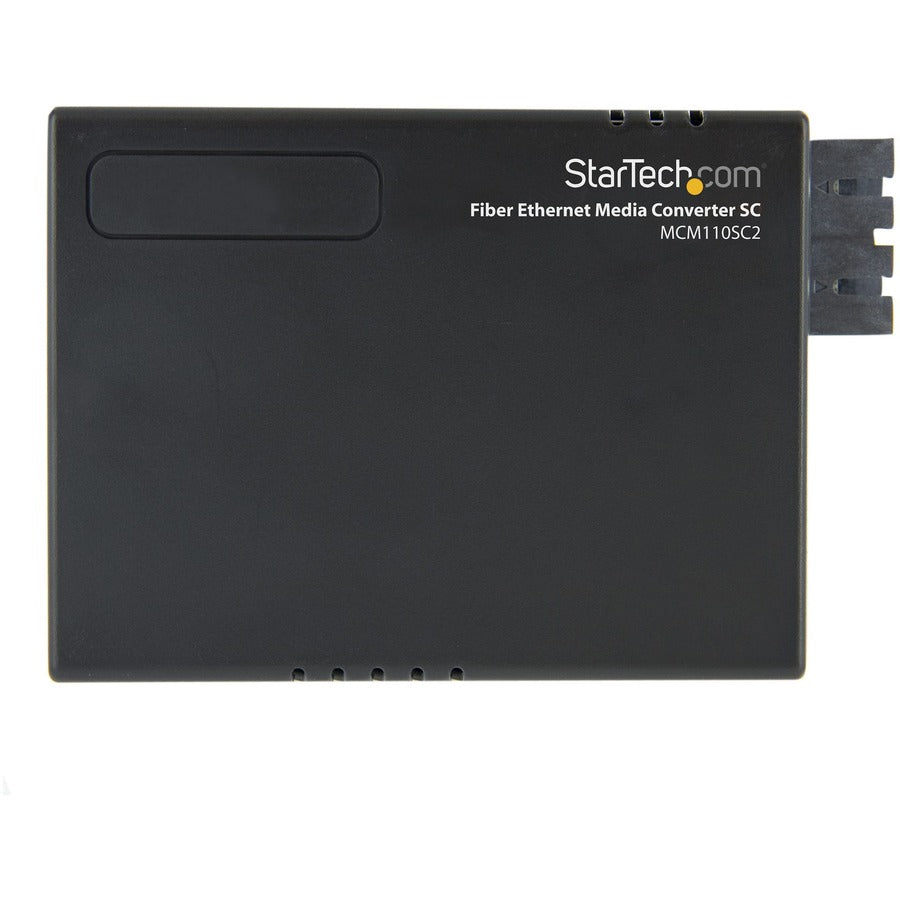

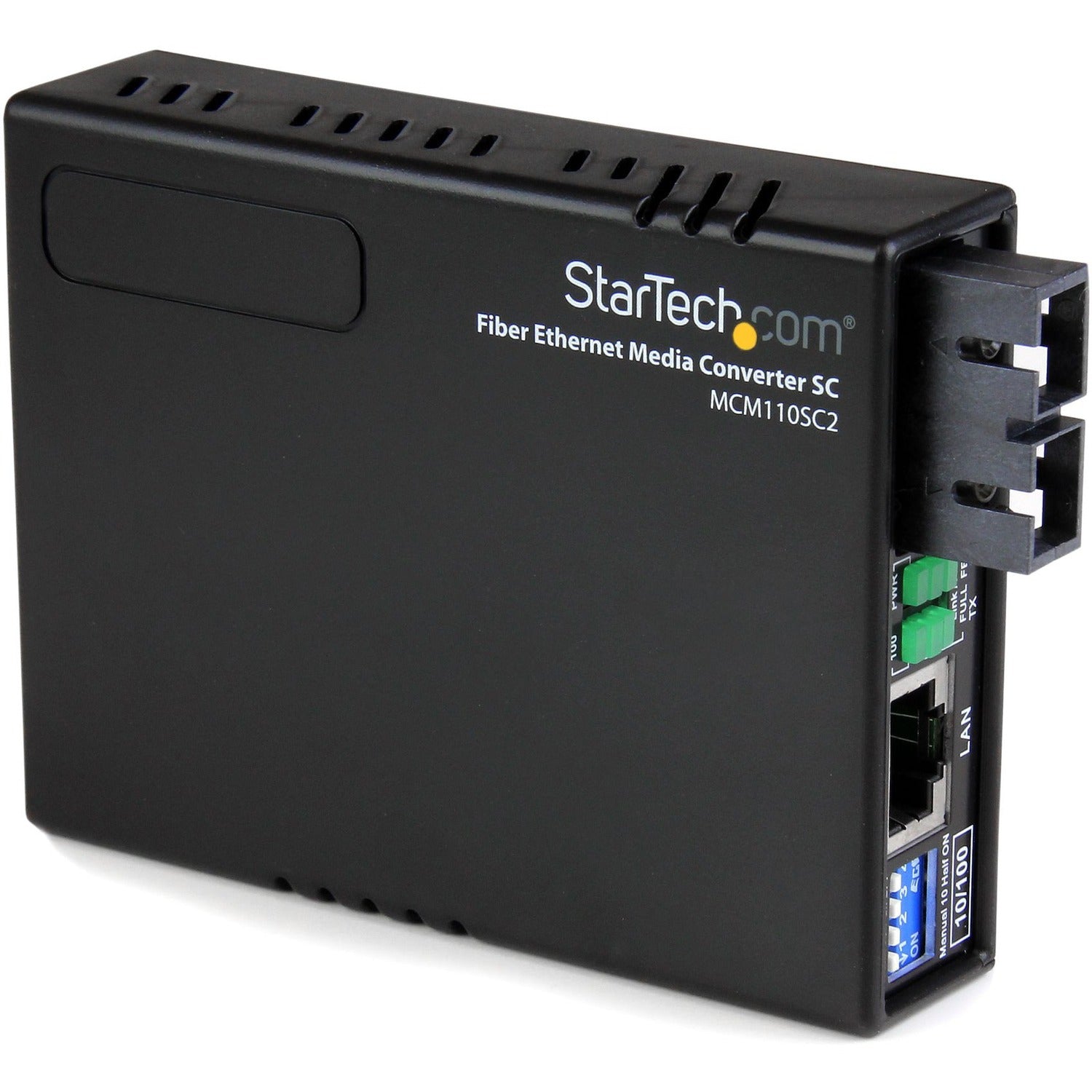

StarTech 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km - MCM110SC2
Key Features
- Compact design
- Compatible with most 3com, Cisco, Lucent and Nortel networks
- Forward 9K jumbo packets in converter mode
- LED Indicators for simple Ethernet/Fiber network link monitoring
- Provides switch configuration of half/full duplex transfer mode for FX port
- Supports a maximum multi mode fiber optic cable distance of 2 km
- Supports flow control (Pause)
- Supports IEEE 802.1q Tag VLAN pass thru
- Supports Link Fault Pass through (LFP)
- Supports transparent Q-in-Q double tagged frames
Product Overview
The MCM110SC2 10/100 Multi Mode Fiber Ethernet Media Converter SC 2 km creates an economical, cost-effective Ethernet-fiber link, transparently converting to/from 10Base-T or 100Base-Tx Ethernet signals and 100Base-Fx optical signals to extend an Ethernet network connection over an SC terminated multimode fiber backbone.The converter supports a maximum multimode fiber optic cable distance of 2 kilometers (1.2 miles), providing a simple solution for connecting 10Base-T/100Base-Tx Ethernet networks to remote locations using SC-terminated multimode fiber, while delivering solid network performance and scalability.
This versatile Ethernet to Fiber converter is compatible with most 3COM™, Cisco™, Lucent™ and Nortel™ networks and fully complies with applicable IEEE 802.3 standards.
Backed by a StarTech 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: MCM110SC2
- Brand Name: StarTech
- Product Name: 10/100 Fiber to Ethernet Media Converter Multi Mode SC 2 km
- Packaged Quantity: 1 Each
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 2
- Network (RJ-45): Yes
- Number of Network (RJ-45) Ports: 1
- Number of SC Ports: 1
- SC Port Type: Duplex
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported: Multi-mode
- Fiber Optic Cable Wavelength: 1310 nm
Network & Communication
- Ethernet Technology: Fast Ethernet
- Network Technology:
- 10Base-T
- 100Base-FX
- 100Base-TX
Power Description
- Power Source: AC Adapter
- Power Consumption: 2.40 W
- Plug/Connector Type: Type M
Physical Characteristics
- Form Factor: External
- Height: 0.8"
- Width: 3"
- Depth: 3.7"
- Weight (Approximate): 3 oz
Miscellaneous
- Environmentally Friendly: Yes
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
