StarTech 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km - ET90110SC2
Key Features
- Advanced features include Link-loss forwarding, remote status monitoring, two frame lengths
- Easy to use and install
- Supports a maximum fiber cable length of 2 km
- Supports full or half-duplex operation
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
Product Overview
The ET90110SC2 10/100 Mbps Multimode Fiber Media Converter SC (2 km) lets you extend a Fast Ethernet network (10/100Mbps) over multimode fiber, at distances up to 2 km (1.2 miles).A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet-to-fiber solution, featuring an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

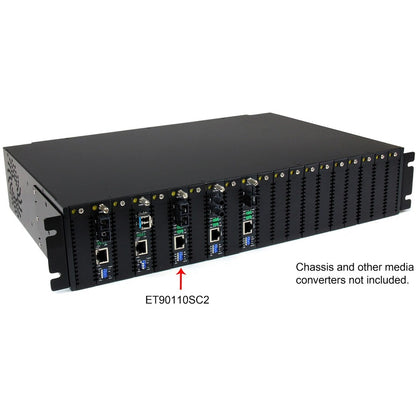

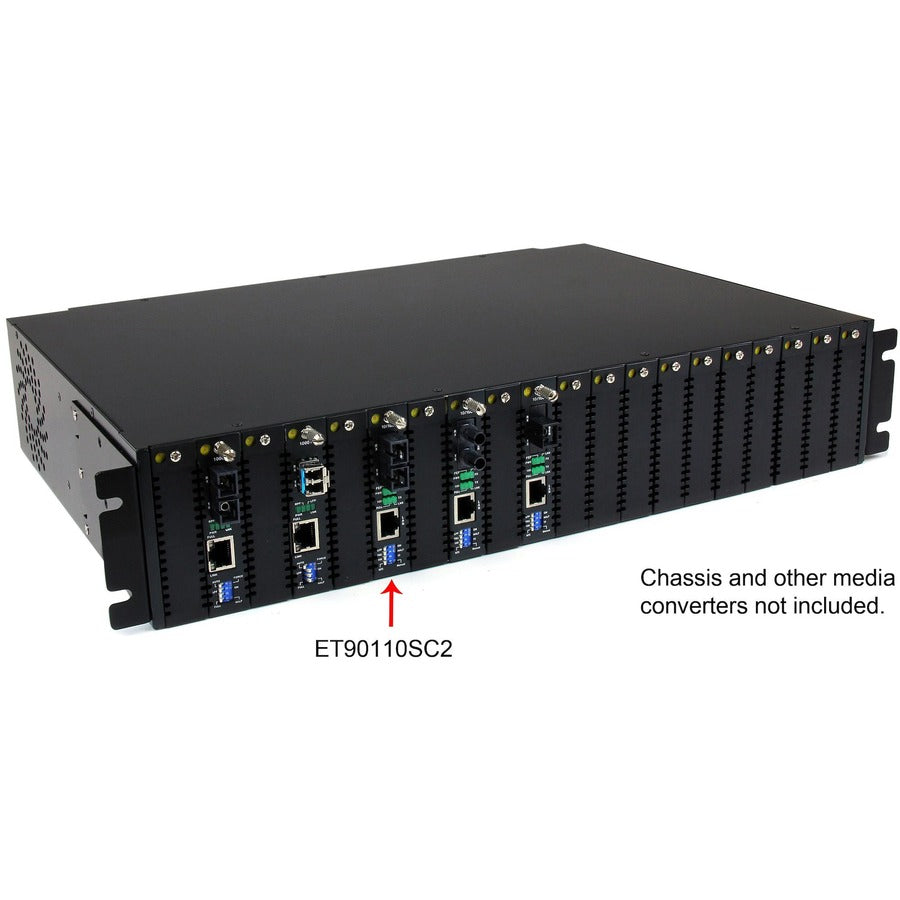

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ET90110SC2
- Brand Name: StarTech
- Product Name: 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
- Packaged Quantity: 1 Each
- Product Type: Transceiver/Media Converter
Interfaces/Ports
- Total Number of Ports: 2
- Network (RJ-45): Yes
- DVI: No
- USB: No
- Number of Network (RJ-45) Ports: 1
- Number of SC Ports: 1
- SC Port Type: Duplex
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported: Multi-mode
- Fiber Optic Cable Wavelength: 1310 nm
- Maximum Distance Supported: 2 km
Network & Communication
- Ethernet Technology: Fast Ethernet
- Network Technology:
- 10/100Base-TX
- 100Base-FX
Power Description
- Power Source: AC Adapter
- Plug/Connector Type: Type M
Physical Characteristics
- Form Factor:
- Desktop
- Rack-mountable
- Height: 0.9"
- Width: 3.4"
- Depth: 6"
- Weight (Approximate): 13.80 oz
Miscellaneous
- Package Contents:
- 10/100 Mbps Multi Mode Fiber Media Converter SC 2 km
- 1 x Universal Power Adapter
- 1 x Grounding Screw
- 1 x Instruction Manual
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
