StarTech 10/100 Mbps Single Mode Fiber Media Converter SC 30 km - ET90110SM302
Key Features
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- The Desktop provides convenient installation
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over optical fiber cable
- With Optical Fiber cable, get the desired data transfer rate up to a required distance
Product Overview

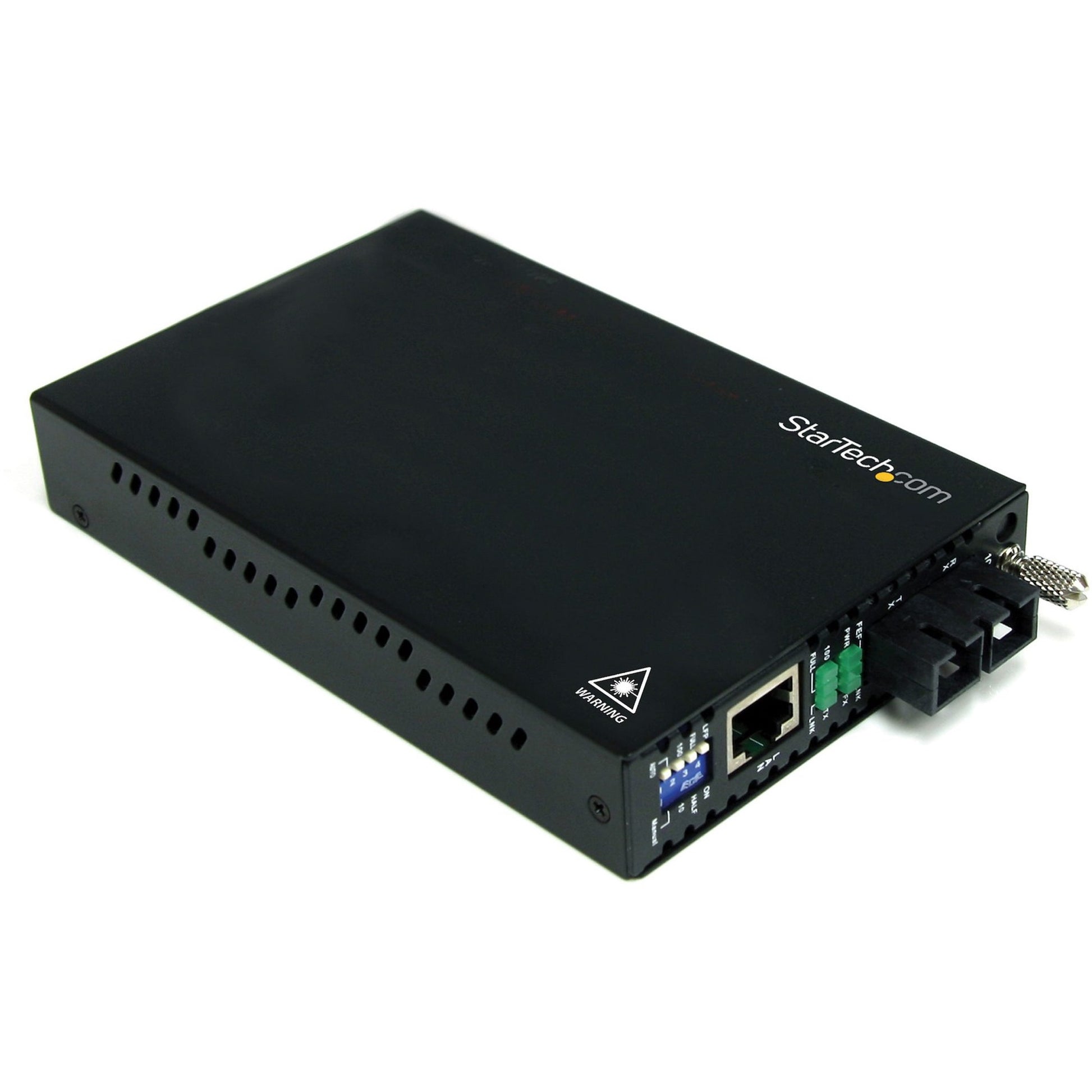

The ET90110SM302 10/100 Mbps Single Mode Fiber Media Converter SC (30 km) lets you extend a Fast Ethernet network (10/100) over single mode fiber, at distances up to 30 km (18.6 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone, the media converter is designed to offer a durable and convenient Ethernet to fiber solution, with an all-steel chassis, and simple plug-and-play installation with minimal configuration required.

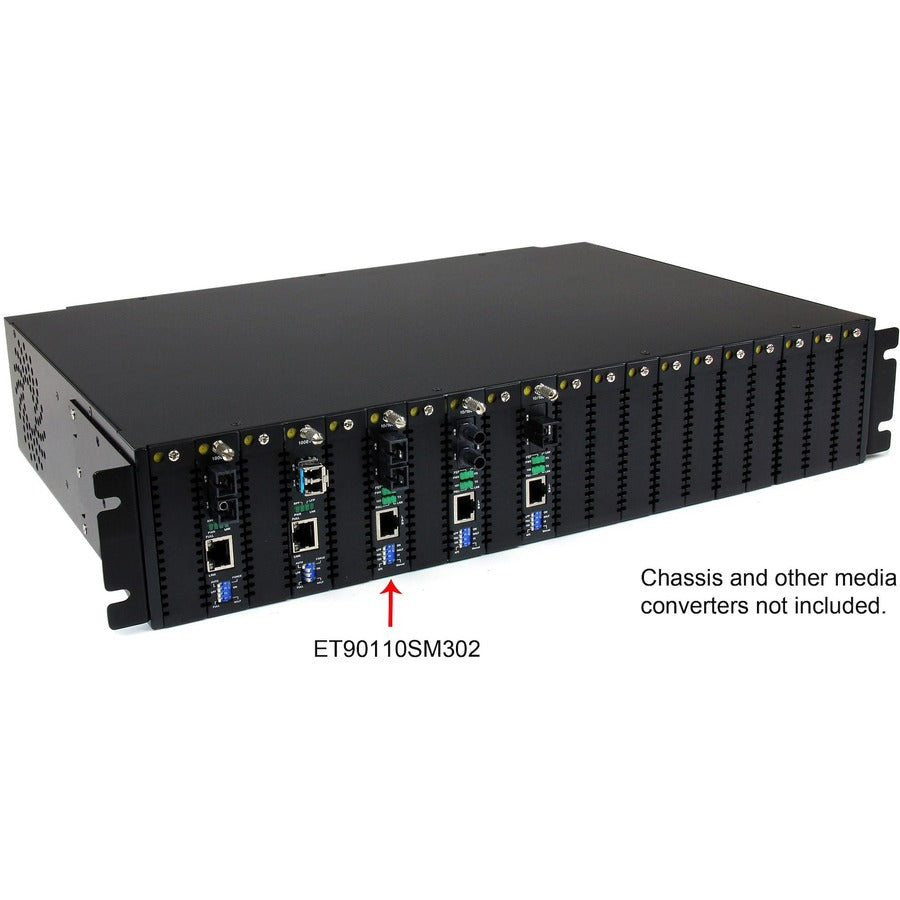

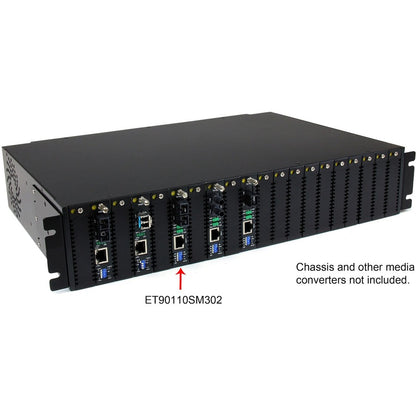

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ET90110SM302
- Brand Name: StarTech
- Product Name: 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
- Packaged Quantity: 1 Each
- Product Type: Transceiver/Media Converter

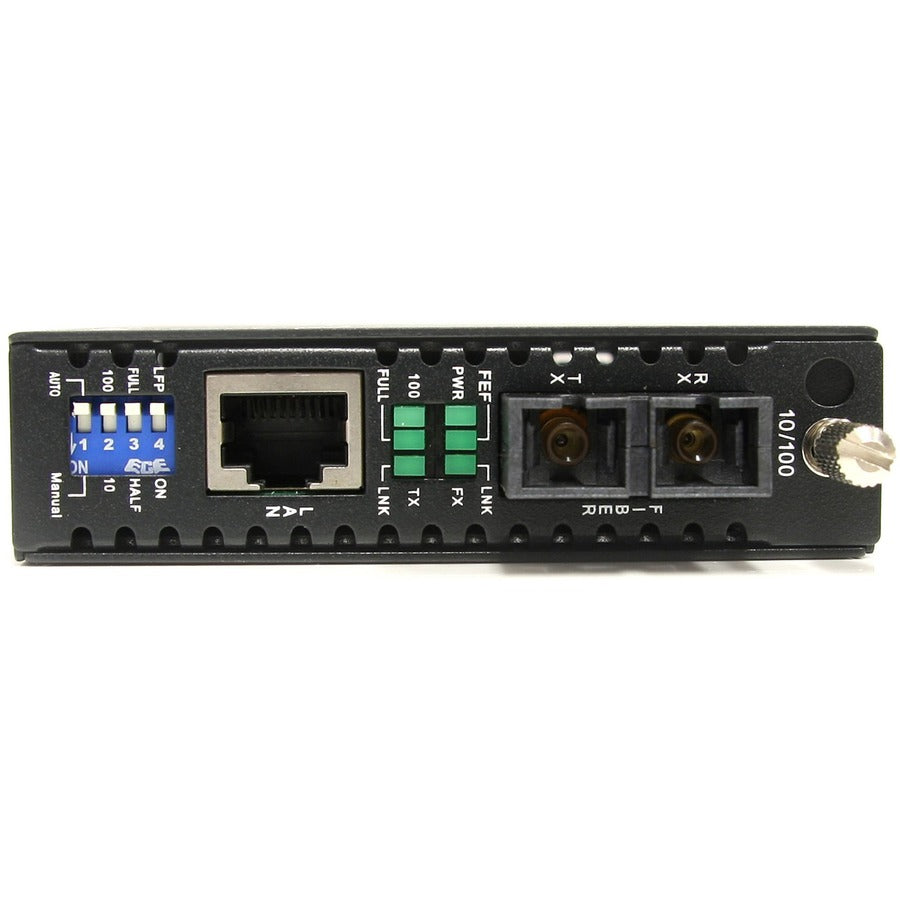

Interfaces/Ports
- Total Number of Ports: 2
- Network (RJ-45): Yes
- DVI: No
- USB: No
- Number of Network (RJ-45) Ports: 1
- Number of SC Ports: 1
- SC Port Type: Duplex
Media & Performance
- Media Type Supported:
- Optical Fiber
- Twisted Pair
- Fiber Mode Supported: Single-mode
- Fiber Optic Cable Wavelength: 1310 nm
- Maximum Distance Supported: 30 km
Network & Communication
- Ethernet Technology: Fast Ethernet
- Network Technology:
- 10/100Base-TX
- 100Base-FX

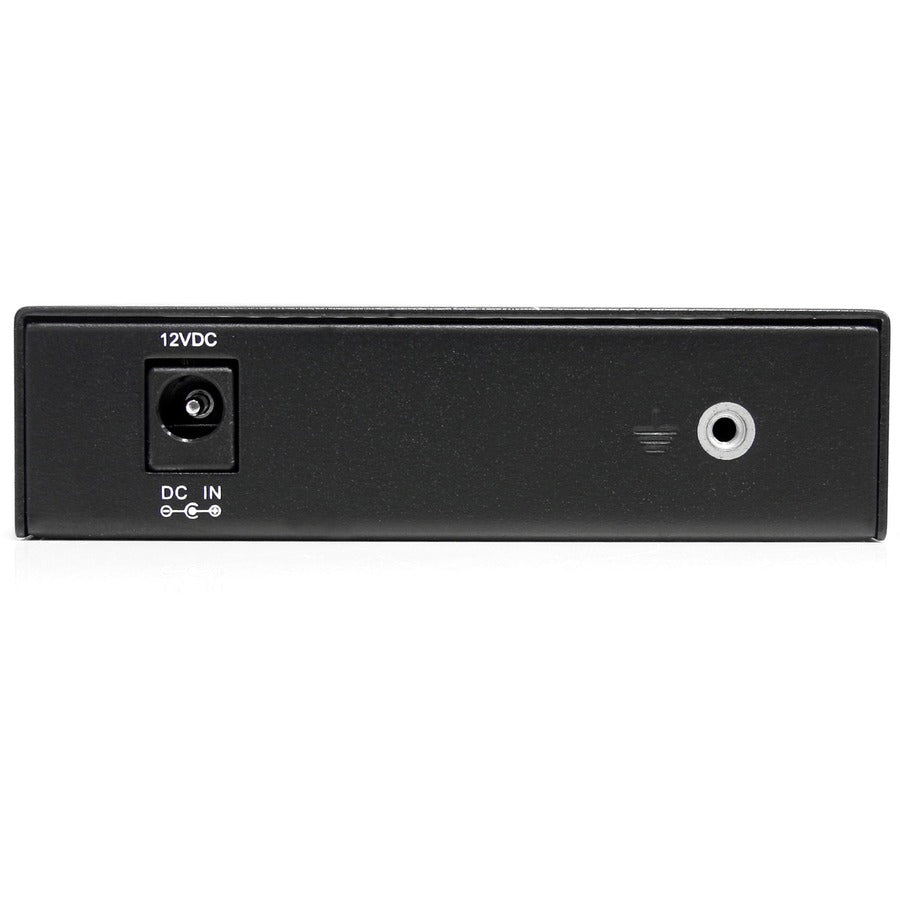

Power Description
- Power Source: AC Adapter
- Power Consumption: 19.20 W
- Plug/Connector Type: Type M
Physical Characteristics
- Form Factor:
- Desktop
- Rack-mountable
- Height: 0.9"
- Width: 3.4"
- Depth: 6.1"
- Weight (Approximate): 13.80 oz
Miscellaneous
- Package Contents:
- 10/100 Mbps Single Mode Fiber Media Converter SC 30 km
- 1 x Universal Power Adapter
- 1 x Grounding Screw
- 1 x Instruction Manual
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
- TAA Compliant: Yes
Warranty
- Limited Warranty: 2 Year
