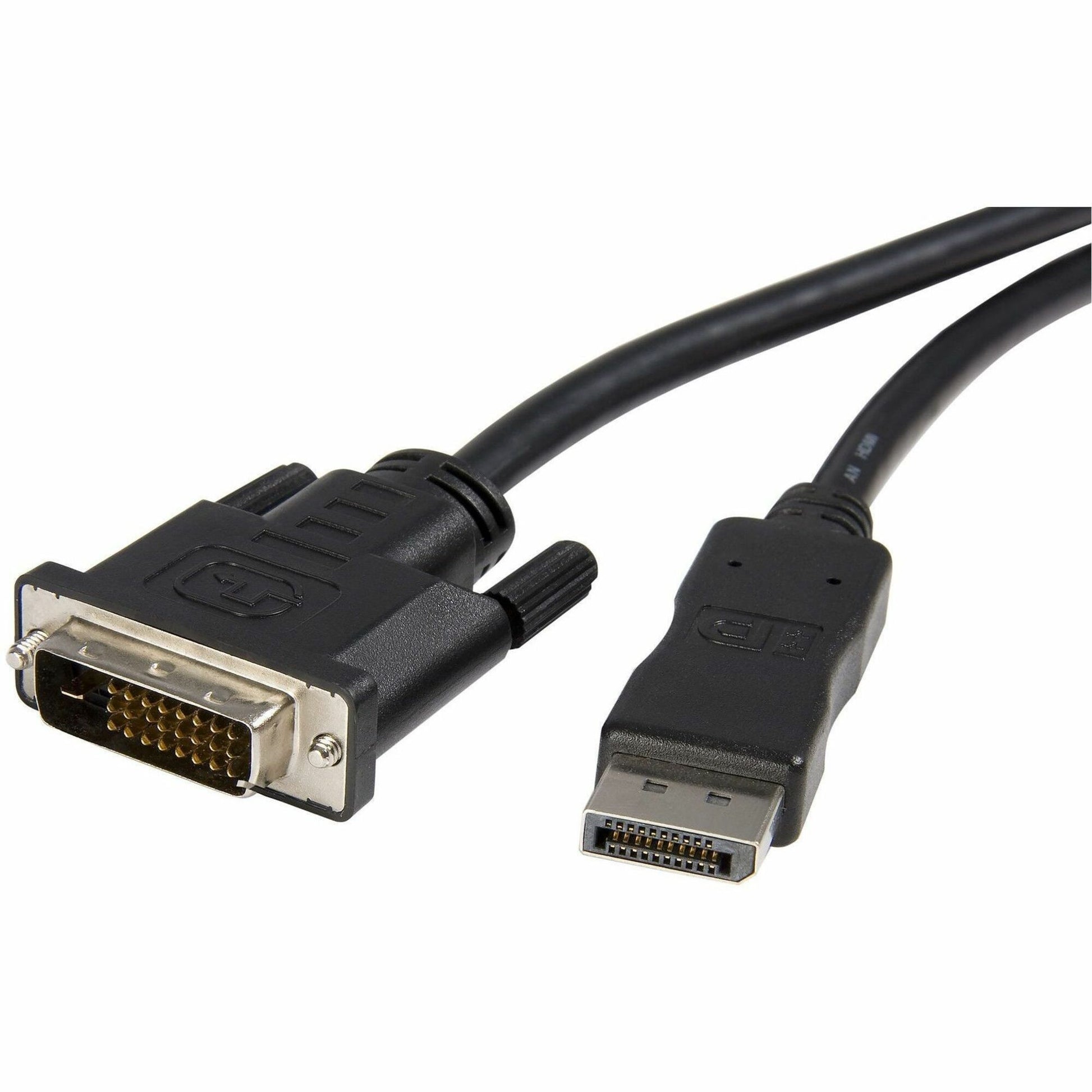

StarTech.com 10ft (3m) DisplayPort to DVI Cable, DisplayPort to DVI-D Adapter/Converter Cable, 1080p Video, DP 1.2 to DVI Monitor Cable - DP2DVIMM10
Key Features

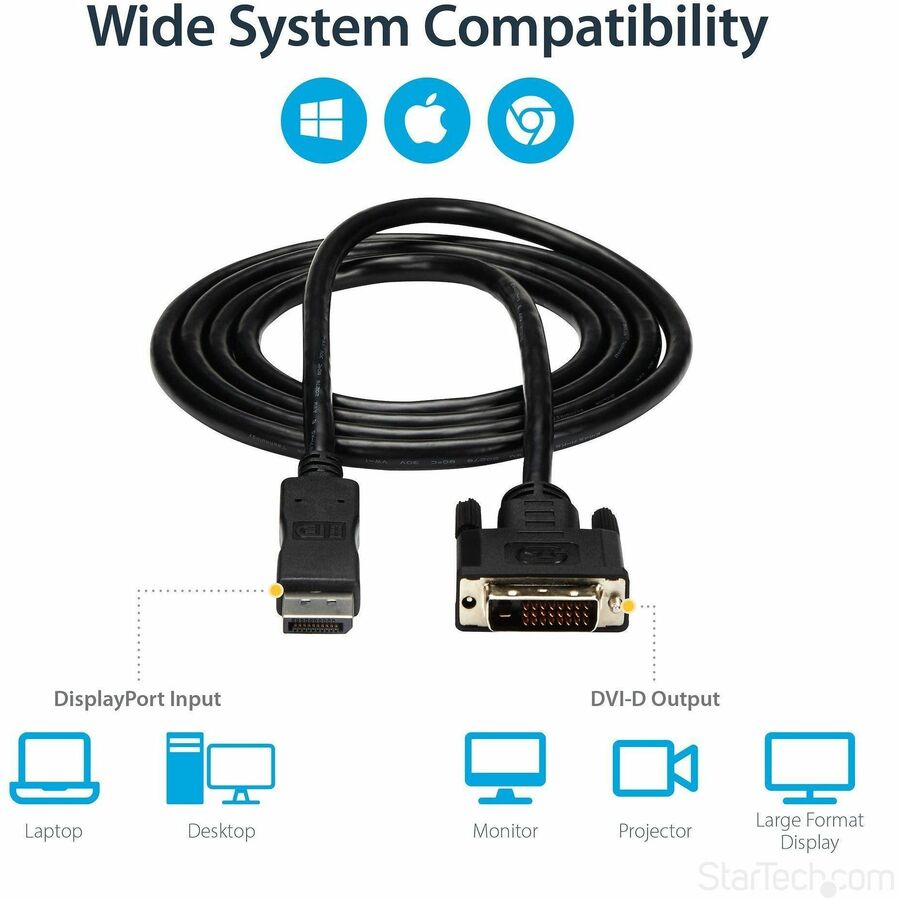

- COMPATIBILITY: Passive video converter supports DP++ sources including workstations, desktops (AMD/Nvidia), laptops, small form factor computers & docking stations; 10' length supports longer distances than traditional DVI cable
- DISPLAYPORT TO DVI CABLE: 10ft (3m) DisplayPort 1.2 (HBR2) to DVI-D single-link cable connects a DVI display, monitor or projector supports 1920x1200 or 1080p at 60Hz; HDCP 1.3
- EDID pass-through ensures compatibility between source & display
- EASY TO USE: With no software or drivers required, the DP to DVI cable/cord works with any OS including Windows, Ubuntu and macOS; DisplayPort male to DVI male cable
- INTEGRATED DISPLAY CABLE: DisplayPort to DVI adapter cable has slim/flexible design w/ adapter chip built into DVI connector reducing clutter & providing a tidy install in the office, boardroom or home office
- STABLE CONNECTION: Non-latching DP connector is easy to disconnect from a hard to reach source, and chip built into DVI connector minimizes signal loss
- Supports DVI screw locking cable to prevent cable from coming loose or accidental disconnection
Product Overview
The DP2DVIMM10 DisplayPort to DVI (M-M) Video Converter Cable lets you connect a DVI capable display to a DisplayPort video card/source using a single cable. The cable provides a connection distance of 10ft and features a male DVI connector and a male DisplayPort connector.The DisplayPort/DVI video converter cable supports high bandwidth video transmissions, easily delivering monitor resolutions up to 1920x1200 or HDTV resolutions up to 1080p - allowing you to take full advantage of your DVI capable display, while using a cutting edge DisplayPort video source.
DP2DVIMM10 is a passive adapter cable that requires a DP++ port (DisplayPort++), meaning that DVI and HDMI signals can also be passed through the port.
Backed by a StarTech.com 3-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: DP2DVIMM10
- Brand Name: StarTech.com
- Product Model: DP2DVIMM10
- Product Name: DisplayPort to DVI Video Converter Cable
- Packaged Quantity: 1 Each
- Product Type: Video Cable Adapter
Technical Information
- Cable Type: DisplayPort/DVI-D
- Cable Length: 10 ft
- Connector Type on First End: DisplayPort 1.2 Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Male
- Connector Type on Second End: DVI-D (Single-Link) Digital Video - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 1 x 19-pin DVI-D (Single-Link) Digital Video - Male
- Connector Plating: Nickel
- Device Supported:
- Video Device
- Monitor
- HDTV
- Workstation
- Desktop Computer
- Notebook
- Docking Station
- Supported Resolution: 1920 x 1200
- Features:
- Passive
- HDCP 1.3
- Extended Display Identification Data (EDID)
- Screw Lock
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.54 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: China
Warranty
- Limited Warranty: 3 Year
