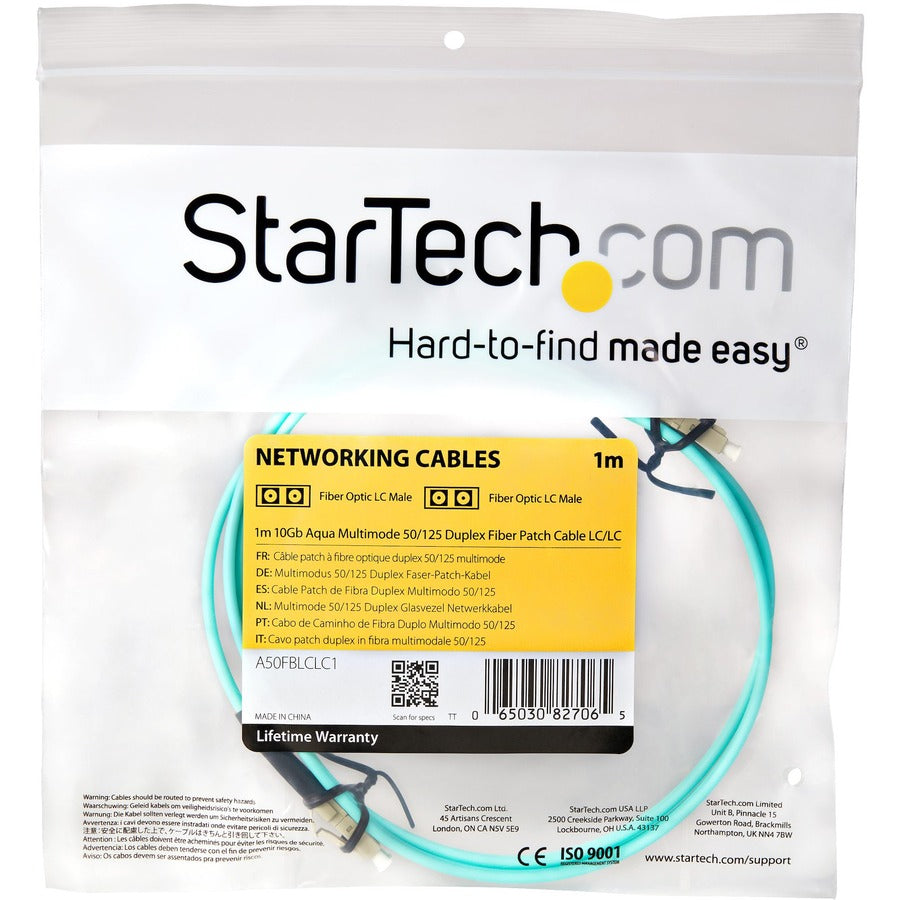

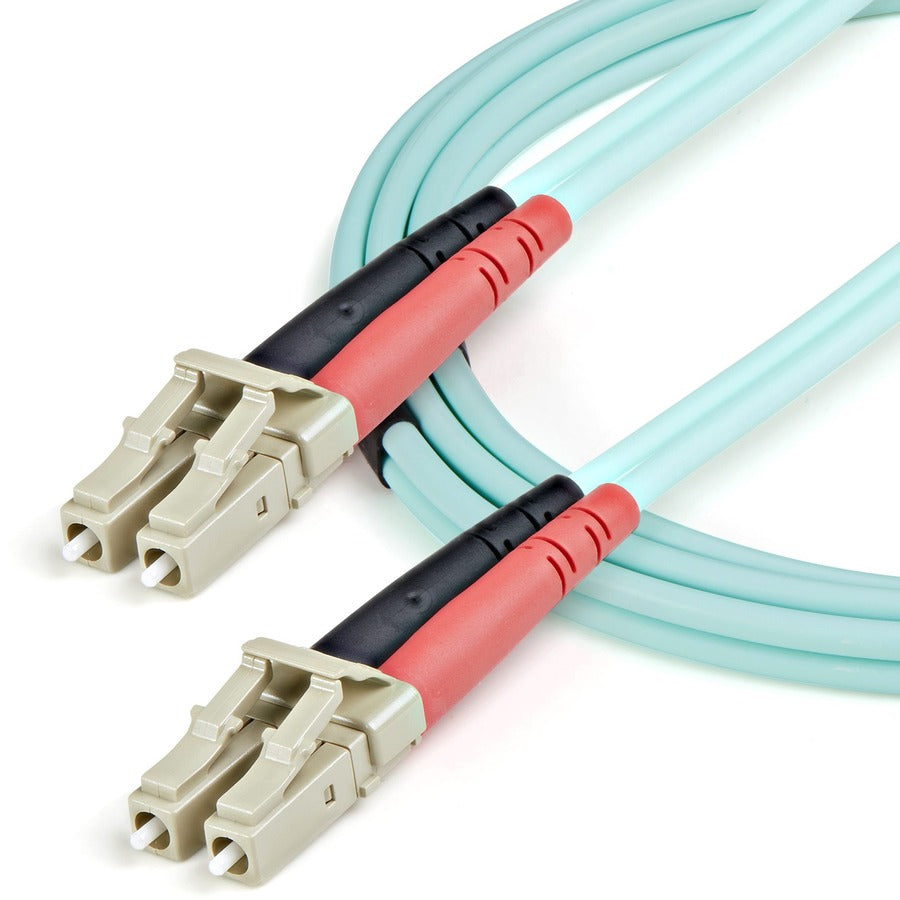

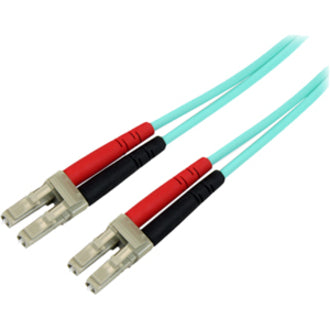

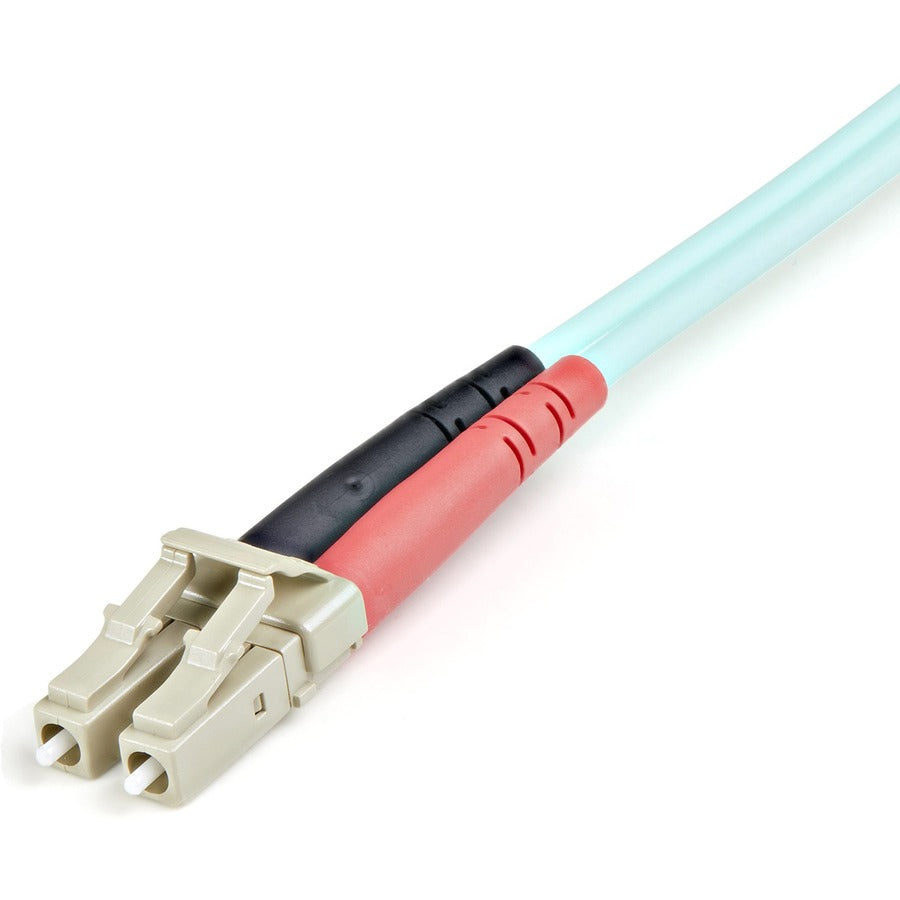

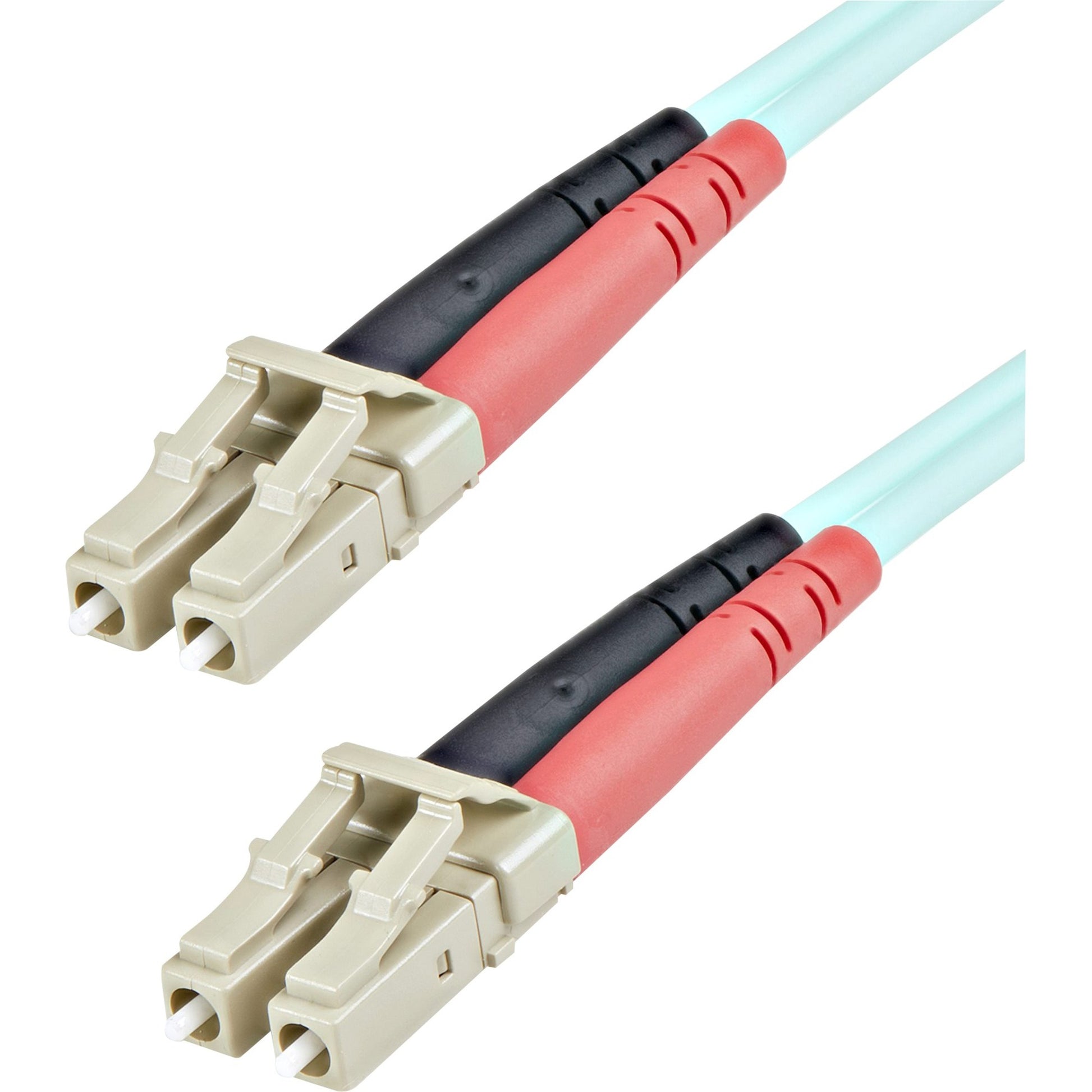

StarTech 1m Fiber Optic Cable - 10 Gb Aqua - Multimode Duplex 50/125 - LSZH - LC/LC - OM3 - LC to LC Fiber Patch Cable - A50FBLCLC1
Key Features
- OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs)
- QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/LC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB
- RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards
- SPECS: 1m (3.3ft); Color: Aqua (OM3); LC/LC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life
- WIDE COMPATIBILITY: OM3 LC/LC multimode cable supports 1/10/40/100 Gbps networks; Backward compatible with OM3; For high-density network applications such as SANs, data servers, fiber switches, SFP+, QSFP+, and QSFP28 transceivers
Product Overview
The A50FBLCLC1 1m 850nm Laser-Optimized Multimode Fiber (LOMMF) Aqua Cord features 50/125 micron fiber for high-speed, high bandwidth data transmissions over 10 Gigabit Ethernet and Fiber Channel networks - the perfect solution for fiber cable runs between multiple backbone switches, hubs and routers as well as higher end networking equipment.
This LC-LC patch cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame retardant jacket, to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat, in the event of a fire - an ideal solution for use in industrial settings, central offices and schools, as well as residential settings where building codes are a consideration.
Each Duplex 50/125 (OM3) Multimode Fiber Patch Cable is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and 100% reliability, and is backed by our lifetime warranty.
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: A50FBLCLC1
- Brand Name: StarTech
- Product Name: Fiber Optic Duplex Patch Network Cable
- Packaged Quantity: 1 Each
- Product Type: Network Cable
Technical Information
- Cable Type: Fiber Optic
- Cable Characteristic: Patch Cable
- Fiber Optic Mode: Multi-mode
- Fiber Optic Cable Core/Cladding Specification: 50/125 µm
- Cable Length: 3.28 ft
- Connector Type on First End: LC Network - Male
- Connector Gender on First End: Male
- Connector on First End Details: 2 x LC Network - Male
- Connector Type on Second End: LC Network - Male
- Connector Gender on Second End: Male
- Connector on Second End Details: 2 x LC Network - Male
- Jacket Type: LSZH
- Device Supported:
- Network Device
- Hub
- Router
- Switch
- Data Transfer Rate: 10 Gbit/s
- Features:
- Molded
- Flame Retardant
- Halogen Free
- Corrosion Resistant
Physical Characteristics
- Color Family: Green
- Product Color: Aqua
- Weight (Approximate): 0.03 lb
Miscellaneous
- Environmental Compliance: Restriction of Hazardous Substances (RoHS)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
