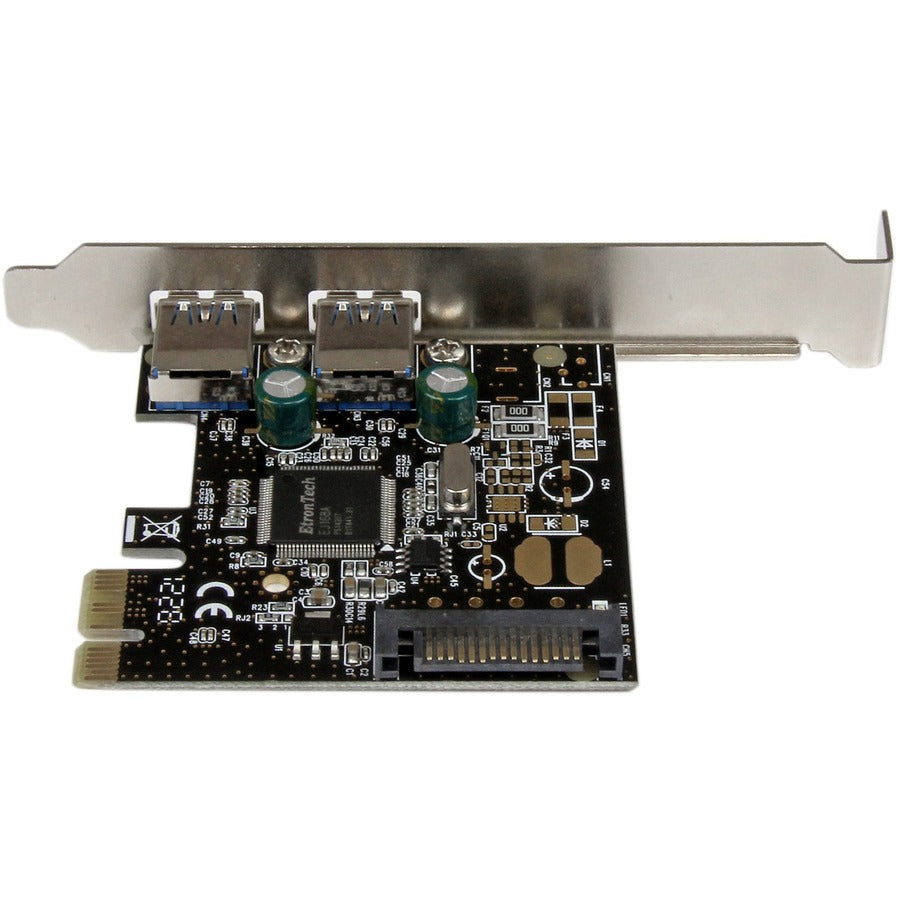

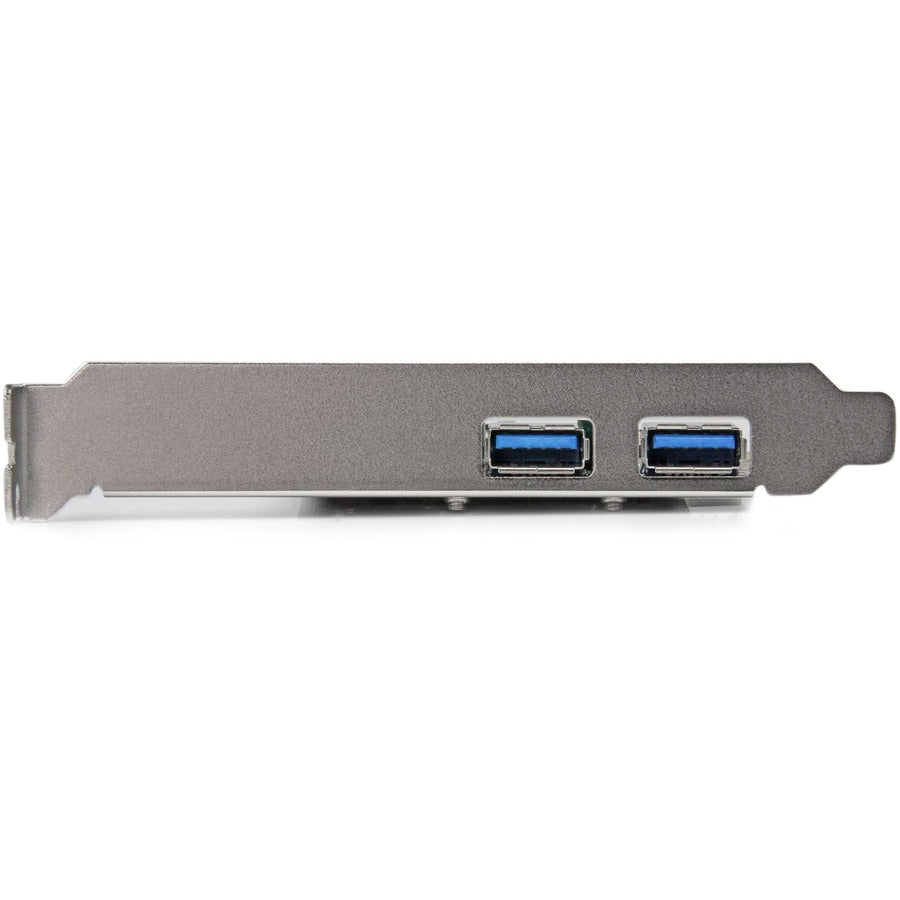

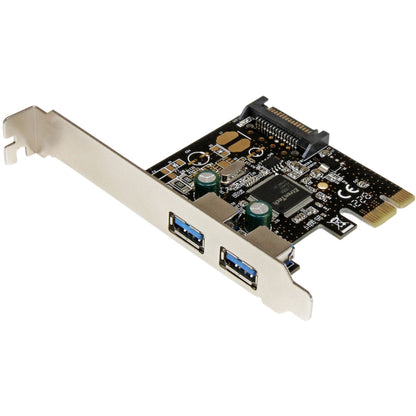

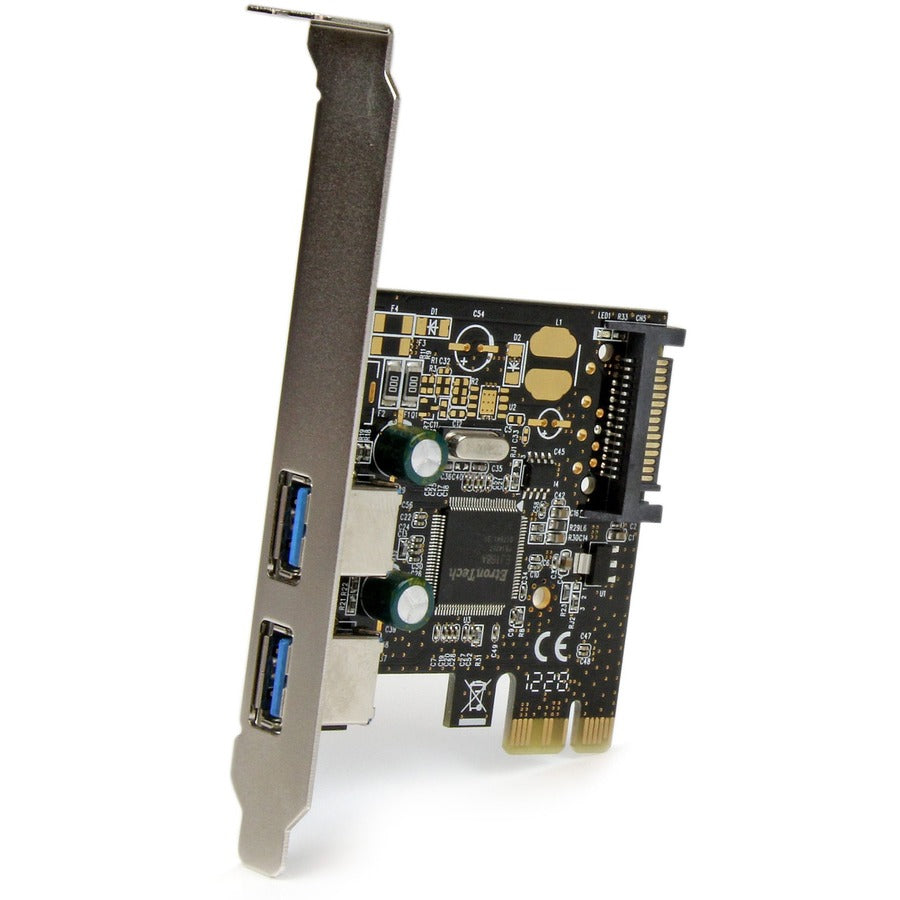

StarTech.com 2 Port PCI Express PCIe SuperSpeed USB 3.0 Controller Card w/ SATA Power - 5Gbps - PEXUSB3S23
Key Features
- Backward compatible with USB 2.0 and USB 1.0/1.1 devices
- Compliant with PCI Express 2.0 specifications
- Fully compliant with USB 3.2 Gen 1 rev 1.0 and Intel xHCI rev 1.0 specifications
- Includes a Low Profile/half-height installation bracket
- Provides two external USB 3.2 Gen 1 connections
- SATA power connector (required) provides up to 900mA per USB port
- Supports data rates up to 5 Gbps
Product Overview
The PEXUSB3S23 2-Port PCI Express USB 3.2 Gen 1 Card lets you add two USB 3.2 Gen 1 ports to any PCI Express-enabled computer system. The USB card requires SATA power for functionality, and delivers 900mA of power per port to USB 3.2 Gen 1 bus-powered devices (500mA for USB 2.0) via your computers SATA power connector.
The PCIe USB 3.2 Gen 1 adapter is compliant with USB 3.2 Gen 1 standards for data transfer speeds up to 5 Gbps, while still offering backward compatibility with existing USB 2.0 / 1.1 devices. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: PEXUSB3S23
- Brand Name: StarTech.com
- Product Name: 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
- Packaged Quantity: 1 Each
- Product Type: USB Adapter
Technical Information
- Host Interface: PCI Express x1
Media & Performance
- UASP Support: No
Interfaces/Ports
- Total Number of USB Ports: 2
- Number of USB 3.2 Ports: 2
- Number of SATA Ports: 1
Software
- Operating System Supported:
- Windows XP
- Windows Vista
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Windows Server 2003
- Windows Server 2008 R2
- Windows Server 2012
- Windows Server 2016
- Windows Server 2019
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Plug-in Card
- Height: 4.7"
- Width: 0.8"
- Length: 3.1"
- Weight (Approximate): 1.52 oz
Miscellaneous
- Package Contents:
- 2 Port PCI Express PCIe SuperSpeed (5Gbps) USB 3.0 Controller Card w/ SATA Power
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Platform Supported: PC
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 2 Year
