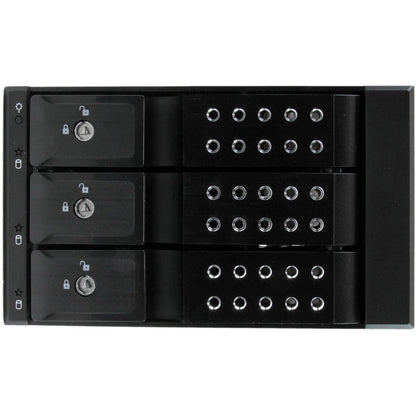

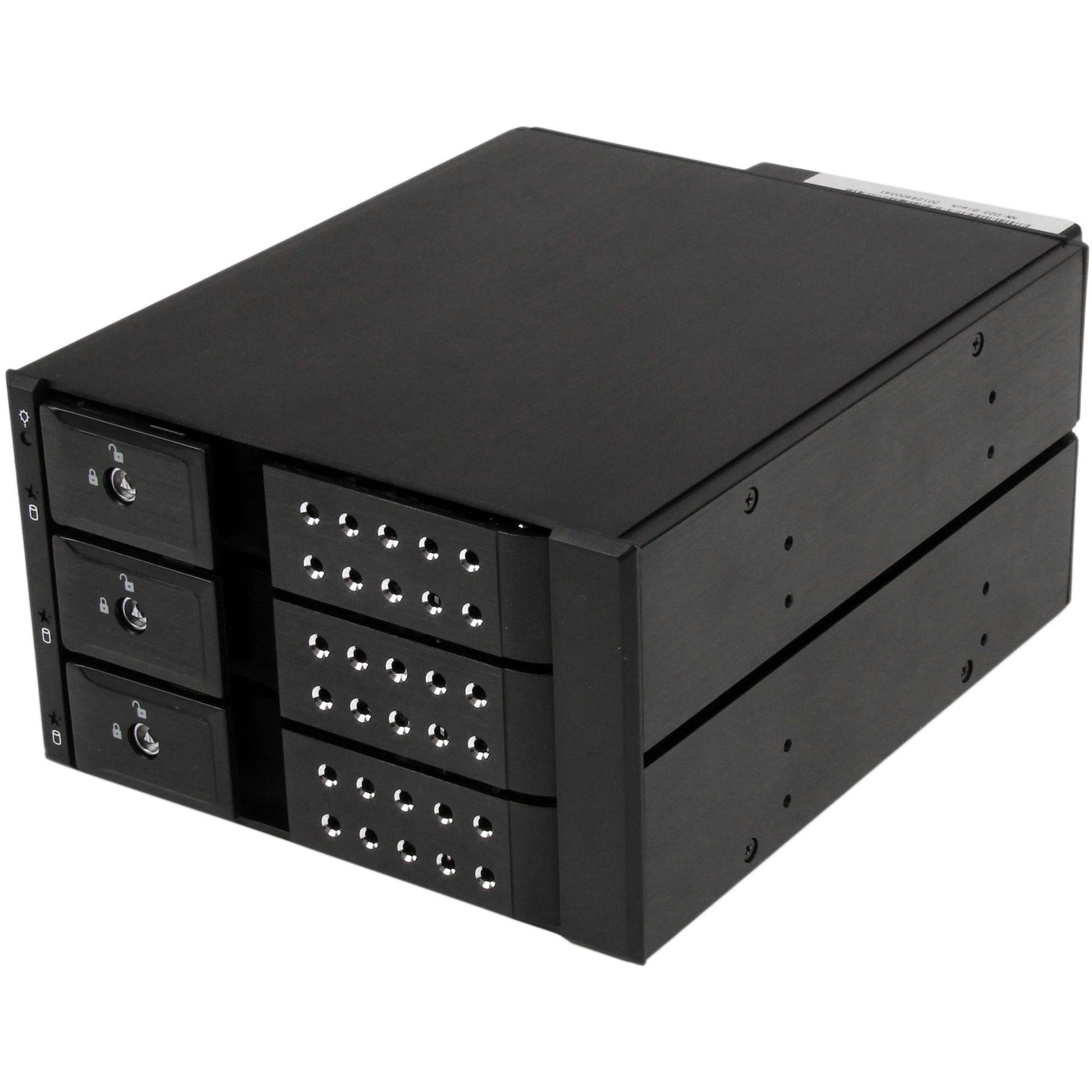

StarTech.com 3 Bay Aluminum Trayless Hot Swap Mobile Rack Backplane for 3.5in SAS II/SATA III - 6 Gbps HDD - HSB3SATSASBA
Key Features
- 3 drive bay design
- Built-in fan
- Installs in two 5.25" drive bays
- Key lock design
- Power and Activity LEDs for each drive
- Solid aluminum construction
- Support for SAS revision I/II (3.0/6.0 Gbps)
- Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
- Trayless design for hot swap support
- UL VO flammability rating
Product Overview
The HSB3SATSASBA Removable 3-drive backplane lets you quickly install and hot-swap 3.5" drives from the front of your computer, by turning two 5.25" bays into a hot-swappable interface for you to connect up to three 3.5" SATA or SAS hard drives (HDD).
For added versatility, the hard drive bay can interface with SATA I/II/III and SAS I/II hard drives -- an ideal accommodation for enterprise system applications.

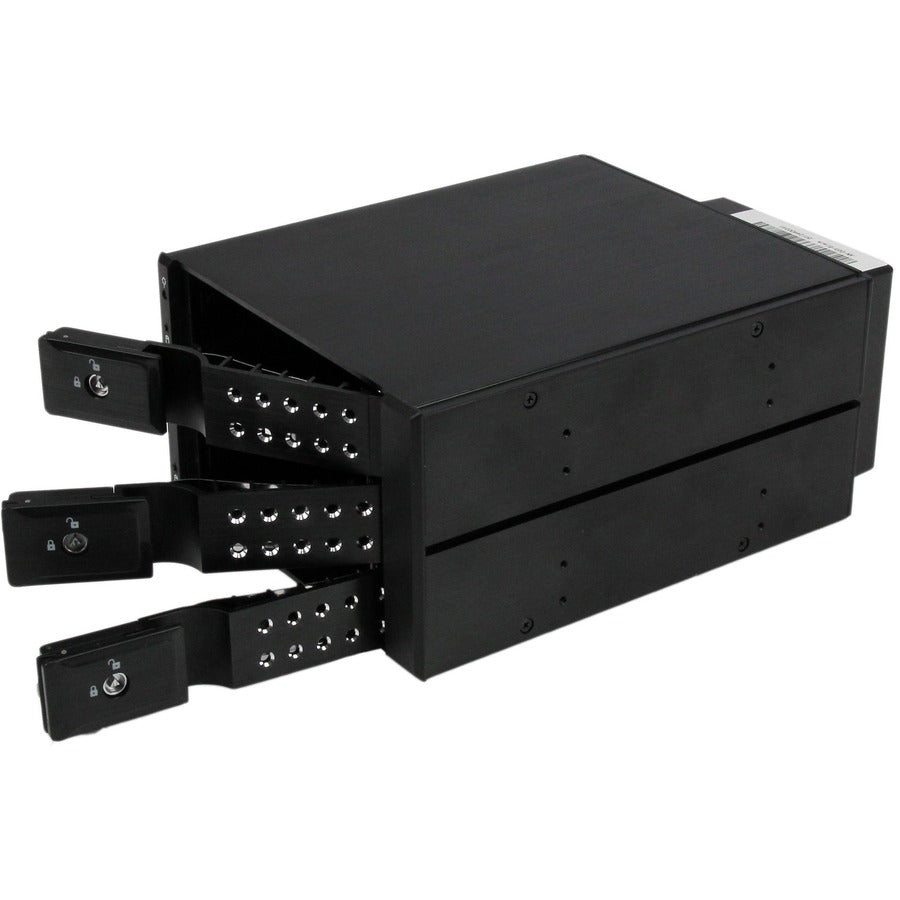

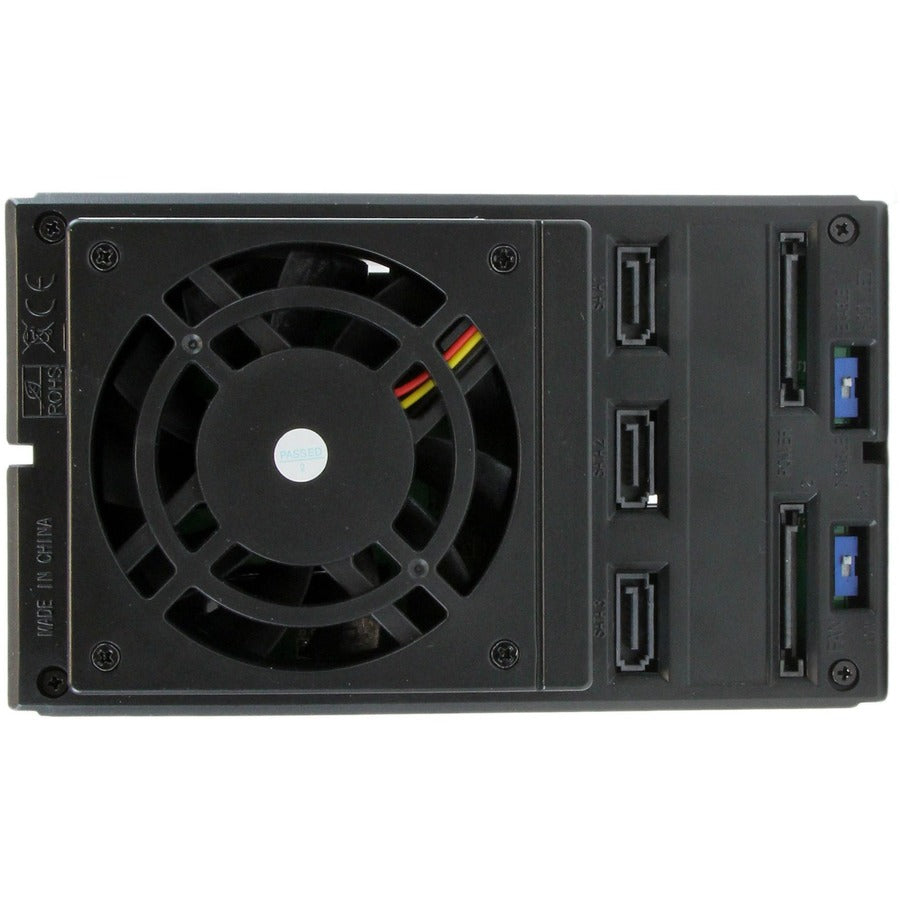

For a quick and secure method of installing and removing drives, the backplane features ejection levers and a key-lock design. To help prevent drive failure, the bay provides excellent heat dissipation with a built-in fan, and a vented solid aluminum enclosure.
The HSB3SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: HSB3SATSASBA
- Brand Name: StarTech.com
- Product Name: 3 SATA HDD Backplane
- Packaged Quantity: 1 Each
- Product Type: Drive Enclosure
Technical Information
- Number of Hard Drives Supported: 3
- Number of Hard Drives Installed: No
I/O Expansions
- Number of Total Expansion Bays: 3
- Number of 3.5" Bays: 3
Network & Communication
- Wireless LAN: No
Interfaces/Ports
- Drive Interface:
- Serial Attached SCSI (SAS)
- SATA/600
- Host Interface: Serial ATA/600
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material: Aluminum
- Cooling Fan: Yes
- Form Factor: Internal
- Compatible Drive Bay Width: 5.25"
- Height: 4.3"
- Width: 5.7"
- Depth: 7.6"
- Weight (Approximate): 2.70 lb
Miscellaneous
- Package Contents:
- 3 SATA HDD Backplane
- 1 x Installation Screw Kit
- 1 x Instruction Manual
- 2 x Bay Key s
- 3 x 18" SATA Cables
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: 2 Year
