StarTech Cisco Meraki MA-SFP-1GB-SX Comp. SFP Module - 1000BASE-SX - 1GbE Gigabit Ethernet SFP Multimode Fiber MMF Optic Transceiver - MASFP1GBSXST
Key Features
- 100% CISCO MERAKI MA-SFP-1GB-SX COMPATIBLE: Works with Cisco Meraki switches like MS225, MX400, MS250, MS350, MX84 and others
- OUTSTANDING SUPPORT: Backed by StarTech for the life of the module itself, not your equipment; our modules won't void your OEM support and with access to our Tech Advisors 5/24
- TECHNICAL SPECS: 1000BASE-SX
- 1 Gbps
- Multi Mode (MMF)
- LC Connector
- 850nm
- Digital Diagnostic Monitoring (DDM)
- Distances up to 550m (1804ft)
- TESTED FOR OEM HOST COMPATIBILITY: Hot-swappable in Cisco routers and switches; DDM support reports the transceiver's status to most SNMP network management tools
- WORKS WITH MSA COMPLIANT SWITCHES: Also works with switch models from Ubiquiti, D-Link, Netgear, Supermicro, TP-Link and more that accept uncoded modules
Product Overview

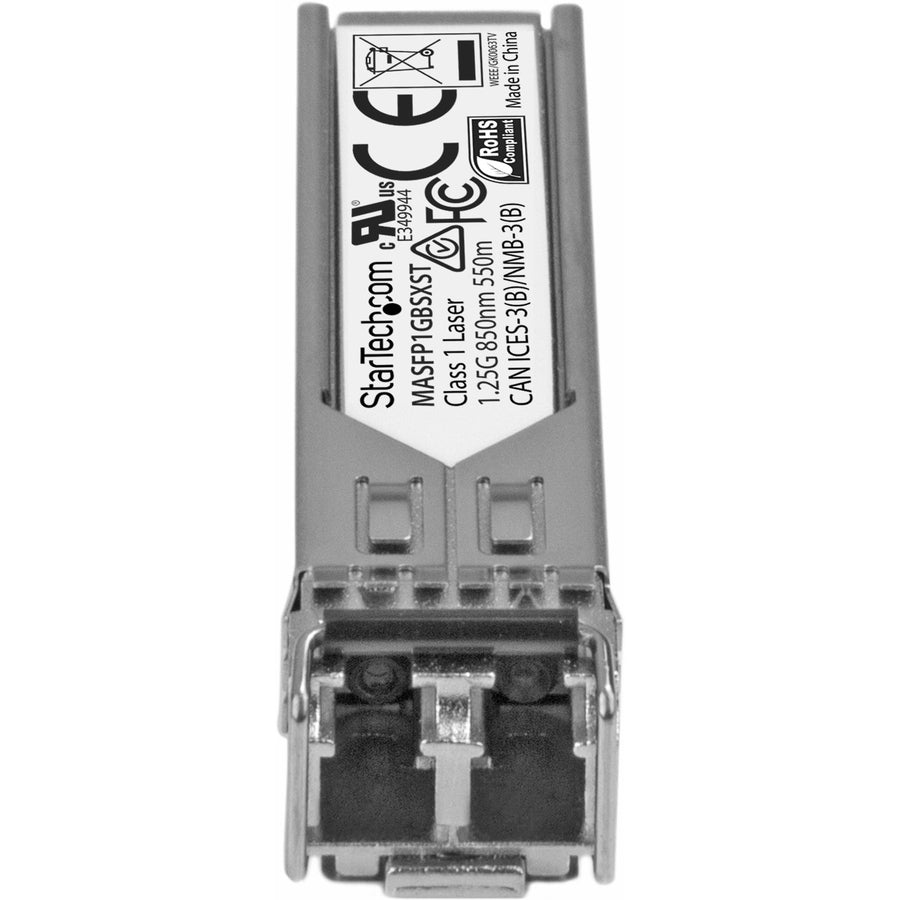

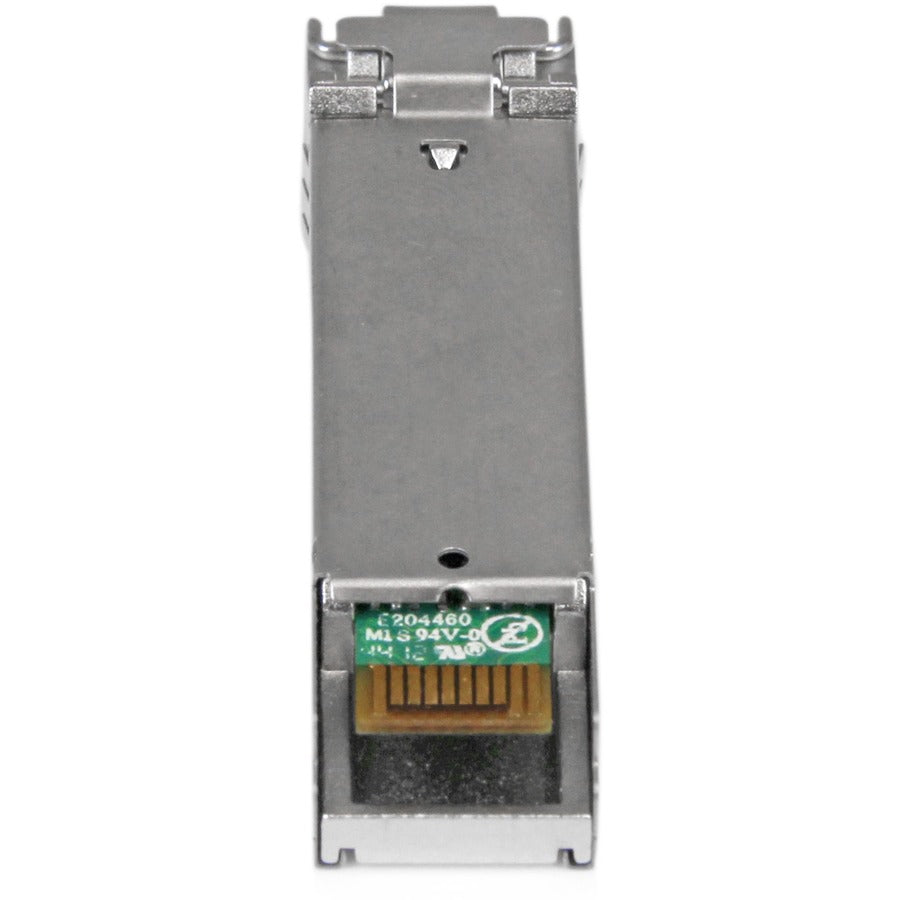

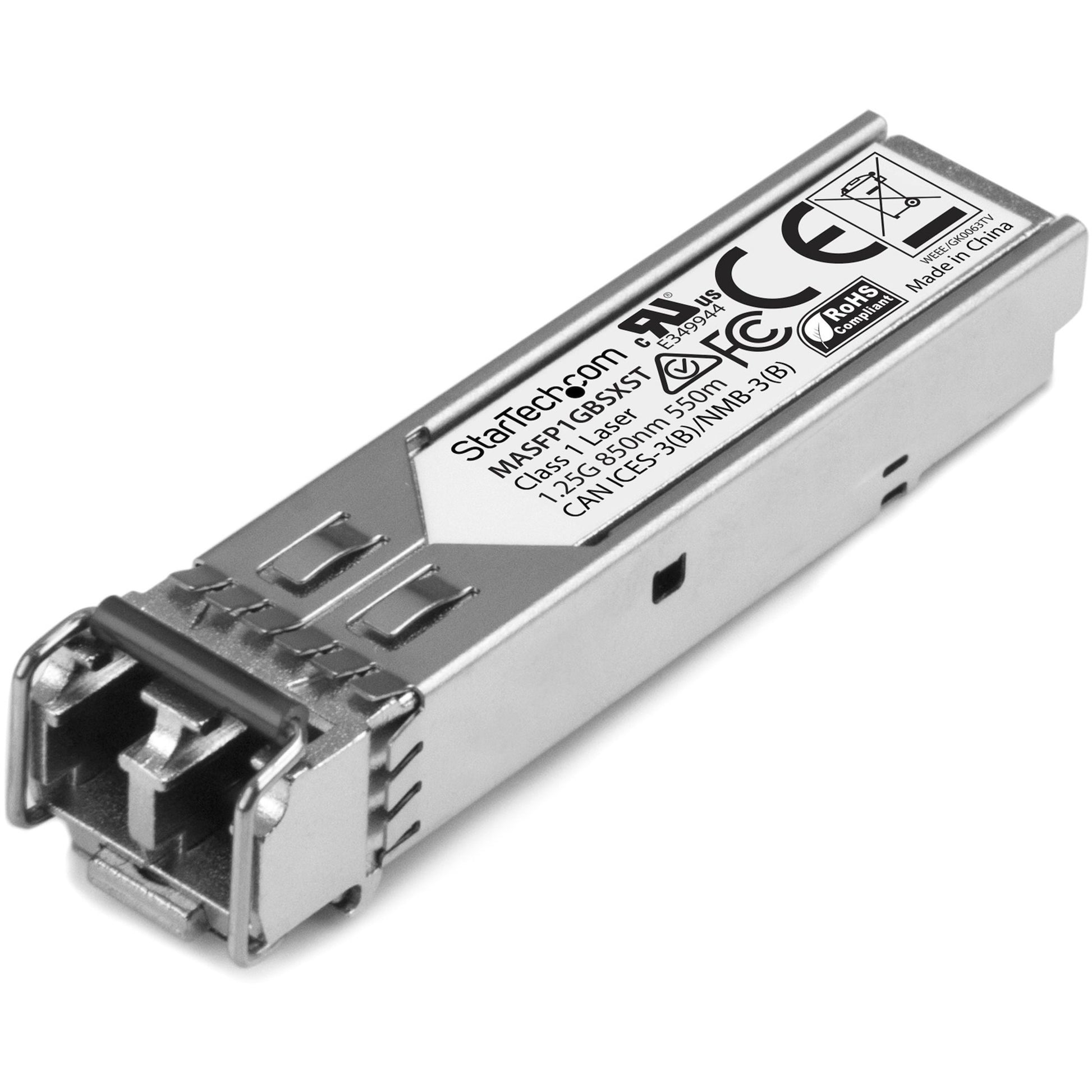

The MASFP1GBSXST is a Cisco Meraki MA-SFP-1GB-SX compatible fiber transceiver module that has been designed, programmed and tested to work with Cisco Meraki™ brand switches and routers. It delivers dependable 1GbE (1000 Mbps) connectivity over fiber cable, for 1000BASE-SX compliant networks, with a maximum distance of up to 550m (1804 ft).Technical Specifications:
- Wavelength: 850nm
- Maximum Data Transfer Rate: 1.25 Gbps
- Type: Multi Mode Fiber
- Connection Type: LC Connector
- Maximum Transfer Distance: 550m (1804 ft)
- MTBF: 1,967,709 hours
- Power Consumption: Less than 1.2 Watts
- Digital Diagnostics Monitoring (DDM): Yes
StarTech SFPs
All StarTech SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech offers a wide variety of SFP modules and direct-attach SFP cables, providing the convenience and reliability you need to ensure dependable network performance.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: MASFP1GBSXST
- Brand Name: StarTech
- Product Name: Cisco Meraki MA-SFP-1GB-SX Compatible SFP Transceiver Module - 1000BASE-SX
- Product Type: SFP (mini-GBIC)
- Packaged Quantity: 1 Each
Technical Information
- Application/Usage:
- Data Networking
- Optical Network
Interfaces/Ports
- Total Number of Ports: 1
- Connector Type: LC
- Interfaces/Ports Details: 1 x LC Duplex 1000Base-SX Network
Media & Performance
- Media Type Supported: Optical Fiber
- Fiber Mode Supported: Multi-mode
- Ethernet Technology: Gigabit Ethernet
- Network Technology: 1000Base-SX
Physical Characteristics
- Form Factor:
- Hot-pluggable
- Hot-swappable
- Height: 0.5"
- Width: 0.5"
- Depth: 2.2"
- Weight (Approximate): 0.03 lb
Miscellaneous
- Compatibility:
- MSA Compliant
- MS225
- MX400
- MS250
- MS350
- MX84
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
- Limited Warranty: Lifetime
