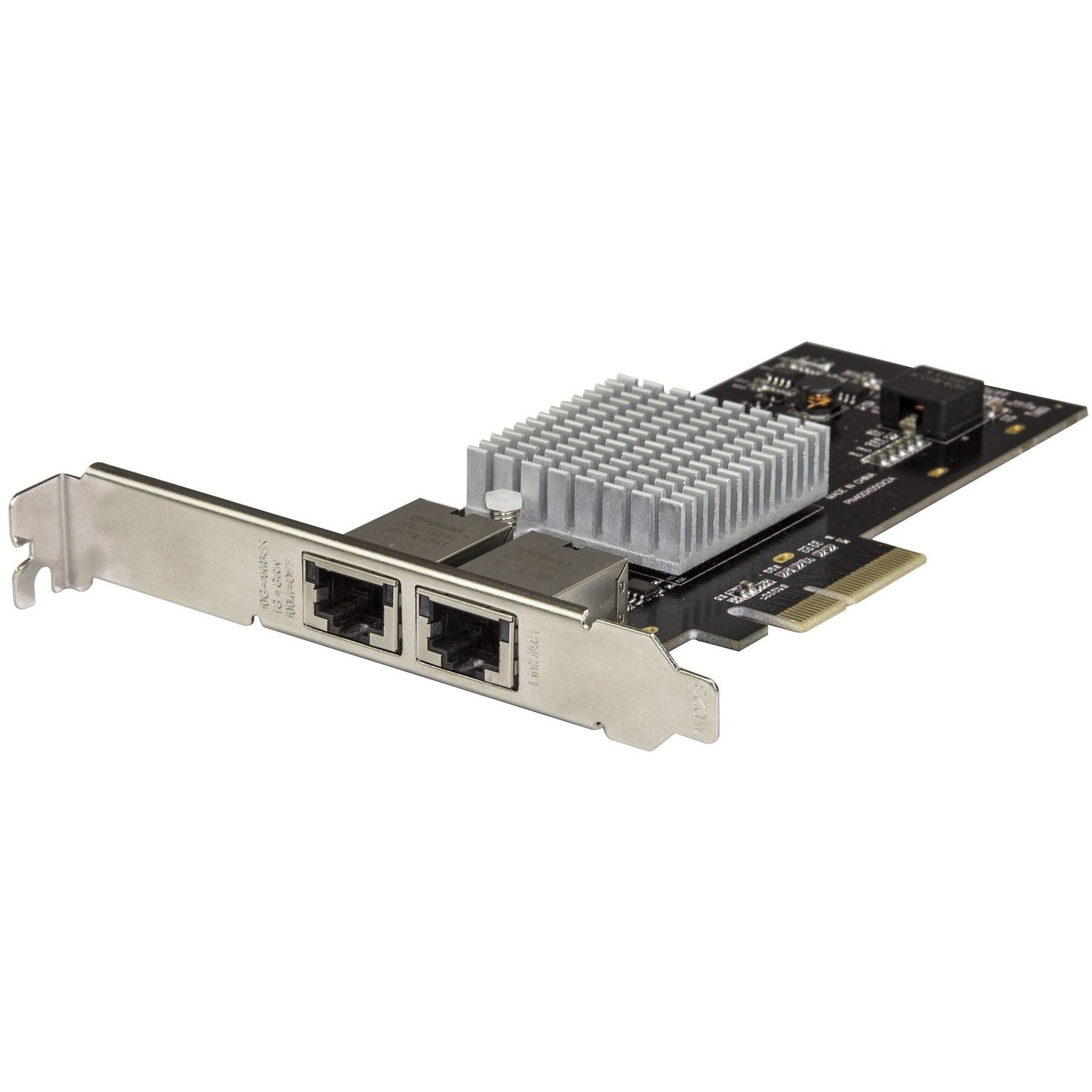

StarTech Dual Port 10G PCIe Network Adapter Card - Intel-X550AT 10GBASE-T PCI Express 10GbE Multi Gigabit Ethernet 5 Speed NIC 2port - ST10GPEXNDPI
Key Features
- 10Gigabit Ethernet Card guarantees a faster and efficient networking interface to client, server or workstation with maximum connectivity reliability
- For high bandwidth connectivity, add this efficient dual port 10gigabit ethernet card to your server or workstation
- PCI Express 3.0 x4 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 10GBase-T technology get up to 10Gbps data transfer rate over the twisted pair cable
Product Overview
This Thunderbolt™3 to 10GbE NIC lets you connect your Thunderbolt 3 enabled device to a 10 Gigabit Ethernet network. This adapter combines the StarTech Thunderbolt 3 PCIe Expansion Chassis (TB31PCIEX16) and the 2-port PCI Express 10G NIC (ST10GPEXNDPI), giving you one DisplayPort output, one additional Thunderbolt 3 port and two 10GbE ports.Reliable, high-performance and versatile multimode connectivity
This 10G network card utilizes the Intel® X550 chipset with Intel® Virtualization Technology for connectivity, delivering the power, performance and enhanced capabilities you need for dependable network connections.
Install and assemble with ease
Requiring only a Phillips type screwdriver, you can assemble this Thunderbolt 3 to 10GbE NIC chassis in minutes. It connects easily through a single Thunderbolt 3 port on your computer.
Change up your chassis
The Thunderbolt 3 chassis not only pairs well with the 10GbE NIC -- the card can be swapped for other PCIe cards to help support other functionality and performance. With the extra TB3 port and DP output built into the chassis, you will always have the ability to hook up extended displays to multitask effortlessly.
The TB31PCIEX16 and ST10GPEXNDPI are backed by a StarTech 2-year warranty.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: ST10GPEXNDPI
- Brand Name: StarTech
- Product Name: 2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip
- Packaged Quantity: 1 Each
- Product Type: 10Gigabit Ethernet Card
Technical Information
- Chipset Manufacturer: Intel
- Chipset Model: X550AT
Interfaces/Ports
- Host Interface: PCI Express 3.0 x4
- Total Number of Ports: 2
- Number of Network (RJ-45) Ports: 2
Media & Performance
- Media Type Supported: Twisted Pair
Network & Communication
- Network Technology: 10GBase-T
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Form Factor: Plug-in Card
- Height: 3.2"
- Width: 5.6"
- Depth: 11"
- Weight (Approximate): 3.60 lb
Miscellaneous
- Package Contents:
- 2-Port PCIe 10GBase-T / NBASE-T Ethernet Network Card - with Intel X550 Chip
- 1 x Low-Profile Bracket
- 1 x Quick-Start Guide
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: China
