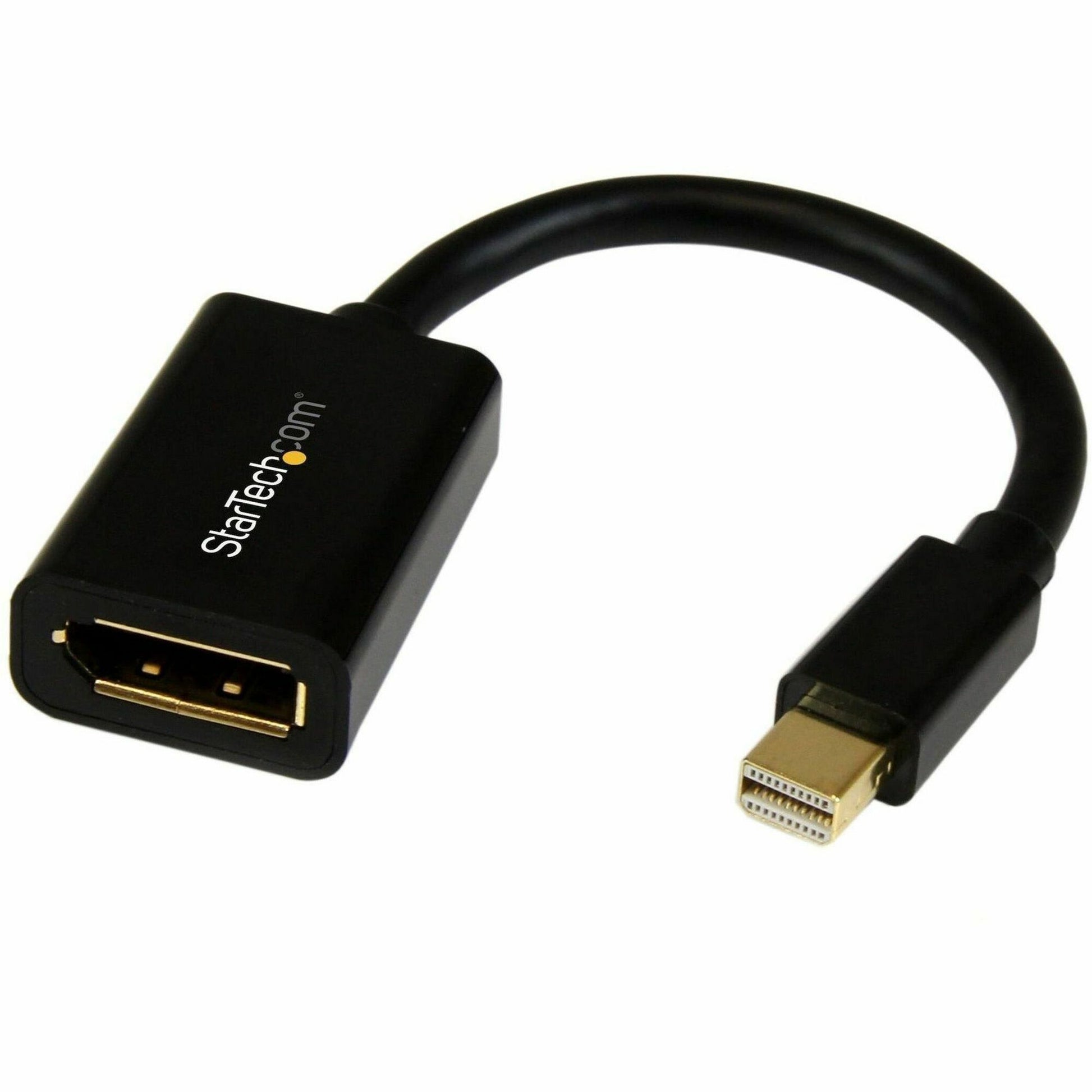

StarTech Mini DisplayPort to DisplayPort Adapter, 4K x 2K Video, Ultra HD Mini DP to DP Converter, mDP to DP 1.2 Adapter, Male/Female - MDP2DPMF6IN
Key Features
- APPLICATIONS: Video adapter is ideal for home/office/boardroom/classroom works w/laptop (with Mini-DP port)/professional workstations w/ AMD FirePro™ W9100/8100, NVIDIA NVS 810/510 graphic card; UHD/4K monitor/projector/display; Microsoft Surface Pro 1-6
- MINI DISPLAYPORT to DISPLAYPORT 1.2 ADAPTER: mDP to DP adapter supports 4K x 2K (3840x2400p 60Hz), 21.6 Gbps, HBR2, 8Ch Audio, Multi-Stream Transport (MST), GTC for precise audio channel timing & 3D Stereo (2560x1600p 120Hz); 6" (15 cm) attached cable
- QUALITY CONSTRUCTION: 32AWG wire w/ gold-plated connectors for improved signal integrity/reliability; Superior EMI shielding with Al-Mylar foil and copper braid provides higher quality video/audio; Mini DP to DP converter backwards compatible w/DP1.1
- RELIABLE DESIGN: Mini DisplayPort to DisplayPort adapter has durable ABS connectors w/ flexible PVC strain relief & jacket prevent fraying or damage due to bending or rough usage; Metal connector sub-structure provides added EMI shielding & noise imunity
- SPECS: 6 inch (15 cm)
- Black
- DisplayPort v1.2
- Mini-DP Male to Standard DP Female adapter
- 32 AWG
- PVC cable jacket, ABS connector shell
- Shield: Al-Mylar foil with Braid
- Protocols: HBR 2, MST, GTC
- Lifetime Warranty
Product Overview
The MDP2DPMF6IN Mini DisplayPort to DisplayPort video cable adapter allows you to add a standard DisplayPort connection port to your existing mini Displayport equipped laptop. Easy to use and install, this cost-effective solution makes it easy for you to go from Mini DP to DP, in order to get the most from your Mini DisplayPort device.
Please Note: Newer laptop and desktop computers (e.g. Apple®) come equipped with Thunderbolt™ ports only. Our Mini DP to DP Cables can be connected to the Thunderbolt ports, enabling you to connect your DP compatible displays.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: MDP2DPMF6IN
- Brand Name: StarTech
- Product Name: 6in Mini DisplayPort to DisplayPort Video Cable Adapter - M/F
- Packaged Quantity: 1 Each
- Product Type: Video Cable Adapter
Technical Information
- Cable Type: DisplayPort/Mini DisplayPort
- Cable Length: 6"
- Connector Type on First End: Mini DisplayPort Digital Audio/Video - Male
- Connector Gender on First End: Male
- Connector on First End Details: 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male
- Connector Type on Second End: DisplayPort 1.2 Digital Audio/Video - Female
- Connector Gender on Second End: Female
- Connector on Second End Details: 1 x 20-pin DisplayPort 1.2 Digital Audio/Video - Female
- Connector Plating:
- Nickel
- Gold
- Shielding: Yes
- Device Supported:
- Monitor
- Notebook
- Video Device
- American Wire Gauge: 32 AWG
- Data Transfer Rate: 21.6 Gbit/s
- Supported Resolution: 3840 x 2400
- Features:
- Multi-Stream Transport (MST) Support
- Flexible
- Strain Relief
- Fray Resistant
- Damage Resistant
- EMI Protection
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Jacket Material: Polyvinyl Chloride (PVC)
- Weight (Approximate): 0.04 lb
Miscellaneous
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin: China
Warranty
- Limited Warranty: Lifetime
