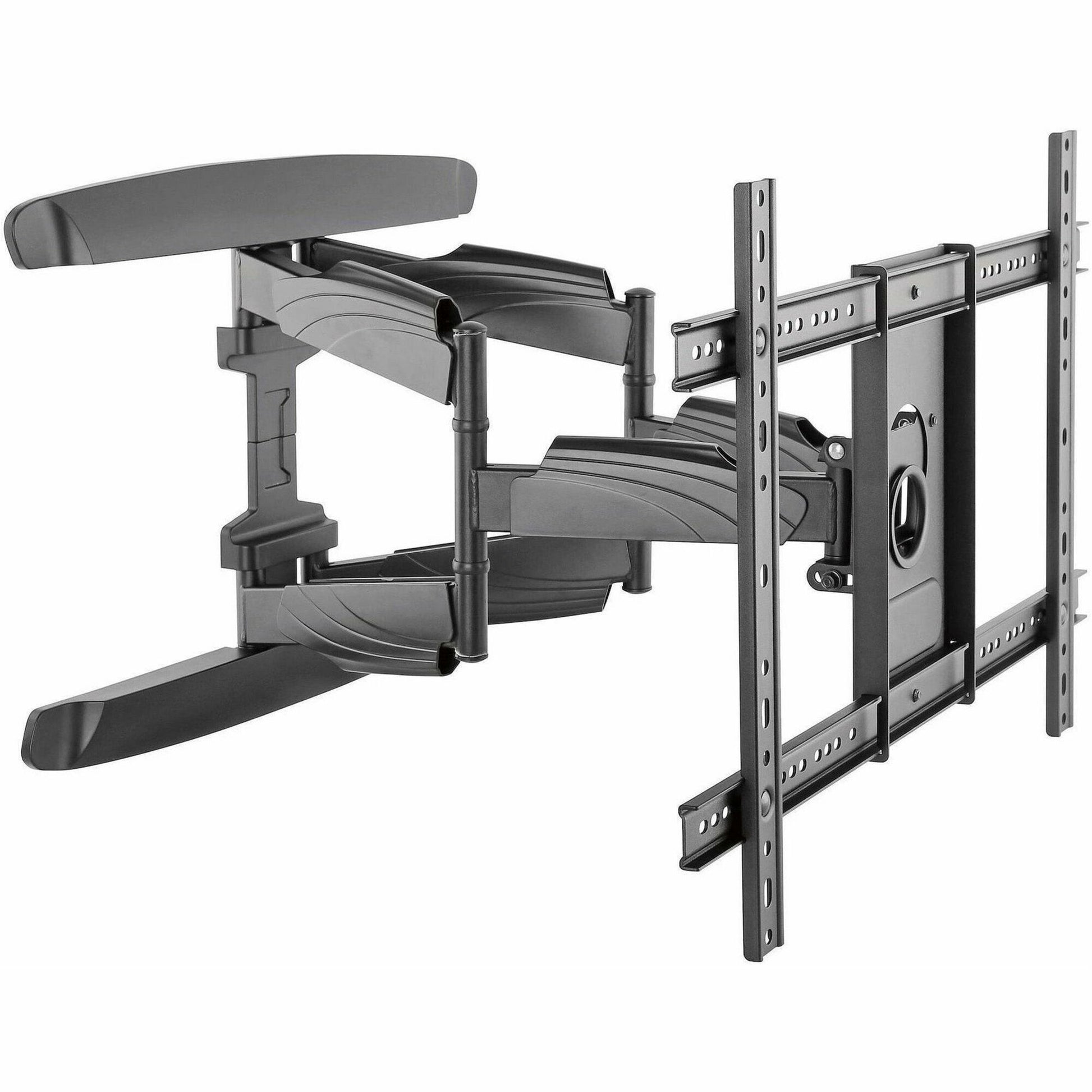

StarTech TV Wall Mount for up to 70 inch VESA Displays - Heavy Duty Full Motion Universal TV Wall Mount Bracket - Articulating Arm - FPWARTB2
Key Features
- COMPATIBILITY: Universal TV wall mount supports LG, Samsung, Sony, Sharp, and others (screws/spacers incl) & VESA hole patterns 200x100, 200x200, 200x300, 200x400, 300x200, 300x300, 400x200, 400x300, 400x400, 600x200, 600x300, 600x400
- EXTENDING ARMS: Arms extend from 2.4" (57mm) to 20.4" (517mm) from the wall; With the length of the arms, center of the television display has an overall lateral range (left to right) of 34.6" (880mm)
- LARGE 70" TV WALL MOUNT: This heavy-duty TV wall mount supports VESA compatible displays (incl. curved TVs) up to 70 inch (99 lb/45 kg) w/ a durable full-motion steel frame and a powder-coated finish

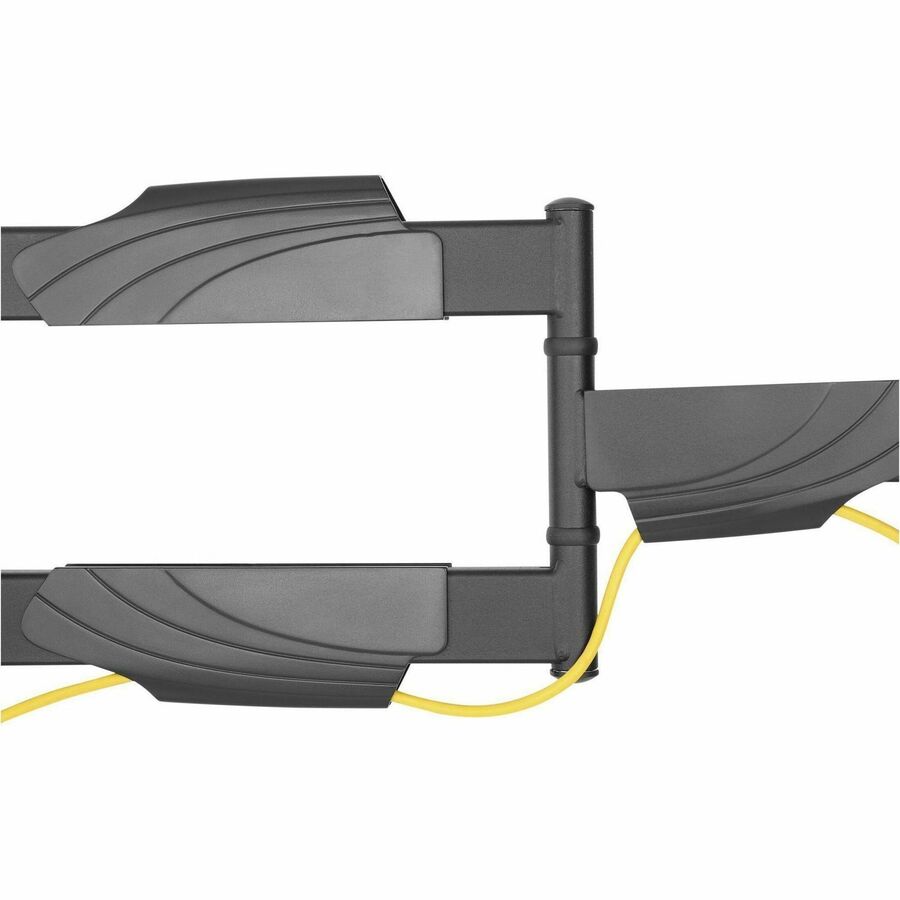

- TIDY AESTHETIC: The flat panel TV wall mounting bracket w/ integrated cable management & optional black snap-on covers keeps cables organized; ideal for customer-facing digital signage

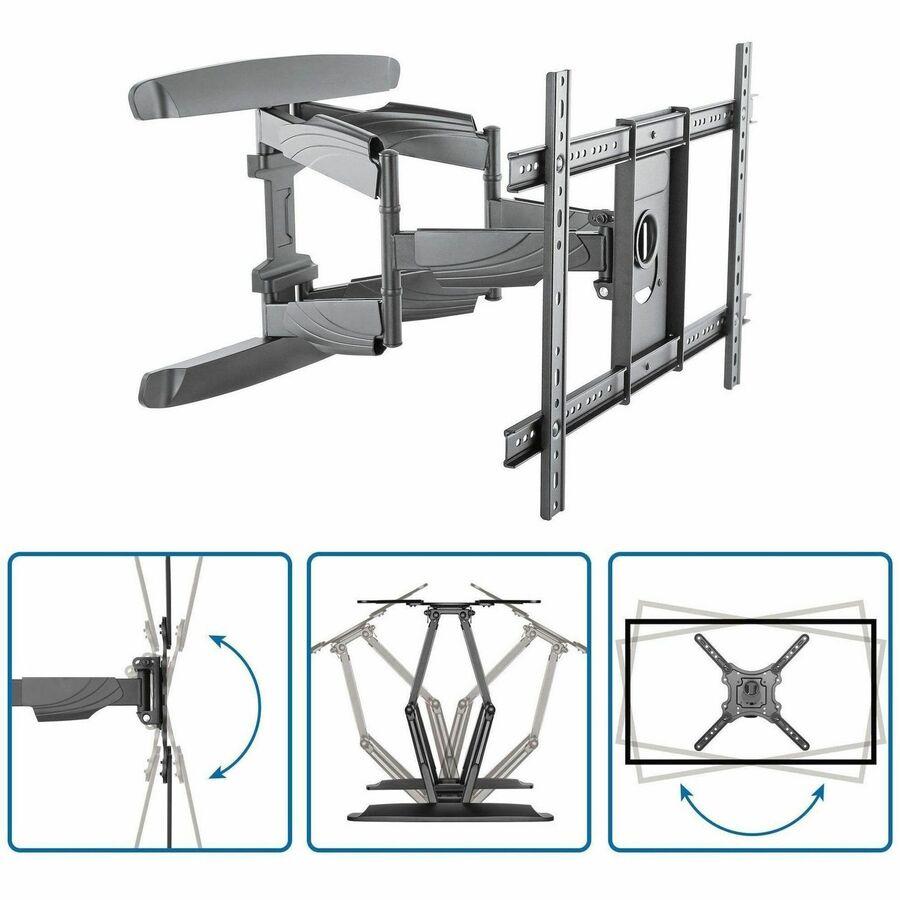

- WIDE RANGE OF MOTION: Articulating & adjustable TV wall mount offers +/-90° swivel, +2/-15° tilt & +/-5" LCD screen level adjustment without the use of additional tools to ensure display is level
Product Overview
"Maximize space while creating an impressive display. This full-motion TV wall mount supports flat-screen TVs from 32" to 70" in size, with a weight capacity of 99 lb. (45 kg).Save Space
Mount your flat-screen TV in a location that's convenient for visitors, clients and employees, and free up valuable space. The wall mount is ideal for a lobby, boardroom or other venue. The TV wall mount also includes built-in cable management to keep cables neatly out of sight.
Full-Motion AdjustmentThe TV wall mount features dual arms that extend out to 20.4" (517 mm) from the wall to provide a wide range of movement and accommodate different screen positions and angles. The arms can also fold to tuck in closely to the wall, providing a low profile that enables your display to be positioned just 2.24" (57 mm) from the wall.
You can swivel your display +90 / -90 degrees and tilt +5 / -8 degrees, letting you angle your TV display toward your audience. Plus, the tilt feature lets you adjust the TV so that you can view it comfortably at any height. A built-in level adjustment also offers 5 degree clockwise and counterclockwise turning, to ensure your display is perfectly level.
Secure InstallationThe heavy-duty steel construction, dual-arm design and dual-stud mounting for studs placed 16" apart, provides increased durability and security. It safely and securely supports your flat-screen TV, to protect your investment.
FPWARTB2 is backed by a StarTech 5-year warranty and free lifetime technical support."
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: FPWARTB2
- Brand Name: StarTech
- Product Line: Full-Motion
- Product Name: Full-Motion TV Wall Mount
- Packaged Quantity: 1 Each
- Product Type: Wall Mount
Product Information
- Device Supported:
- Curved Screen Display
- Flat Panel Display
- Number of Displays Supported: 1
- Maximum Load Capacity: 99.21 lb
- Minimum Screen Size Supported: 32"
- Maximum Screen Size Supported: 70"
- Features:
- Heavy Duty
- Swivel
- Tilt
- Rotate
- Full Motion
- Articulating
- Extendable Arm
- Durable
- Cable Management
- Pivot
Physical Characteristics
- Color Family: Black
- Product Color: Black
- Product Material:
- Steel
- Plastic
- Mounting Pattern:
- 400 x 300
- 300 x 200
- 600 x 400
- 400 x 200
- 400 x 400
- 300 x 300
- 200 x 200
- 200 x 100
- 200 x 300
- 200 x 400
- 600 x 200
- 600 x 300
- Height: 16.50"
- Width: 25.30"
- Length: 20.40"
- Weight (Approximate): 15.50 lb
Miscellaneous

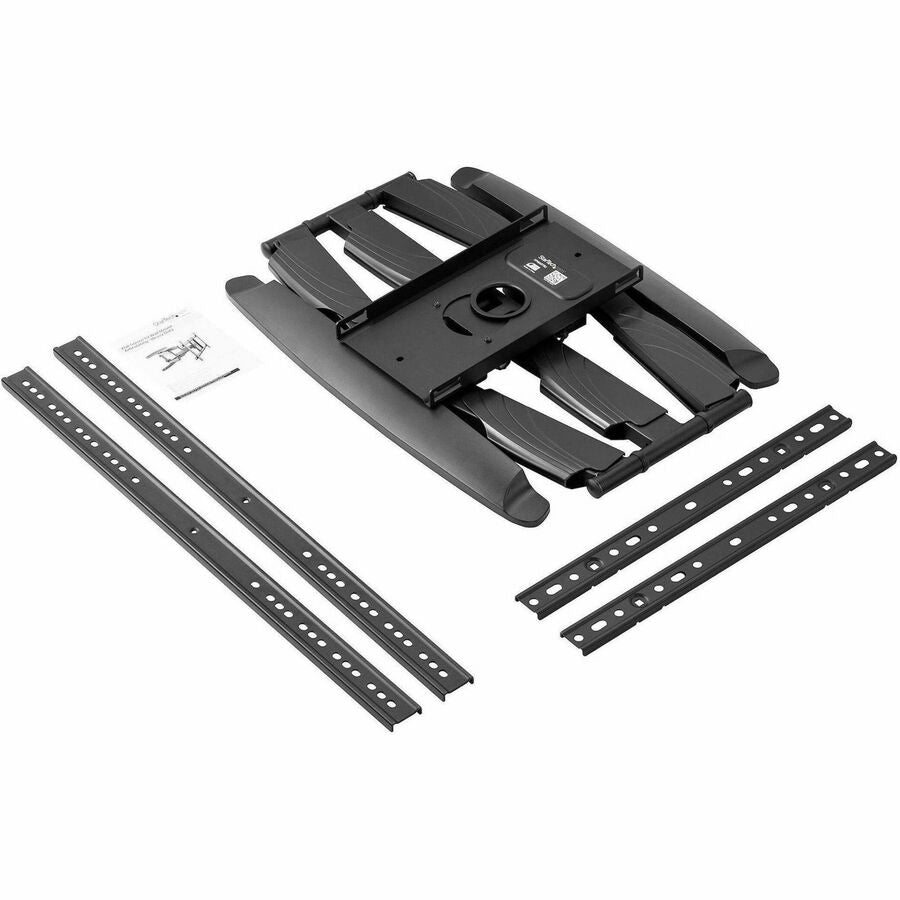

- Package Contents:
- 1 x Wall Mount
- 2 x Vertical Brackets
- 2 x Horizontal Brackets
- 1 x Wrench
- 4 x Bracket Screws
- 4 x Nuts
- 2 x Mounting Screws
- 4 x M5x14 mm Screws
- 4 x M6x14 mm Screws
- 4 x M6x30 mm Screws
- 4 x M8x30 mm Screws
- 4 x M8x50 mm Screws
- 4 x Small Washers
- 4 x Large Washers
- 8 x Small Spacers
- 8 x Large Spacers
- 6 x Screws
- 6 x Concrete Screws
- 6 x Bracket Washers
- 1 x Instruction Manual
- Country of Origin: China
- Environmentally Friendly: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
- Limited Warranty: 5 Year
