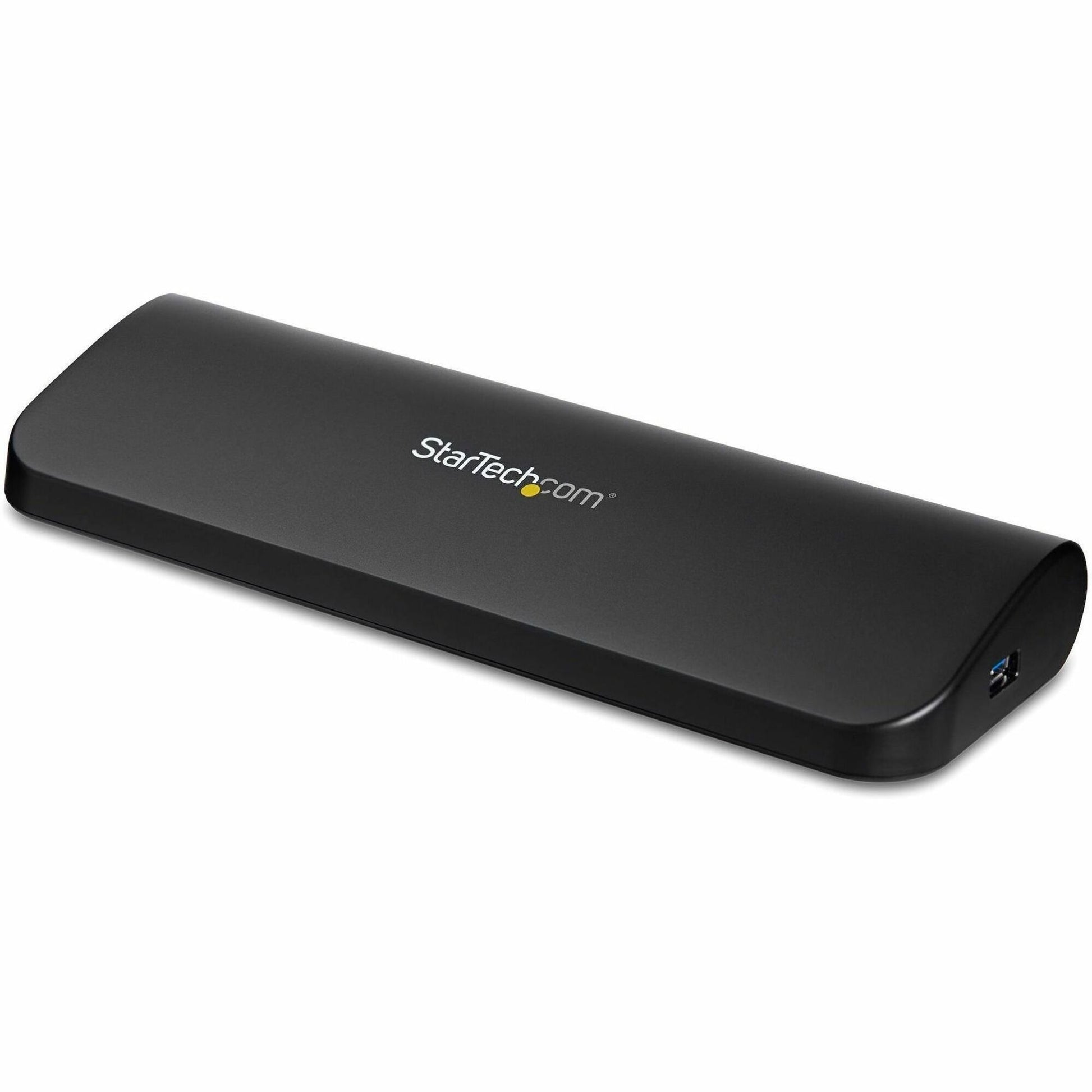

StarTech.com USB 3.0 Docking Station - Compatible with Windows / macOS - Supports Dual Displays - HDMI and DVI - DVI to VGA Adapter Included - USB3SDOCKHD - USB3SDOCKHDV
Key Features
- CONNECTIVITY TOOLS: Optimize the performance and security of this docking station, using the included MAC Address Changer, USB Event Monitoring, Windows Layout & Wi-Fi Auto Switch utilities (available for download)
- INCREASED PRODUCTIVITY: This dual monitor docking station combines 3x USB 3.2 Gen 1 (5Gbps) ports, headphone & mic audio jack, and a Gigabit Ethernet RJ45 port into a single IT-grade dock; Connect directly to older VGA and DVI monitors without adapters
- UNIVERSAL COMPATIBILITY: Compatible with Windows, macOS, & ChromeOS, enabling extended dual displays on laptops, Chromebooks and MacBooks that feature a USB-A host connection such as X1 Carbon, ThinkPad, Latitude, Precision, XPS 15, Spectre, and ZBook
- UNIVERSAL DUAL MONITOR DOCKING STATION: USB 3.0 docking station features HDMI, VGA, and DVI outputs for broad display compatibility; Supports up to 1920x1080 (HDMI), 1920x1200 (DVI-D), and 2048x1152 (VGA); This dual monitor dock is TAA compliant
- VERSATILE DESIGN: The high performance dock features a sleek design that is the ideal addition to any home or office workstation; This dock enhances your laptop's capabilities while taking up little desk space; Includes 3ft (0.9m) USB 3.2 Gen 1 host cable
Product Overview
This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking station for maximum productivity.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this universal laptop docking station features HDMI, DVI and VGA external monitor outputs. Each video output supports HD video resolutions (2048x1152 max) and HD video playback for an ideal solution to expanding your notebook's video capability.
Available display combinations:
- HDMI + VGA
- HDMI + DVI
Integrated USB Hub

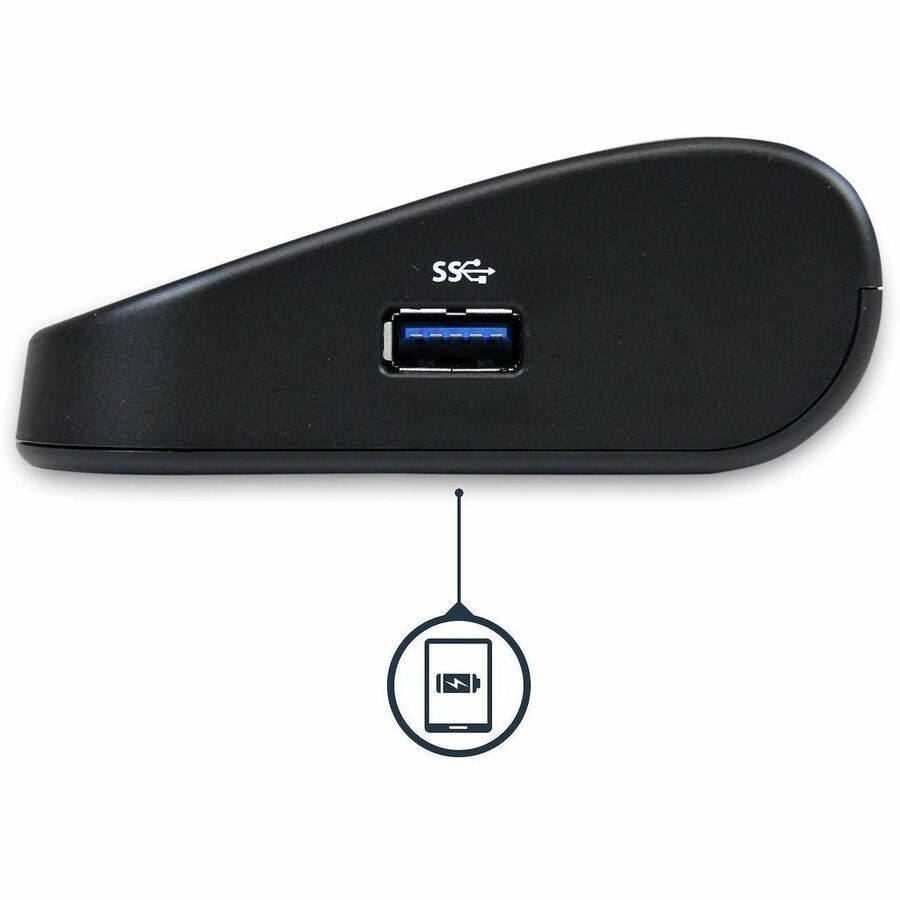

The built-in USB hub features three USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse, as if they are connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 Docking Station is backed by a competitive 3-year warranty and free lifetime Technical Support.
More from the Manufacturer
General Information
- Manufacturer: StarTech.com
- Manufacturer Part Number: USB3SDOCKHDV
- Brand Name: StarTech.com
- Product Name: Dual-Monitor USB 3.0 Docking Station with HDMI &DVI/VGA
- Packaged Quantity: 1 Each
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions:
- 1920 x 1200
- 1920 x 1080
- 2048 x 1152
- Screen Mode Supported: HD
- Device Supported: Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB 3.0
- Audio Line Out: Yes
- Total Number of USB Ports: 4
- Number of USB Type-A Ports: 3
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- VGA: Yes
- Headphone/Microphone Combo Port: Yes
- Microphone: Yes
- Number of HDMI Outputs: 1
- HDMI: Yes
- DVI: Yes
Software
- Operating System Supported:
- macOS 14
- Windows XP SP3
- Windows Vista
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Mac OS X 10.6 Snow Leopard
- Mac OS X 10.12 Sierra
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 11.0 Big Sur
- Mac OS X 12.0 Monterey
- Mac OS X 13.0 Ventura
- ChromeOS 69+

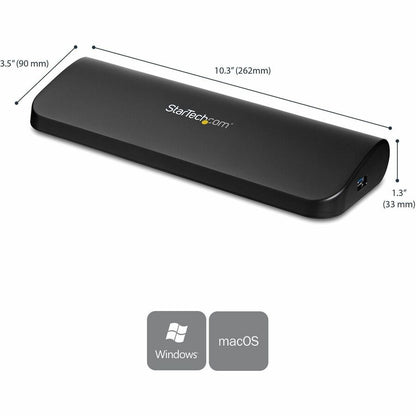

Physical Characteristics
- Product Color: Black
- Height: 1.73"
- Width: 7.01"
- Weight (Approximate): 10.41 oz
Miscellaneous
- Compatibility:
Compatible with Windows, macOS, & ChromeOS, enabling extended dual displays
on laptops, Chromebooks and MacBooks that feature a USB-A host connection such as X1 Carbon, ThinkPad, Latitude, Precision, XPS 15, Spectre, and ZBook
- Environmentally Friendly: Yes
- TAA Compliant: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
