StarTech USB 3.0 Docking Station - Windows / macOS Compatible - Supports Dual Displays, HDMI / DisplayPort or 4K Ultra HD on a Single Monitor - USB3DOCKHDPC - USB3DOCKHDPC
Key Features
- 4 USB ports offers a more refined structure and safer to use connectivity
- Charging capability provides a quicker, worry-free charging experience
- Docking Station provides a trouble-free charging solution with reliable, feasible connectivity for your notebook
- Gigabit Ethernet Ethernet technology for a reliable, convenient way of communication and connectivity
- The HDMI supports digital audio/video output to a wide assortment of HD gadgets
- USB 3.0 host interface allows powerful and efficient transfer of data with maximum productivity
- Wired connectivity technology provides a high-powered and dependable connection
Product Overview
This TAA compliant dual-monitor USB 3.0 docking station combines a 4-port USB 3.0 hub, headphone and microphone audio connectors, a USB fast-charge port, and a GbE RJ45 Port with Wake-on-LAN (WOL).
4K Ultra HD Resolutions
This 4K USB docking station supports DisplayPort plus HDMI dual video, or a single DP display at 4K Ultra HD resolutions (3840 x 2160p).
Maximum Supported Resolutions*
Video Output Configuration Max DisplayPort Resolution Max HDMI ResolutionDisplayPort (Single Display)
3840 x 2160p (4K) N/A HDMI (Single Display) N/A 2560 x 1440p DisplayPort and HDMI (Two Displays) 2048 x 1152p 2048 x 1152p*Lower resolutions are also supported. For example, if the max is 3840 x 2160p (4K), it also supports 2560 x 1600p and 2560 x 1440p.
Integrated USB 3.0 Hub
The built-in USB hub features four USB 3.0 ports for connecting extra peripherals such as external hard drives or a wired mouse as if they are connected directly to your laptop.

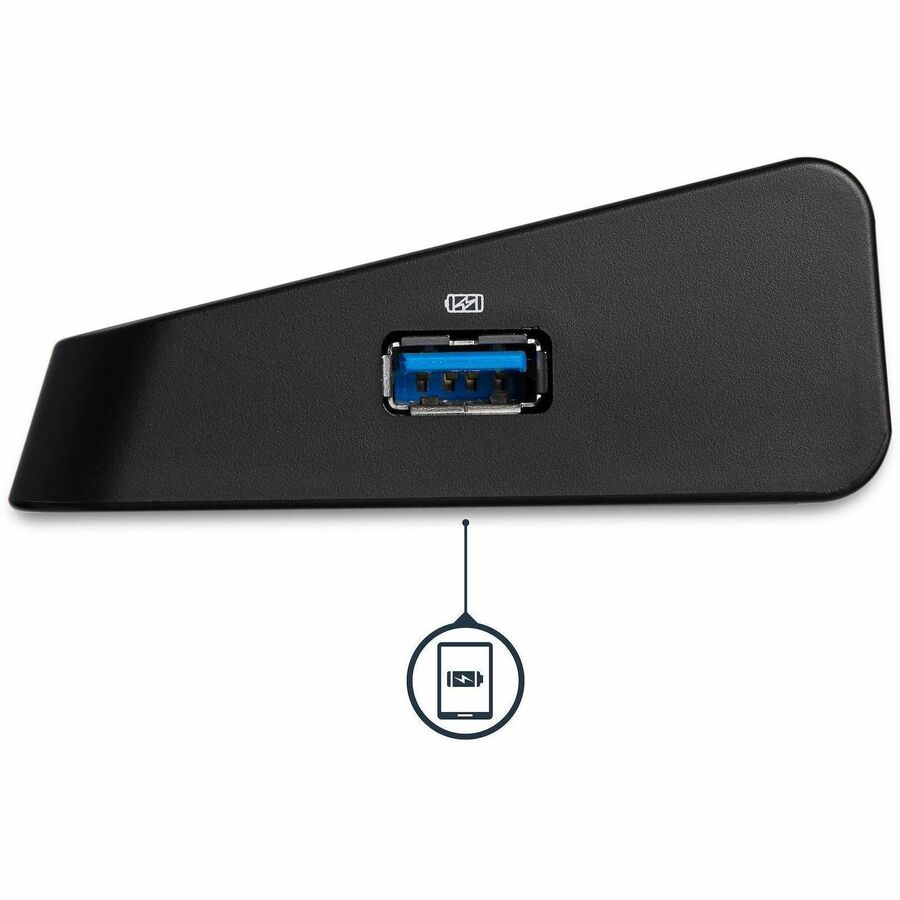

USB Fast Charge
The USB 3.0 dock's always-on USB fast-charge port charges devices without a laptop connection and supports USB Battery Charging Specification 1.2 making it easy to charge your tablets and other mobile devices.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000Mbps, giving you an instant connection to a reliable wired network.
Easy to Use
This docking station with DisplayPort and HDMI is universally compatible, working with Mac and Windows® USB 3.0 equipped laptops and includes a 2ft. USB 3.0 cable for quick setup.
StarTech laptop docking stations can be used for cost savings and faster deployment with just a single cable. This USB 3.0 docking station is backed by a competitive 3-year warranty and free lifetime multilingual Technical Support.
More from the Manufacturer
General Information
- Manufacturer: StarTech
- Manufacturer Part Number: USB3DOCKHDPC
- Brand Name: StarTech
- Product Name: 4K Docking Station for Laptops - DP and HDMI - USB 3.0
- Packaged Quantity: 1 Each
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Charging Capability: Yes
- Number of Displays Supported: 2
- Supported Resolutions:
- 3840 x 2160
- 2560 x 1440
- 2048 x 1152
- Device Supported: Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet

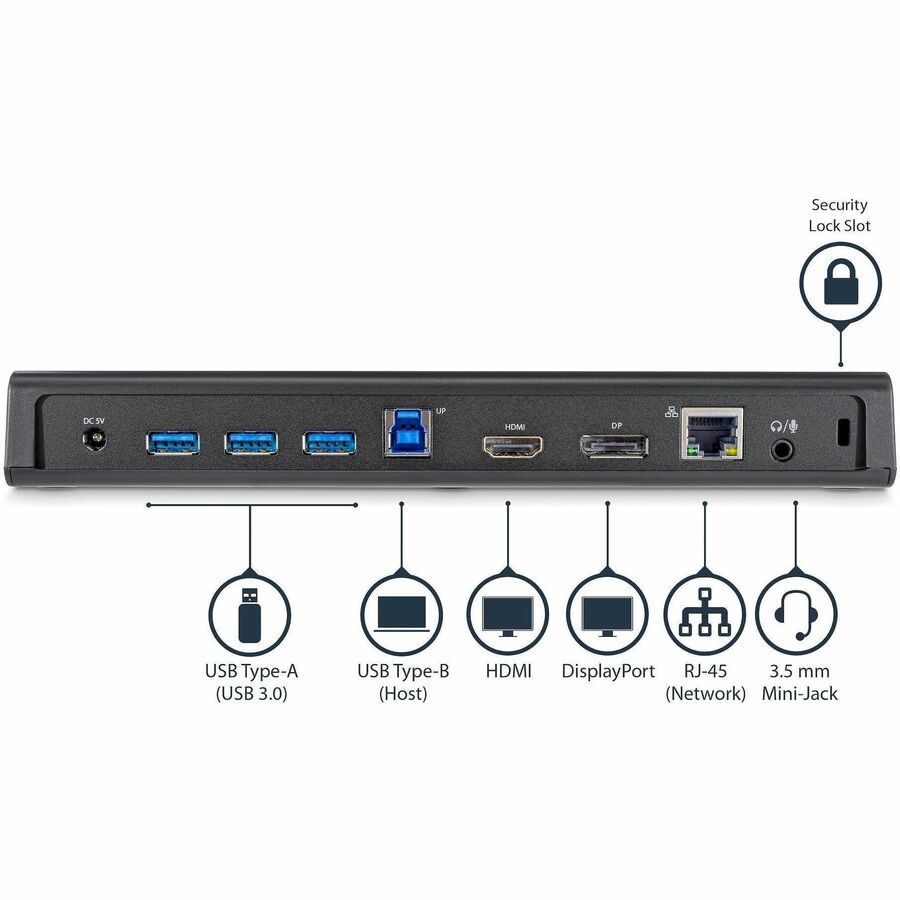

Interfaces/Ports
- Host Interface: USB 3.0
- Total Number of USB Ports: 4
- Number of USB 3.0 Ports: 4
- USB Type-A: Yes
- Network (RJ-45): Yes
- DisplayPort: Yes
- Headphone/Microphone Combo Port: Yes
- Microphone: Yes
- HDMI: Yes
Software
- Operating System Supported:
- macOS 14
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Mac OS X Server 10.8 Mountain Lion
- Mac OS X 10.12 Sierra
- Mac OS X 10.14 Mojave
- Mac OS X 10.15 Catalina
- Mac OS X 11.0 Big Sur
- Mac OS X 12.0 Monterey
- Mac OS X 13.0 Ventura
- ChromeOS 55+

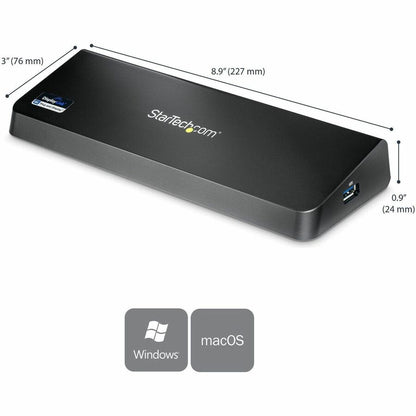

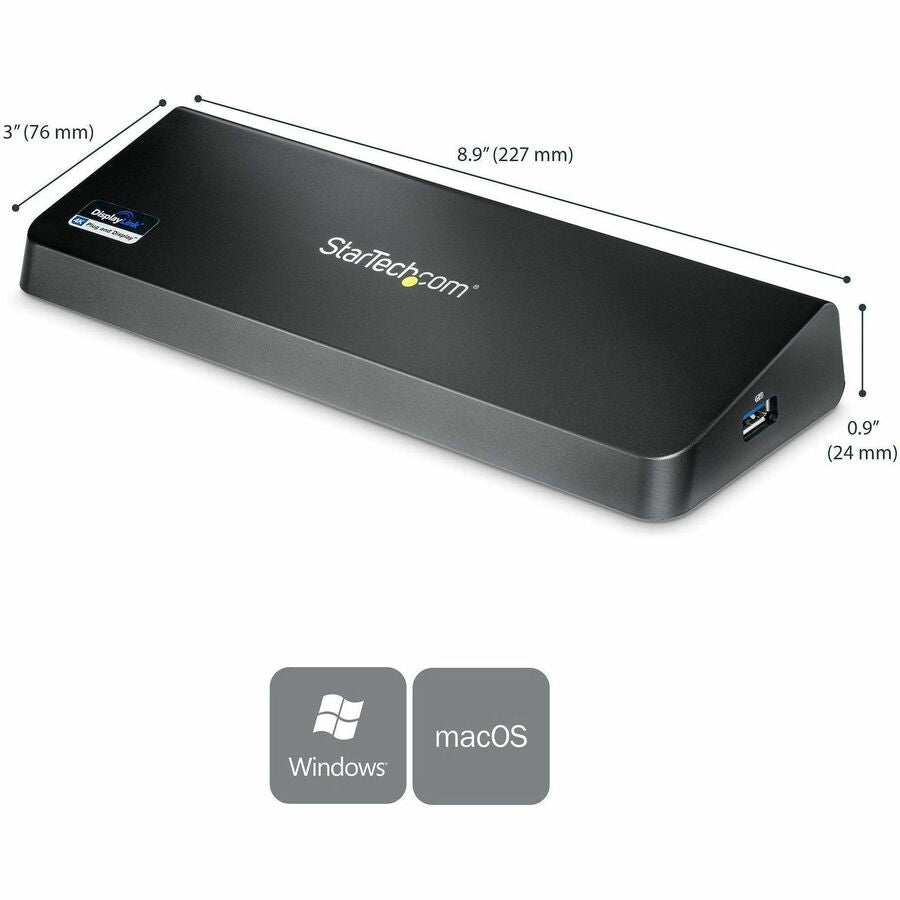

Physical Characteristics
- Product Color: Black
- Height: 0.90"
- Width: 3"
- Weight (Approximate): 9.80 oz
Miscellaneous
- Kensington Security Slot: Yes
- Compatibility:
- Apple Mac Laptops
Microsoft Products:
- Surface Pro 4
- Surface Pro 3
- Surface 3
- Surface Pro 2
- Surface Book
- Environmentally Friendly: Yes
- TAA Compliant: Yes
- Environmental Compliance:
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Taiwan
