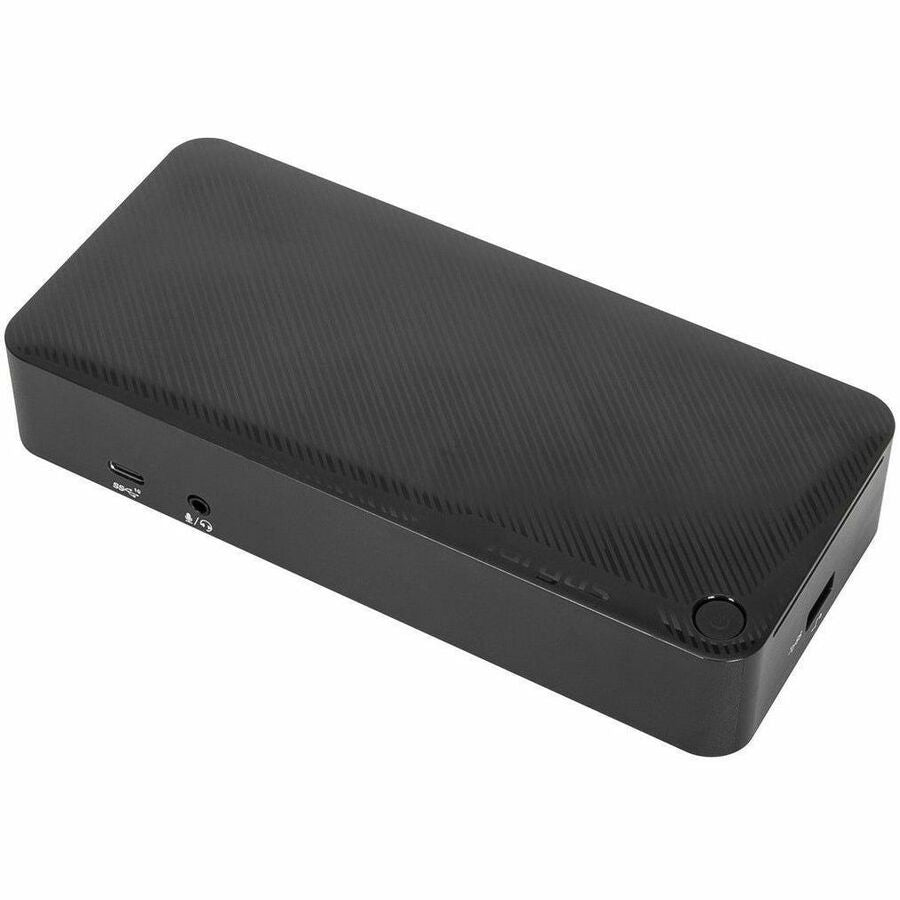

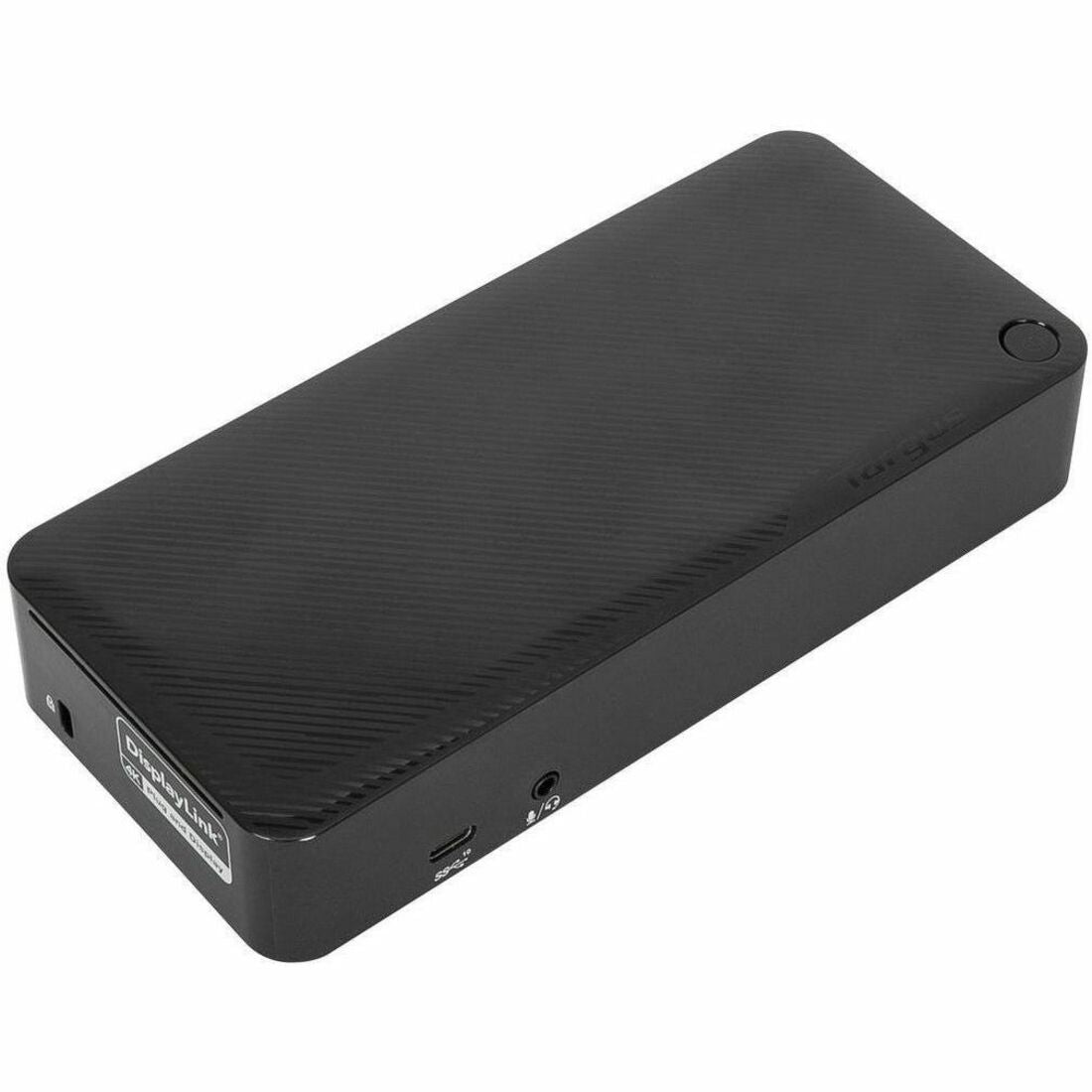

Targus DOCK192USZ Docking Station - DOCK192USZ
Key Features

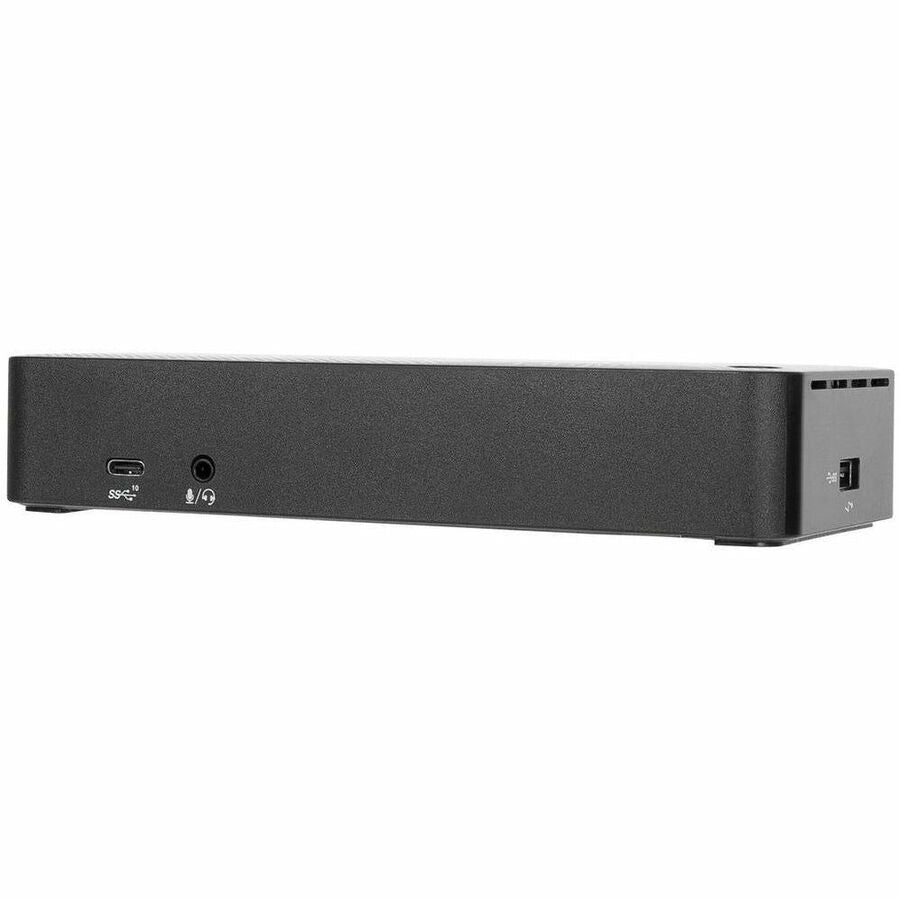

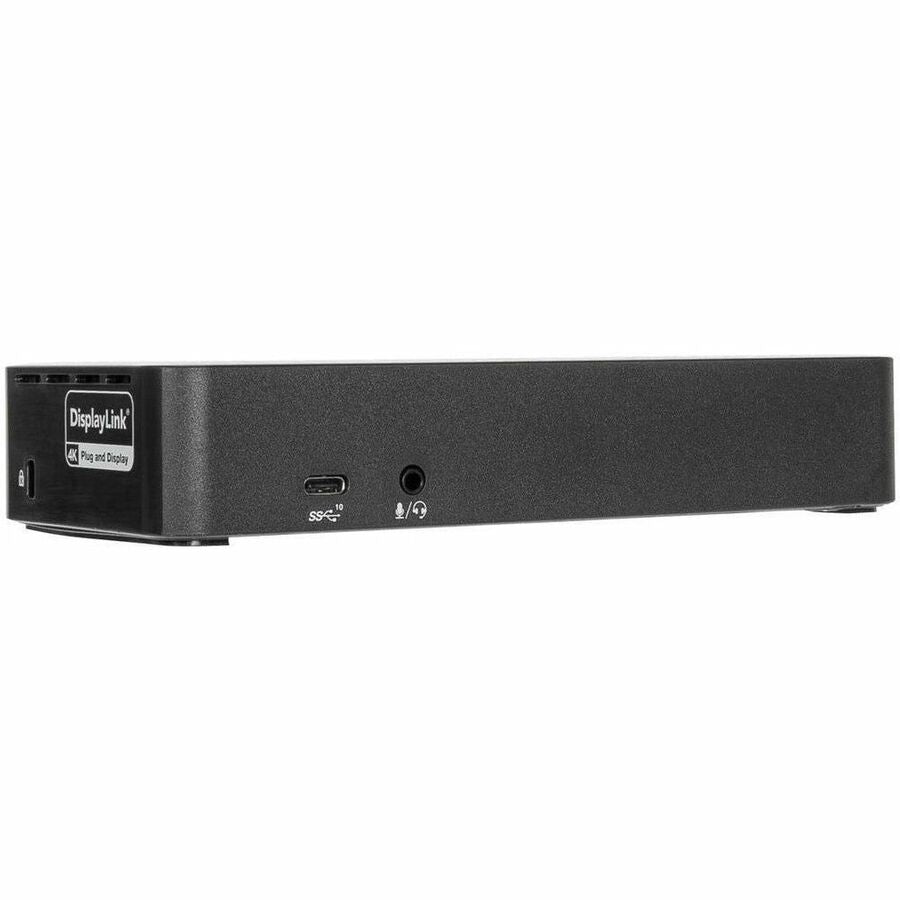

- 1 3.5mm combo Audio In/Out port
- 1 Gigabit Ethernet port
- 1 USB 3.2 Gen 2 Type-C (10 Gbps) port
- 1M USB-C detachable host cable (C/M to C/M) with (C/F to A/M) tethered adapter

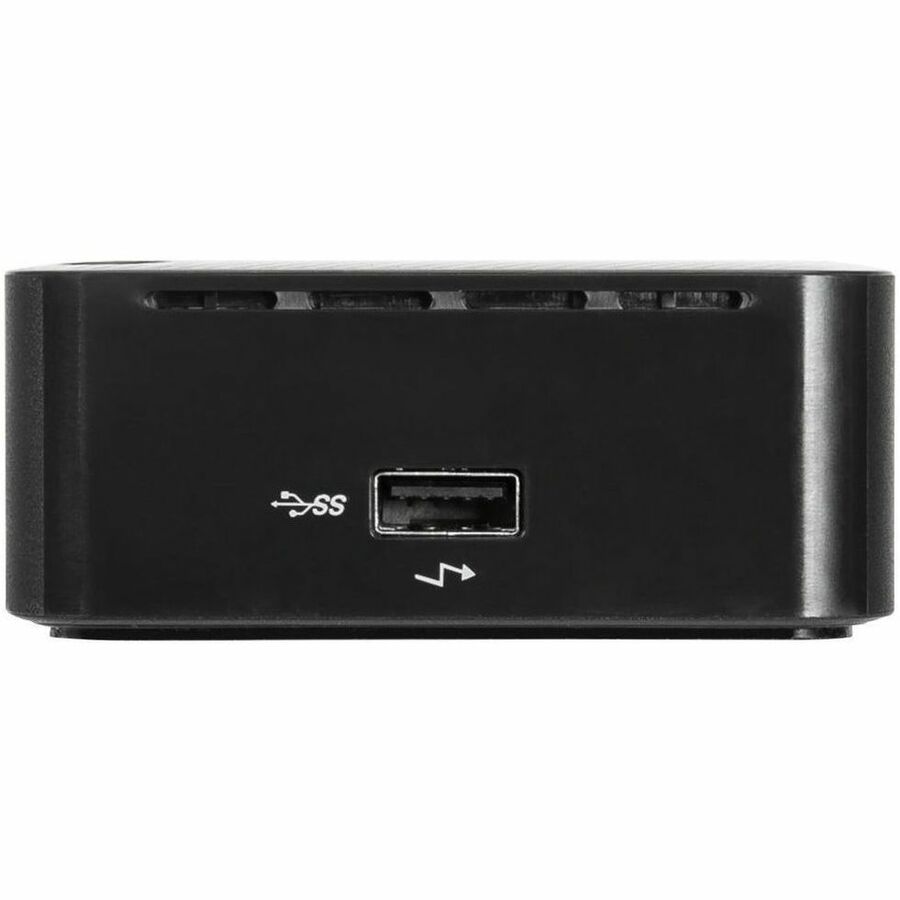

- 4 USB 3.2 Gen 1 Type-A ports (1 fast charging)
- Compatible with Targus VESA® Mounting Bracket (ACX003GLZ, sold separately)

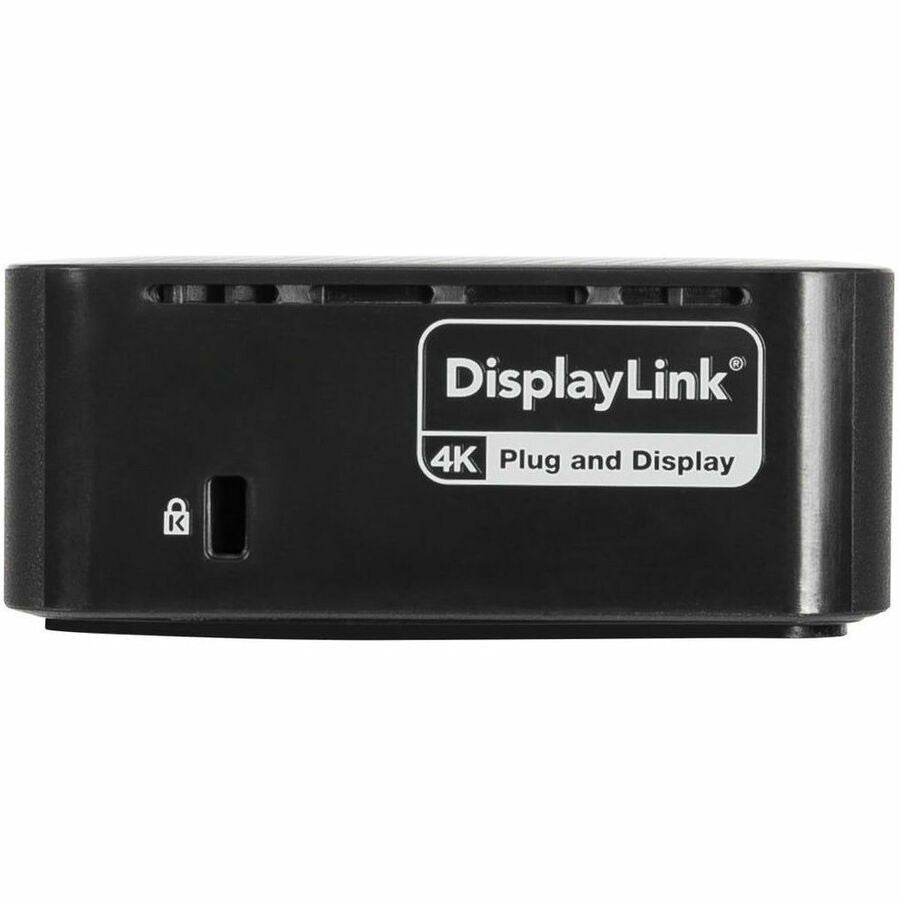

- Integrated lock slot accommodates standard security locks to safeguard equipment
- Limited 3-Year warranty
- Power Delivery 3.0 up to 100W for USB-C hosts

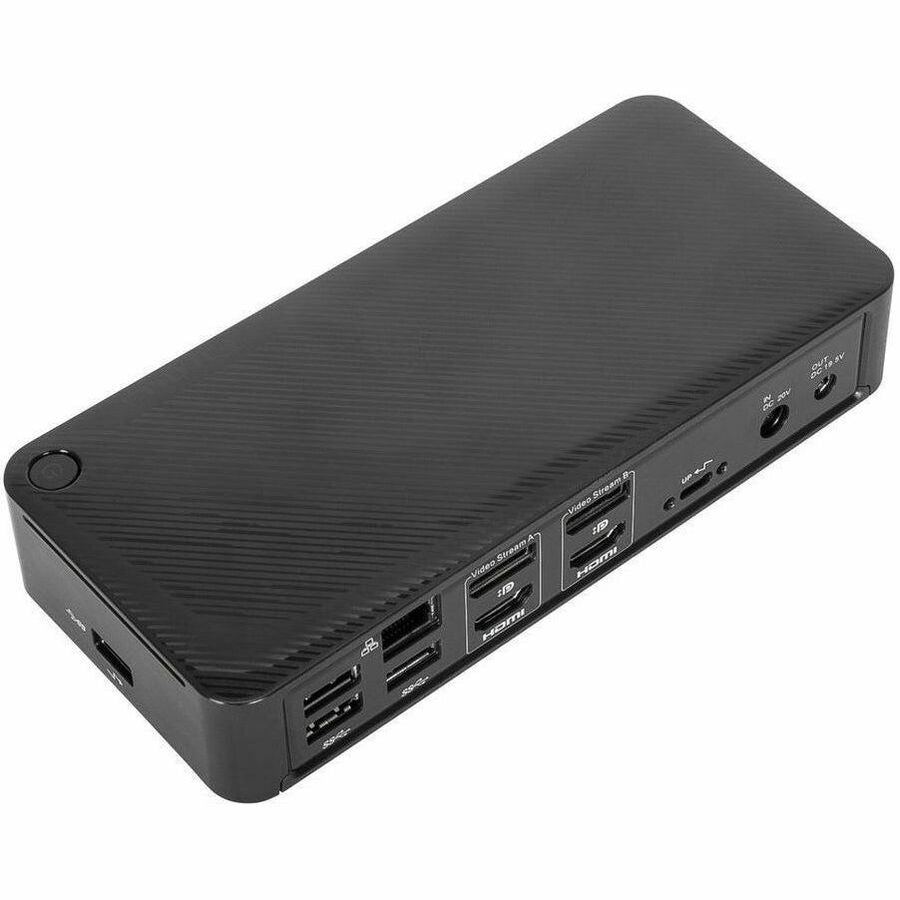

- Supports single and dual 4K UHD @ 60 Hz video via two DisplayPort™ 1.2a ports or HDMI 2.0 ports
Product Overview
Expand your workstation and connect to virtually any laptop with the Universal USB-C® DV4K Docking Station with 100W Power with Legacy Host Power Kit. Designed to support and power a wide variety of laptops and operating systems, including Windows®, macOS®, Android™, Chrome OS™, and Ubuntu®, this patented dock packs all of the ports and power you need, whether you have a USB-C or USB-A host device. Enjoy sharp 4K video while supporting a connection up to two monitors with its two HDMI and two DisplayPort™ connections. Plus connect all your favorite accessories - like a mouse, keyboard, hard drive, and more - with a combination of USB-A (4x USB 3.2 Gen 1 Type-A ports) and USB-C (1x 3.2 Gen 2 Type-C), plus Ethernet and audio ports.General Information
- Manufacturer: Targus Group International
- Manufacturer Part Number: DOCK192USZ
- Brand Name: Targus
- Product Model: DOCK192USZ
- Product Name: DOCK192USZ Docking Station
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions: 3840 x 2160
- Screen Mode Supported: 4K
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB 3.2 (Gen 1) Type C
- USB Type-C: Yes
- USB Type-C Detail: USB 3.2 Gen 2 Type-C
- Number of USB Type-A Ports: 4
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 2
- DisplayPort: Yes
- DisplayPort Version: 1.2a
- Number of Mini DisplayPort: 0
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 2
- HDMI: Yes
- USB Power Delivery: 100W
Software
- Operating System Supported:
- Windows
- macOS
- Android
- Linux
- ChromeOS
- Ubuntu
Physical Characteristics
- Product Color: Black
- Height: 1.25"
- Width: 3.25"
- Weight (Approximate): 12.16 oz
Miscellaneous

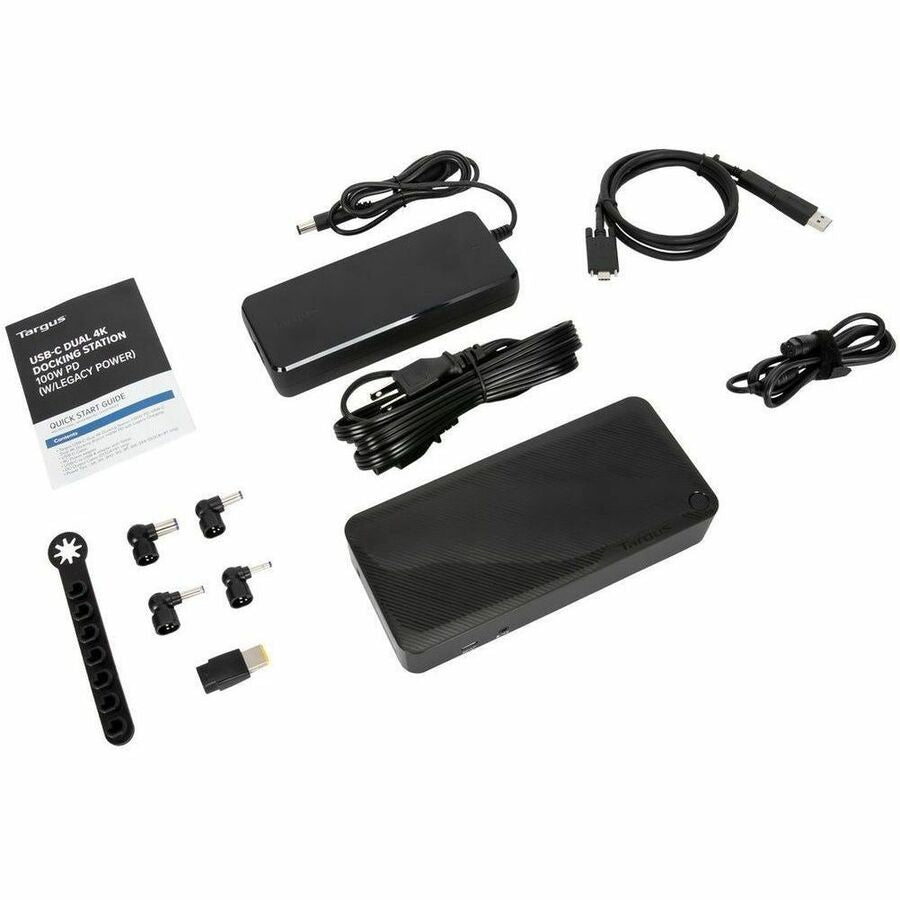

- Package Contents:
- DOCK192USZ Docking Station
- Quick Start Guide

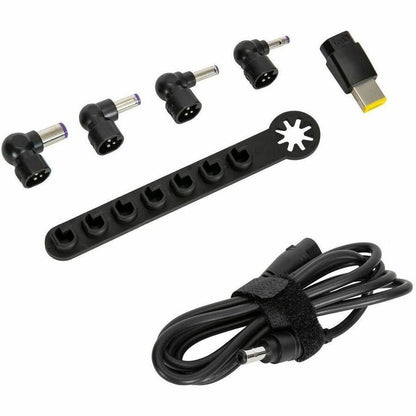

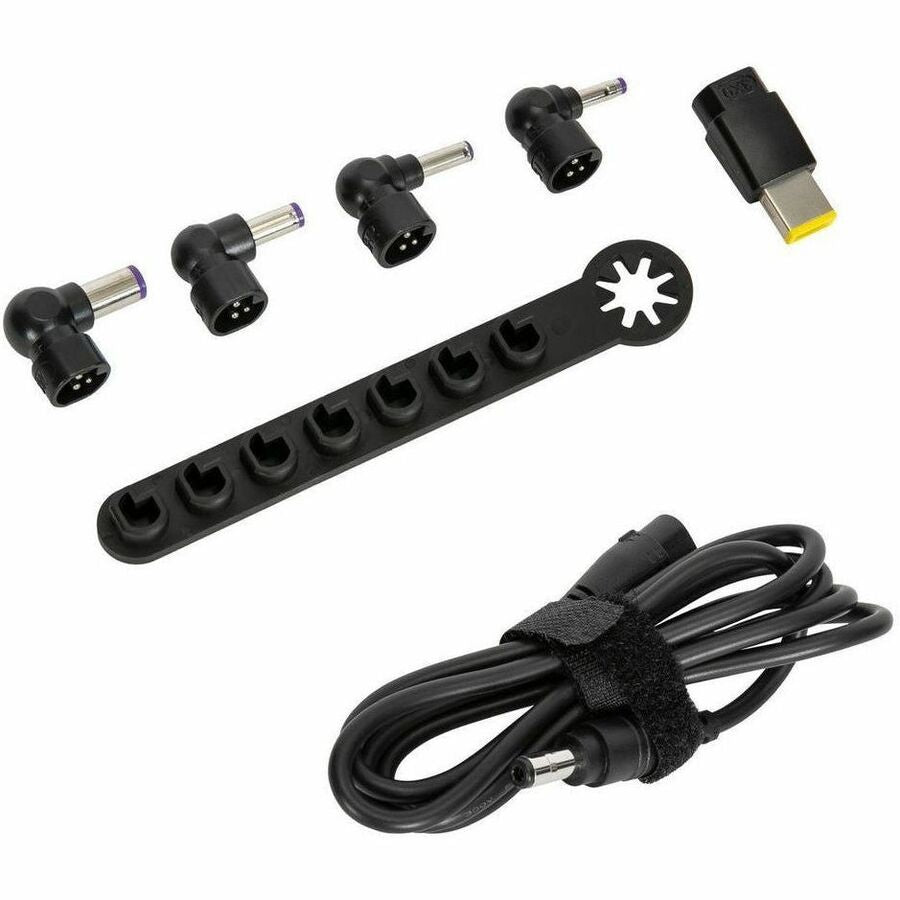

- Tip Storage Bar
- Power Tips
- Adapter, AC to DC, output: 19V, 7.89A, 150W
- AC Power Cord, C5 Connector, US plug 3P, 1.8M
- USB C/M to C/M Cable, Black; 1m, 5A, 10Gbps, E-marked, screw-in
- DC cable to power 3 tip, 1M
- Kensington Security Slot: Yes
- TAA Compliant: No
- Country of Origin: Taiwan
Warranty
- Limited Warranty: 3 Year
