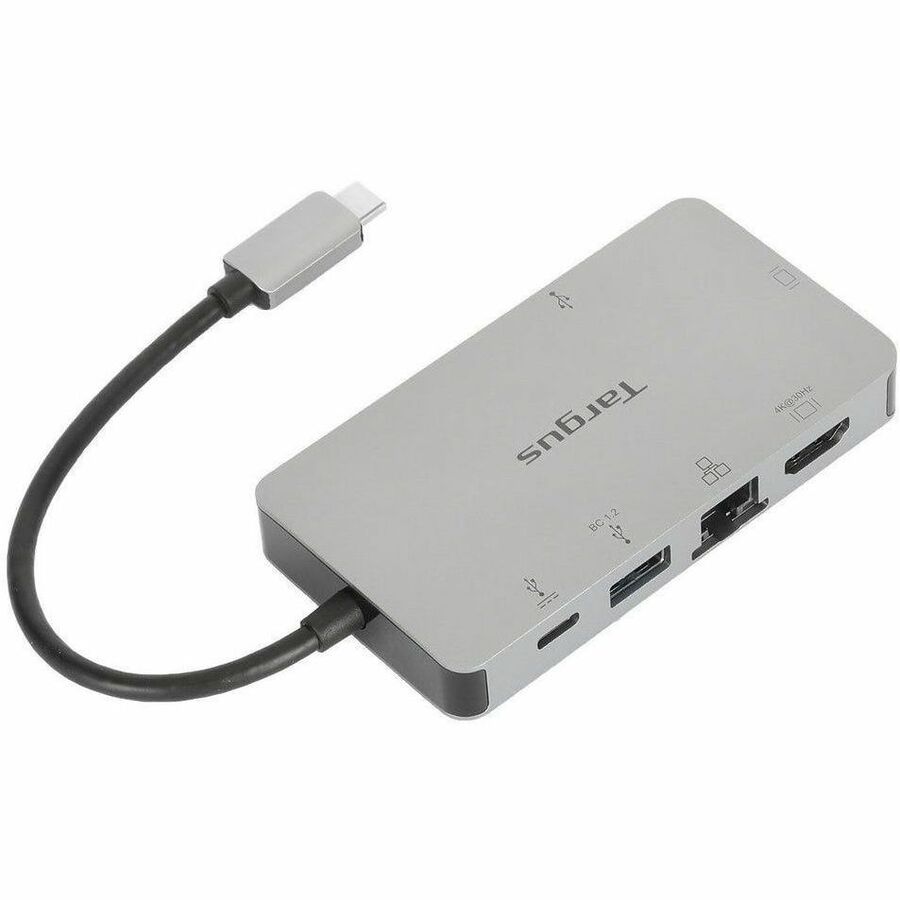

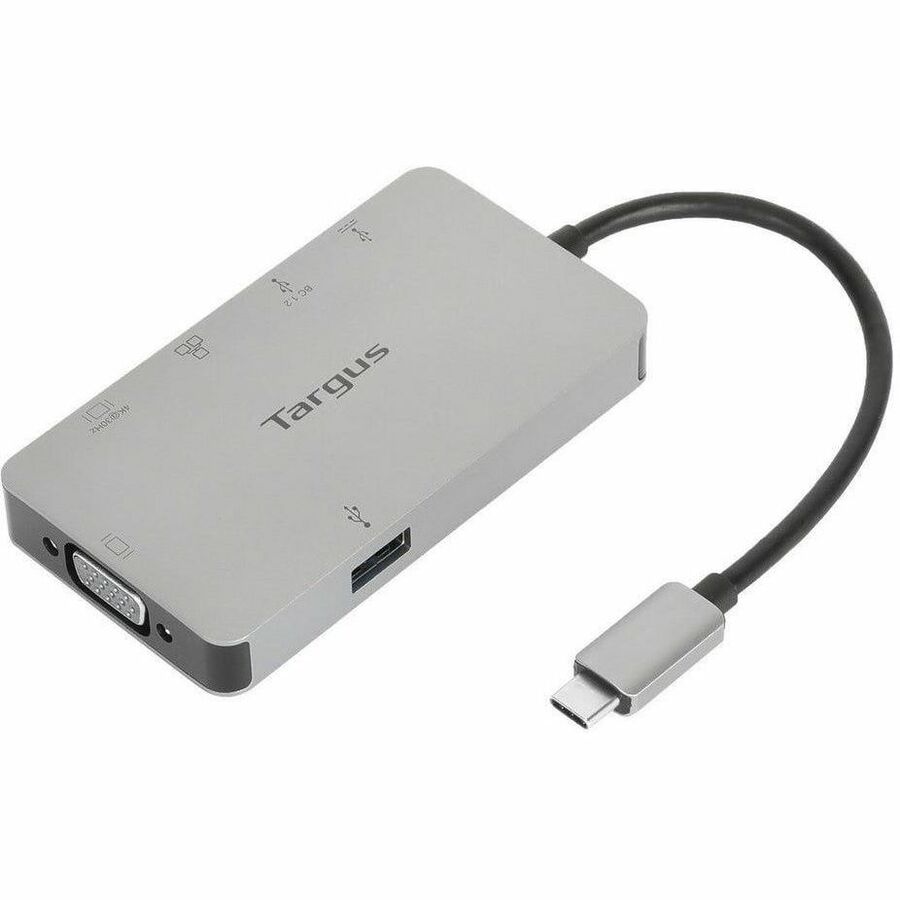

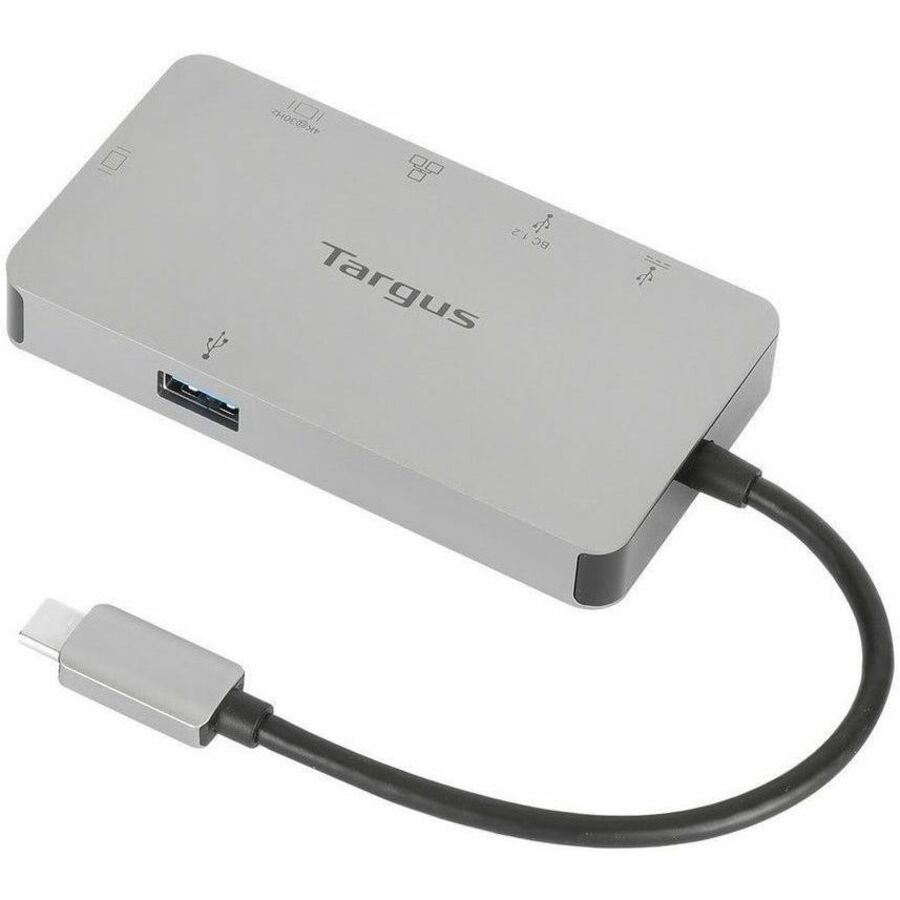

Targus DOCK419USZ Docking Station - DOCK419USZ
Key Features
- 2-year warranty

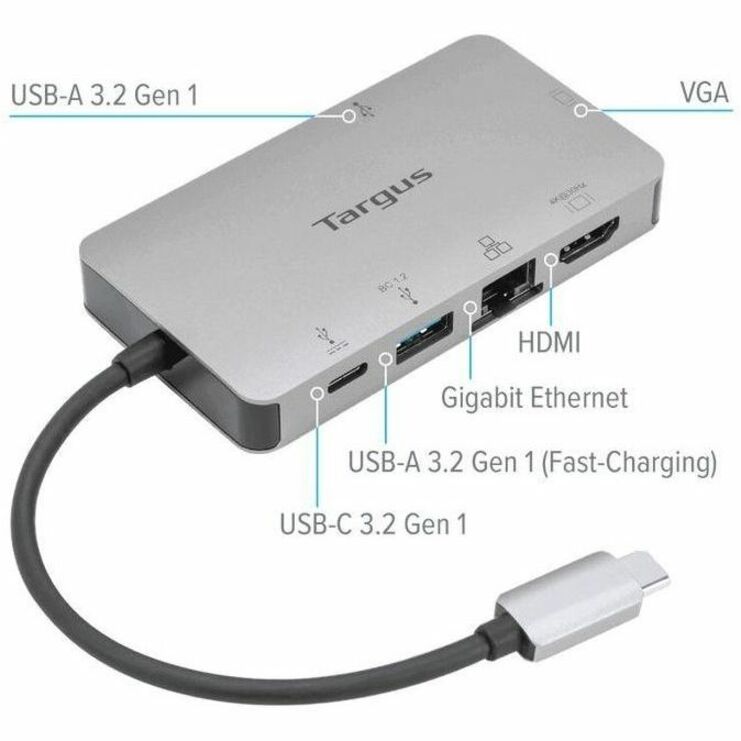

- Add 2 USB-A 3.2 Gen 1 ports (1 fast charging) and 1 USB-C 3.2 Gen 1 port to your host
- Connect a USB-C device or power adapter to the USB-C port
- Connect one external HDMI display (max resolution 4K@30Hz) or one VGA display (max resolution 1920x1200@60Hz)
- Connect quickly and securely to the internet with the Gigabit Ethernet port
- Supports up to 5Gbps data transfer rate per USB-A or USB-C port
- Thunderbolt™ 3 host compatible
- USB-C (3.2 Gen 1 SuperSpeed 5Gbps) port supports power delivery pass-through
- USB-C (3.2 Gen 1 SuperSpeed) connector supports power delivery up to 100W upstream and Power Delivery 3.0 Fast Role Swap
- Windows®, MacOS®, Chrome OS™ compatible
Product Overview
Turn your laptop into a workstation with the compact USB-C DP Alt Mode Single Video 4K HDMI/VGA Docking Station with 100W PD Pass-Thru. Connect your USB-C-enabled devices to a single HDMI or VGA display, while also connecting to a Gigabit Ethernet network, and plugging in your key peripherals - like mice, keyboards, flash drives or hard drives - into the USB-A and USB-C ports. You can even keep your laptop charged and powered by connecting your laptop's USB-C power adapter to the USB-C port on the dock. It supports up to 100W (20V/5A) charging max. This dock also provides transfer speeds up to 5Gbps per port. Compact and lightweight, it's easy to take it along with you anywhere you go.
General Information
- Manufacturer: Targus Group International
- Manufacturer Part Number: DOCK419USZ
- Brand Name: Targus
- Product Model: DOCK419USZ
- Product Name: DOCK419USZ Docking Station
- Packaged Quantity: 1
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions:
- 3840 x 2160
- 1920 x 1200
- Screen Mode Supported:
- 4K
- Full HD
- Device Supported: Notebook
Network & Communication
- Ethernet Technology: Gigabit Ethernet

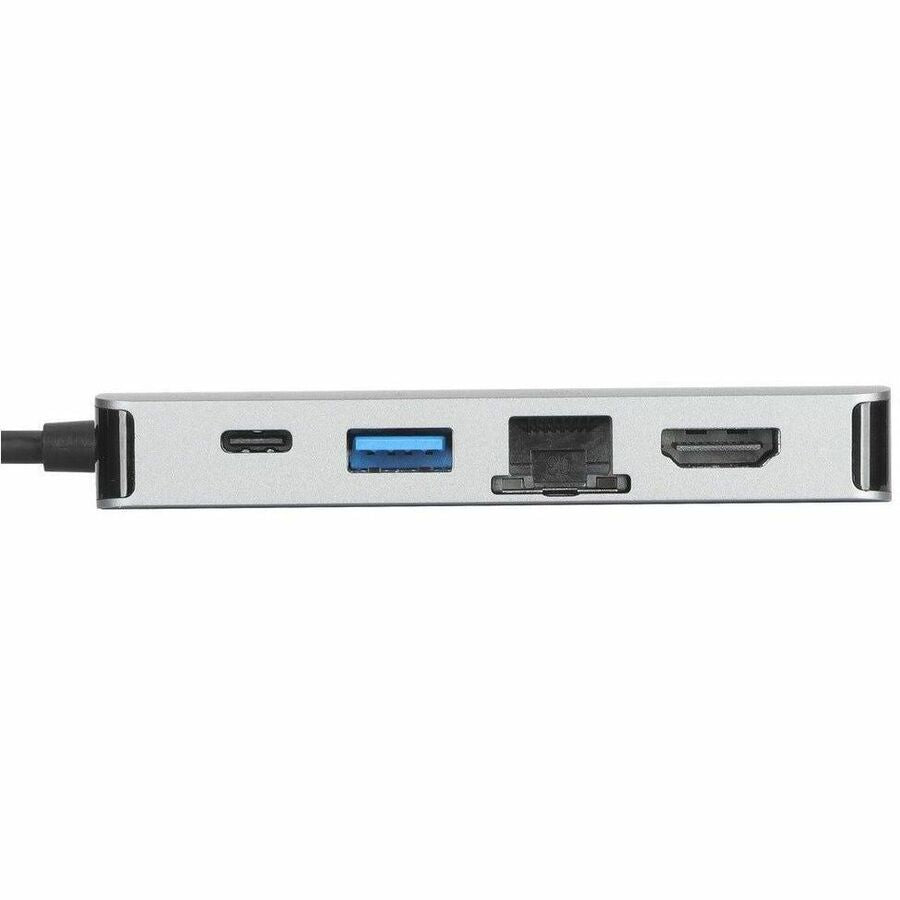

Interfaces/Ports
- Host Interface: USB 3.2 (Gen 1) Type C
- Total Number of USB Ports: 3
- Number of USB Type-C Ports: 1
- USB Type-C: Yes
- USB Type-C Detail: USB 3.2 G1

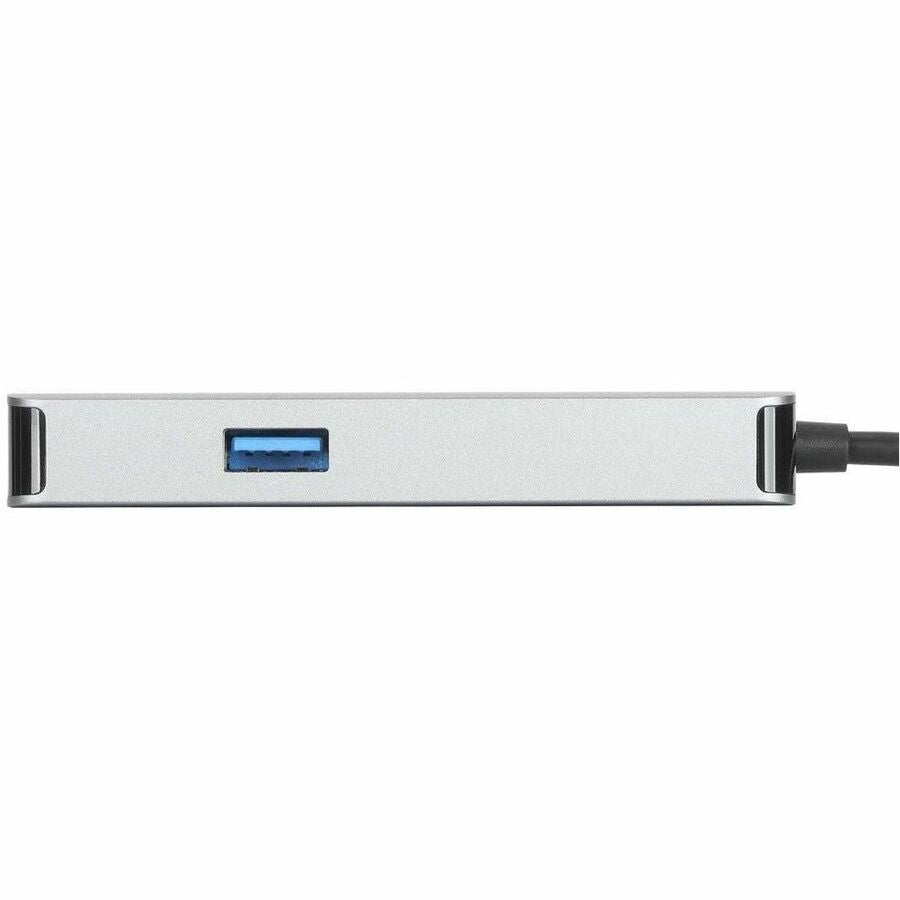

- Number of USB Type-A Ports: 2
- USB Type-A: Yes
- Network (RJ-45): Yes

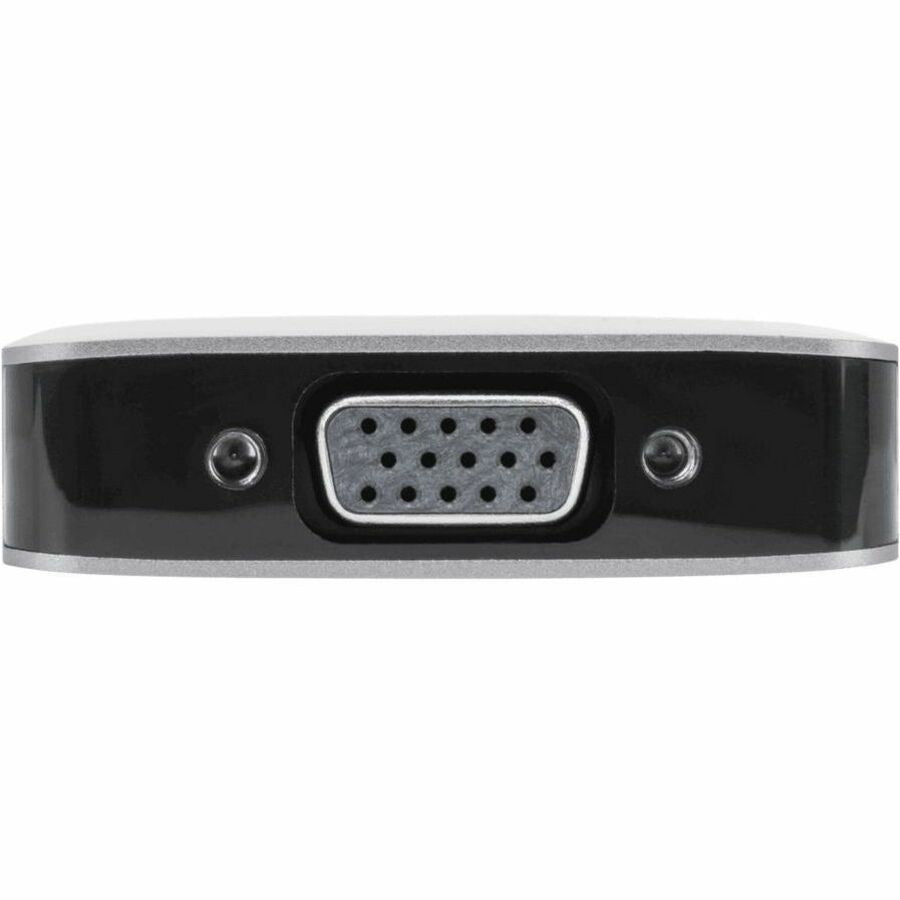

- VGA: Yes
- Number of DisplayPort Outputs: 0
- Number of Mini DisplayPort: 0
- Number of HDMI Outputs: 1
- HDMI: Yes
- USB Power Delivery: 100W
Software
- Operating System Supported:
- Windows
- macOS
- ChromeOS
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color: Gray
- Height: 0.55"
- Width: 2.05"
- Weight (Approximate): 2.88 oz
Miscellaneous
- TAA Compliant: No
- Country of Origin: China
Warranty
- Limited Warranty: 2 Year
