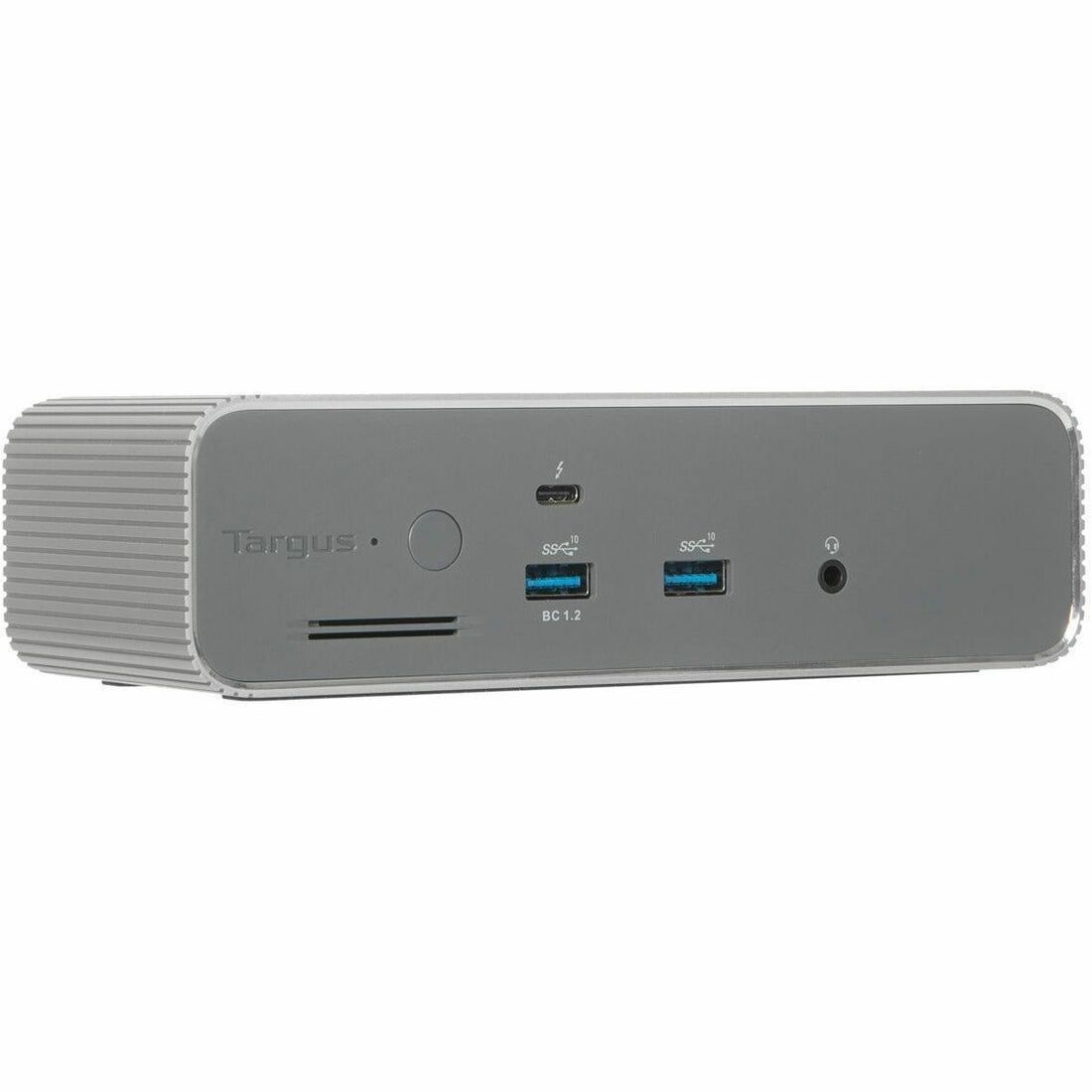

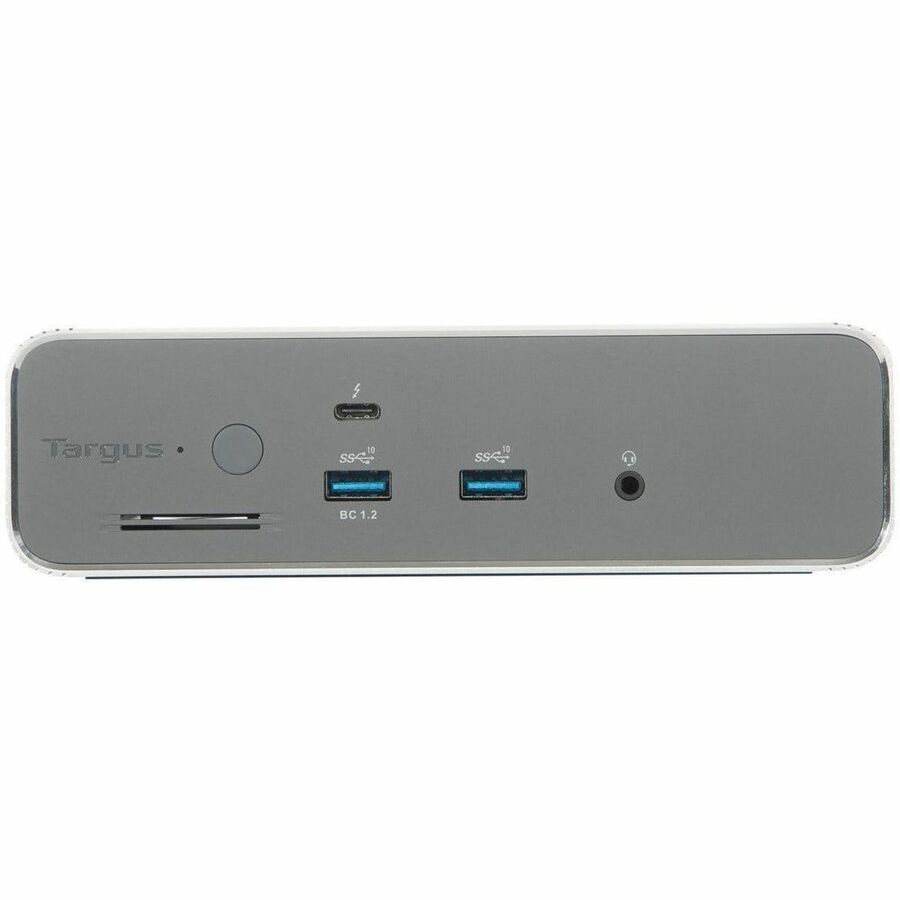

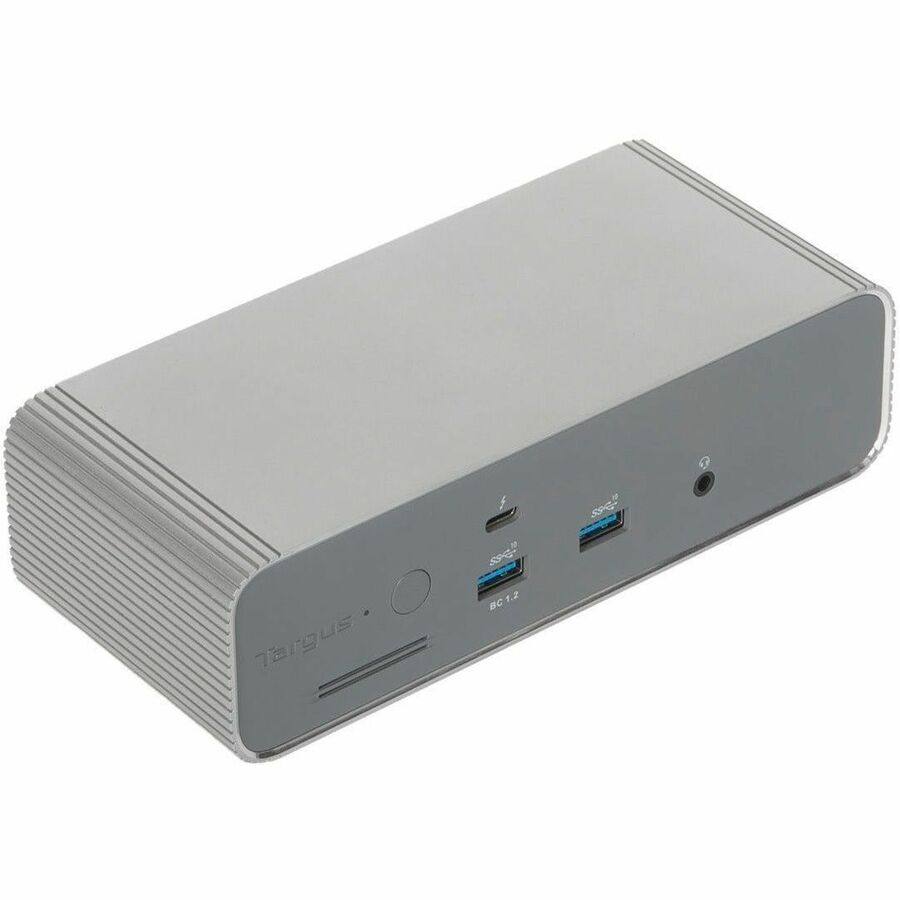

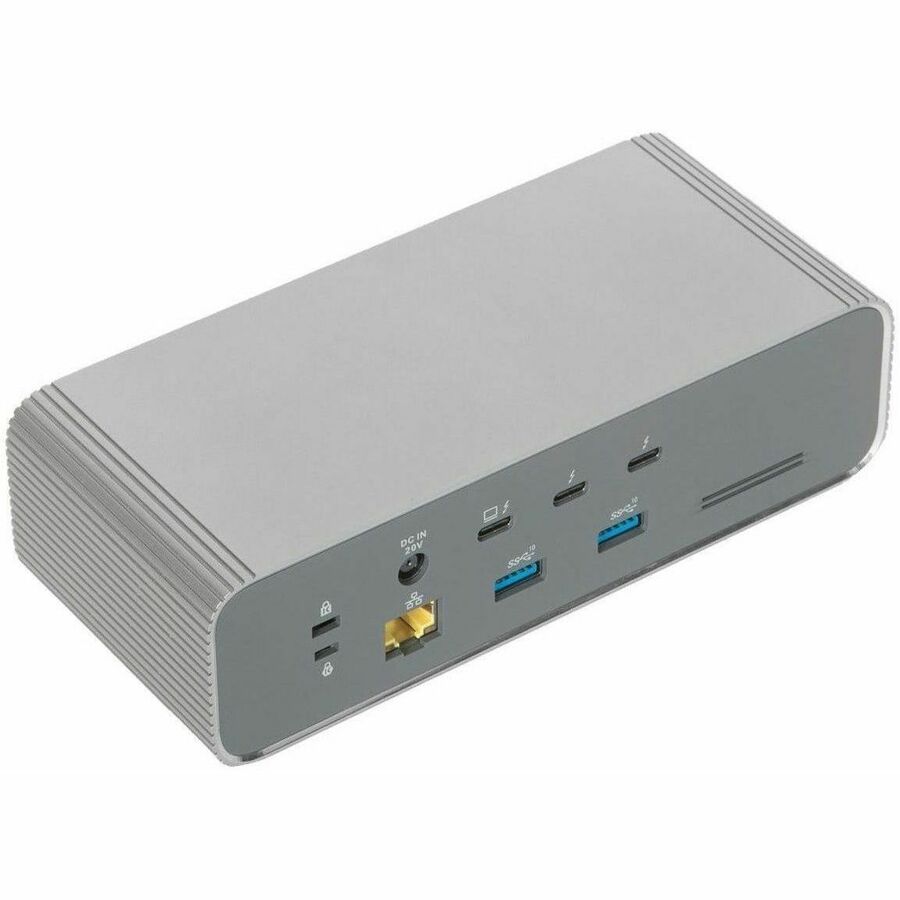

Targus Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR - DOCK230USZ

SKU: DOCK230USZ

Regular price $331.99 USD
Regular price Sale price $331.99 USD
Sale Sold out

 6 in stock

View full details

Targus Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR - DOCK230USZ

Key Features

  • 1x 2.5 Gigabit Ethernet port
  • 1x 3.5mm combo Audio In/Out port for mics, speakers, and headphones
  • 1x Thunderbolt™ 5 upstream port
  • 3x Thunderbolt™ 5 downstream ports with up to 80 Gbps of data throughput and up to 120 Gbps display bandwidth
  • 4x USB 3.2 Gen 2 Type A (10 Gbps) ports (1 supports fast charging)
  • Cables Included: 1x 1.0M passive (80 Gbps data transfer/120 Gbps of video bandwidth) Thunderbolt™ 5 detachable cable (C/M to C/M) and 2x 2m USB-C to HDMI 8K Hi-Speed cables
  • Compatible with Windows® and macOS
  • Integrated standard and nano security lock slots to safeguard equipment
  • Manufactured from up to 75% post-consumer recycled aluminum and plastic
  • Power Delivery 3.1 up to 140W EPR
  • Supports displays, keyboard, mouse, and file sharing between two PCs with Intel Thunderbolt Share™ technology (license included)
  • Supports single, dual, or triple 8K displays via three Thunderbolt 5 connectors
  • VESA mount compatible (sold separately)

Product Overview

Give your workspace the ultimate boost with the Thunderbolt™ 5 Triple Video 8K EcoSmart™ Docking Station with 140W EPR. Whether you're juggling a multi-monitor setup or need some serious charging power, this dock has it all. Zip through data transfers at a lightning-fast 80 Gbps and enjoy up to three video streams at 120 Gbps, all thanks to Thunderbolt 5 connectivity. Plus, enjoy ultra-fast network connections with 2.5G Ethernet, all while keeping it powered up with a robust 140W EPR.

In addition to being speedy, this dock lets you multitask like a pro with two laptops by incorporating Intel's Thunderbolt Share™ technology for seamless sharing of displays and files with just one keyboard and mouse.

And while a true powerhouse on the inside, it's designed with recycled materials on the outside, making it the sustainable choice for earth-conscious power users.

Unmatched Speeds

Move over Thunderbolt 4 and USB4 and make way for the unbeatable Thunderbolt™ 5 speeds. Experience the next generation of docking with up to 3x the bandwidth over TB4 and USB. But don't worry. It's fully compatible with both TB4 and USB4 - making it a true team player. Don't forget, it also supports elevated network speeds with its 2.5G Ethernet port - perfect for those high-performance needs.

Triple Video Support

Maximize your productivity with the capability to connect up to three monitors. Our docking station transforms your workspace, allowing for effortless multitasking with single, dual even triple 8K resolution support.

Amped up Charging

Equip your high-performance laptop with equally impressive power. With up to 140W EPR, DOCK230 will keep your laptop and accessories charged and ready for action.

Ports for Peripherals

While stacked with Thunderbolt™ 5 ports, this dock also features four USB 3.2 Gen 2 Type-A ports for connecting those latest keyboards, exterior drives, and other peripherals needed to customize your workspace.

Eco-Friendly Exterior

Crafted with 75% recycled post-consumer plastics and aluminum, this dock combines outstanding performance with a commitment to sustainability, contributing to a greener future without compromising on speed or reliability.

Do More with Thunderbolt™ Share

Elevate your productivity and collaboration with Intel's Thunderbolt™ Share. Effortlessly share screens, files, or peripherals between two PCs at lightning-fast Thunderbolt™ speeds. Unlock this seamless PC-to-PC connection by downloading the included Thunderbolt Share software.

General Information

  • Manufacturer: Targus Group International
  • Manufacturer Part Number: DOCK230USZ
  • Brand Name: Targus
  • Product Model: DOCK230USZ
  • Product Name: Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR
  • Product Type: Docking Station

Technical Information

  • Connectivity Technology: Wired
  • Charging Capability: Yes
  • Number of Displays Supported: 3
  • Supported Resolutions: 7680 x 4320
  • Screen Mode Supported: 8K
  • Device Supported:
    • Workstation
    • Microphone
    • Speaker
    • Headphone
    • Display Screen
    • Keyboard
    • Mouse
    • Monitor

Network & Communication

  • Ethernet Technology: 2.5 Gigabit Ethernet

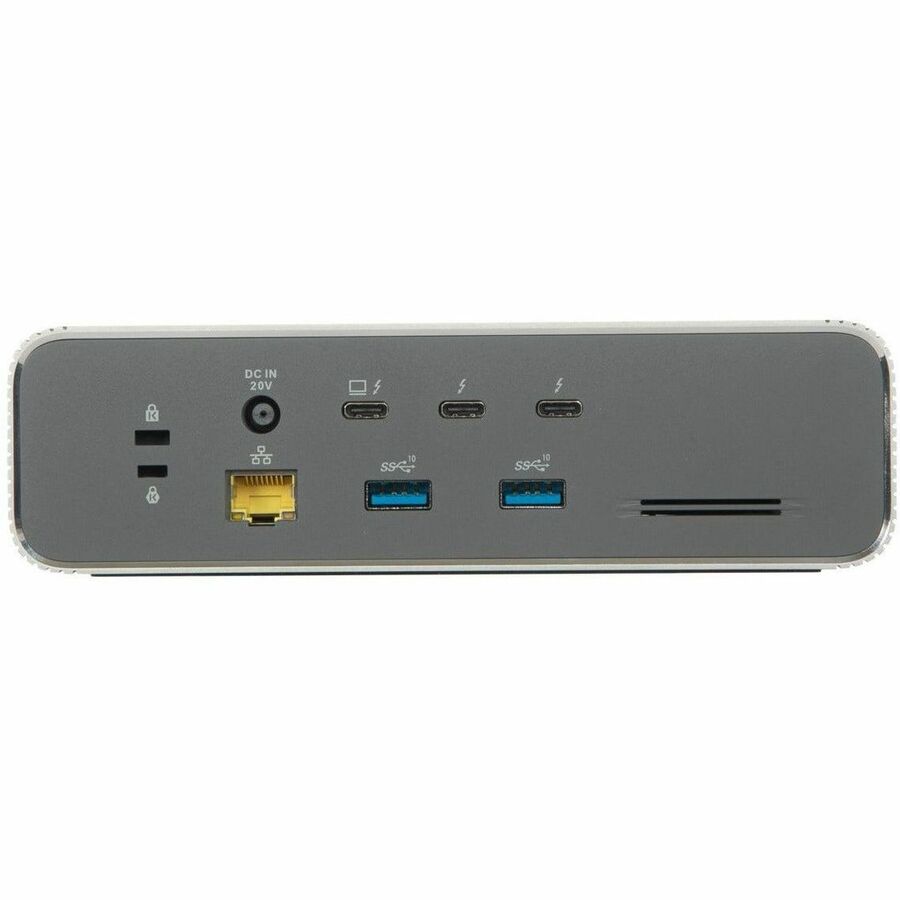

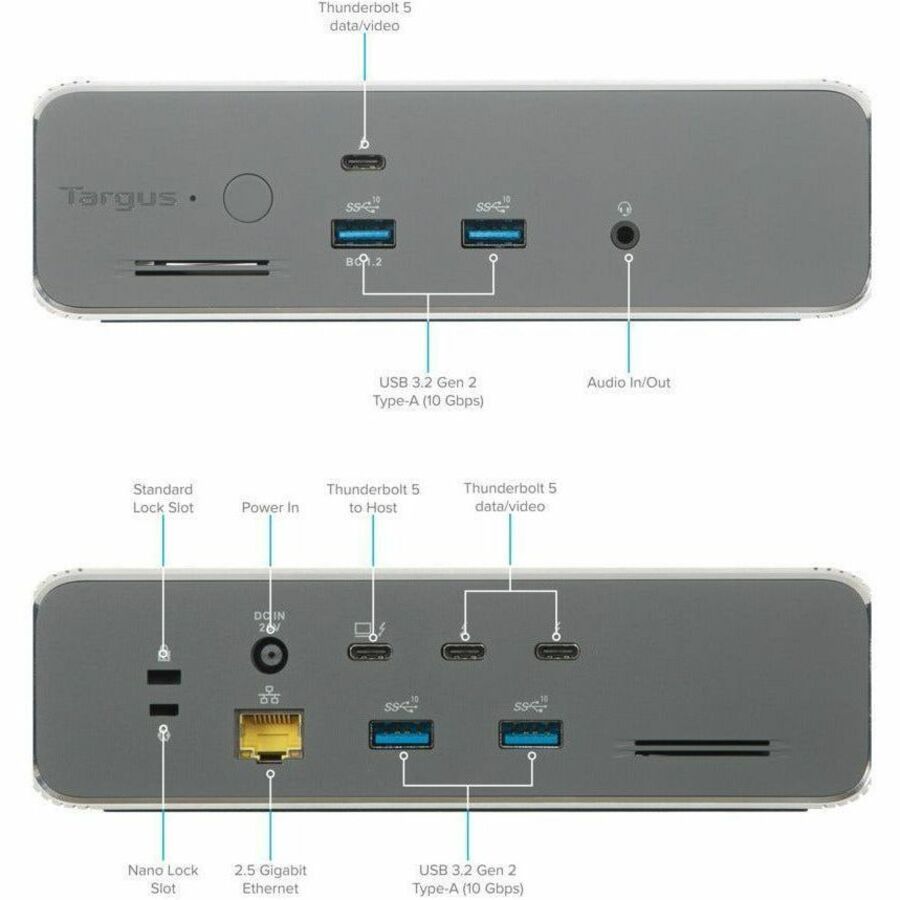

Interfaces/Ports

  • Host Interface: Thunderbolt 5
  • Total Number of USB Ports: 4
  • Number of USB 3.2 Gen 2 Type-A Ports: 4
  • Number of USB Type-A Ports: 4
  • USB Type-A: Yes
  • Number of RJ-45 Ports: 1
  • Network (RJ-45): Yes
  • VGA: No
  • Number of DisplayPorts: 0
  • DisplayPort: No
  • Number of Mini DisplayPort: 0
  • Mini DisplayPort: No
  • Headphone/Microphone Combo Port: Yes
  • Number of HDMI Ports: 0
  • HDMI: No
  • Thunderbolt: Yes
  • Thunderbolt Ports Quantity: 3
  • USB Power Delivery: 140W

Software

  • Operating System Supported:
    • Windows
    • macOS

Power Description

  • Maximum Power Supply Wattage: 180 W

Physical Characteristics

  • Product Color: Silver
  • Weight (Approximate): 2.33 lb

Miscellaneous

  • Package Contents:
    • Thunderbolt 5 Triple Video 8K EcoSmart Dock with 140W EPR
    • Quick Start Guide

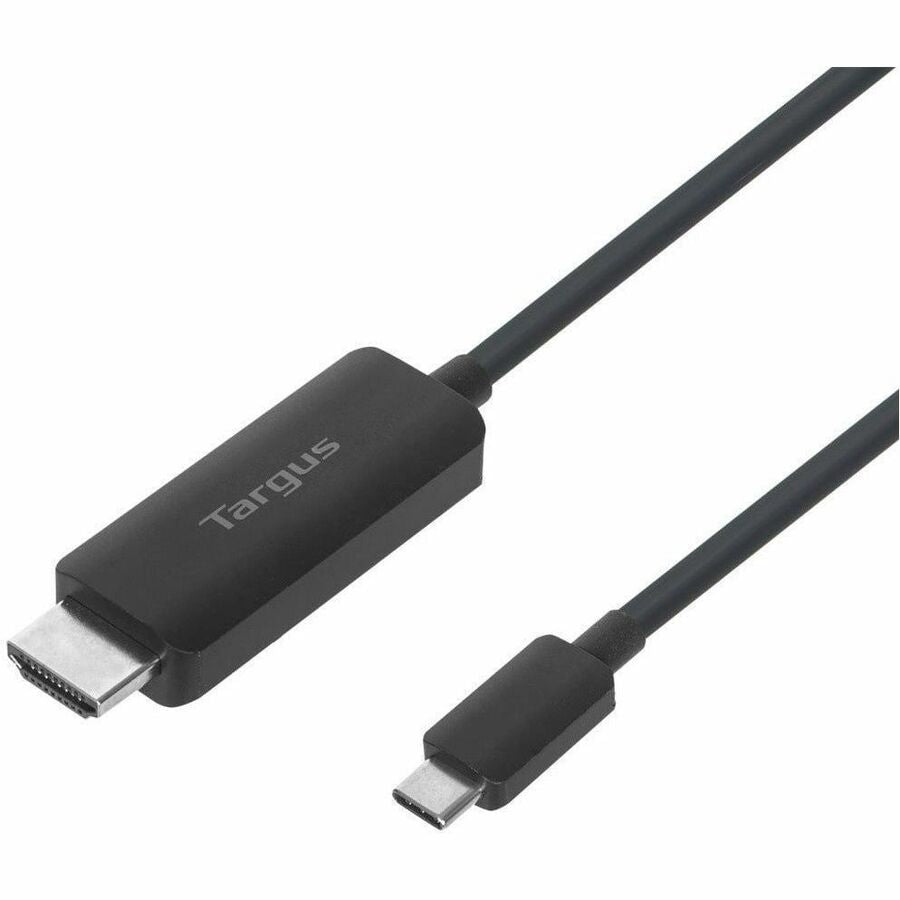

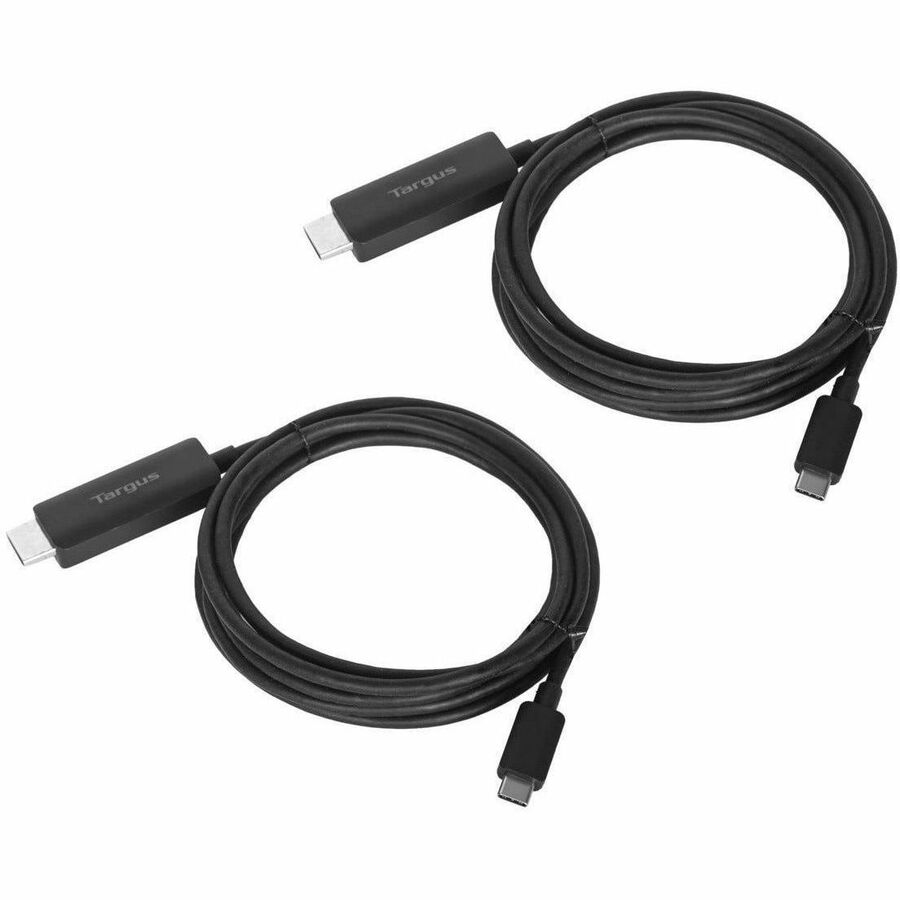

    • USB-C to HDMI Hi-Speed 8K video cables, Black; 2m, (part #: TBD)
    • USB-C to HDMI Hi-Speed 8K video cables, Black; 2m, (part #: TBD)

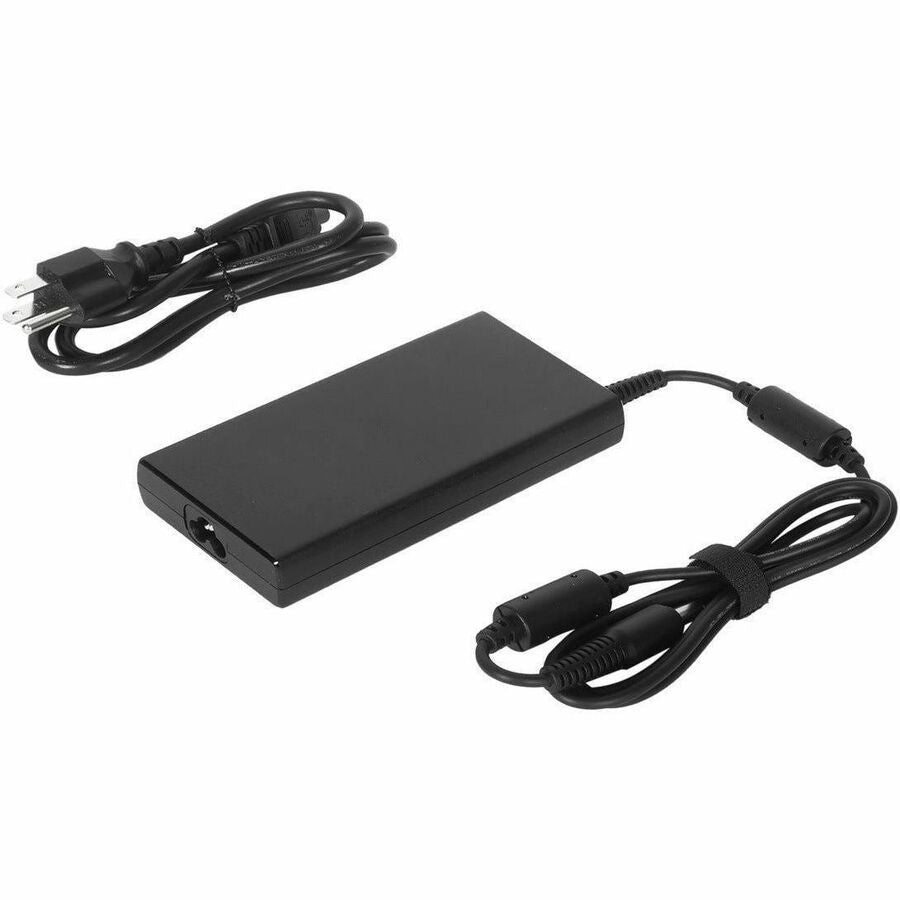

    • Adapter, AC to DC, output: 20V, 9A, 180W, Desk type (part #: TBD)
    • Cable, Input US AC cable cord set, 3pins, 1.8M, C5 connector (part #: TBD)
    • 1.0M passive (80 Gbps data transfer/120 Gbps of video bandwidth) Thunderbolt™ 5 detachable cable (C/M to C/M) (part #: TBD)

  • Kensington Security Slot: Yes
  • TAA Compliant: No

Warranty

  • Limited Warranty: 3 Year
