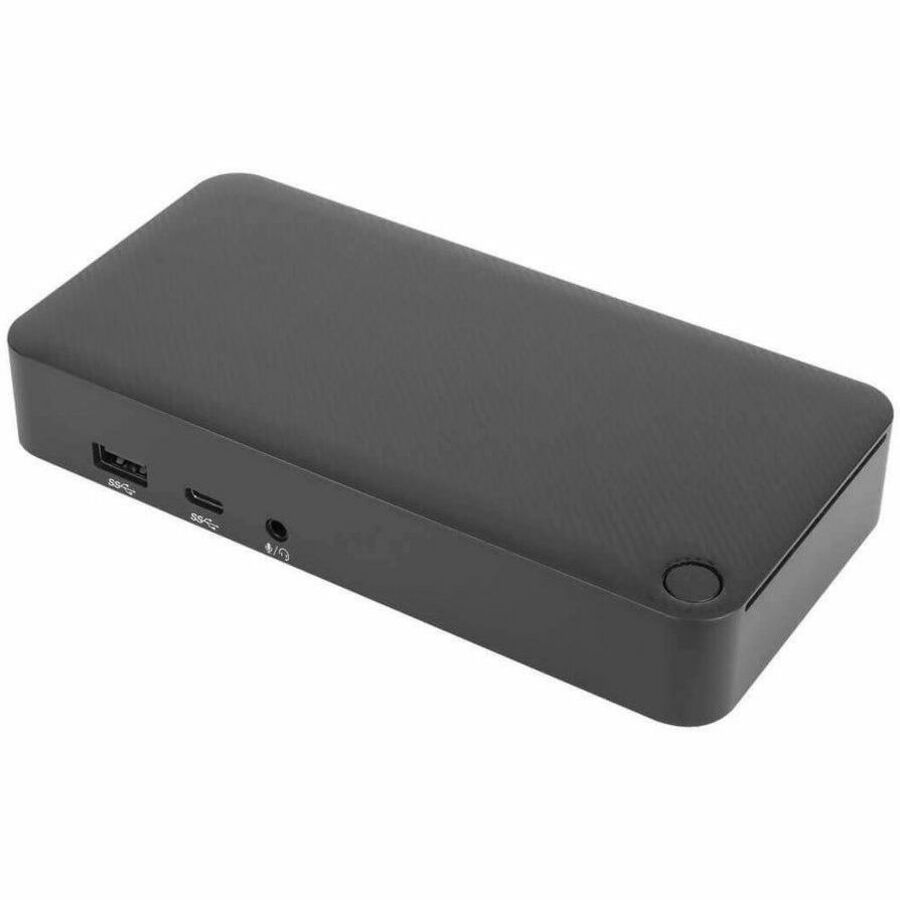

Targus Universal USB-C DV4K Docking Station with 65W Power Delivery - DOCK310USZ
Key Features

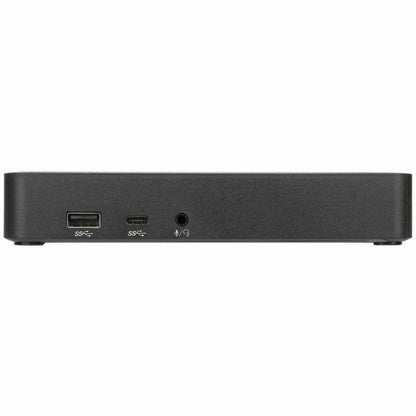

- 1 3.5mm combo Audio In/Out port
- 1 Gigabit Ethernet port
- 1 USB 3.2 Gen 1 Type-C downstream facing port
- 1 USB 3.2 Gen 1 Type-C upstream facing port
- 100WAC Power Adapter

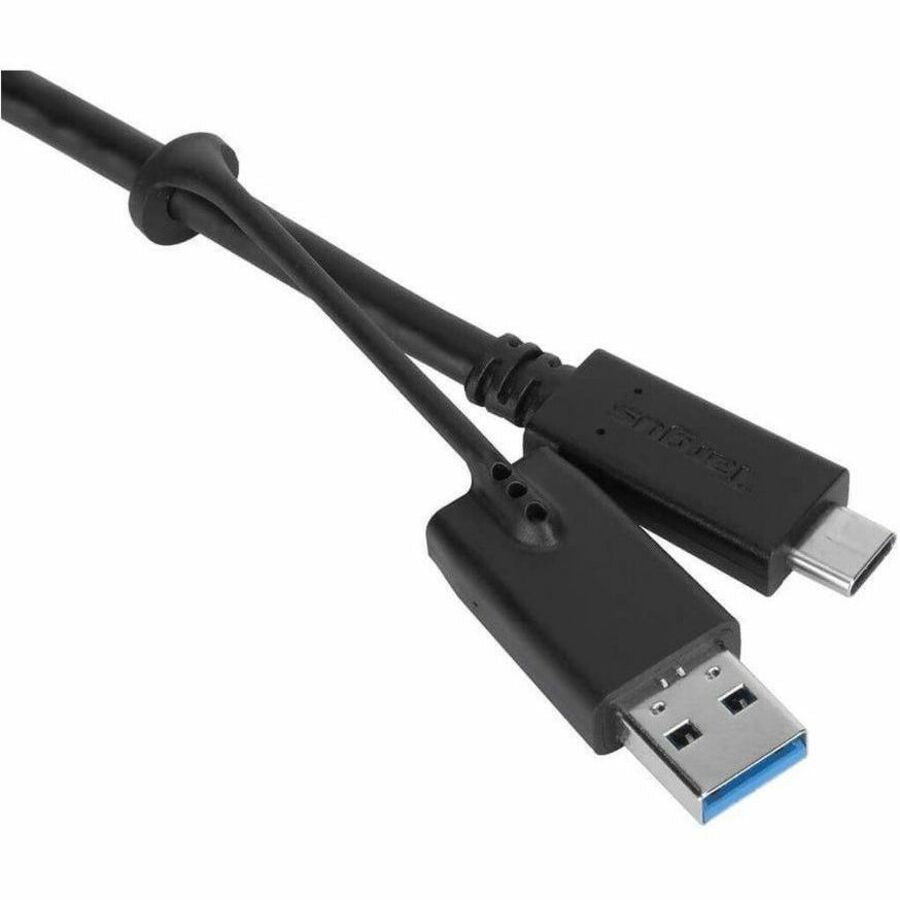

- 1M USB-C detachable host cable (C/M to C/M) with (C/F to A/M) tethered adapter
- 3 USB 3.2 Gen 1 Type-A downstream facing ports

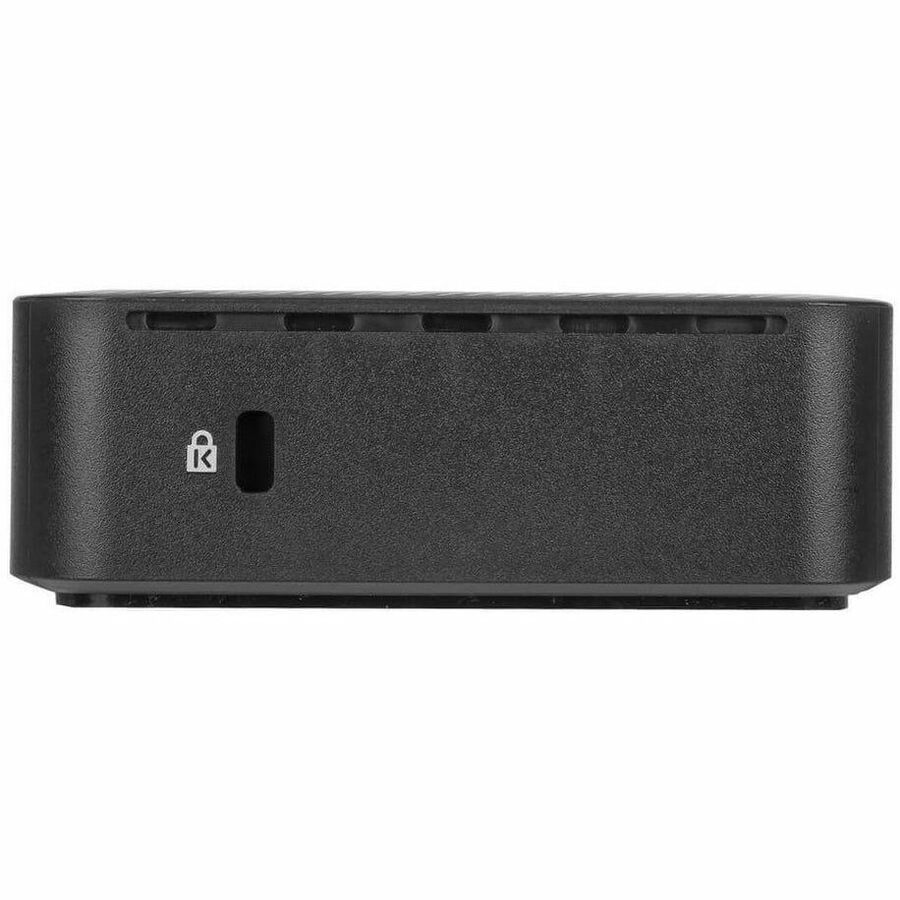

- Integrated lock slot accommodates standard security locks to safeguard equipment
- Power Delivery 3.0 up to 65WDC

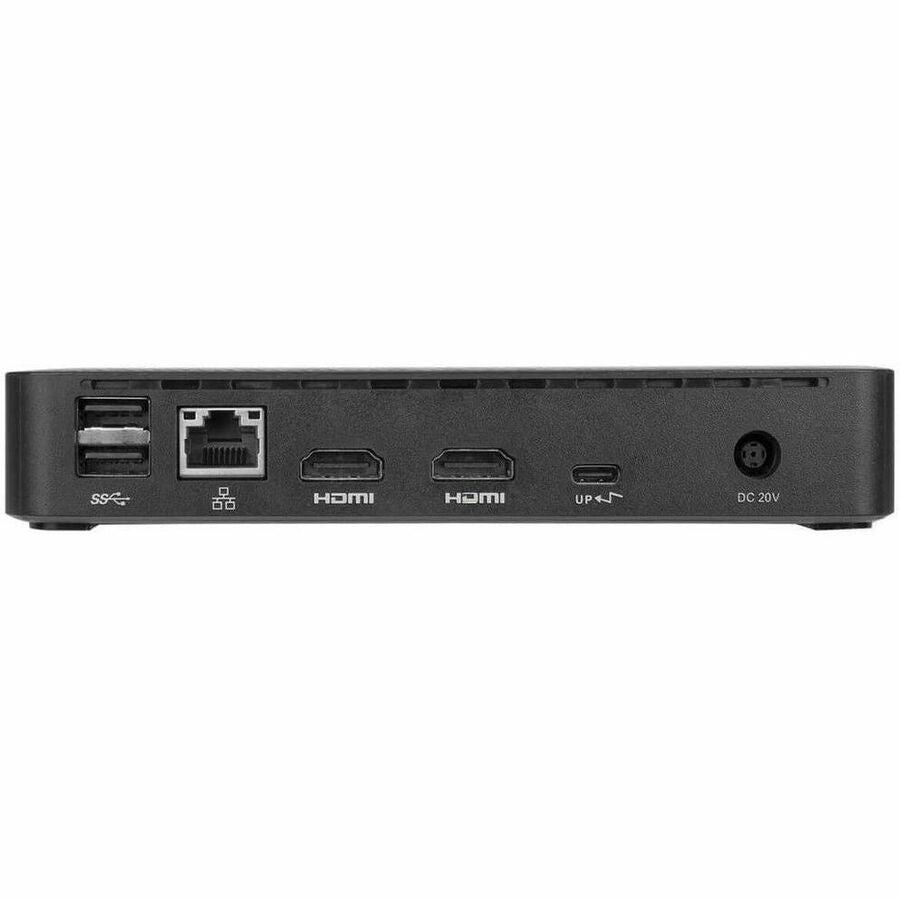

- Supports single 5K and dual 4K UHD @ 60 Hz video via two HDMI 2.0 ports
Product Overview
Create a convenient, productive workstation with the Universal USB-C DV4K Docking Station with 65W Power Delivery. Sleek and powerful this dock packs the necessary ports and power you need in one dock. Designed to support a wide variety of laptop brands and operating systems, including Windows, MacOS, Ubuntu, Android and Chrome.
Enjoy crisp, clear 4K video while supporting a connection up to two monitors. With two HDMI 2.0 ports, you're able to support two monitors (3840x2160 p60). Plus connect all your favorite accessories with a combination of USB-A (3x USB 3.2 Gen 1 Type-A ports) and USB-C (1x 3.2 Gen 1 Type-C), plus Ethernet and audio ports.
Designed for the modern workstation, the dock comes equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
Supports Two HDMI Monitors
Access the latest display technology with two HDMI 2.0 ports that creates a rich, ultra high-definition viewing experience.
Onboard USB 3.2 for Advanced Peripherals and Charging
Three USB 3.2 Gen 1 Type-A ports and 1 USB 3.2 Gen 1 Type-C port make it simple to add the latest keyboards, exterior hard drives, and other peripherals to customize the workspace experience.
Innovative Design
Compact and sleek, this dock is a sure fit for shrinking desktops and tight spaces. The dock is also equipped with a VESA bracket mounting provision, which allows for use of the Targus VESA Mount Bracket (ACX003GLZ - sold separately) to hold your dock behind your display for even greater space savings.
General Information
- Manufacturer: Targus Group International
- Manufacturer Part Number: DOCK310USZ
- Brand Name: Targus
- Product Model: DOCK310USZ
- Product Name: Universal USB-C DV4K Docking Station with 65W Power Delivery
- Product Type: Docking Station
Technical Information
- Connectivity Technology: Wired
- Number of Displays Supported: 2
- Supported Resolutions:
- 5120 x 2880
- 3840 x 2160
- Screen Mode Supported:
- 4K
- 5K
- Device Supported:
- Notebook
- Monitor
Network & Communication
- Ethernet Technology: Gigabit Ethernet
Interfaces/Ports
- Host Interface: USB 3.2 (Gen 1) Type C
- Total Number of USB Ports: 4
- Number of USB 3.2 Gen 1 Type-A Ports: 3
- Number of USB Type-C Ports: 2
- USB Type-C: Yes
- USB Type-C Detail: 1 x USB 3.2 Gen 1 Type-C upstream facing port, 1 x USB 3.2 Gen 1 Type-C downstream facing port
- Number of USB Type-A Ports: 3
- USB Type-A: Yes
- Number of RJ-45 Ports: 1
- Network (RJ-45): Yes
- Number of DisplayPorts: 0
- Number of Mini DisplayPort: 0
- Headphone/Microphone Combo Port: Yes
- Number of HDMI Ports: 2
- HDMI: Yes
- USB Power Delivery: 65W
Software
- Operating System Supported:
- Windows
- macOS
- ChromeOS
- Android
- Ubuntu
- Linux
Power Description
- Maximum Power Supply Wattage: 100 W
Physical Characteristics
- Product Color:
- Black
- Gray
- Height: 1.13"
- Width: 3.25"
- Weight (Approximate): 1 lb
Miscellaneous
- Package Contents:
- Universal USB-C DV4K Docking Station with 65W Power Delivery
- Cable, Input US AC Cable Cord Set, 3pins, 1.8M, C5 Connector
- Quick Start Guide
- Adapter, AC to DC, Output: 20V, 5A, 100W, Desk Type, Input: C6, O/P Barrel: 7.5mm, Level VI
- Dock E. USB-A to USB-C Tether with 1m USB-C M-M Cable for DOCK310
- USB-C/F to A/M Adapter
- Kensington Security Slot: Yes
- Environmentally Friendly: Yes
- TAA Compliant: No
- Environmental Compliance: Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin: Thailand
Warranty
- Limited Warranty: 3 Year
